Automatic Transmission Shift Lock Control Connector End Views

Floor Shift Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

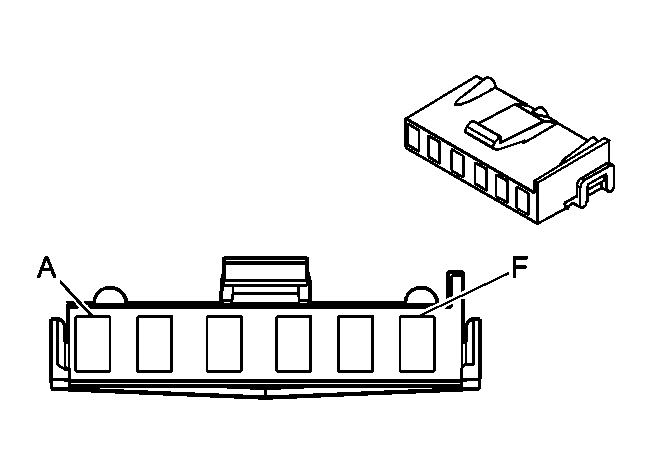

Connector Part Information		12064762 6-Way F Metri-Pack 150 Series (GRY)
Pin	Wire Color	Circuit No.	Function
A	BLK	1050	Ground
B	LT GRN /BLK	584	Park Lock Control Solenoid Supply Voltage
C	YEL	1996	Remote Shift Selector Signal
D	-	-	Not Used
E	DK GRN/WHT	1135	A/T Shift Lock Control Solenoid Supply Voltage
F	PNK	1020	Ignition 0 Voltage

Park/Neutral Position (PNP) Switch Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129840 7-Way F Metri-Pack 150 280 (MD GRY)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	LT GRN	275	Park Neutral Position Switch Park Signal
C	PNK	839	Ignition 1 Voltage
D	BLK/WHT	451	Ground
E	PNK	639	Ignition 1 Voltage
F	GRY	1524	Backup Lamp Supply Voltage
G	DK GRN	1433	Clutch Start Switch Signal

Stop Lamp Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12040551 6-Way F Metri-Pack 480 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	WHT	17	Stop Lamp Switch Signal
B	ORN	1540	Battery Positive Voltage
C	BRN	441	Ignition 3 Voltage
D	PPL	420	TCC Brake Switch/Cruise Control Release Signal
E	LT GRN/BLK	584	A/T Shift Lock Control Switch Supply Voltage
F	DK GRN/WHT	1135	A/T Shift Lock Control Solenoid Supply Voltage
