Installation Procedure

Fig 1: Removing/Installing Shift Lock Actuator

Courtesy of GENERAL MOTORS CORP.

In the DRIVE position, depress the shift lock actuator button and realign into the shiftier lever.
Push lever to NEUTRAL.

NOTE: Refer to Fastener Notice in Cautions and Notices

Install the top screw through the lever slot.
Tighten: Tighten the actuator screw to 1.65 N.m (15 lb in).
Shift lever to LOW.
Install the screw at the rear of the shiftier assembly.
Tighten: Tighten the actuator screw to 1.65 N.m (15 lb in).

Fig 2: Shift Lock Actuator & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

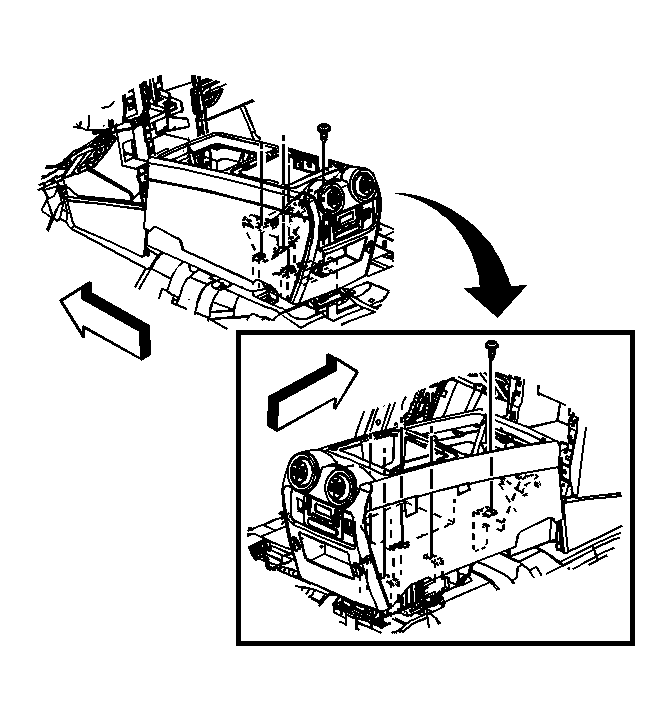

Fig 3: Center Console Bolts

Courtesy of GENERAL MOTORS CORP.

Install the console. Refer to Console Replacement in Instrument Panel, Gages and Console.
