Power Door Systems Component Views

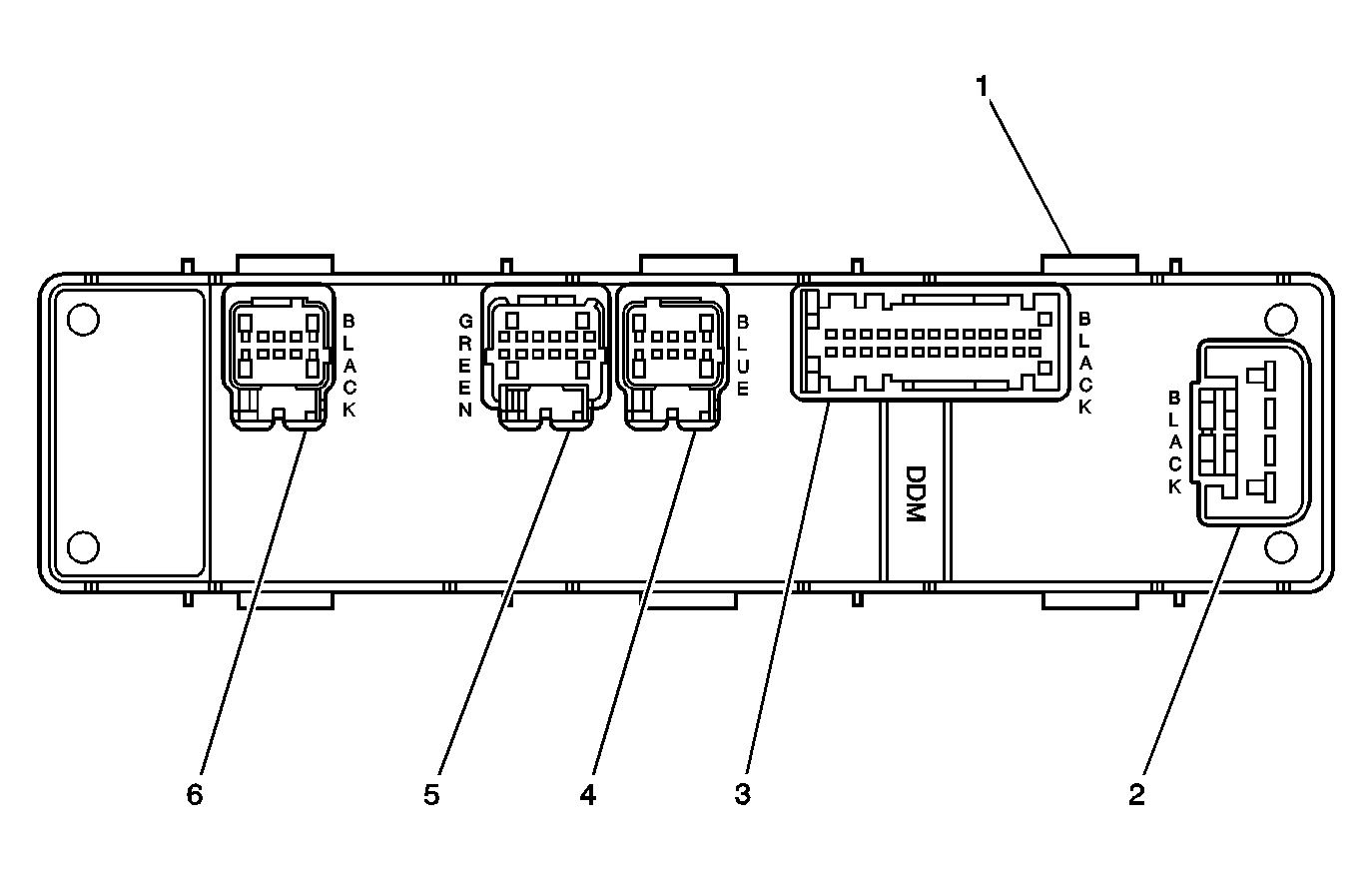

Fig 1: Driver Door Module (DDM) Connector Locations Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	DDM
2	DDM - C1 (Black)
3	DDM - C2 (Black)
4	Mirror Harness Connector - C3 (Blue)
5	Memory/Heated Seat Switch Connector - C5 (Green)
6	Mirror Harness Connector - C4 (Black)

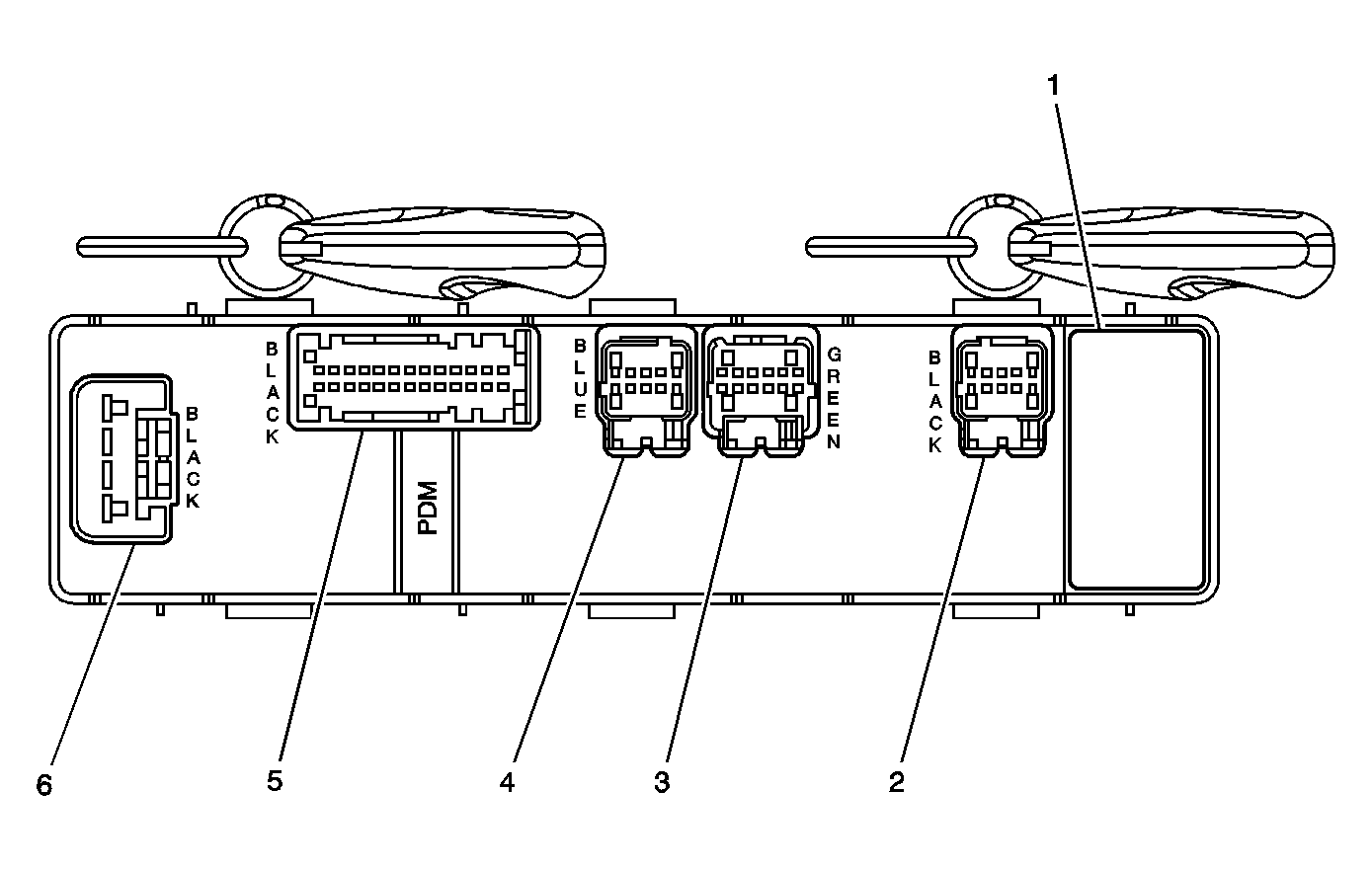

Fig 2: Front Passenger Door Module (FPDM) Connector Locations Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	FPDM
2	Mirror Harness Connector - C4 (Black)
3	Memory/Heated Seat Switch Connector - C5 (Green)
4	Mirror Harness Connector - C3 (Blue)
5	FPDM - C2 (Black)
6	FPDM - C1 (Black)

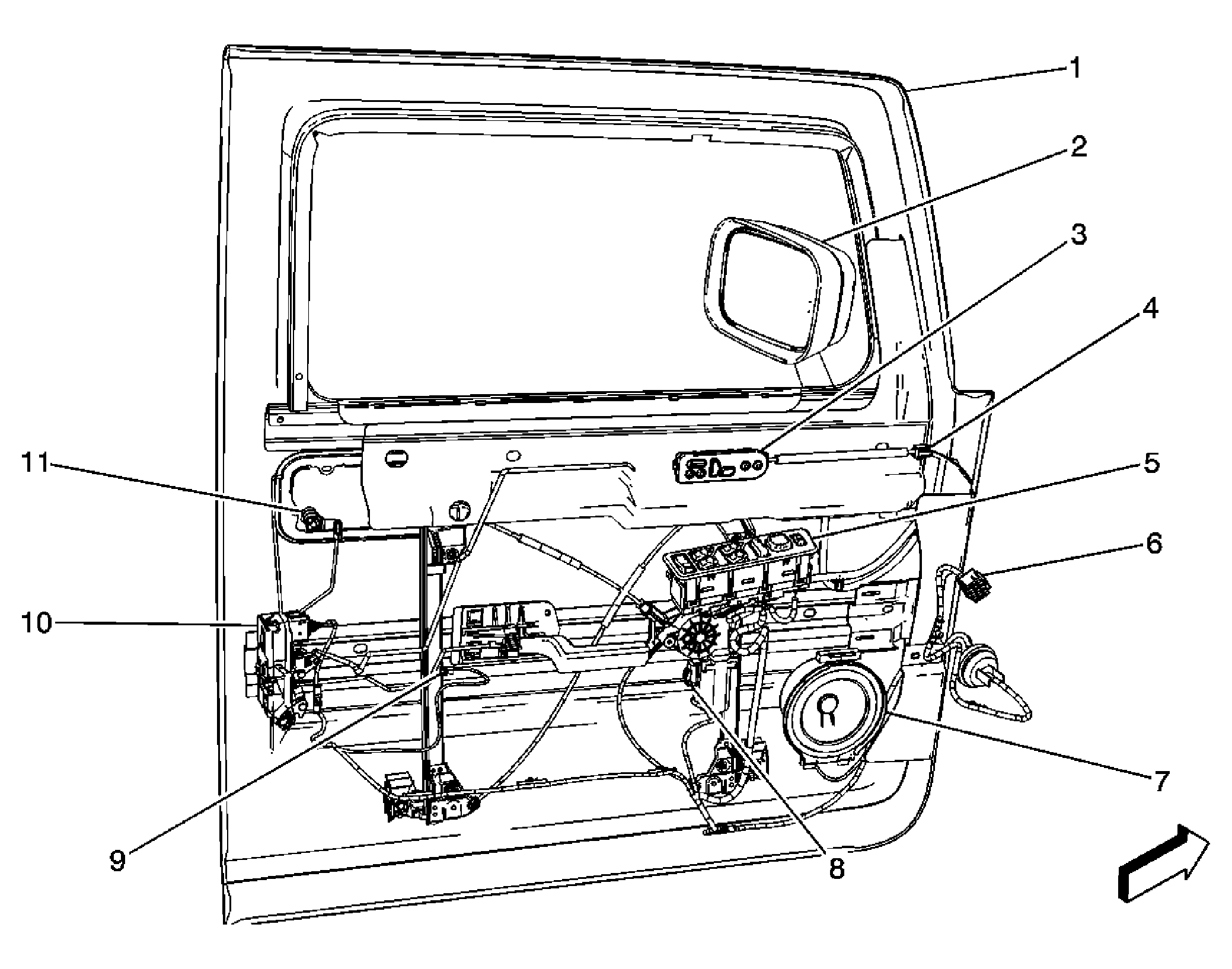

Fig 3: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Outside Rearview Mirror
3	Memory/Heated Seat Switch
4	Memory/Heated Seat Switch Connector - C5 (Green)
5	Driver Door Module (DDM)
6	Fuse Block - I/P - C3
7	Speaker - LF Door
8	Window Motor - Driver
9	Courtesy Lamp - Left Door
10	Door Latch Assembly - Driver
11	Door Latch Assembly Connector - Driver

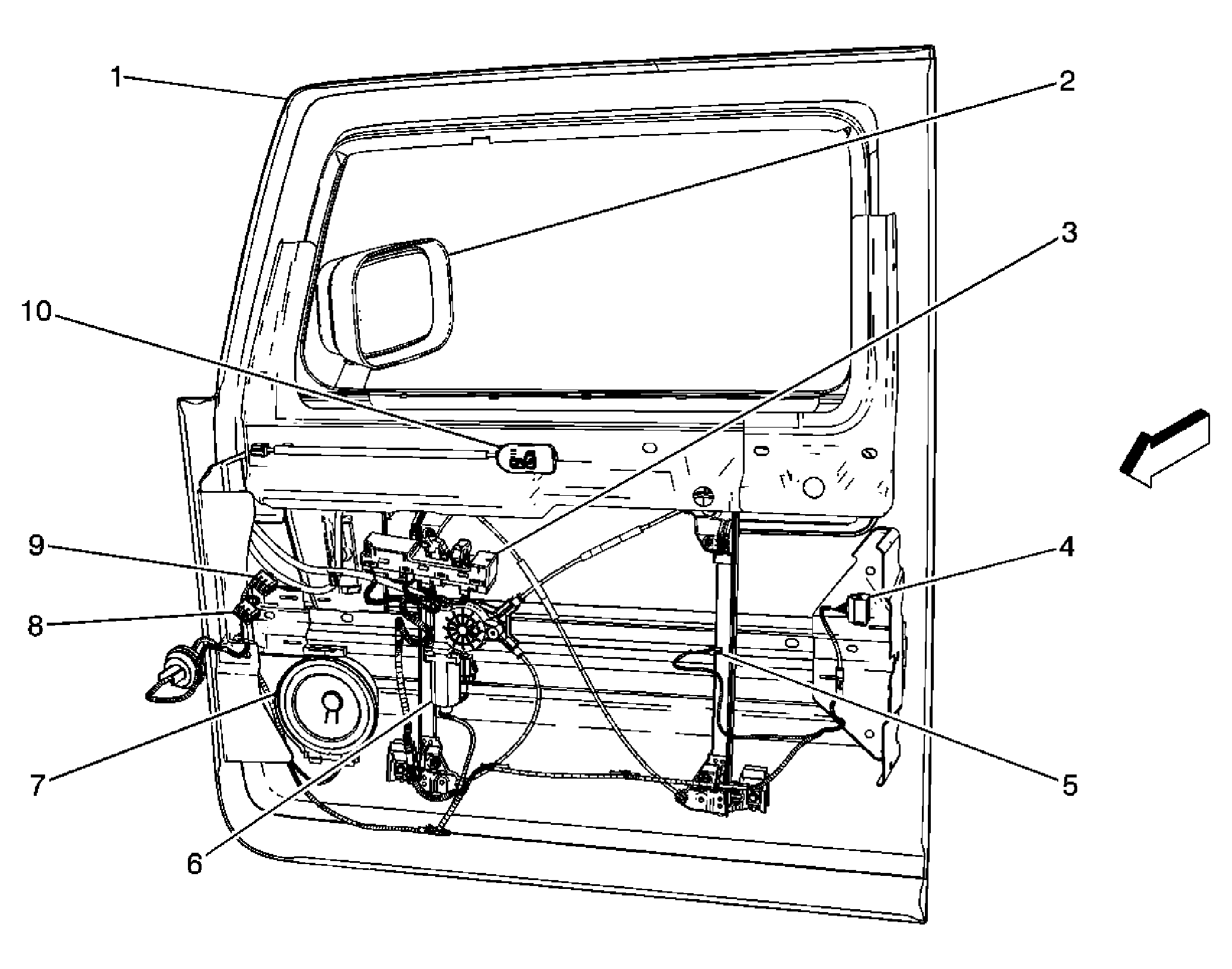

Fig 4: Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door
2	Outside Rearview Mirror
3	Passenger Door Module (PDM)
4	Door Latch Assembly - Passenger
5	Courtesy Lamp - Right Door
6	Window Motor - Front Passenger
7	Speaker - RF Door
8	Junction Block - I/P - C2
9	Junction Block - I/P - C7
10	Heated Seat Switch

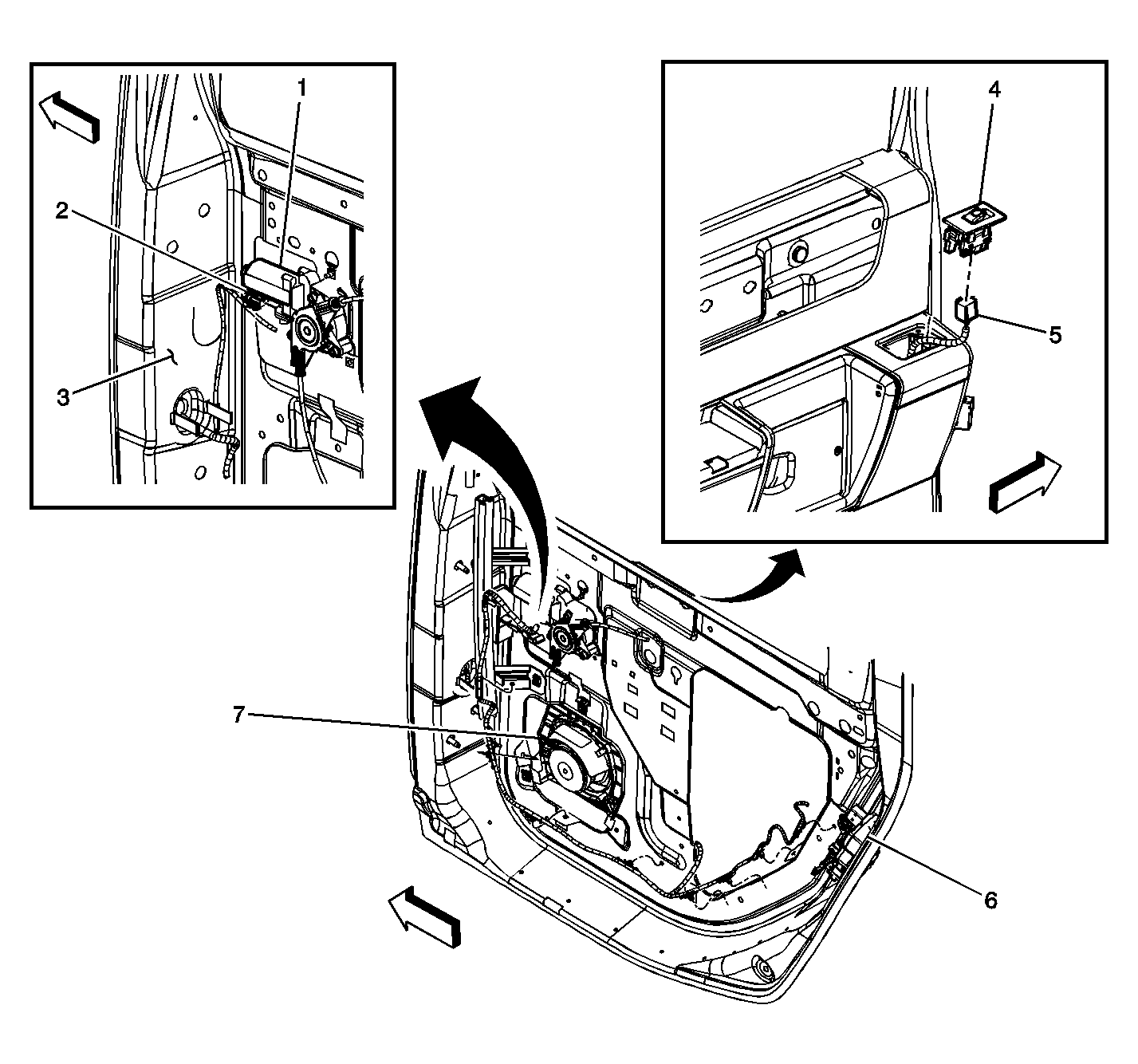

Fig 5: Left Rear Door Component Views (RT Rear Door Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Window Motor - LR
2	Door Window Motor Connector - LR
3	Door Harness Pass-Through Grommet
4	Door Window Switch - LR
5	Door Window Switch Connector - LR
6	Door Latch Assembly - LR
7	Speaker - LR Door

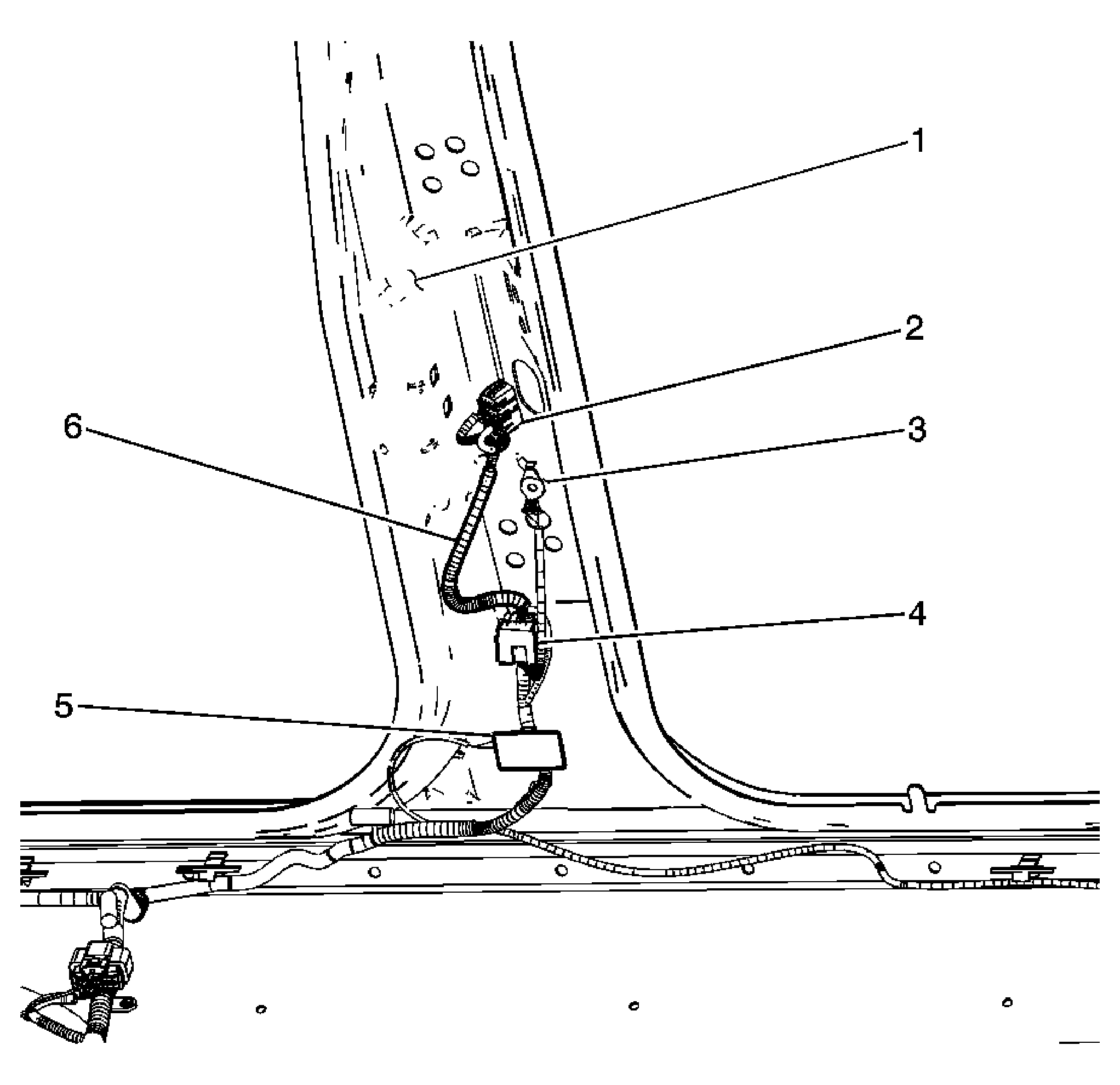

Fig 6: Liftgate Relay Component Views

Courtesy of GENERAL MOTORS CORP.

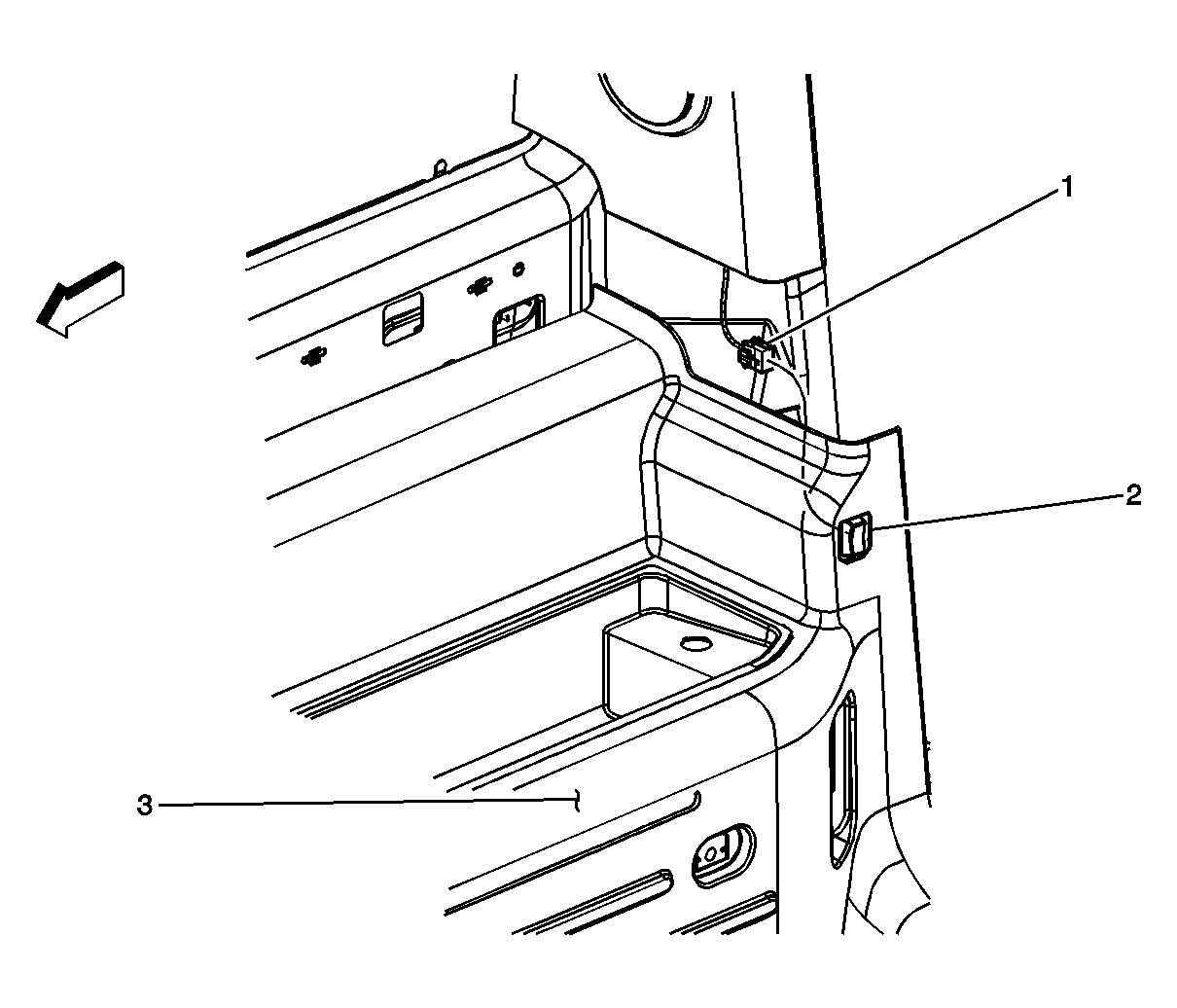

Fig 7: Door Lock Switch-Rear Cargo Area Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch Connector - Rear
2	Door Lock Switch - Rear
3	Rear Storage Bin

Fig 8: Door Lock Actuator - Liftgate Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL) Connector
2	Rear Window Defogger Grid Connector
3	Rear Window Defogger Grid Connector
4	Splice S900
5	Rear Window Wiper Module - w/Motor
6	Door Lock Actuator - Liftgate
7	Liftgate Ajar Switch - Left
8	Liftgate Ajar Switch - Right
9	Splice S902
10	Splice S901
