Power Door Systems Connector End Views

Door Latch Assembly Terminal Identification - Driver

GM845631Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10768367
  • 10-Way F SLD AMP (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4-5 - - Not Used
6 GY/BK 745 Left Front Door Ajar Switch Signal
7 - - Not Used
8 BN 1183 Left Front Door Switch Low Reference
9 L-GN 262 Driver Door Key Switch Signal
10 - - Not Used
Door Latch Assembly Terminal Identification - Front Passenger

GM845631Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10768367
  • 10-Way F AMP SLD (BK)
Pin Wire Color Circuit No. Function
1 BK/WH 746 Right Front Door Ajar Switch Signal
2 - - Not Used
3 D-GN 1178 Right Front Door Switch Low Reference
4 L-GN 265 Passenger Door Key Switch Signal
5-6 - - Not Used
7 TN 294 Door Lock Actuator Unlock Control
8 GY 295 Door Lock Actuator Lock Control
9-10 - - Not Used
Door Latch Assembly Terminal Identification - LR

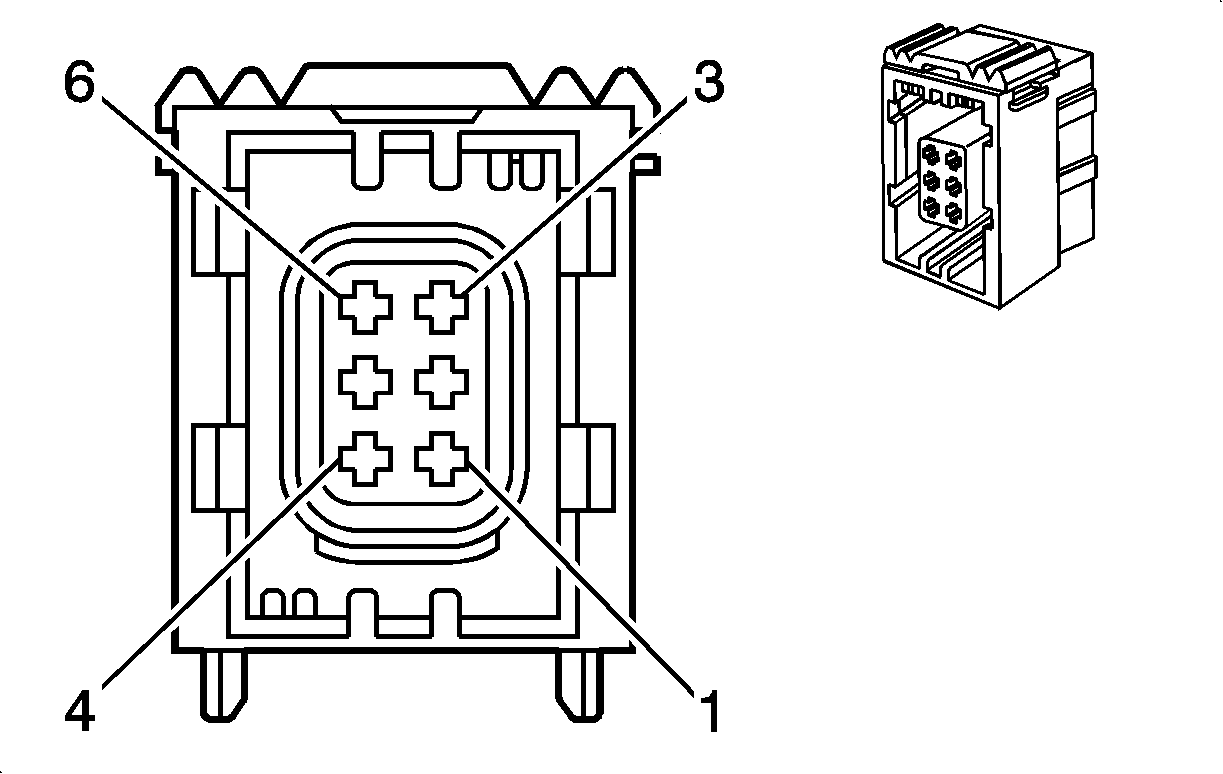

GM845632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10768369
  • 6-Way F SLD AMP (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 L-BU/BK 747 Left Rear Door Ajar Switch Signal
5 - - Not Used
6 BK 1150 Ground
Door Latch Assembly Terminal Identification - RR

GM845632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10768369
  • 6-Way F SLD AMP (BK)
Pin Wire Color Circuit No. Function
1 L-GN/BK 748 Right Rear Door Ajar Switch Signal
2 - - Not Used
3 BK 1250 Ground
4 - - Not Used
5 TN 294 Door Lock Actuator Unlock Control
6 GY 295 Door Lock Actuator Lock Control
Door Lock Actuator Terminal Identification - Liftgate

GM684799Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077900
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Lock Terminal Identification Switch - Rear

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BK 2351 Ground
C - - Not Used
D L-BU 195 Rear Door Lock Switch Signal
E-G - - Not Used
H WH 194 Rear Door Unlock Switch Signal
Driver Door Module (DDM) Terminal Identification - C1

GM845628Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15393410
  • 4-Way F AMP 2.8 mm Sealed (BK)
Pin Wire Color Circuit No. Function
1 BN 165 Power Window Motor Left Front Down Control
2 OG 1240 Battery Positive Voltage
3 D-BU 164 Power Window Motor Left Front Up Control
4 BK 1050 Ground
Driver Door Module (DDM) Terminal Identification - C2

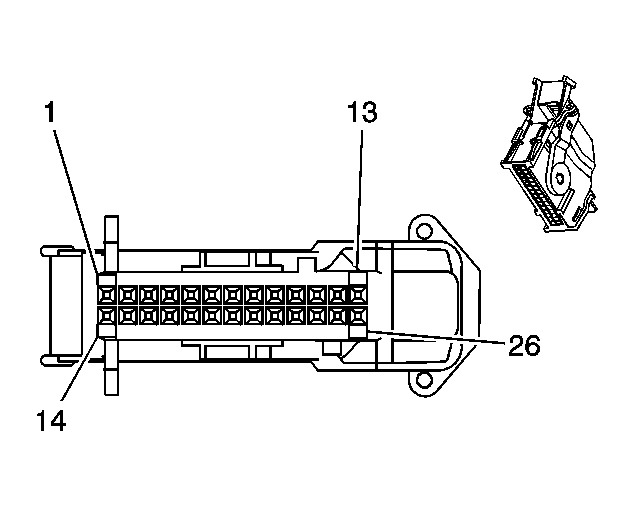

GM966311Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398841
  • 26-Way F AMP Lever Assist (BK)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 BN 1183 Left Front Door Switch Low Reference
4 D-BU 660 Left Front Door Courtesy Lamp Control
5-9 - - Not Used
10 GY 1690 Automatic Day/Night Mirror Signal
11 - - Not Used
12 PK 1691 Automatic Day/Night Mirror Low Reference
13 D-BU/WH 149 Courtesy Lamp - Left Front Door Supply Voltage
14 OG 4140 Battery Positive Voltage
15 L-GN 262 Driver Door Key Switch Signal
16-17 - - Not Used
18 GY/BK 745 Left Front Door Ajar Switch Signal
19 - - Not Used
20 TN 294 Door Lock Actuator Unlock Control
21 GY 295 Door Lock Actuator Lock Control
22 BN 1046 DDM Class 2 Serial Data
23-26 - - Not Used
Driver Door Module (DDM) Terminal Identification - C3

GM850873Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-7
  • 10-Way F 0.64 mm Unsealed AMP (BU)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 BK - Driver Mirror Heating Element Low Reference
4 PU - Mirror Sensor Low Reference
5-6 - - Not Used
7 GY - Automatic Day/Night Mirror Signal
8 PK - Automatic Day/Night Mirror Low Reference
9-10 - - Not Used
Driver Door Module (DDM) Terminal Identification - C4

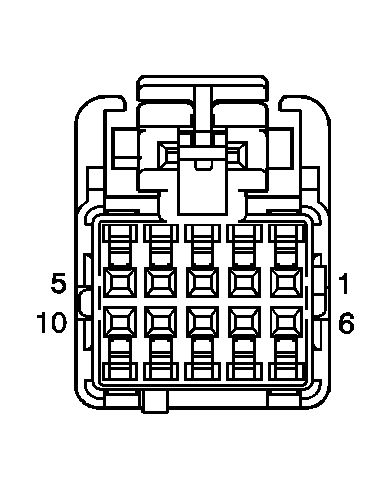

GM850870Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-5
  • 10-Way F 0.64 mm Unsealed AMP (BK)
Pin Wire Color Circuit No. Function
1 YE - Driver Folding Mirror Motor Extend Control
2 OG - Mirror Heating Element Supply Voltage
3 RD - Driver Mirror Horizontal Position Sensor Signal
4 D-GN - 5-Volt Reference
5 D-BU - Driver Mirror Vertical Position Sensor Signal
6 L-BU - Driver Folding Mirror Motor Retract Control
7 YE/WH - Driver Mirror Right/Down Motors Common
8 L-BU - Driver Mirror Motor Right Control
9 L-GN - Driver Mirror Motor Down Control
10 - - Not Used
Driver Door Module (DDM) Terminal Identification - C5

GM849815Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-4
  • 12-Way F AMP 0.64 mm Unsealed (GN)
Pin Wire Color Circuit No. Function
1 WH/BK - Medium Heat Indicator Control
2 YE - Low Heat Indicator Control
3 GY - Back Only Select
4 L-BU - Memory/Heated Seat Backlight
5 PK - Memory 2 Switch Signal
6 - - Not Used
7 D-GN - High Heat Indicator Control
8 BK - Back Only Indicator
9 D-BU - Back and Cushion Select
10 RD - Memory 1 Switch Signal
11 BN - Memory/Heated Switch Supply Voltage
12 - - Not Used
Front Passenger Door Module (FPDM) Terminal Identification - C1

GM845628Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15393410
  • 4-Way F 2.8 mm Sealed AMP (BK)
Pin Wire Color Circuit No. Function
1 BN 667 Power Window Motor Right Front Down Control
2 OG 1340 Battery Positive Voltage
3 BK 1050 Ground
4 D-BU 666 Power Window Motor Right Front Up Control
Front Passenger Door Module (FPDM) Terminal Identification - C2

GM966311Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398841
  • 26-Way F AMP Lever Assist (BK)
Pin Wire Color Circuit No. Function
1-4 - - Not Used
5 BK/WH 746 Right Front Door Ajar Switch Signal
6-7 - - Not Used
8 WH 156 Courtesy Lamp-Right Front Door Supply Voltage
9 - - Not Used
10 GY 295 Door Lock Actuator Lock Control
11 TN 294 Door Lock Actuator Unlock Control
12-13 - - Not Used
14 OG 4240 Battery Positive Voltage
15-18 - - Not Used
19 L-BU 661 Right Front Door Courtesy Lamp Control
20 D-GN 1178 Right Front Door Switch Low Reference
21 - - Not Used
22 TN 1047 PDM Class 2 Serial Data
23 - - Not Used
24 L-GN 265 Passenger Door Key Switch Signal
25-26 - - Not Used
Front Passenger Door Module (FPDM) Terminal Identification - C3

GM850873Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-7
  • 10-Way F 0.64 mm Unsealed AMP (BU)
Pin Wire Color Circuit No. Function
1 RD/WH - Passenger Mirror Motor Right Control
2 WH - Passenger Mirror Right/Down Motors Common
3 YE - Passenger Folding Mirror Motor Extend Control
4 L-BU - Passenger Folding Mirror Motor Retract Control
5 - - Not Used
6 PU/WH - Passenger Mirror Motor Down Control
7 OG - Mirror Heating Element Supply Voltage
8 BK - Mirror Heating Element Low Reference
9-10 - - Not Used
Front Passenger Door Module (FPDM) Terminal Identification - C4

GM850870Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-5
  • 10-Way F 0.64 mm Unsealed AMP (BK)
Pin Wire Color Circuit No. Function
1 D-GN - 5-Volt Reference
2 RD - Passenger Mirror Vertical Position Sensor Signal
3 PU - Low Reference
4 D-BU - Passenger Mirror Horizontal Position Sensor Signal
5-10 - - Not Used
Front Passenger Door Module (FPDM) Terminal Identification - C5

GM849815Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-4
  • 12-Way F AMP 0.64 mm Unsealed (GN)
Pin Wire Color Circuit No. Function
1 YE - Low Heat Indicator Control
2 D-GN - High Heat Indicator Control
3 D-BU - Back Only Select
4 GY - Back and Cushion Select
5 - - Not Used
6 BN - Memory/Heated Seat Switch Supply Voltage
7 BK - Back Only Indicator Control
8 WH/BK - Medium Heat Indicator Control
9-11 - - Not Used
12 L-BU - Heated Seat Switch Backlight
Liftgate Ajar Terminal Identification Switch - Left

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A BK 1450 Ground
B PK/BK 1303 Liftgate Ajar Switch Signal
Liftgate Ajar Terminal Identification Switch - Right

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A BK 1450 Ground
B PK/BK 1303 Liftgate Ajar Switch Signal
Door Lock Terminal Identification Relay - Liftgate

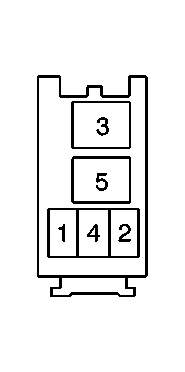

GM95768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065978
  • 5-Way F Metri-Pack 480/630 Series Sealed (GY)
Pin Wire Color Circuit No. Function
1 WH 1304 Liftgate Lock Relay Control
2 OG 3140 Battery Positive Voltage
3 GY 295 Door Lock Actuator Lock Control
4 BK 1450 Ground
5 OG 3140 Battery Positive Voltage
Outside Rear View Mirror - Driver (Driver Door Module (DDM) Terminal Identification - C3)

GM850873Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-7
  • 10-Way F 0.64 mm Unsealed AMP (BU)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 BK - Driver Mirror Heating Element Low Reference
4 PU - Mirror Sensor Low Reference
5-6 - - Not Used
7 GY - Automatic Day/Night Mirror Signal
8 PK - Automatic Day/Night Mirror Low Reference
9-10 - - Not Used
Outside Rear View Mirror - Driver (Driver Door Module (DDM) Terminal Identification - C4)

GM850870Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-5
  • 10-Way F 0.64 mm Unsealed AMP (BK)
Pin Wire Color Circuit No. Function
1 YE - Driver Folding Mirror Motor Extend Control
2 OG - Mirror Heating Element Supply Voltage
3 RD - Driver Mirror Horizontal Position Sensor Signal
4 D-GN - 5-Volt Reference
5 D-BU - Driver Mirror Vertical Position Sensor Signal
6 L-BU - Driver Folding Mirror Motor Retract Control
7 YE/WH - Driver Mirror Right/Down Motors Common
8 L-BU - Driver Mirror Motor Right Control
9 L-GN - Driver Mirror Motor Down Control
10 - - Not Used
Outside Rear View Mirror - Passenger (Front Passenger Door Module (FPDM) Terminal Identification - C3)

GM850873Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-7
  • 10-Way F 0.64 mm Unsealed AMP (BU)
Pin Wire Color Circuit No. Function
1 RD/WH - Passenger Mirror Motor Right Control
2 WH - Passenger Mirror Right/Down Motors Common
3 YE - Passenger Folding Mirror Motor Extend Control
4 L-BU - Passenger Folding Mirror Motor Retract Control
5 - - Not Used
6 PU/WH - Passenger Mirror Motor Down Control
7 OG - Mirror Heating Element Supply Voltage
8 BK - Mirror Heating Element Low Reference
9-10 - - Not Used
Outside Rear View Mirror - Passenger (Front Passenger Door Module (FPDM) Terminal Identification - C4)

GM850870Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6383393-5
  • 10-Way F 0.64 mm Unsealed AMP (BK)
Pin Wire Color Circuit No. Function
1 D-GN - 5-Volt Reference
2 RD - Passenger Mirror Vertical Position Sensor Signal
3 PU - Low Reference
4 D-BU - Passenger Mirror Horizontal Position Sensor Signal
5-10 - - Not Used
Window Terminal Identification Motor - Driver

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)
Pin Wire Color Circuit No. Function
A D-BU 164 Power Window Motor Left Front Up Control
B BN 165 Power Window Motor Left Front Down Control
Window Terminal Identification Motor - Front Passenger

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)
Pin Wire Color Circuit No. Function
A D-BU 666 Power Window Motor Right Front Up Control
B BN 667 Power Window Motor Right Front Down Control
Window Terminal Identification Motor - LR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)
Pin Wire Color Circuit No. Function
A BN 669 Power Window Motor Left Rear Down Control
B D-BU 668 Power Window Motor Left Rear Up Control
Window Terminal Identification Motor - RR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (M-GY)
Pin Wire Color Circuit No. Function
A BN 671 Power Window Motor Right Rear Down Control
B D-BU 670 Power Window Motor Right Rear Up Control
Window Terminal Identification Switch - LR

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F Metri-Pack 280 Series (BN)
Pin Wire Color Circuit No. Function
A OG 1240 Battery Positive Voltage
B YE 1187 Power Window Switch Relay Left Rear Down Control
C WH 1185 Power Window Switch Relay Left Rear Up Control
D L-BU 2265 Power Window Lockout Left Rear Signal
E BK 1150 Ground
F D-BU 668 Power Window Motor Left Rear Up Control
G BN 669 Power Window Motor Left Rear Down Control
H BN/WH 230 Instrument Panel Lamps Dimming Control
Window Terminal Identification Switch - RR

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way F Metri-Pack 280 Series (BN)
Pin Wire Color Circuit No. Function
A OG 1340 Battery Positive Voltage
B D-GN 1188 Power Window Switch Relay Right Rear Down Control
C GY/BK 1186 Power Window Switch Relay Right Rear Up Control
D L-GN 2266 Power Window Lockout Right Rear Signal
E BK 1250 Ground
F D-BU 670 Power Window Motor Right Rear Up Control
G BN 671 Power Window Motor Right Rear Down Control
H BN/WH 230 Instrument Panel Lamps Dimming Control
scientia non olet · About LEMON Manuals
