Installation Procedure

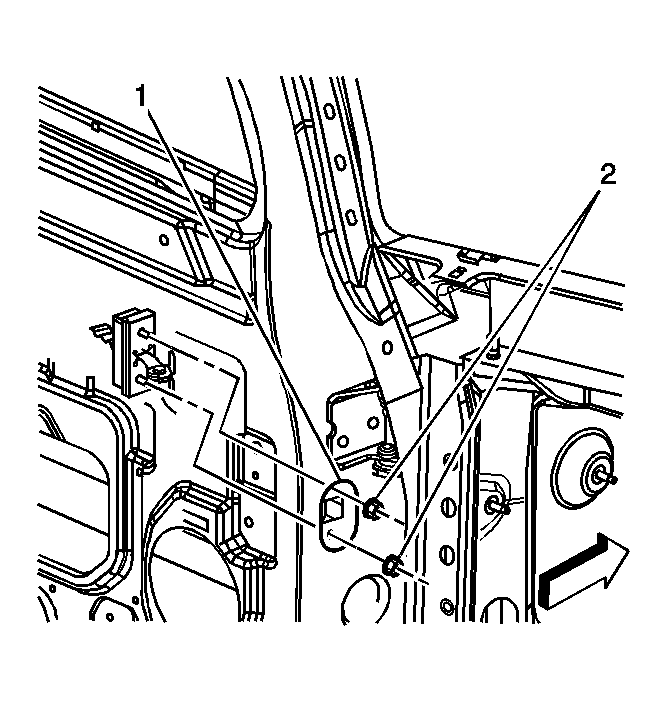

Fig 1: Rubber Grommet & Front Door Check Link Opening

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the nuts (2) that retain the check link to the door.
Tighten: Tighten the nuts to 9 N.m (7 lb ft).
Replace the rubber grommet in the door check link opening (1).

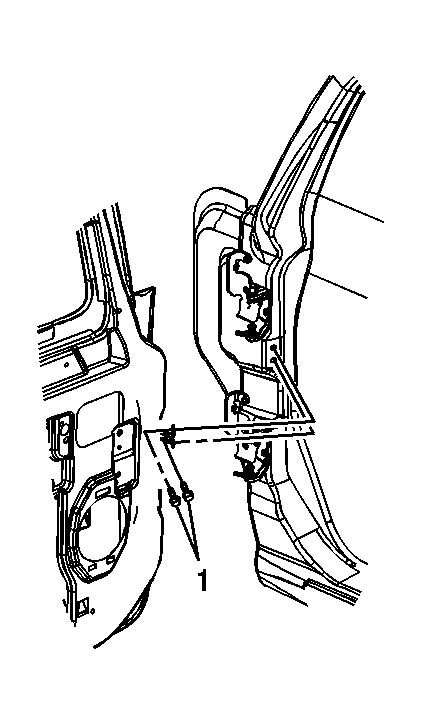

Fig 2: Front Door Check Link Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the fasteners (1) that retain the check link to the vehicle.
Tighten: Tighten the fasteners to 9 N.m (7 lb ft).
Install the water deflector. Refer to Water Deflector Replacement - Front Door or Water Deflector Replacement - Rear Door .
Install door trim panel. Refer to Trim Panel Replacement - Side Front Door or Trim Panel Replacement - Side Rear Door .
