Installation Procedure

  1. Place the mirror into position on door.

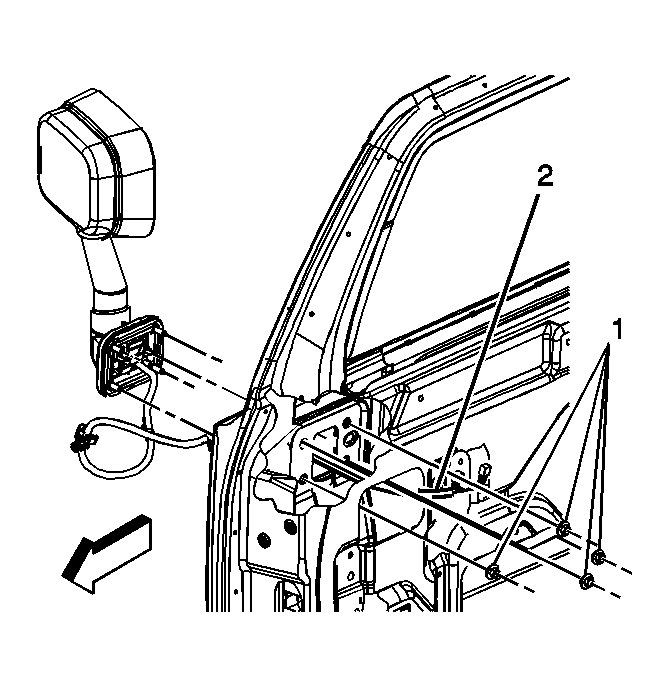

    2. Fig 1: Front Door Mirror
    GM839481Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (1) retaining the mirror to the door.

    Tighten:  Tighten the fasteners to 25 N.m (18 lb ft).

  3. Connect the mirror electrical connector.
  4. Install the water deflector. Refer to Water Deflector Replacement - Front Door .
  5. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
