Installation Procedure

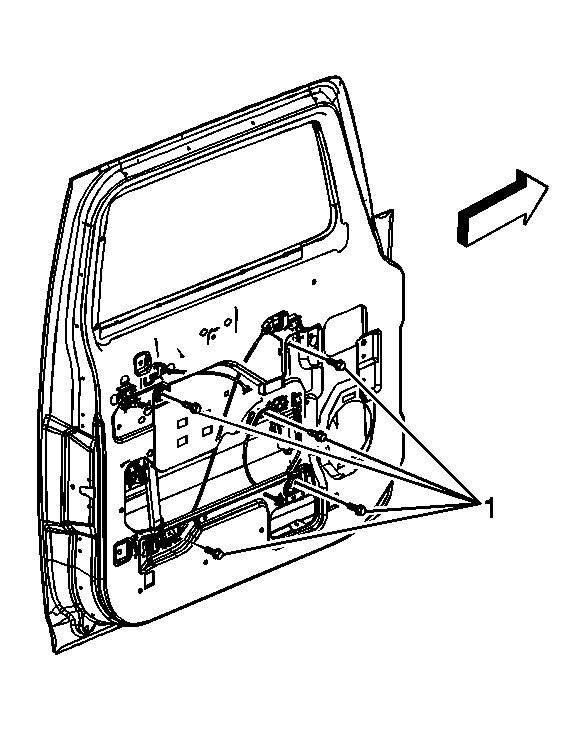

Fig 1: Front Power Window Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the 5 fasteners (1) to the window regulator.
Tighten: Tighten the fasteners to 9 N.m (7 lb ft).
Connect the window motor electrical connector.
Place the window in the window clamps, and tighten the clamps.
Tighten: Tighten the clamps to 9 N.m (7 lb ft).
Operate the window module to inspect for proper operation.
Install the water deflector. Refer to Water Deflector Replacement - Front Door .
Install the trim panel. Refer to Trim Panel Replacement - Side Front Door .
