Installation Procedure

  1. Position the run channel (2) in place inside the door.

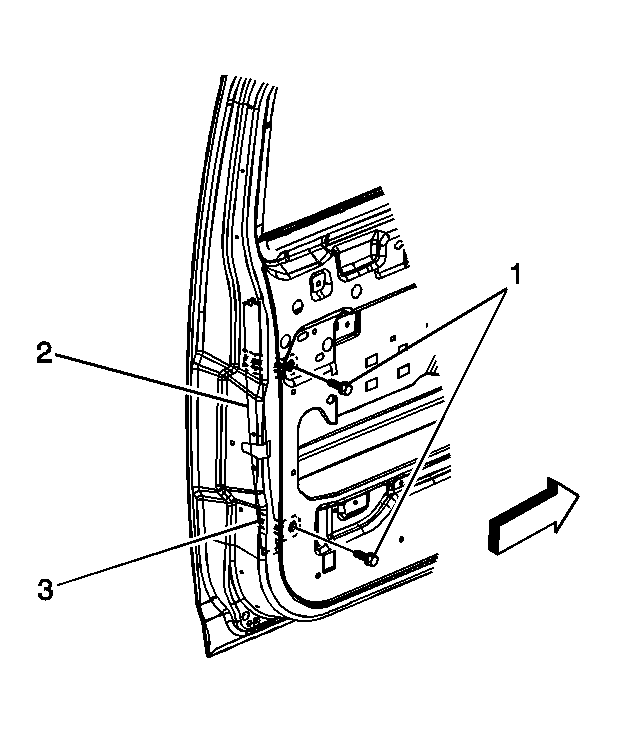

    2. Fig 1: Front Door Window Run Channel
    GM839282Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (1) retaining the run channel to the door.

    Tighten:  Tighten the fasteners to 9 N.m (7 lb ft).

  3. Install water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
