Installation Procedure

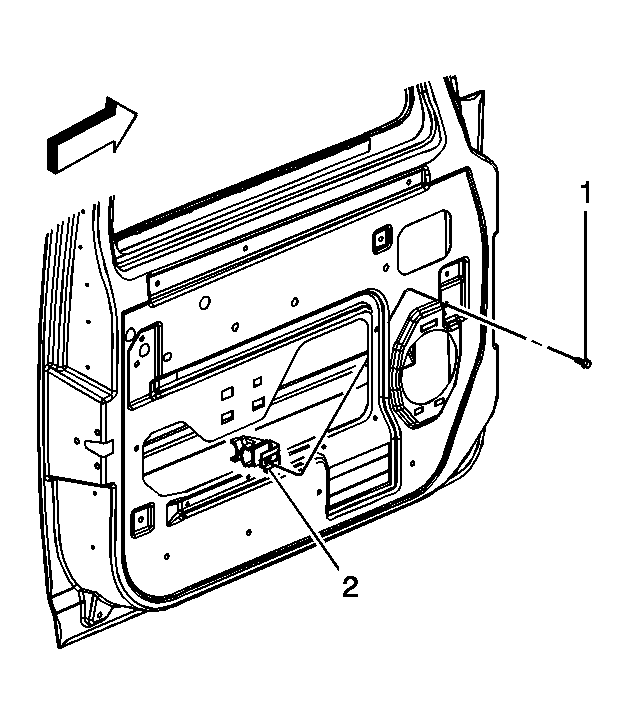

    Fig 1: Front Door Window Stabilizer
    GM839297Courtesy of GENERAL MOTORS CORP.
  1. Position the stabilizer (2) in place inside the door.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fastener (1) retaining the stabilizer to the door.

    Tighten:  Tighten the fastener to 9 N.m (7 lb ft).

  3. Install the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
