Power Window Schematics

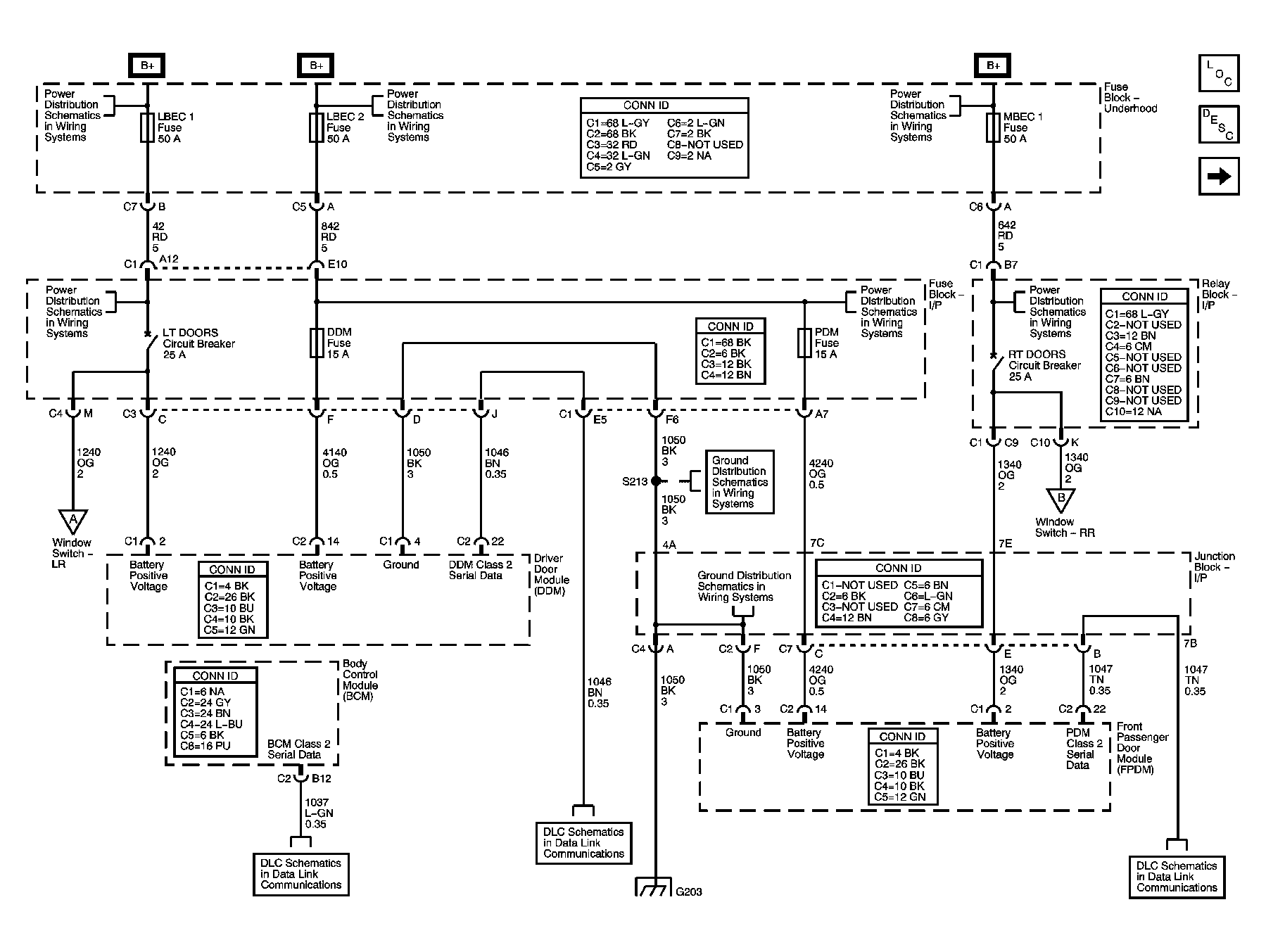

Fig 1: Door Modules - Power, Grounding, and DLC
GM1196107Courtesy of GENERAL MOTORS CORP.

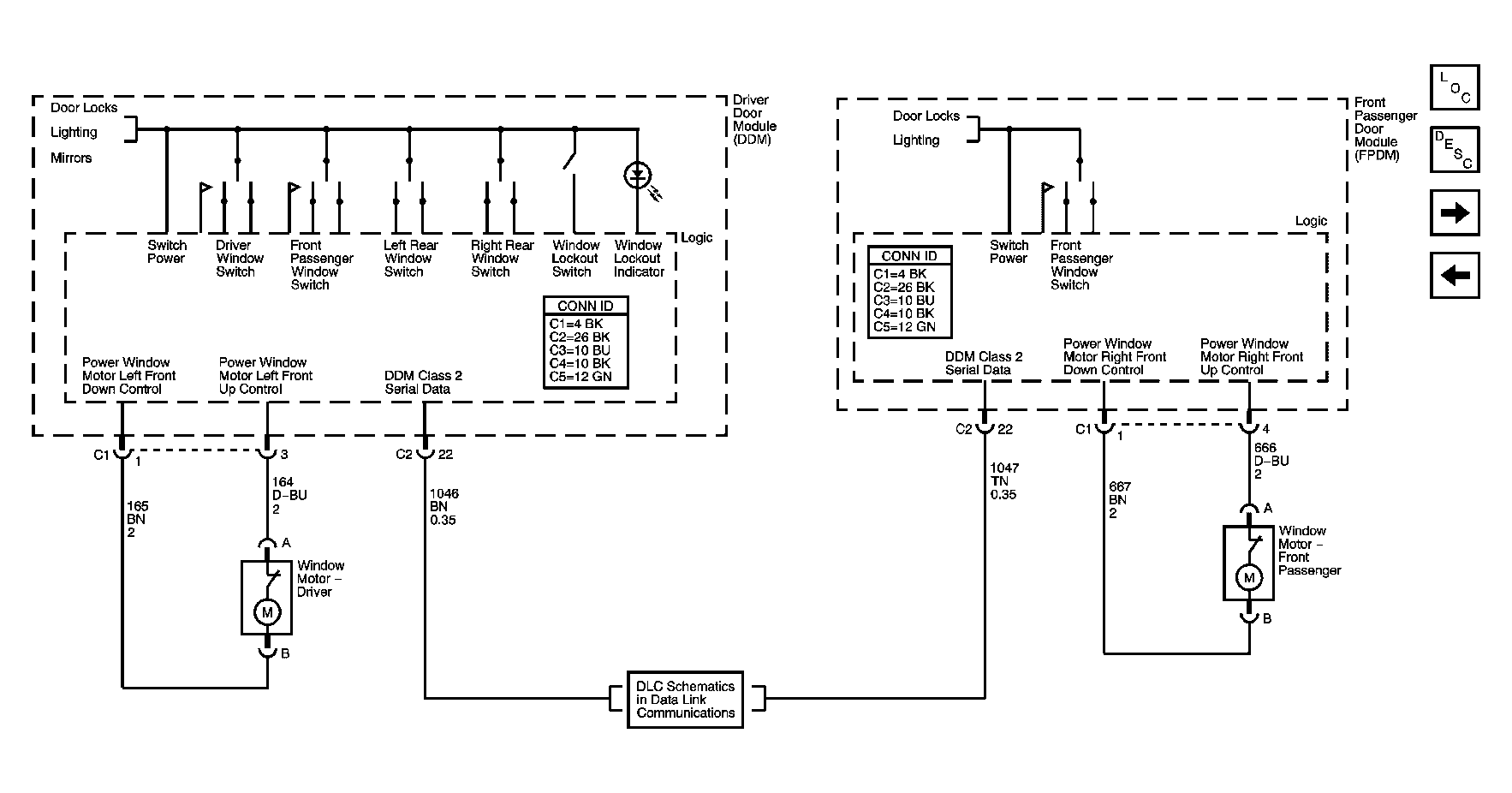

Fig 2: Front Door Windows
GM1196114Courtesy of GENERAL MOTORS CORP.

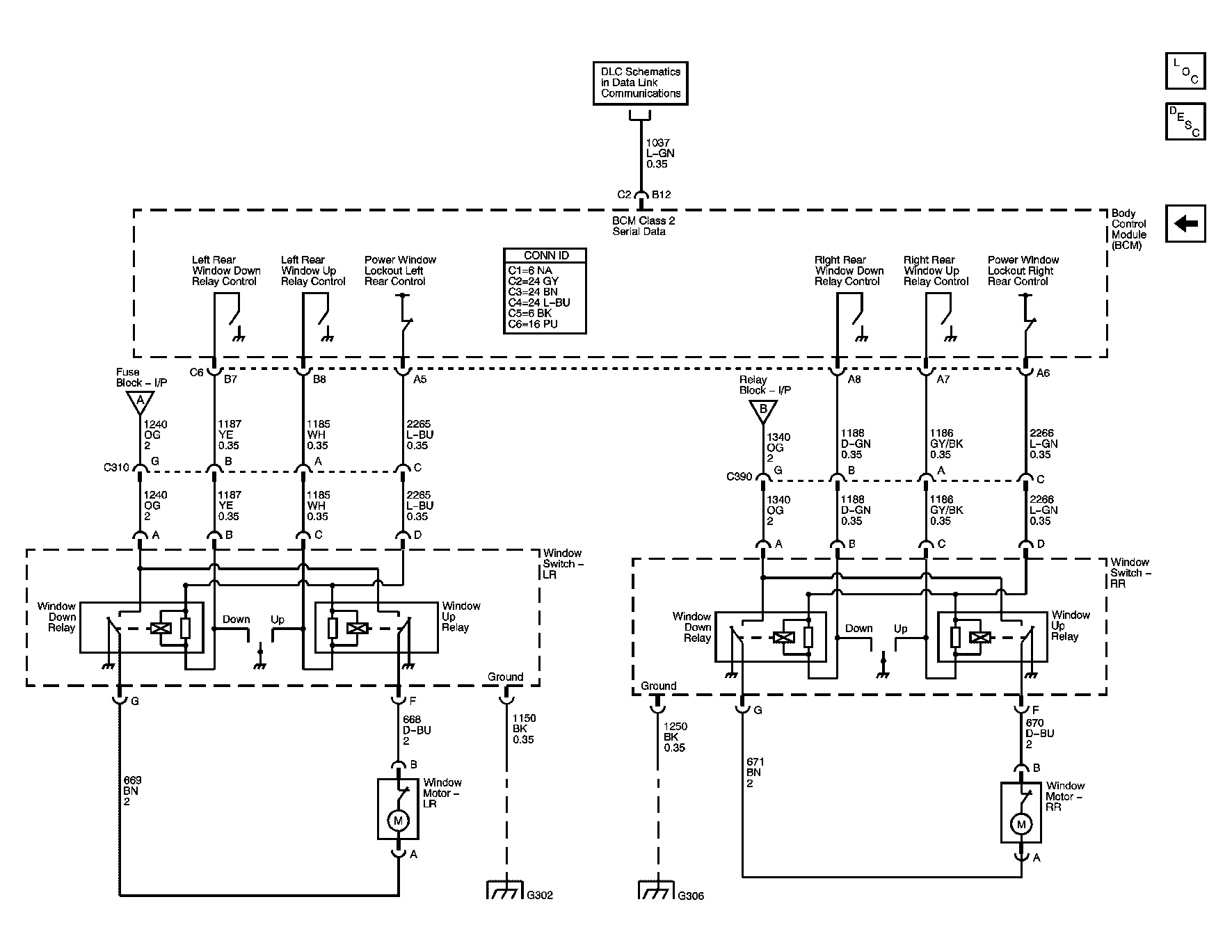

Fig 3: Rear Door Windows
GM1196119Courtesy of GENERAL MOTORS CORP.
