Power Outlet Component Views

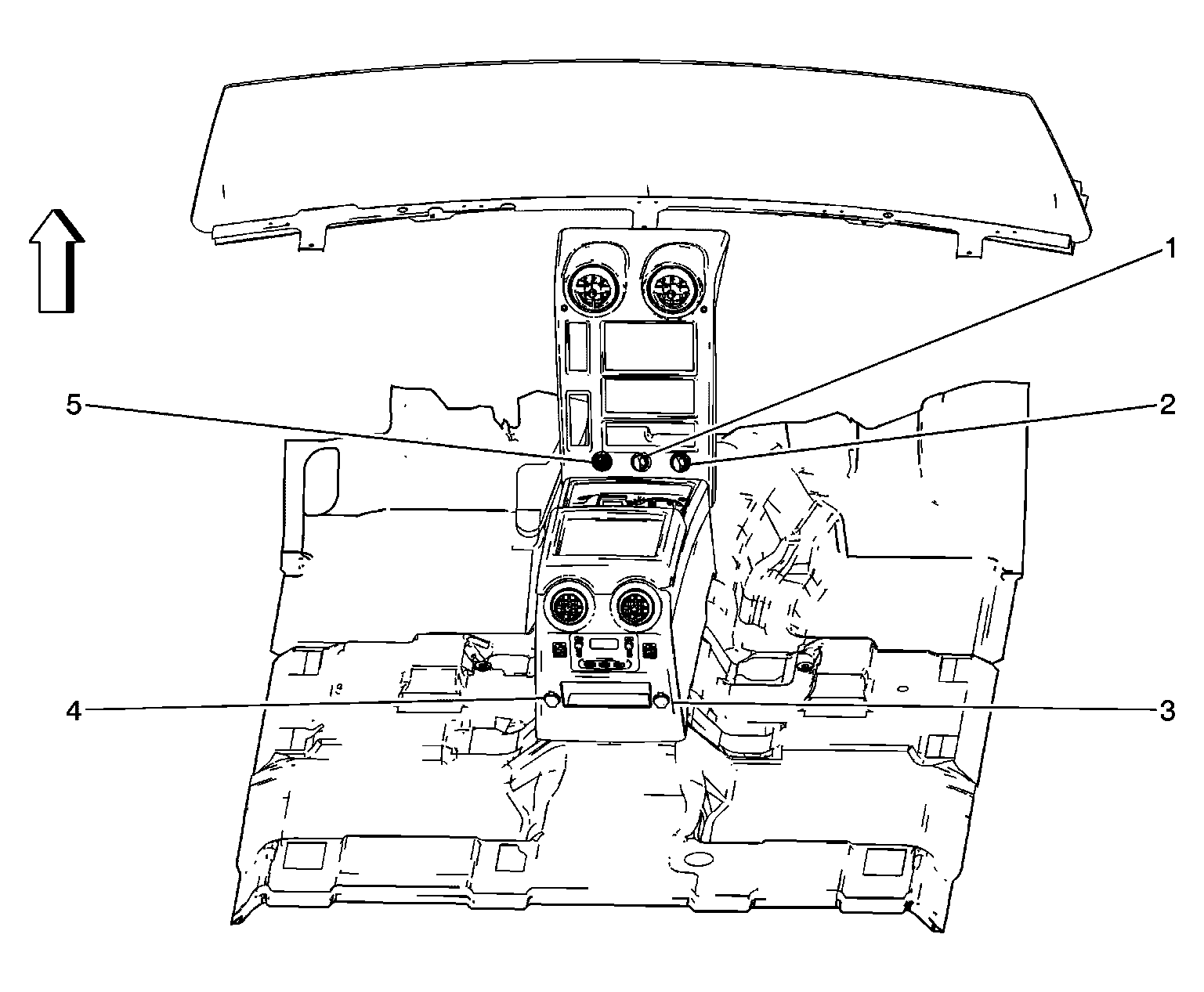

Fig 1: Auxiliary Power Outlets - Front/Rear Console Component Views
GM1261697Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet - Front 1
2 Auxiliary Power Outlet - Front 2
3 Auxiliary Power Outlet - Console
4 Auxiliary Power Outlet - Console
5 Cigar Lighter

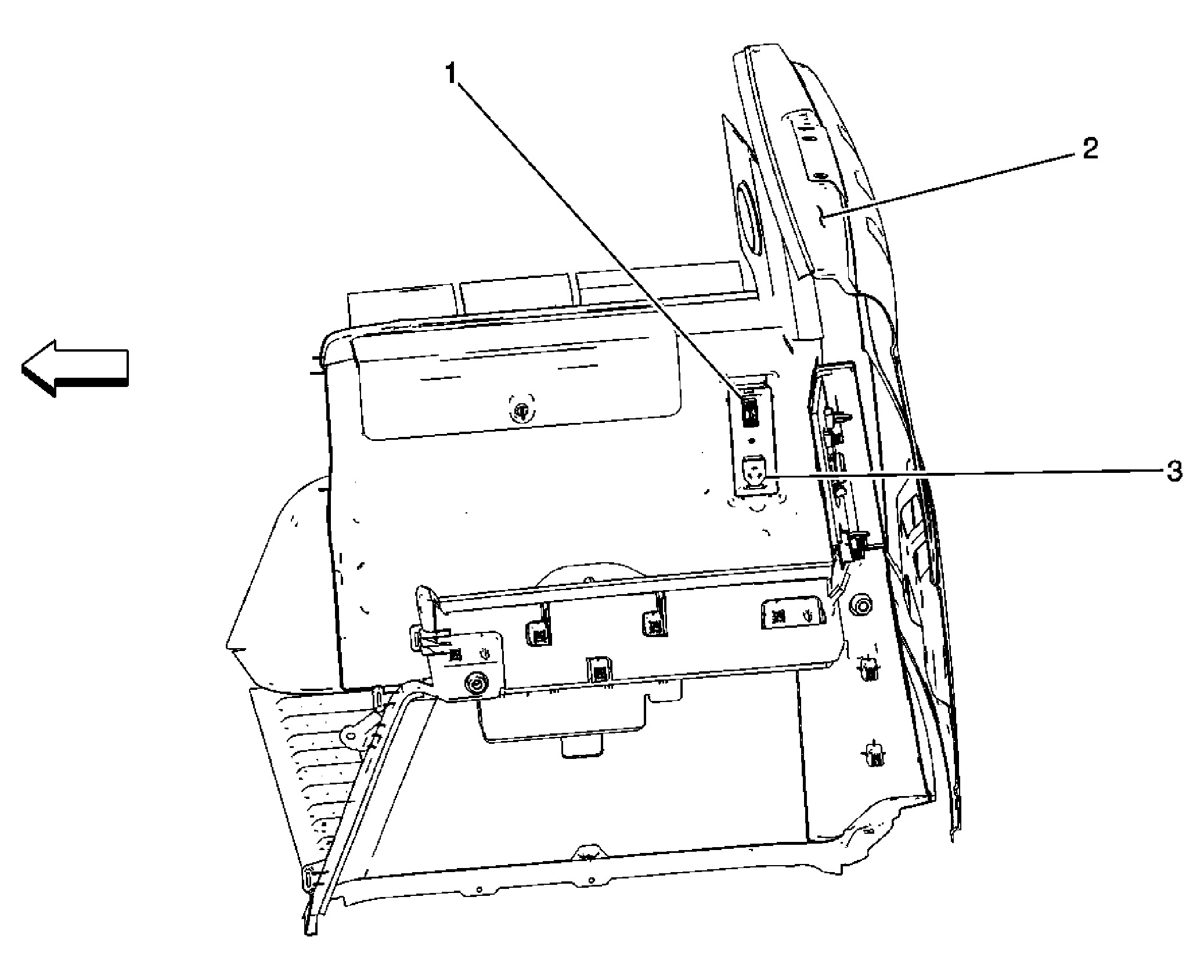

Fig 2: Auxiliary Power Outlet - Rear Component Views
GM1262311Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory Inflator Switch
2 Liftgate
3 Auxiliary Power Outlet - Rear
