Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

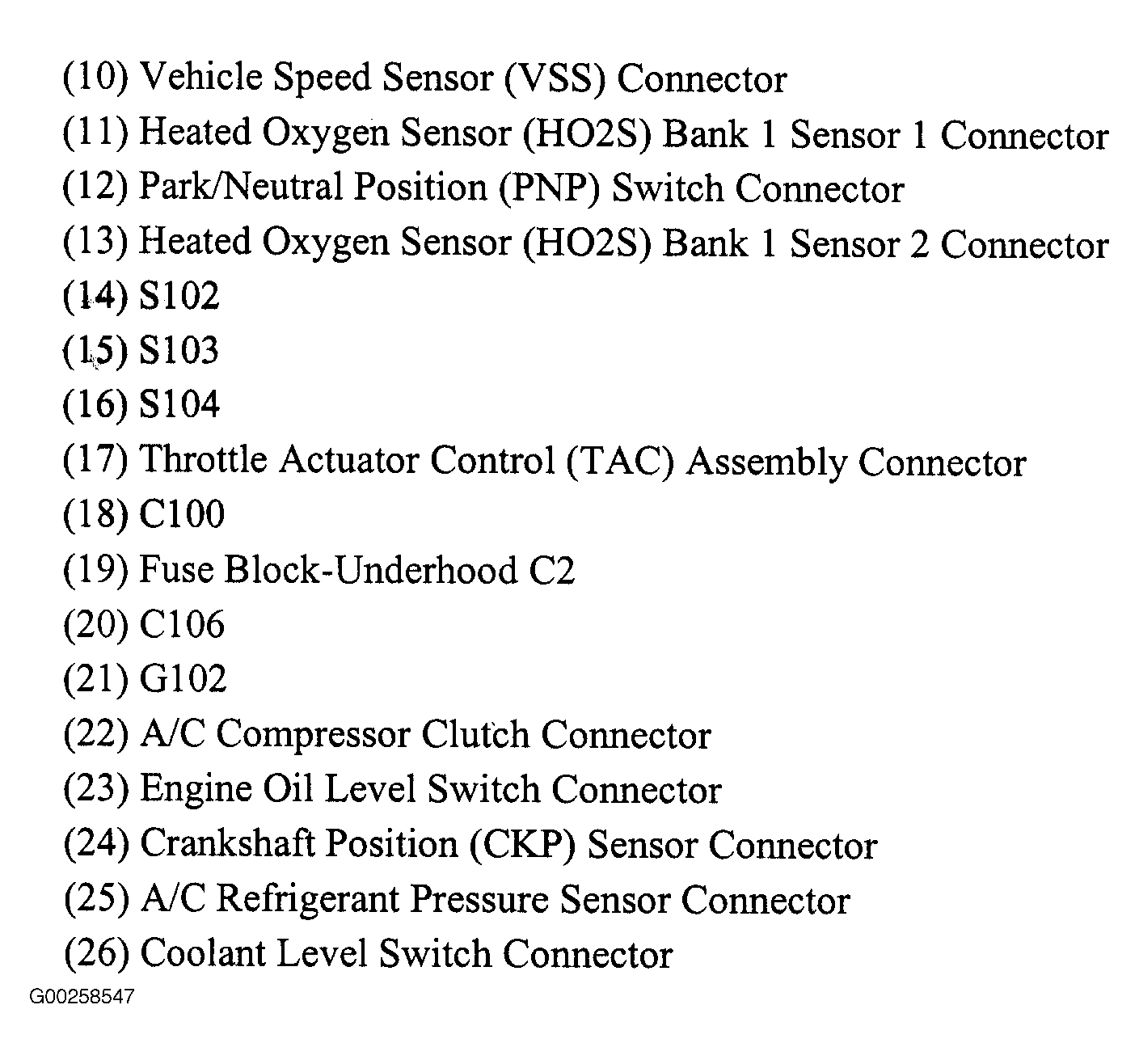

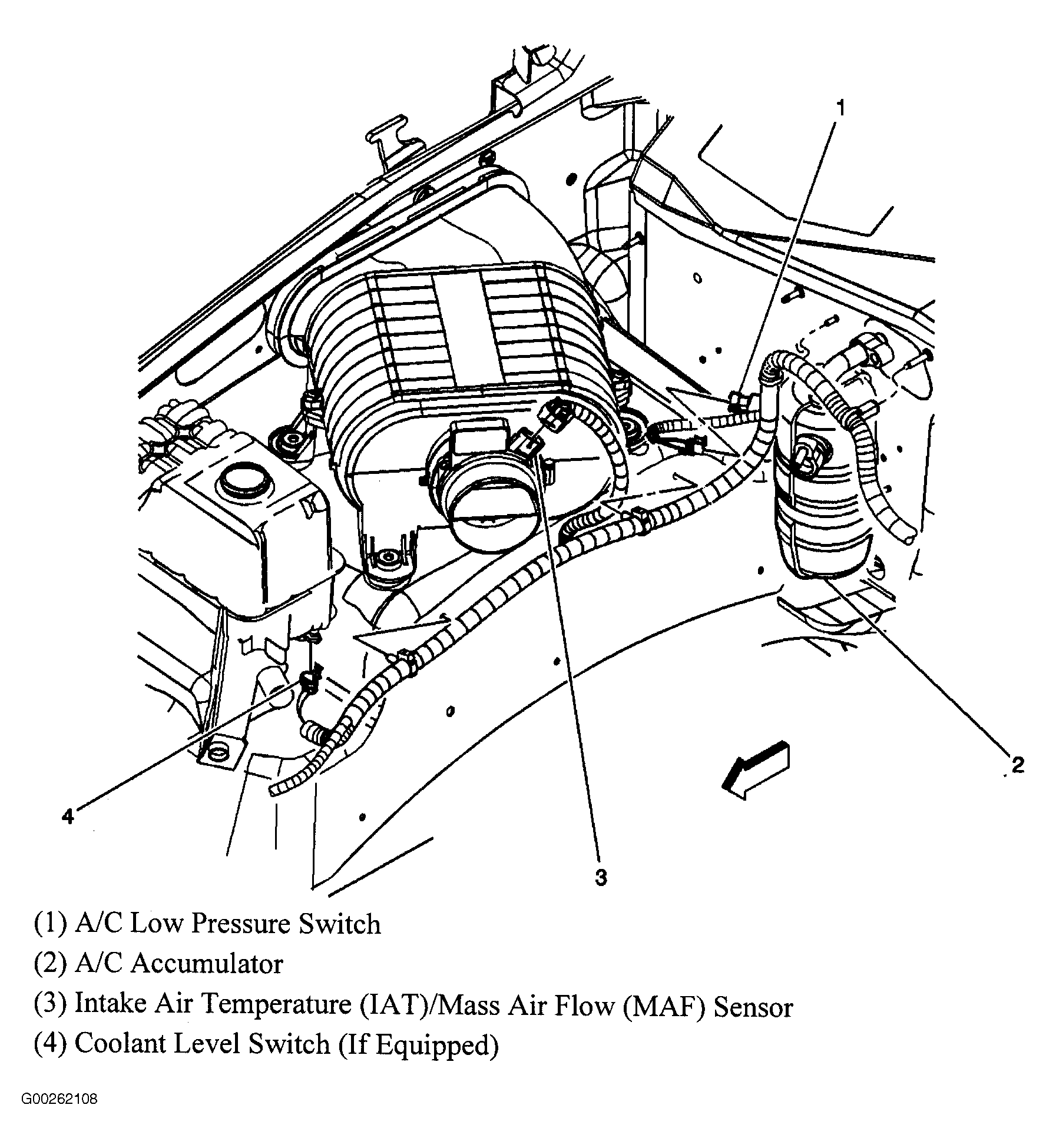

Fig 1: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

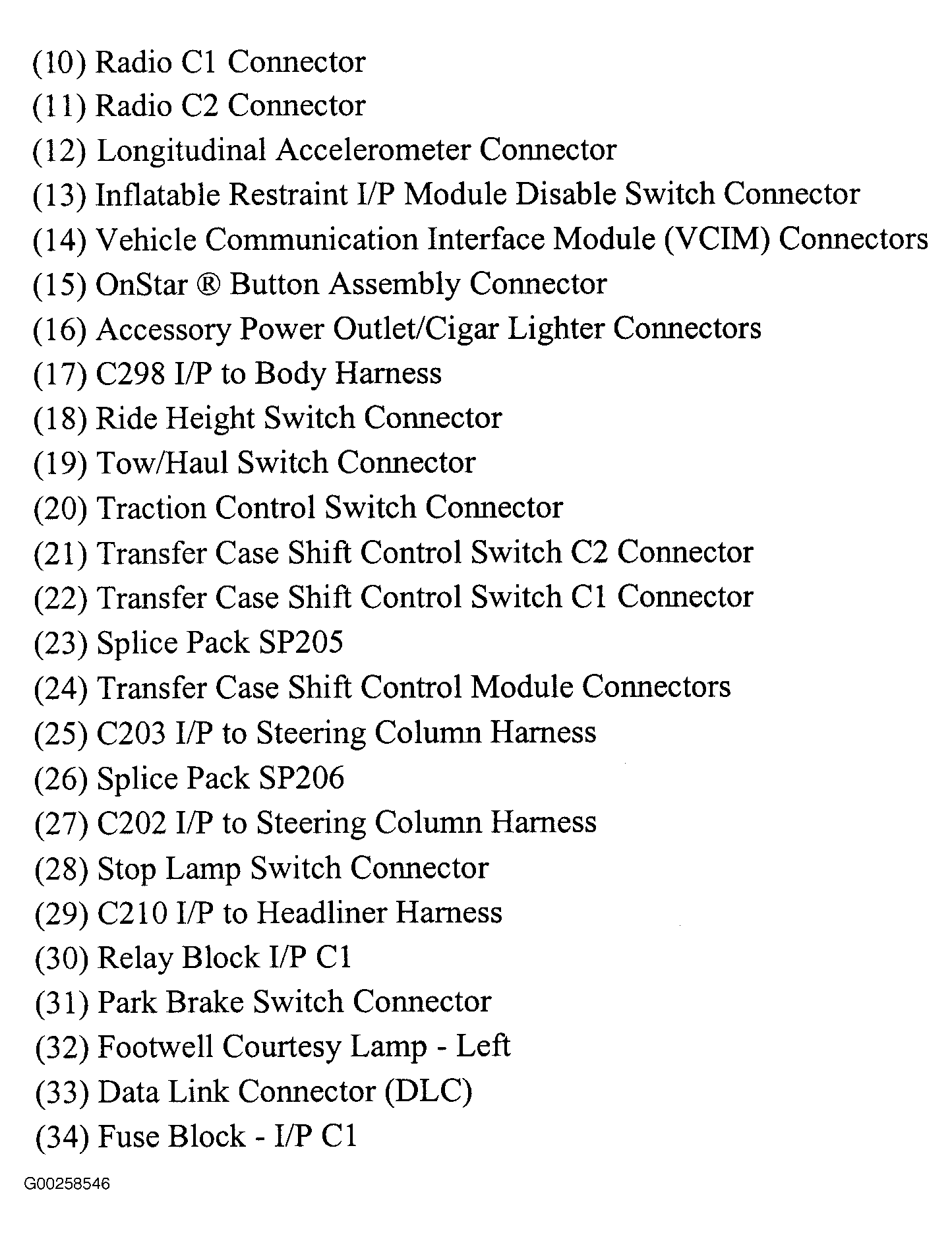

Fig 2: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 4: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 5: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

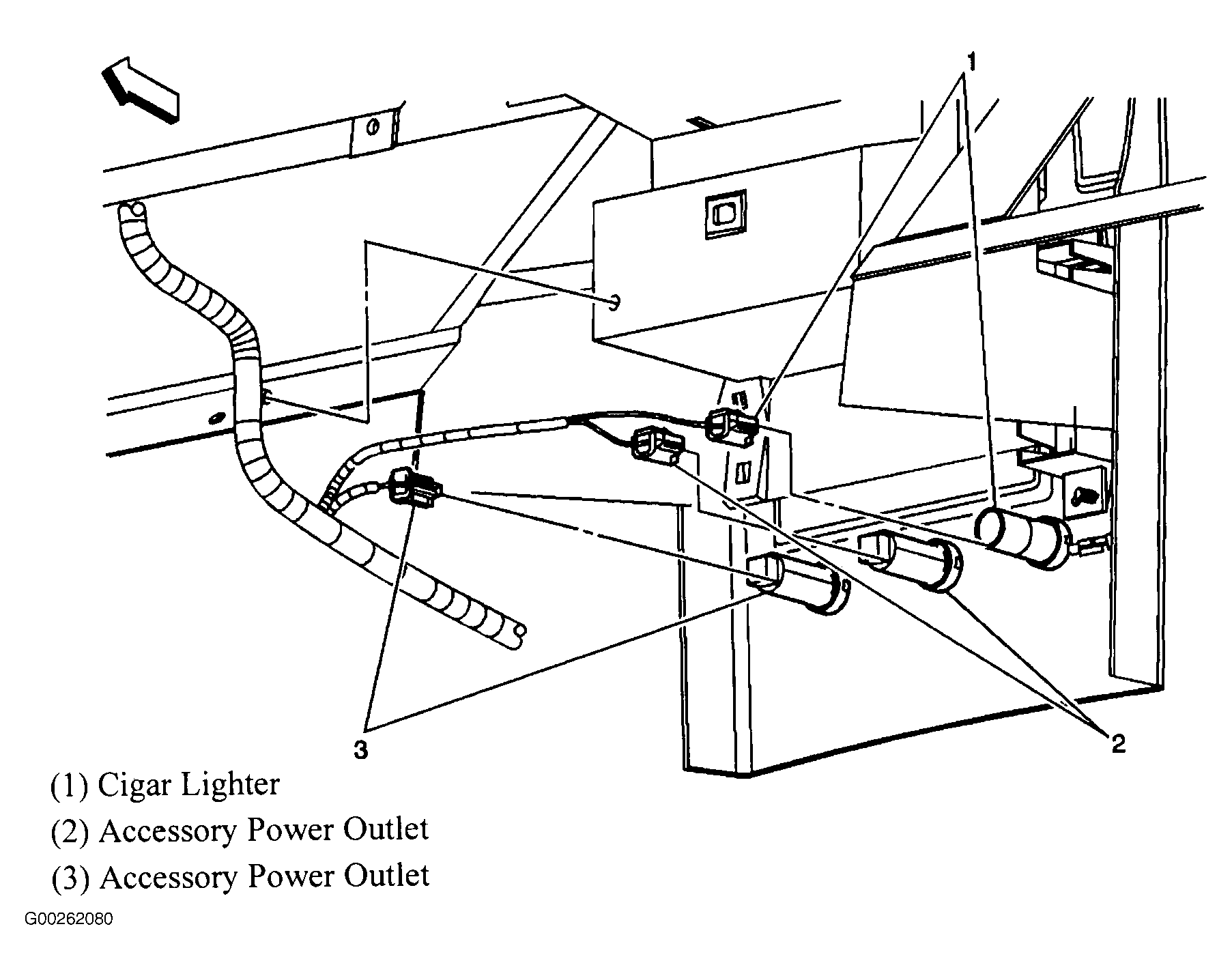

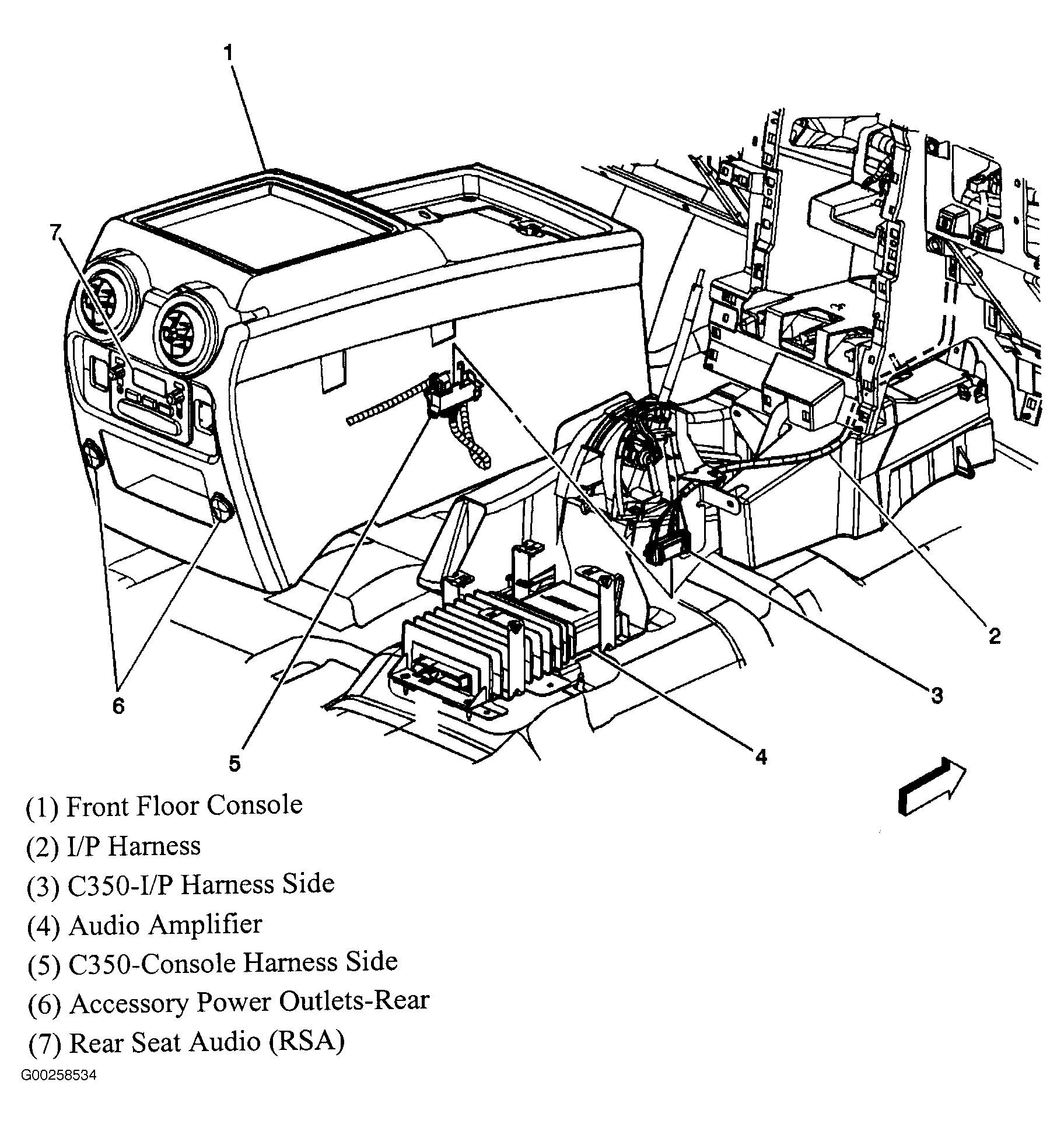

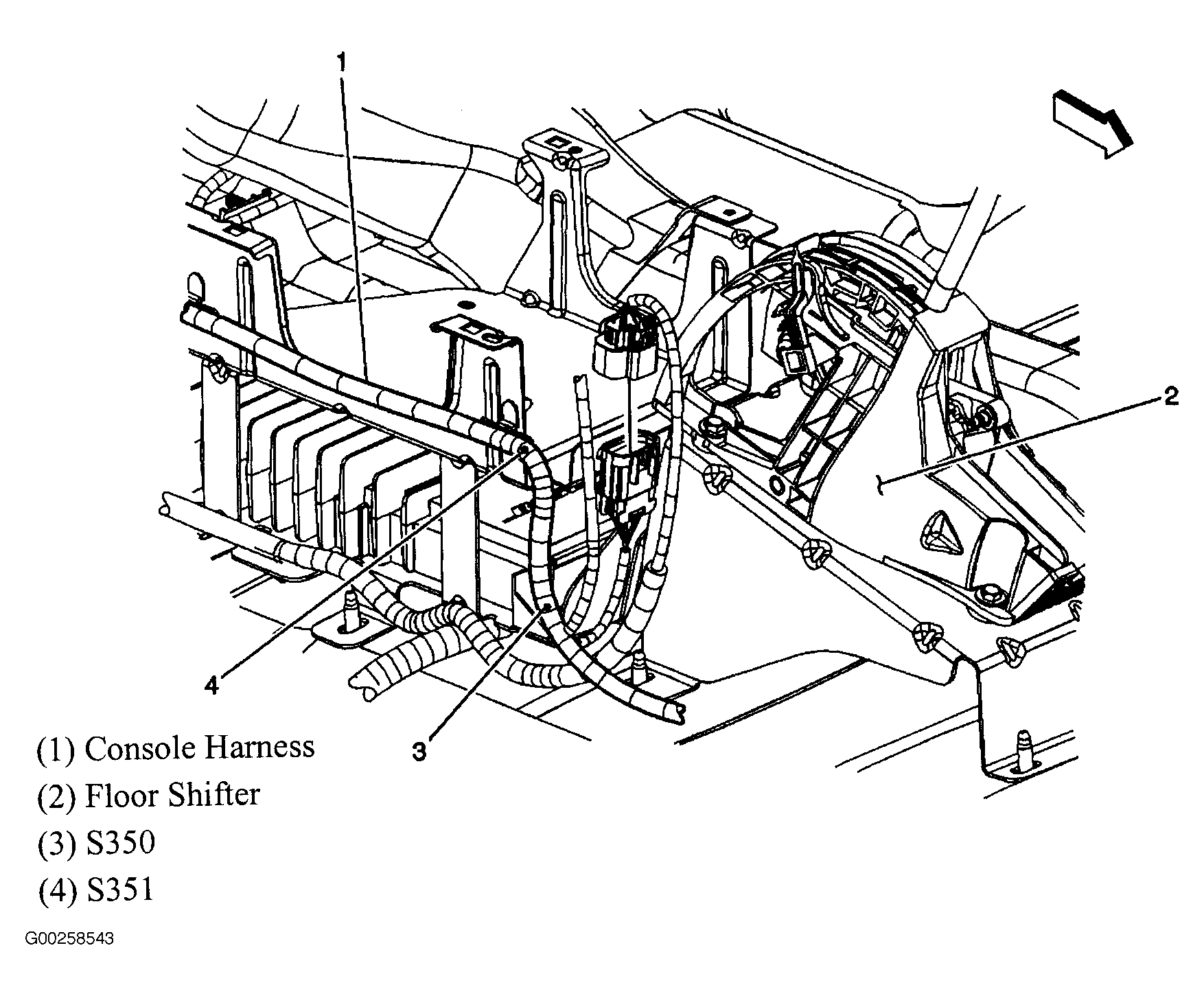

Fig 6: Front Floor Console
Courtesy of GENERAL MOTORS CORP.

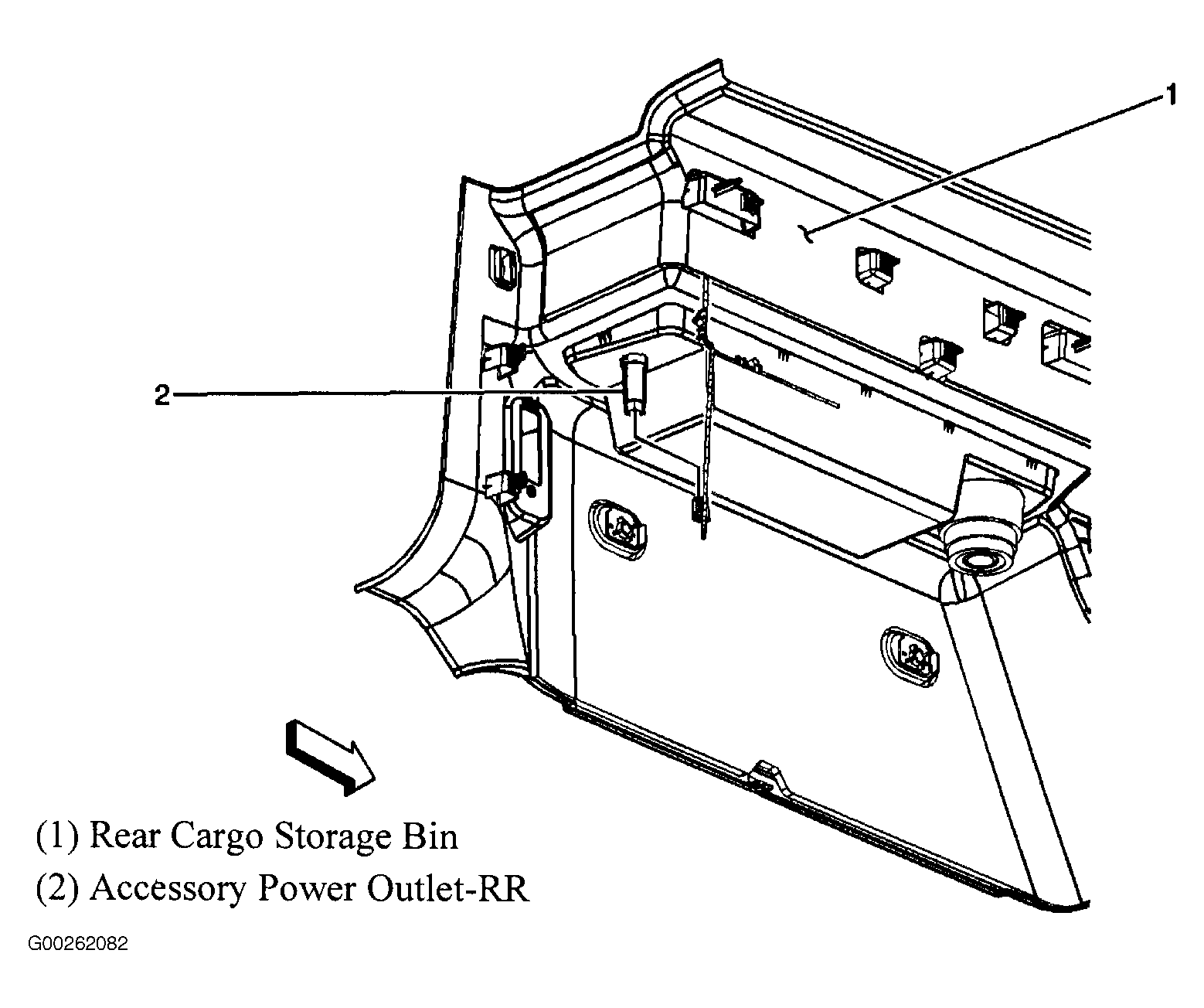

Fig 7: Rear Cargo Storage Bin
Courtesy of GENERAL MOTORS CORP.

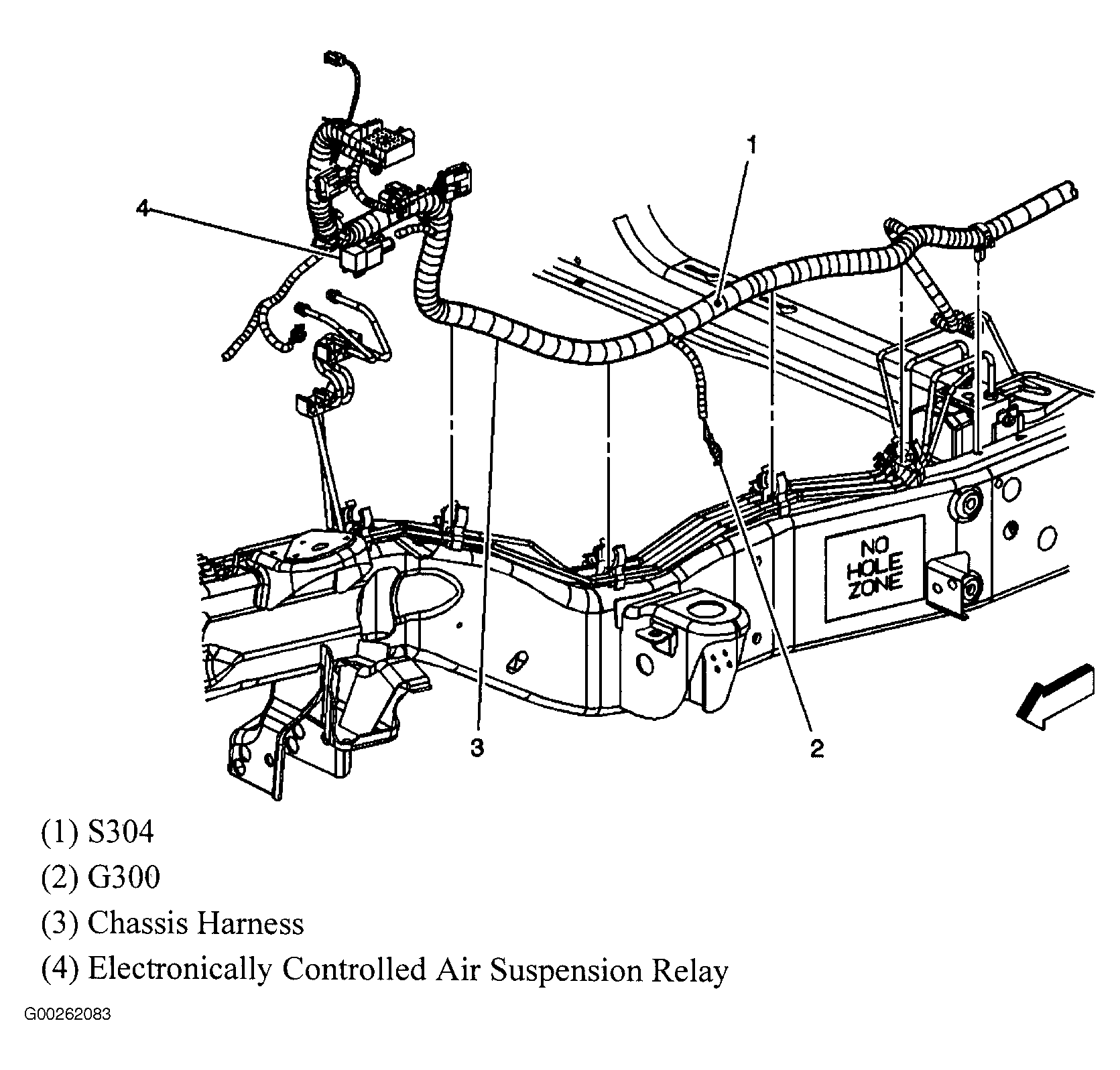

Fig 8: Left Rear Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 9: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

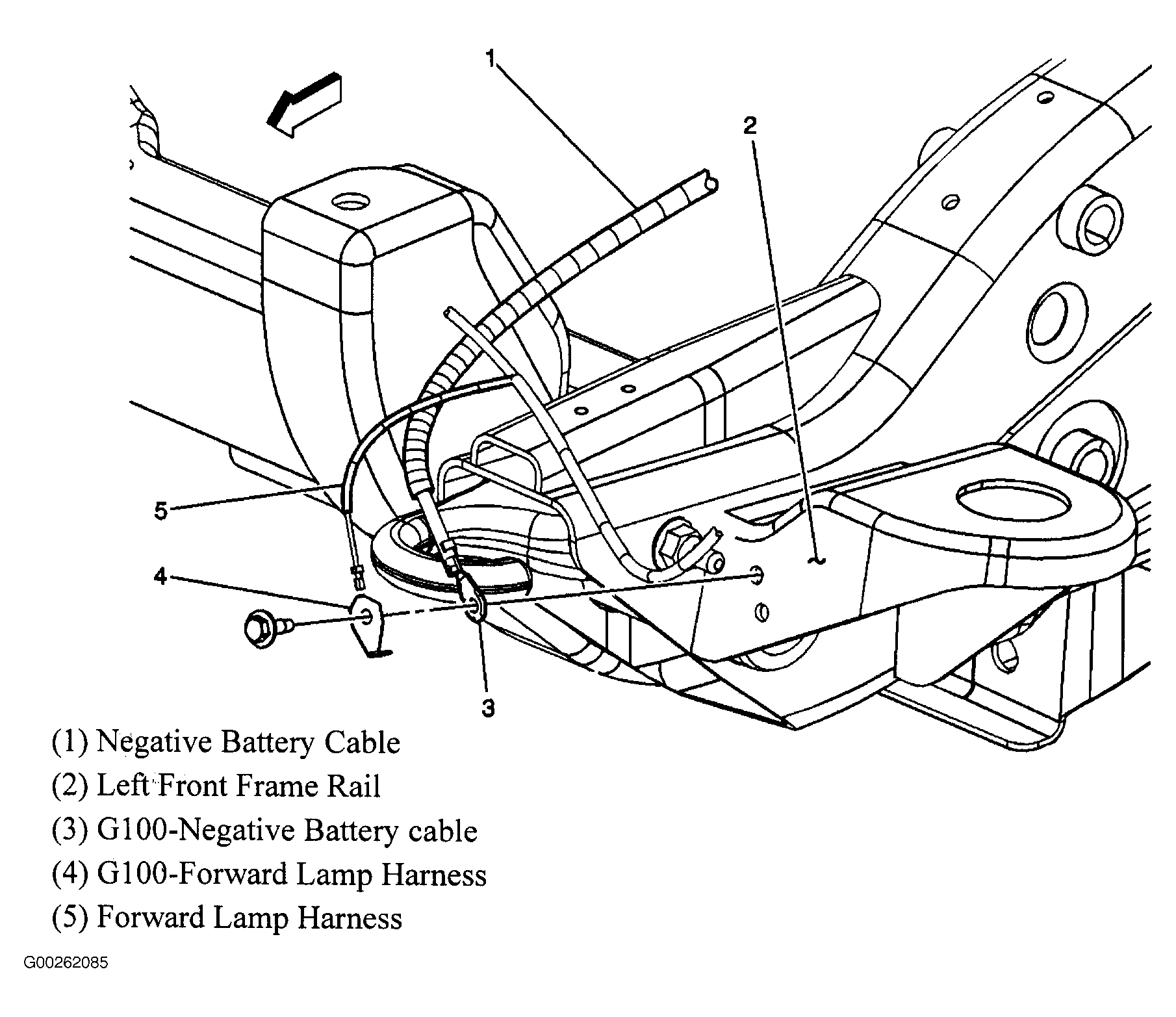

Fig 10: Left Front Frame Rail
Courtesy of GENERAL MOTORS CORP.

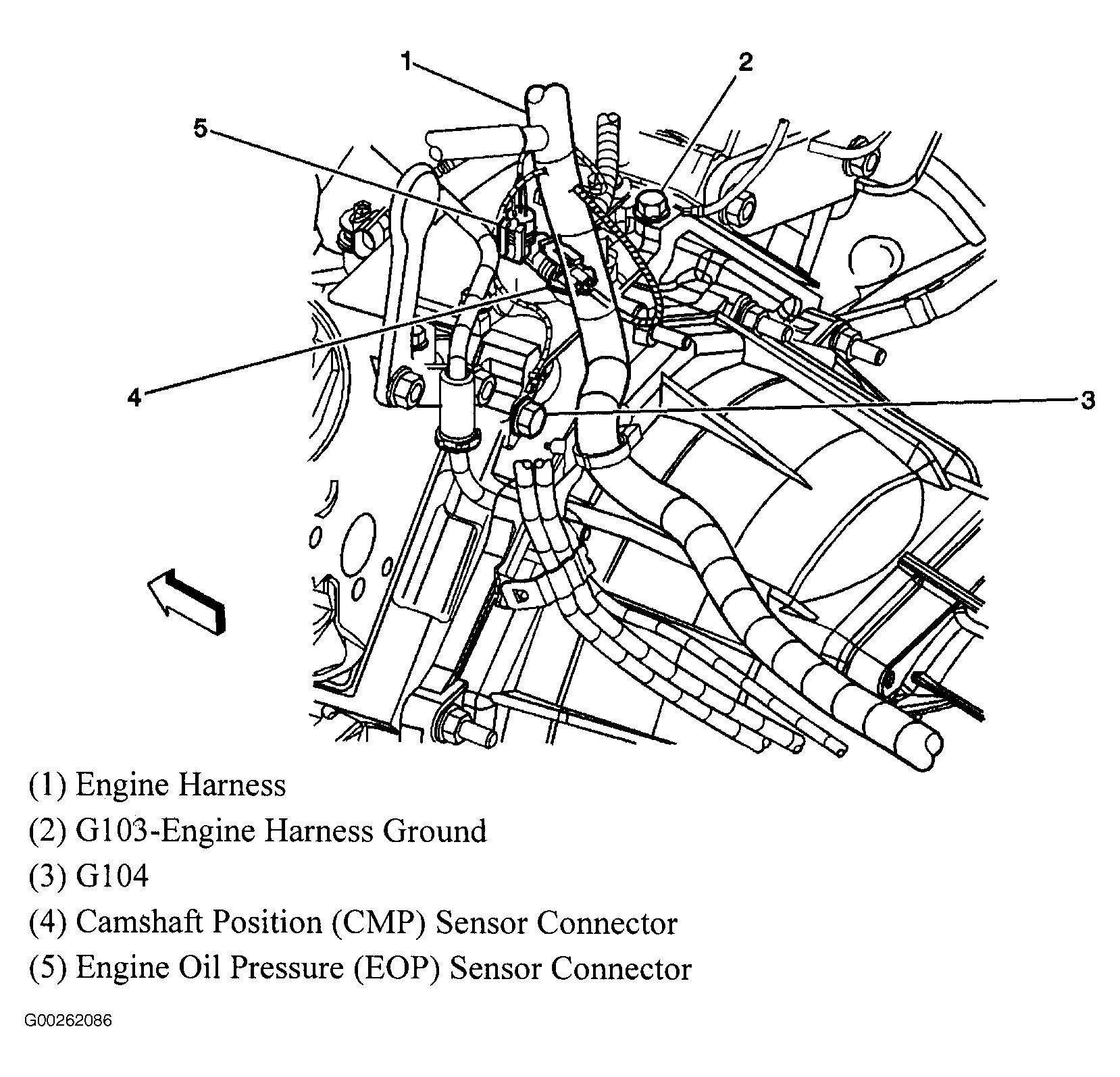

Fig 11: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

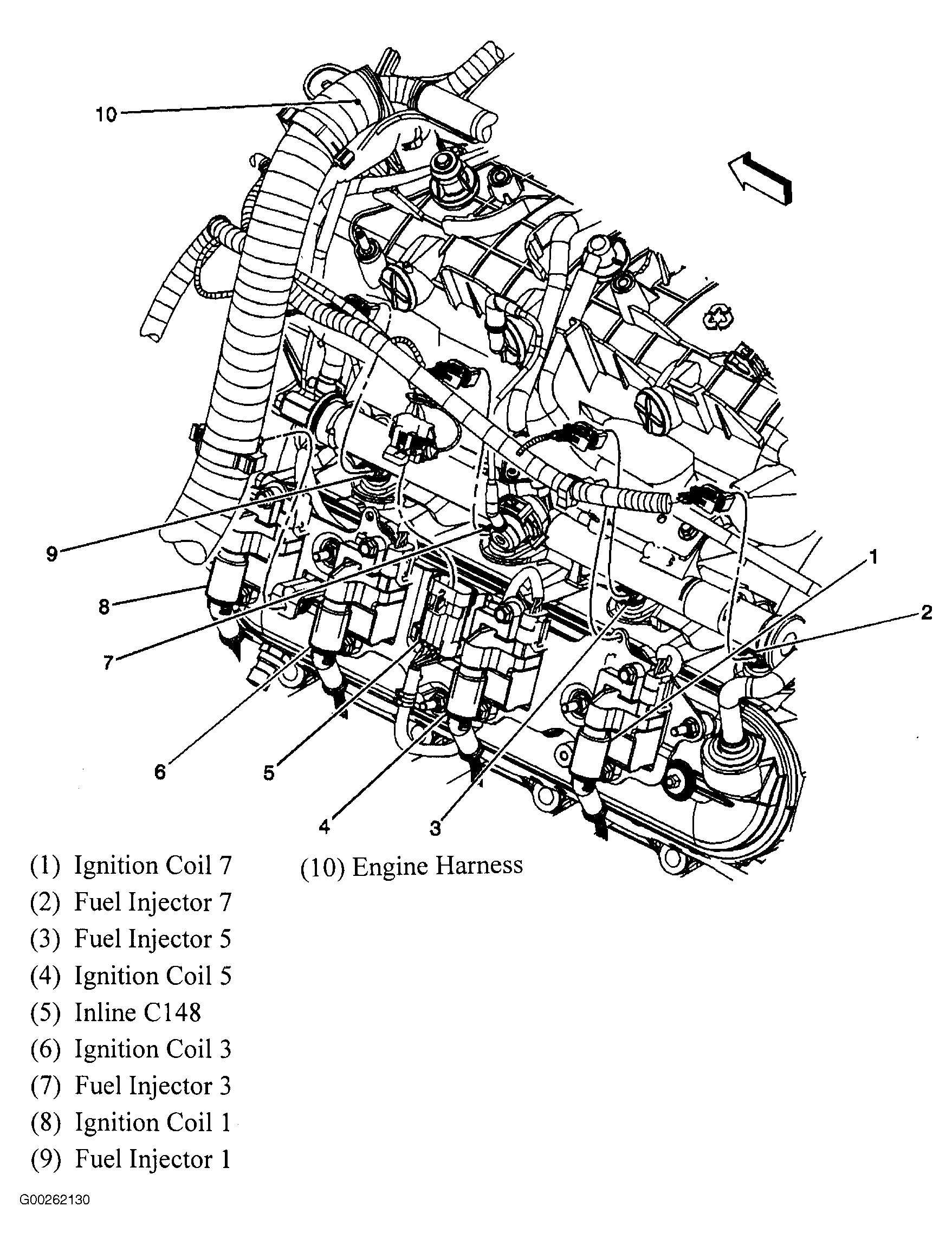

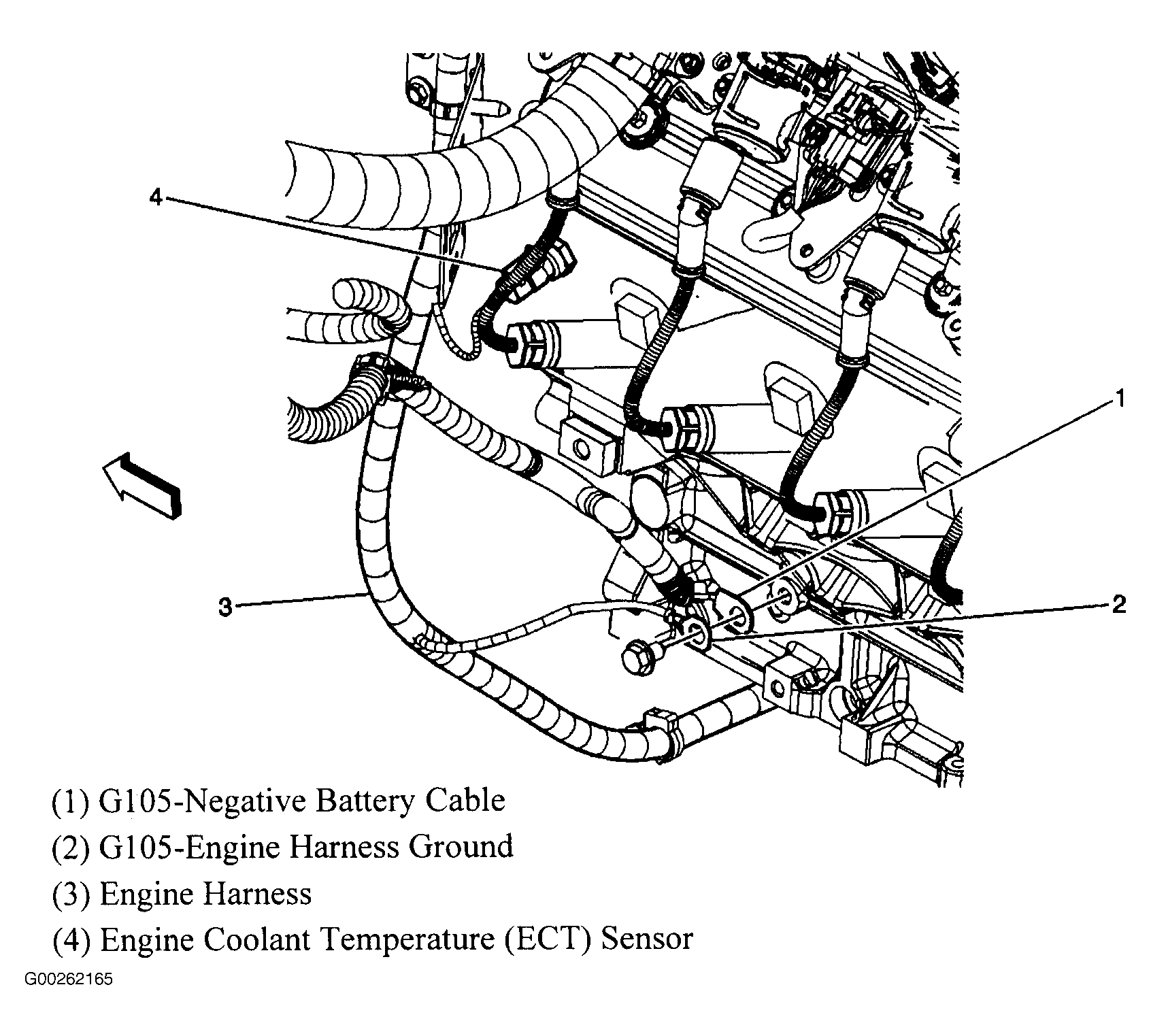

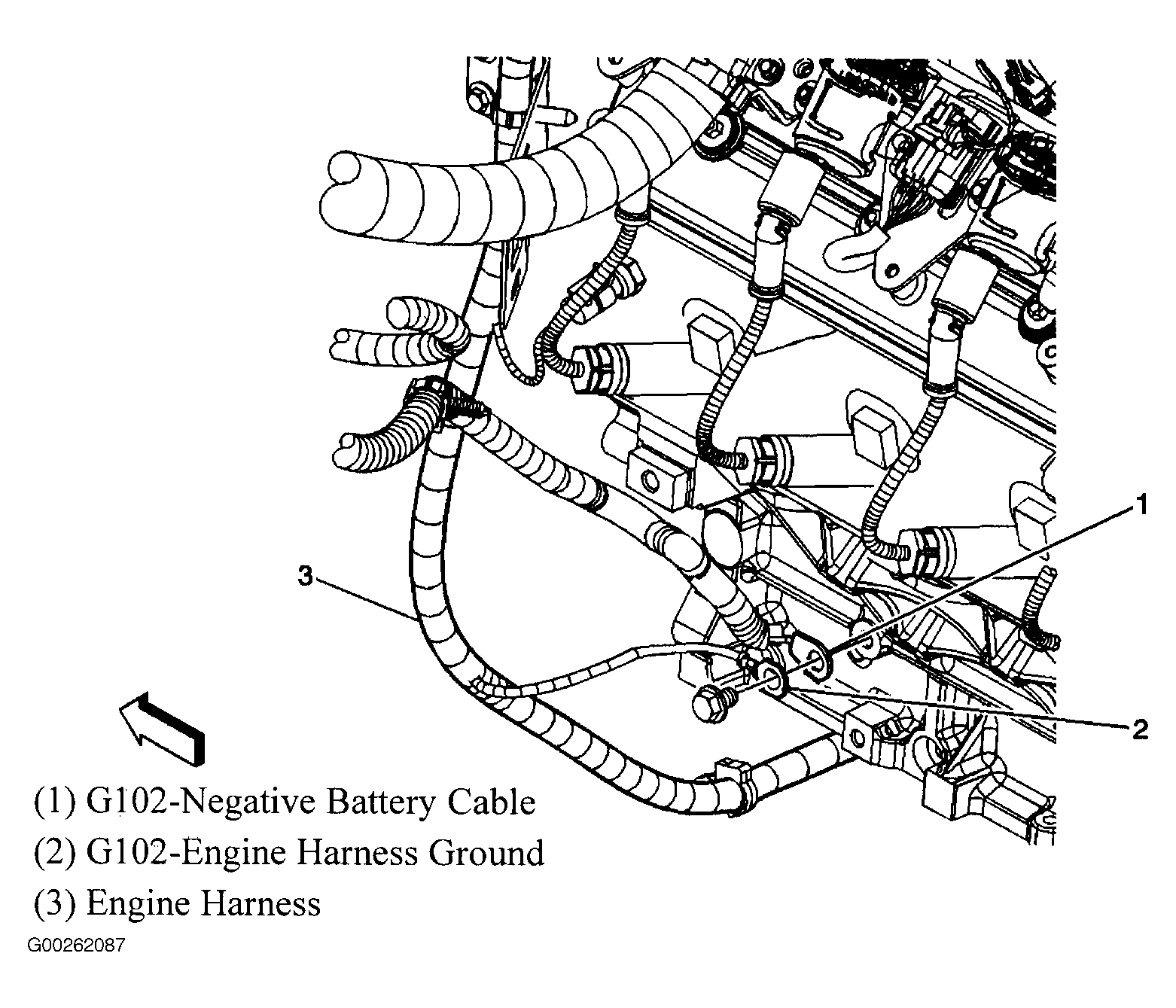

Fig 12: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

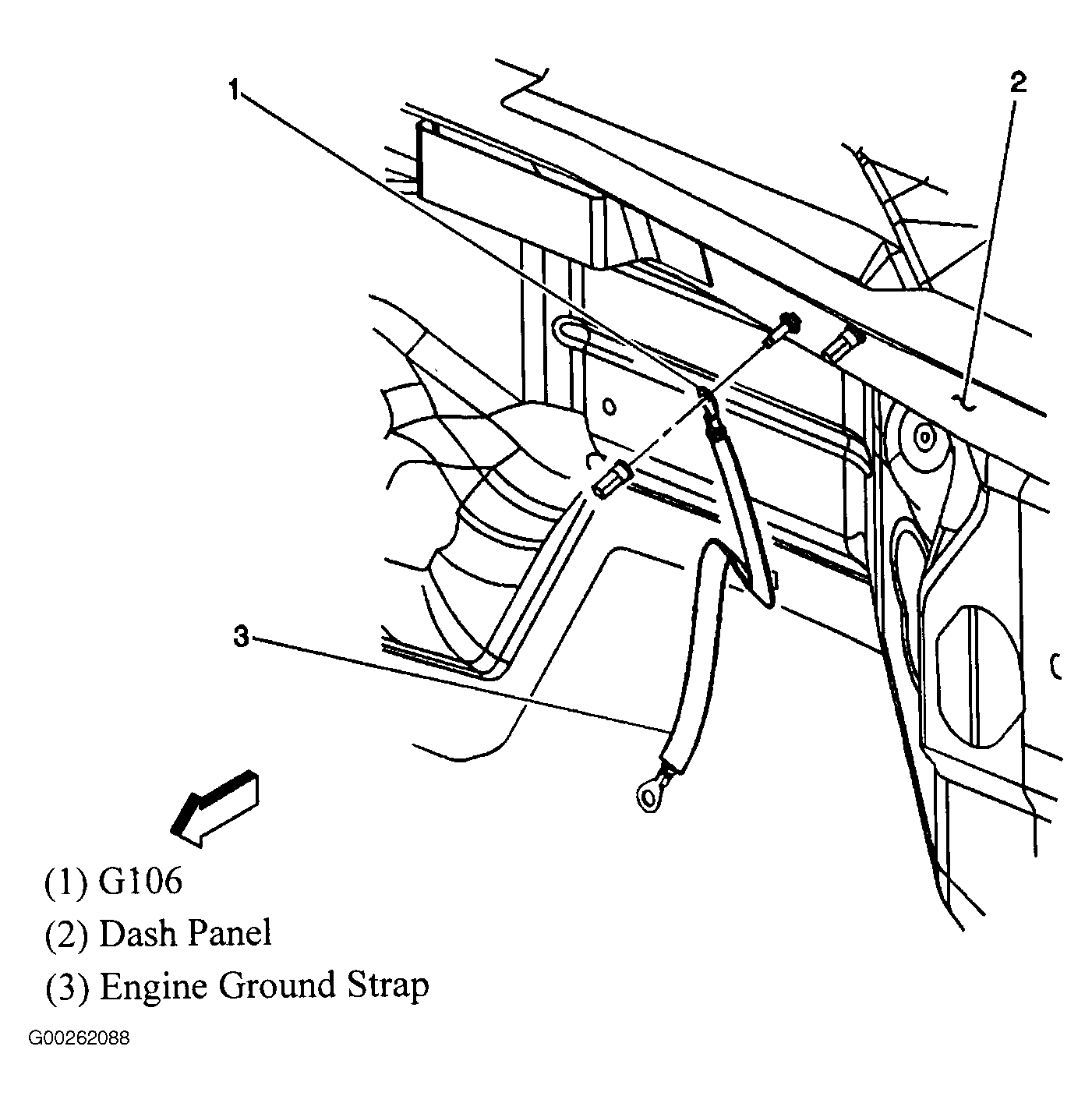

Fig 13: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

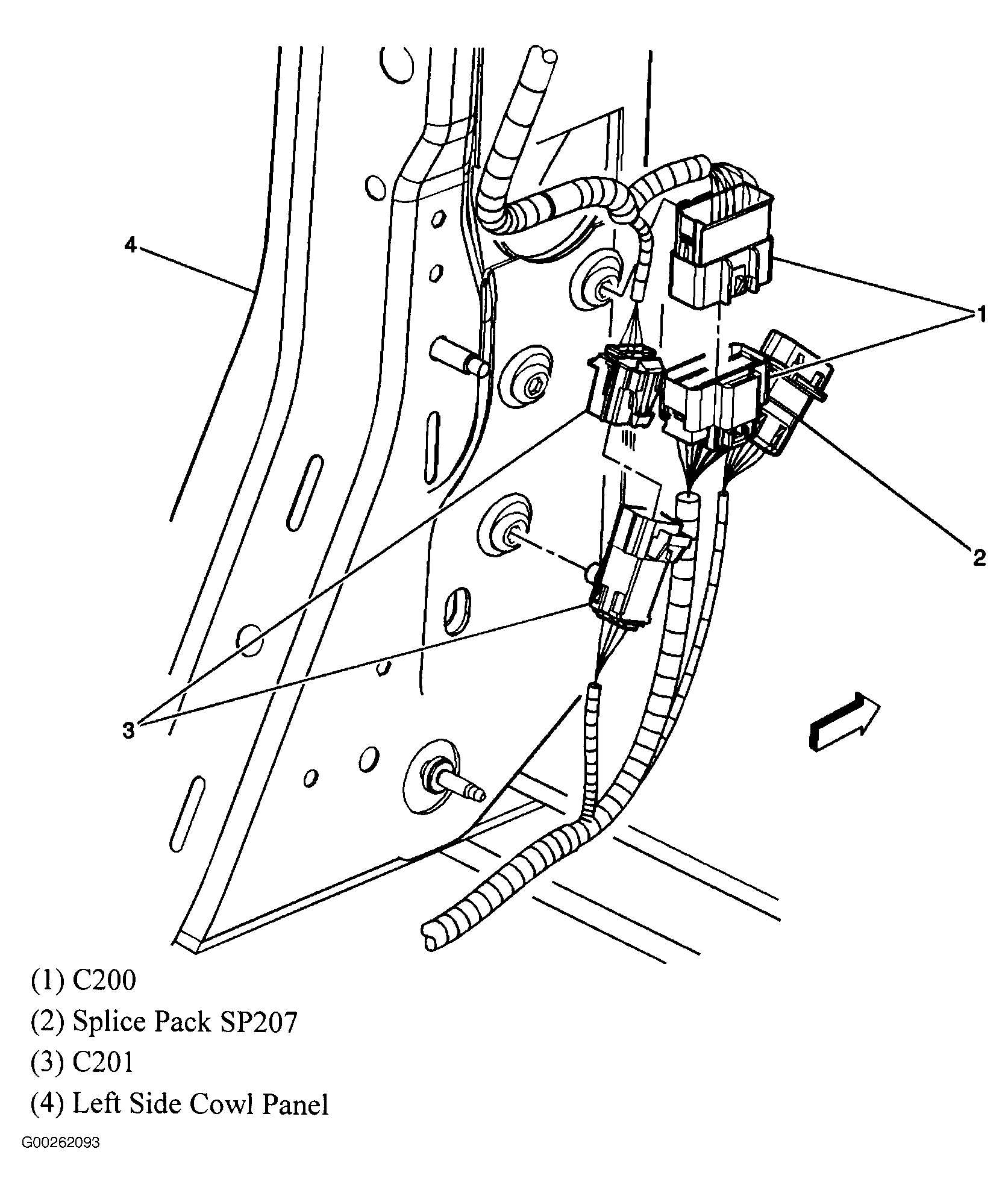

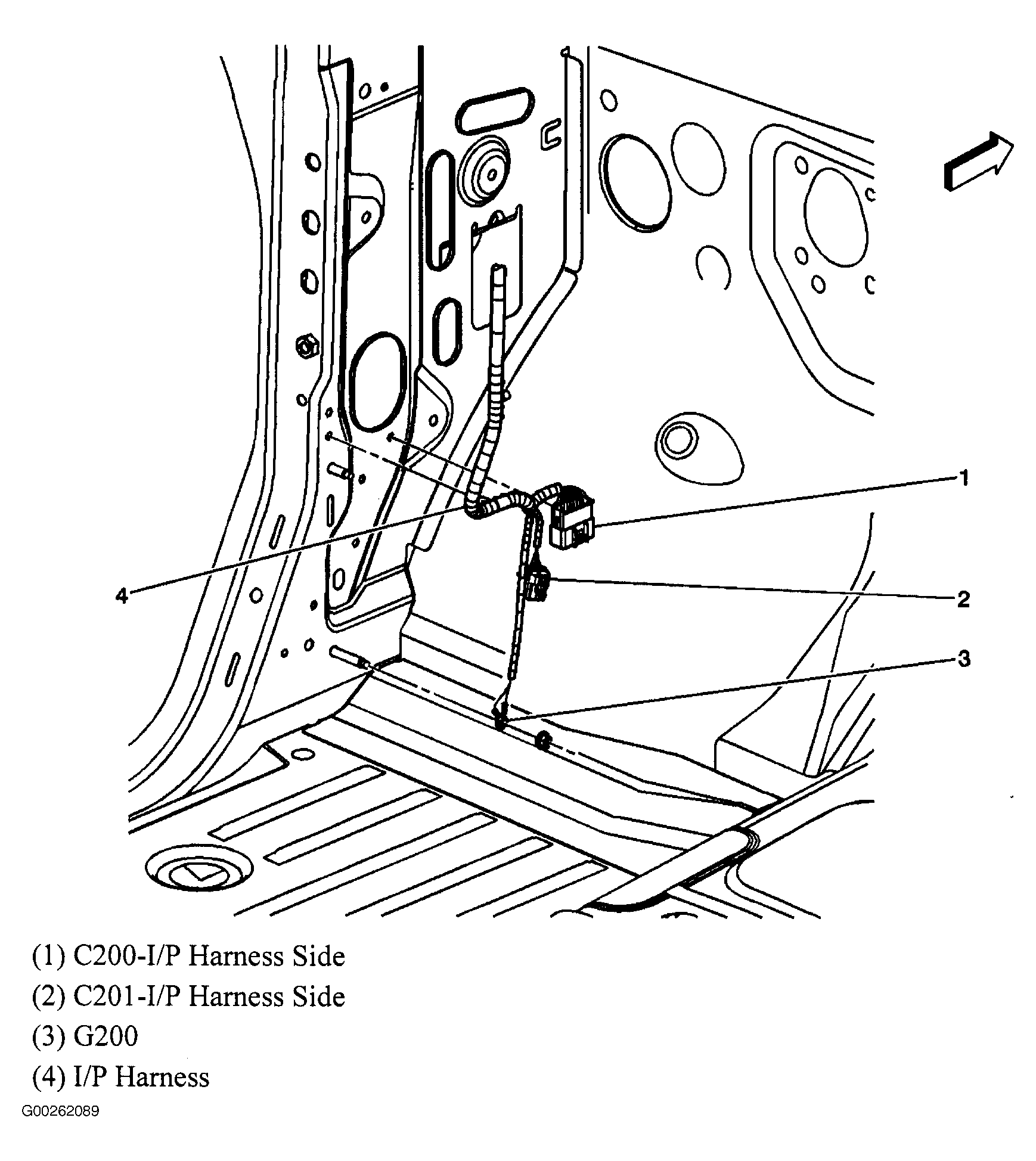

Fig 14: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

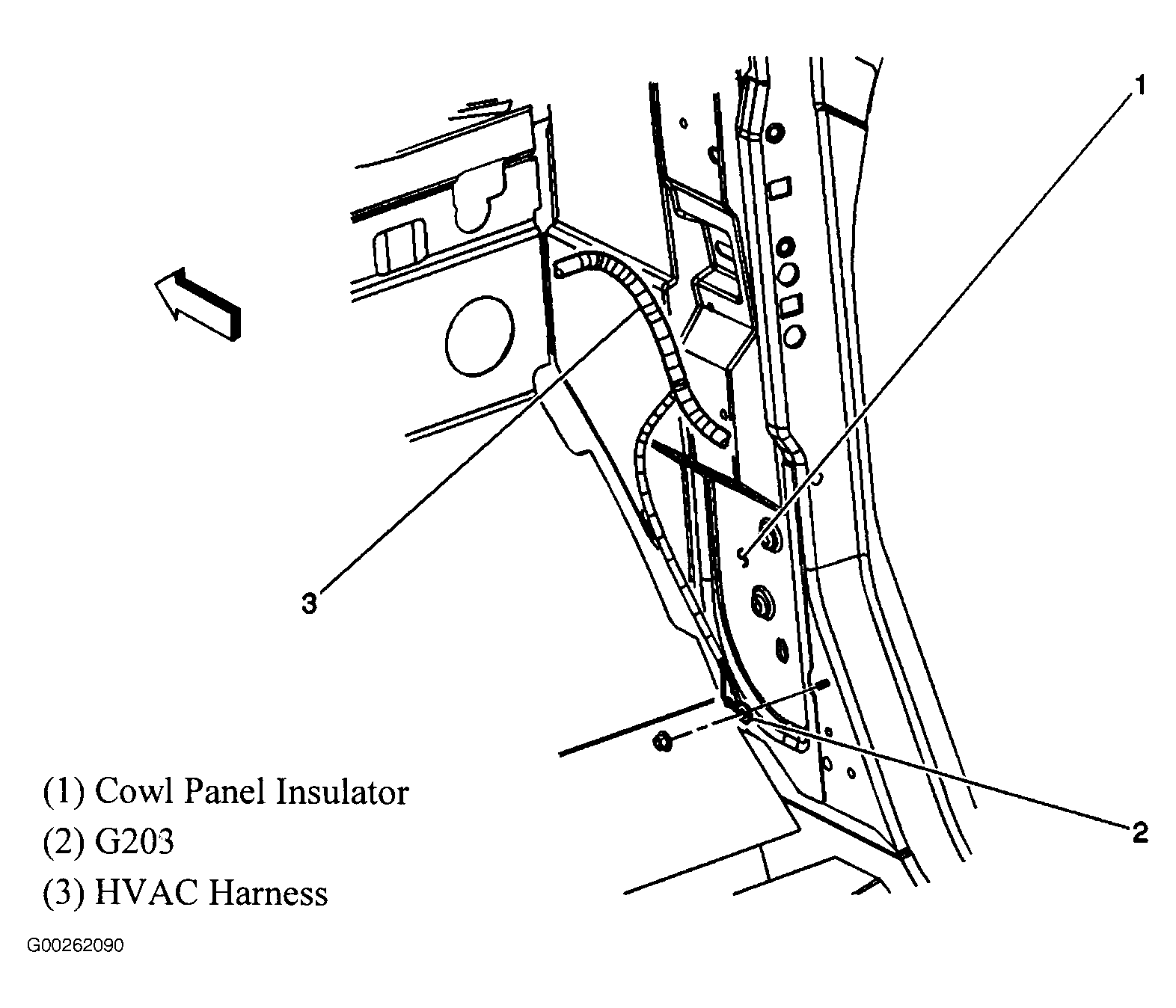

Fig 15: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

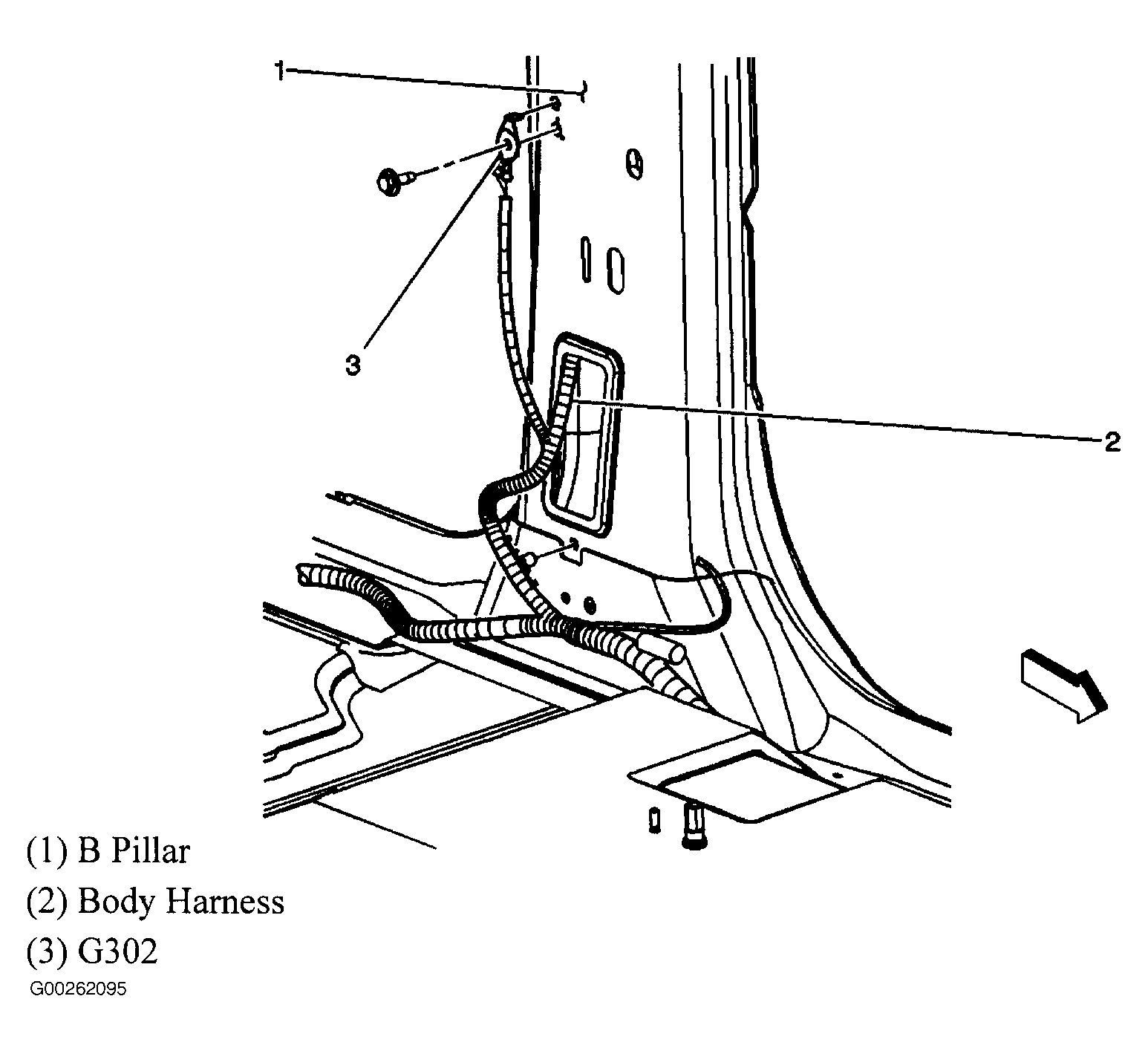

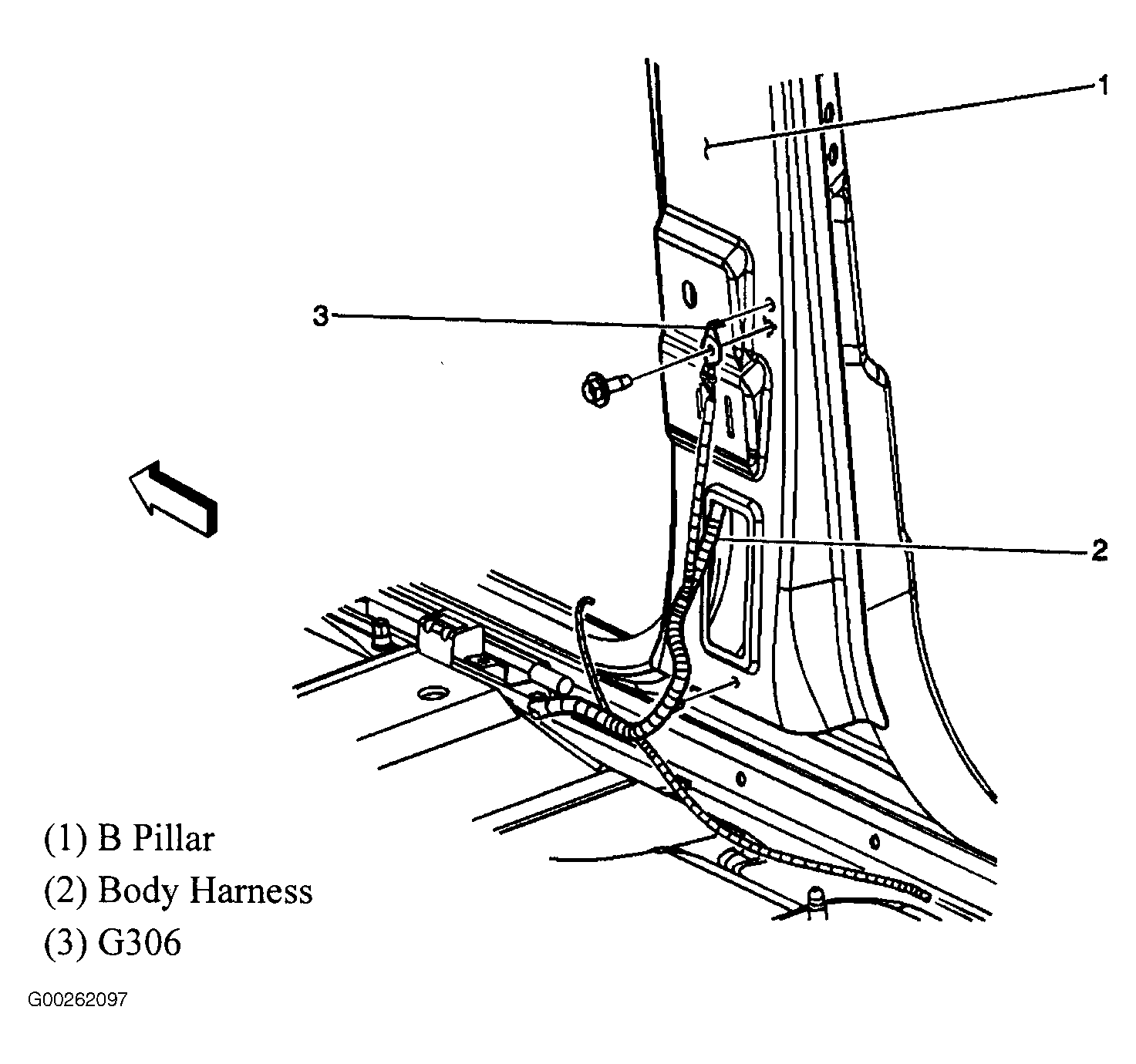

Fig 18: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

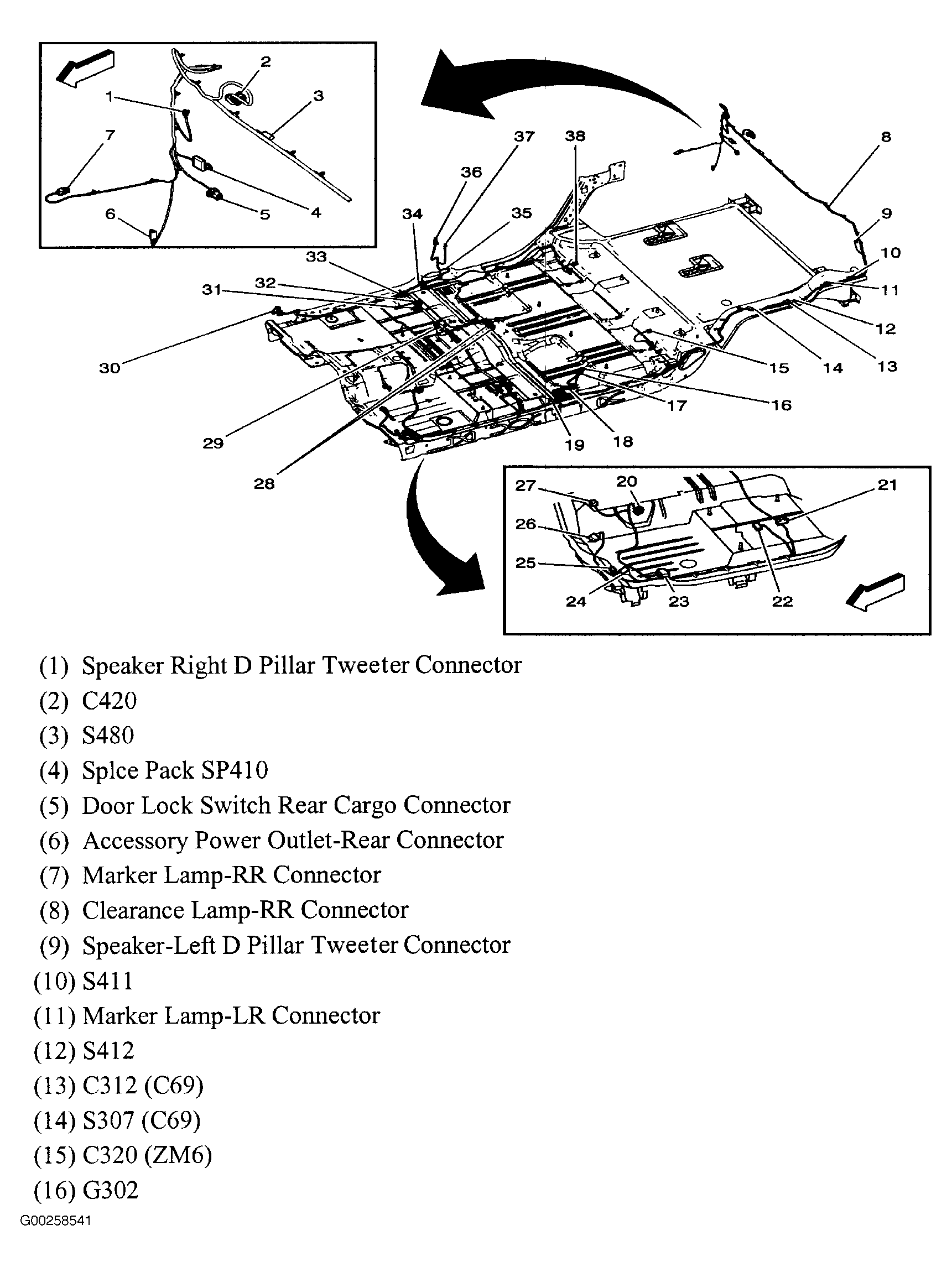

Fig 19: Vehicle Floor
Courtesy of GENERAL MOTORS CORP.

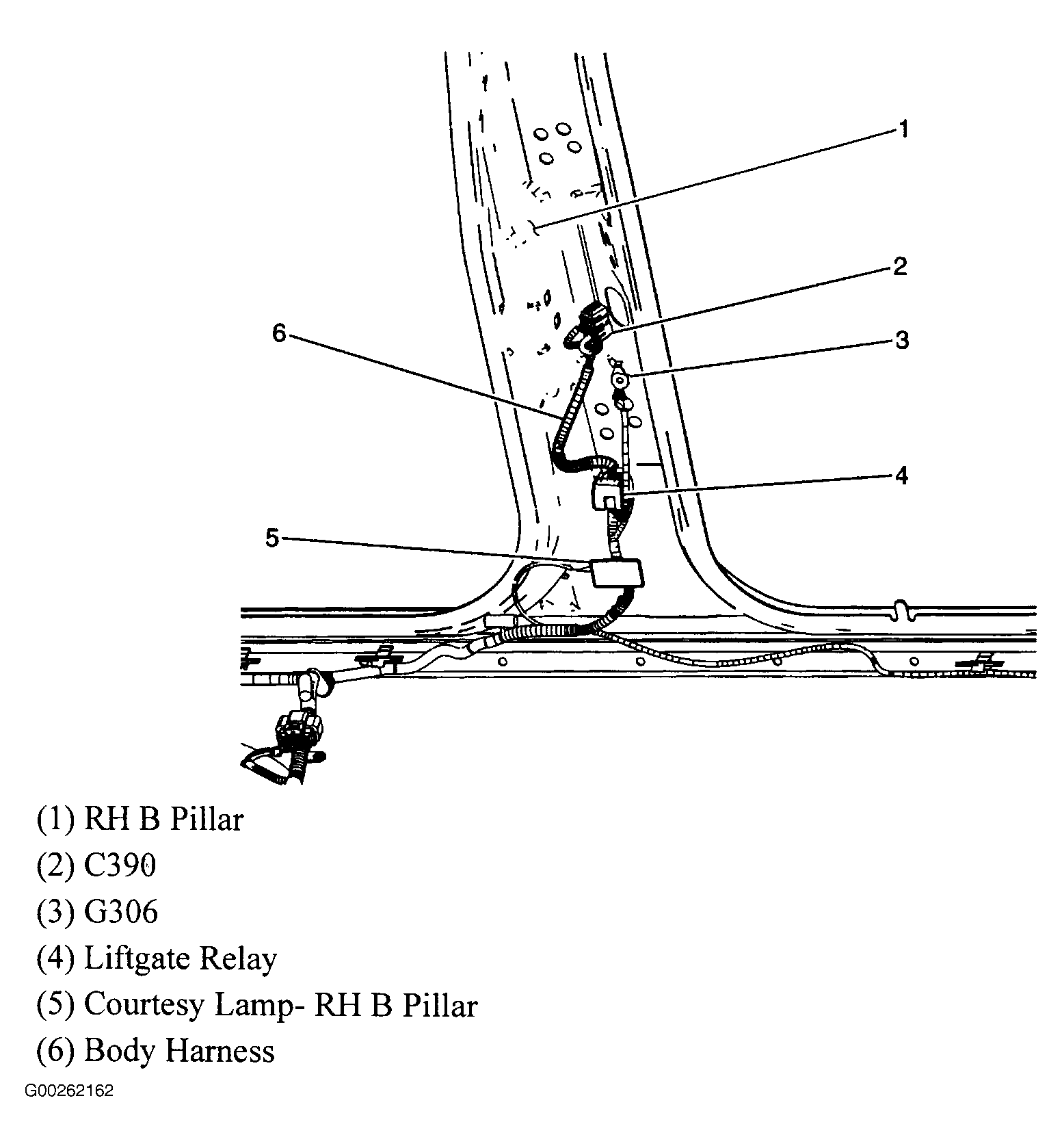

Fig 20: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

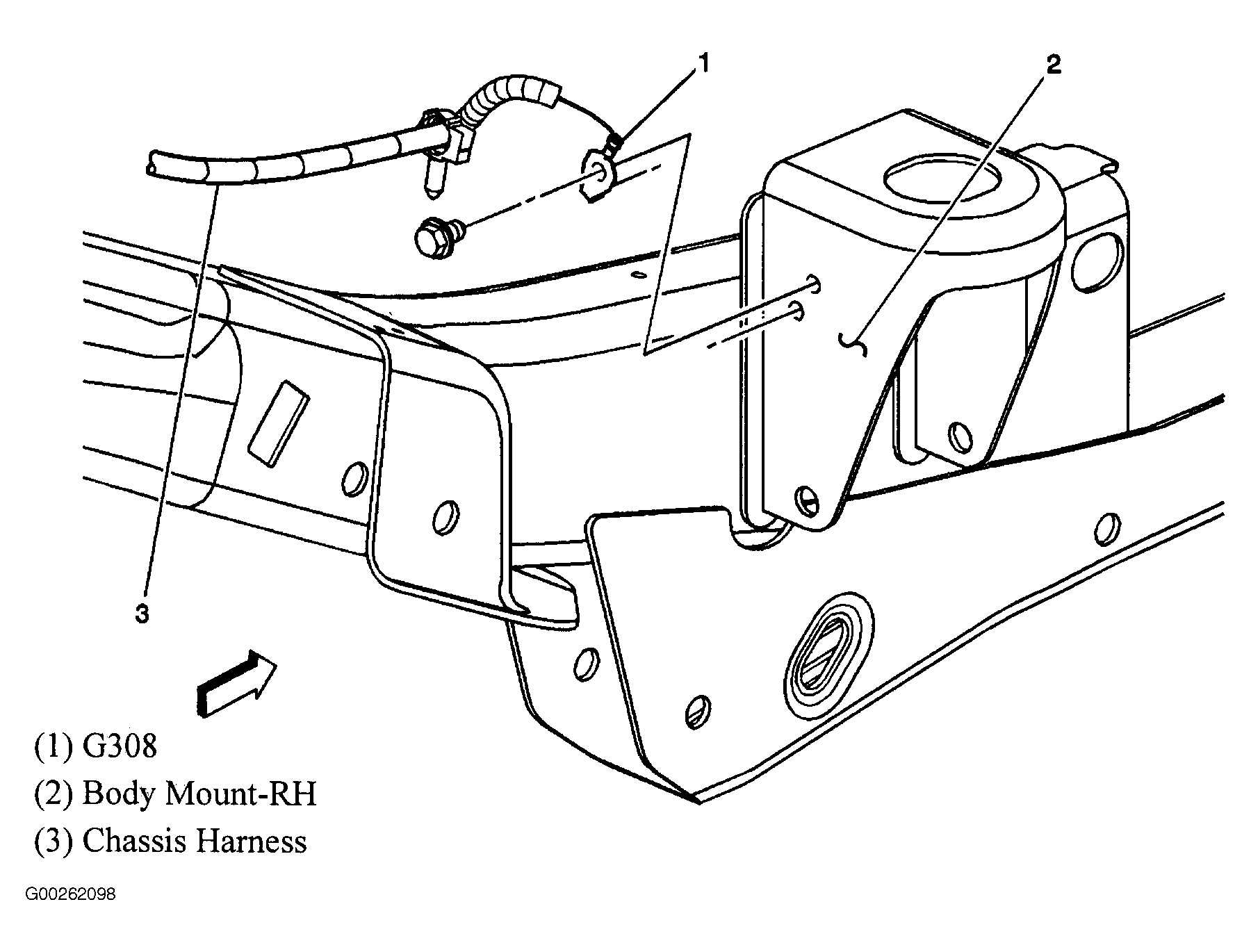

Fig 21: Right Frame Rail
Courtesy of GENERAL MOTORS CORP.

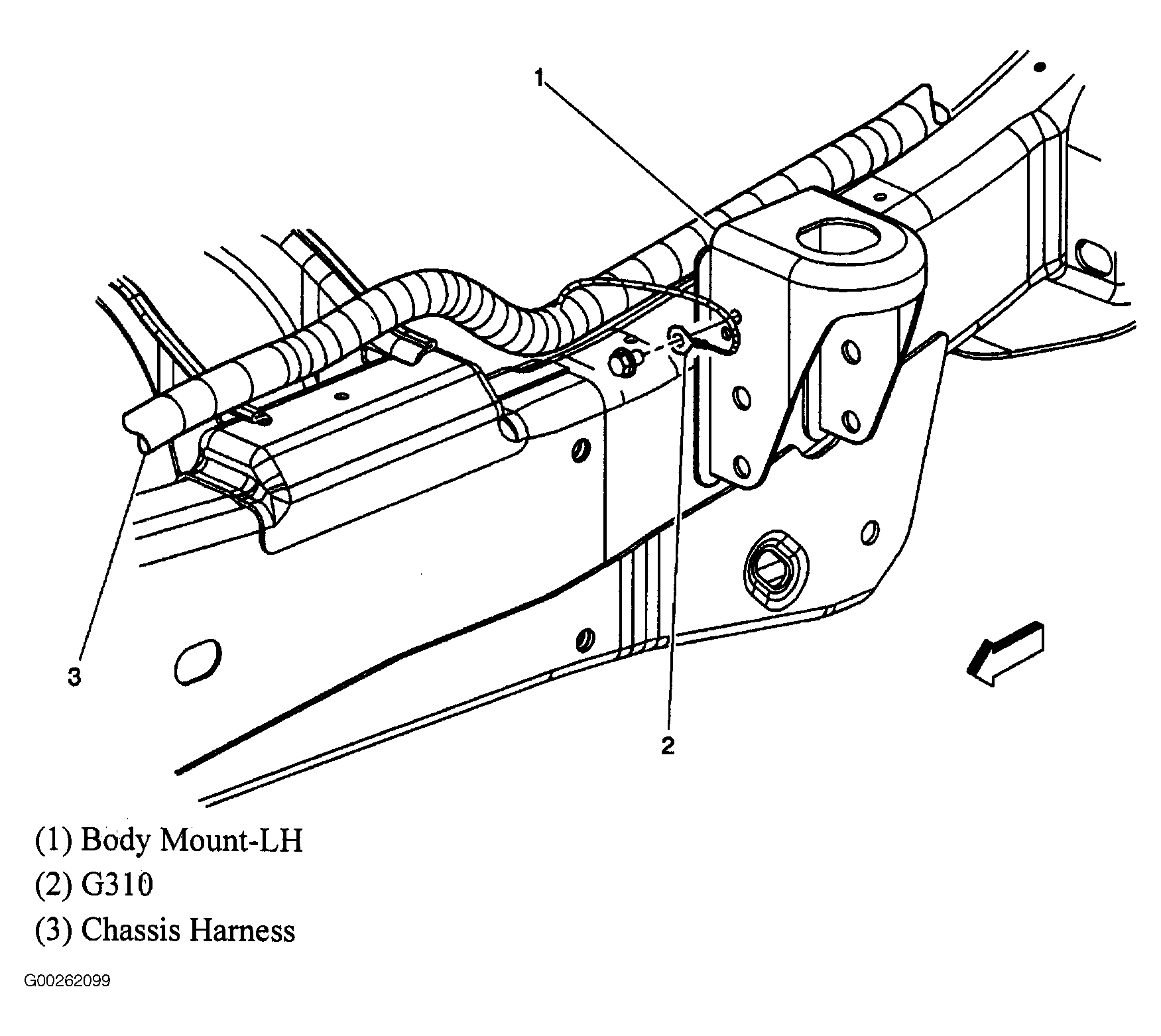

Fig 22: Left Frame Rail
Courtesy of GENERAL MOTORS CORP.

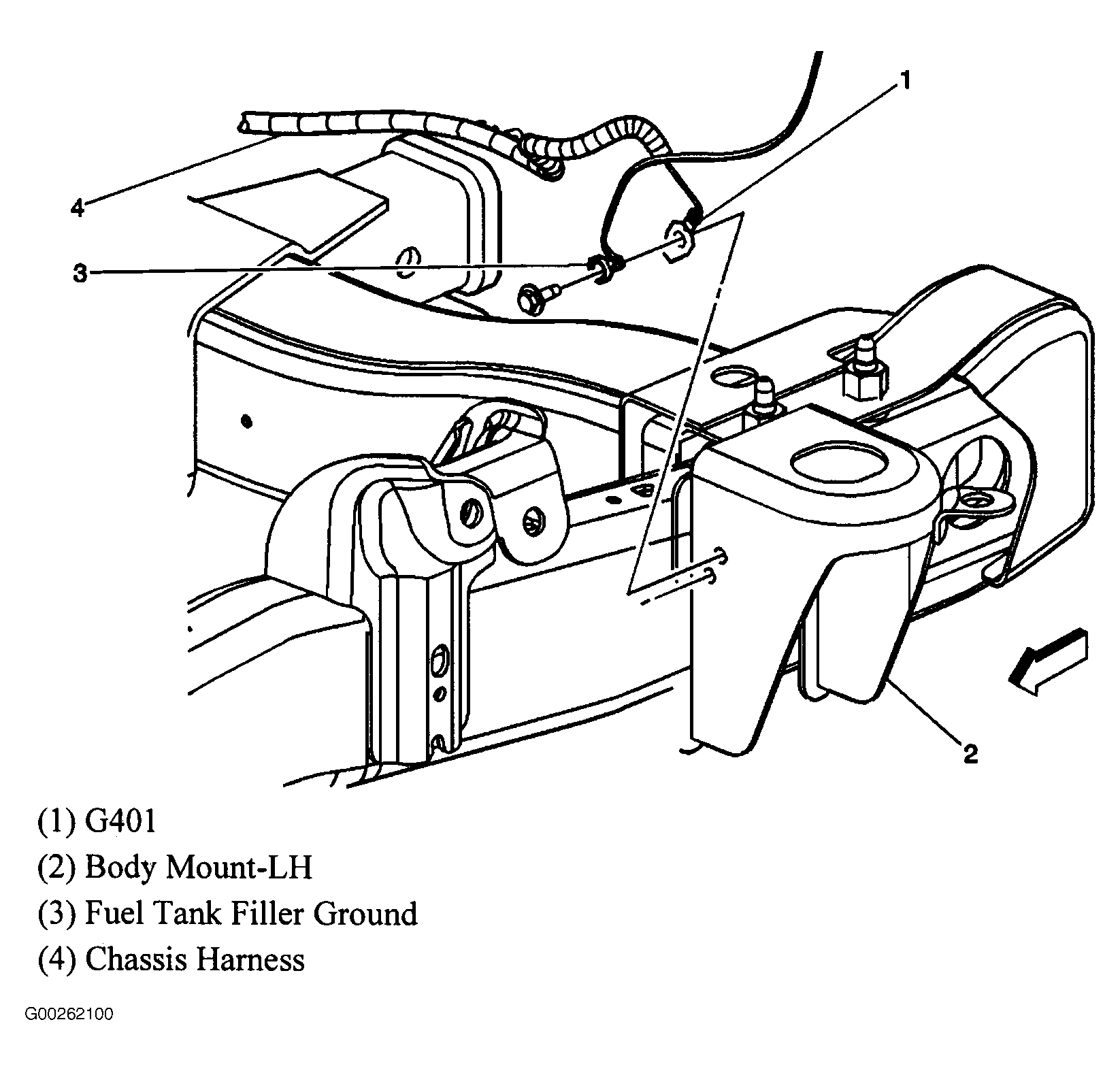

Fig 23: Rear Of Left Frame Rail
Courtesy of GENERAL MOTORS CORP.

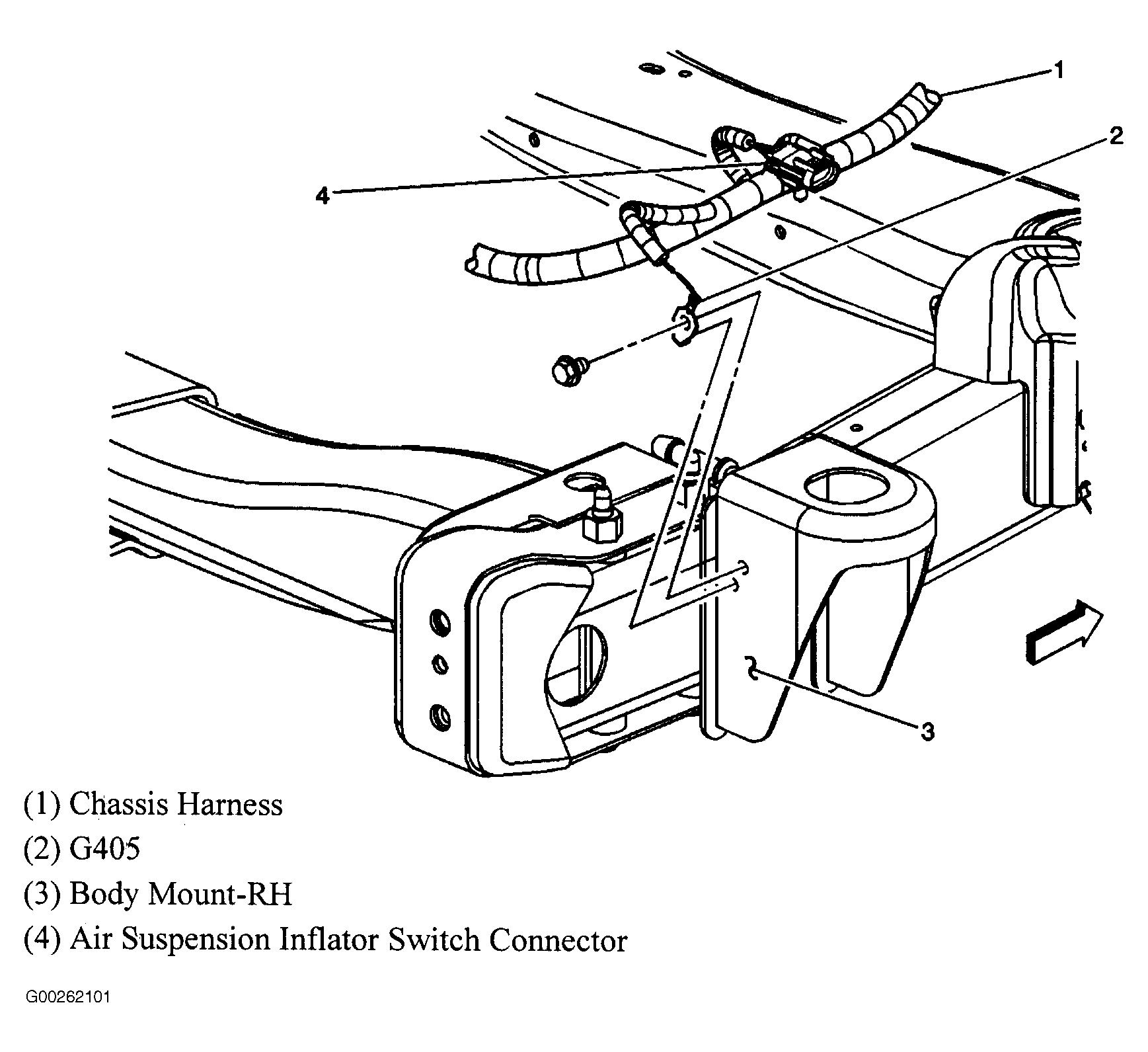

Fig 24: Rear Of Right Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.

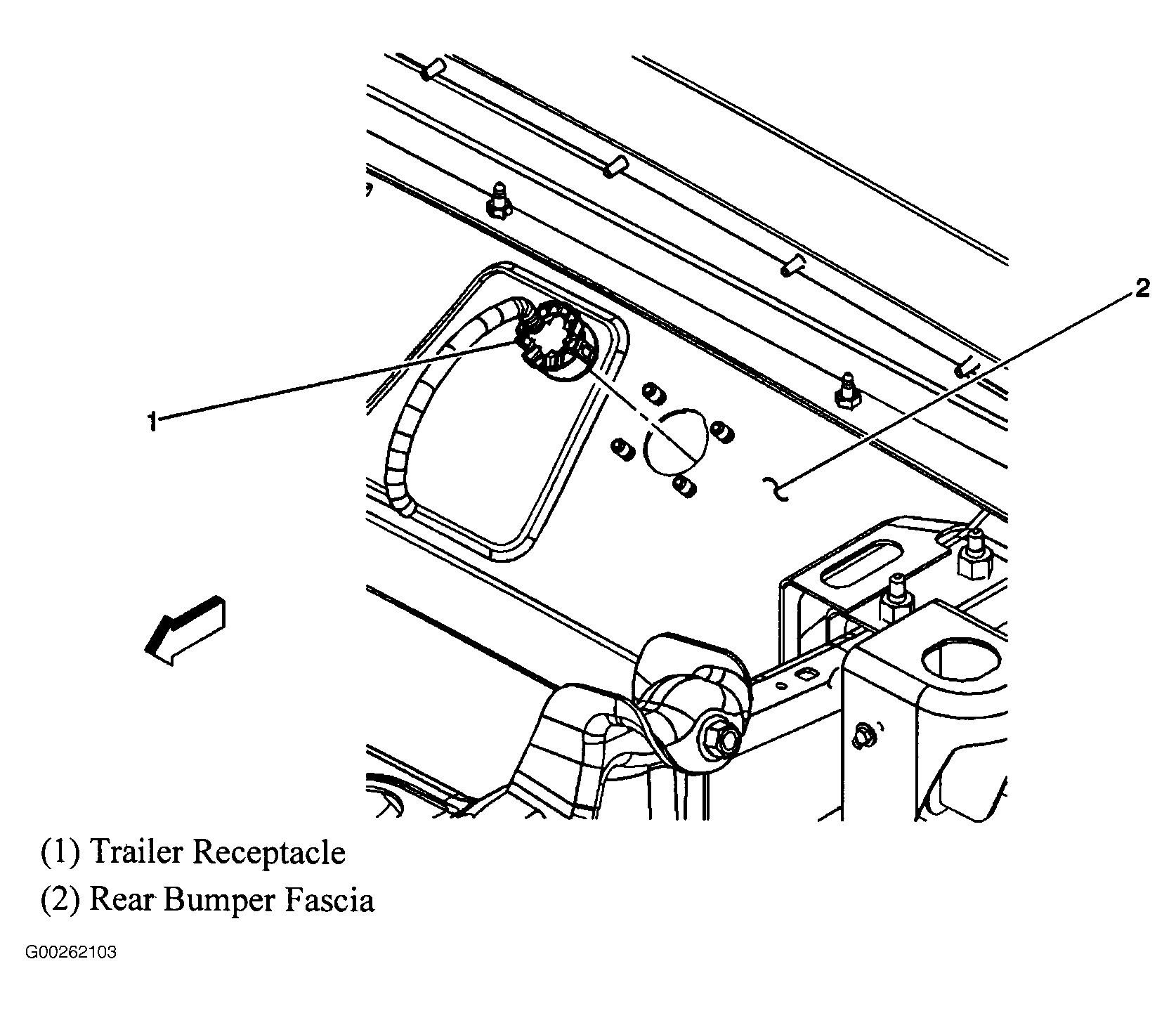

Fig 26: Rear Bumper Fascia
Courtesy of GENERAL MOTORS CORP.

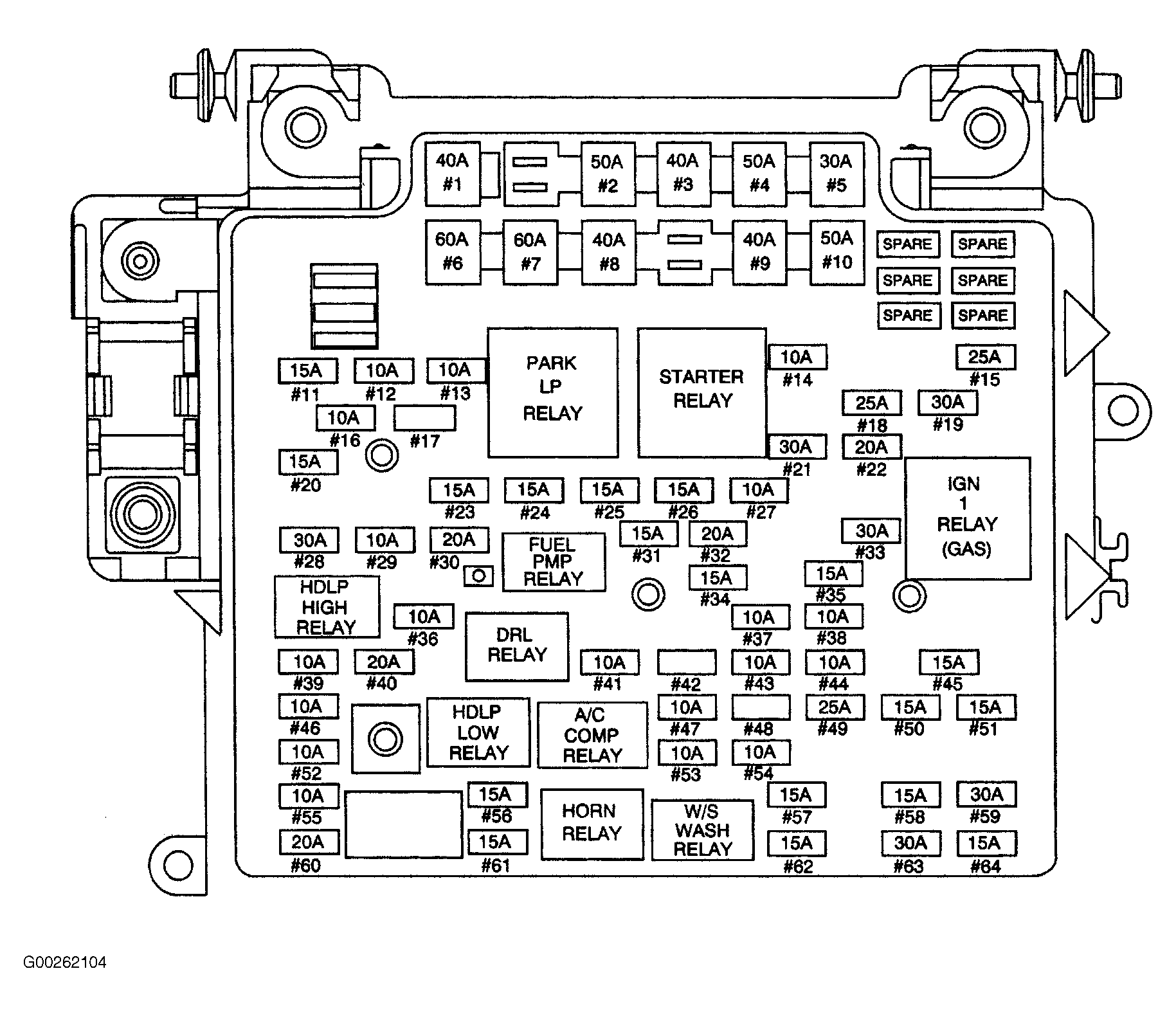

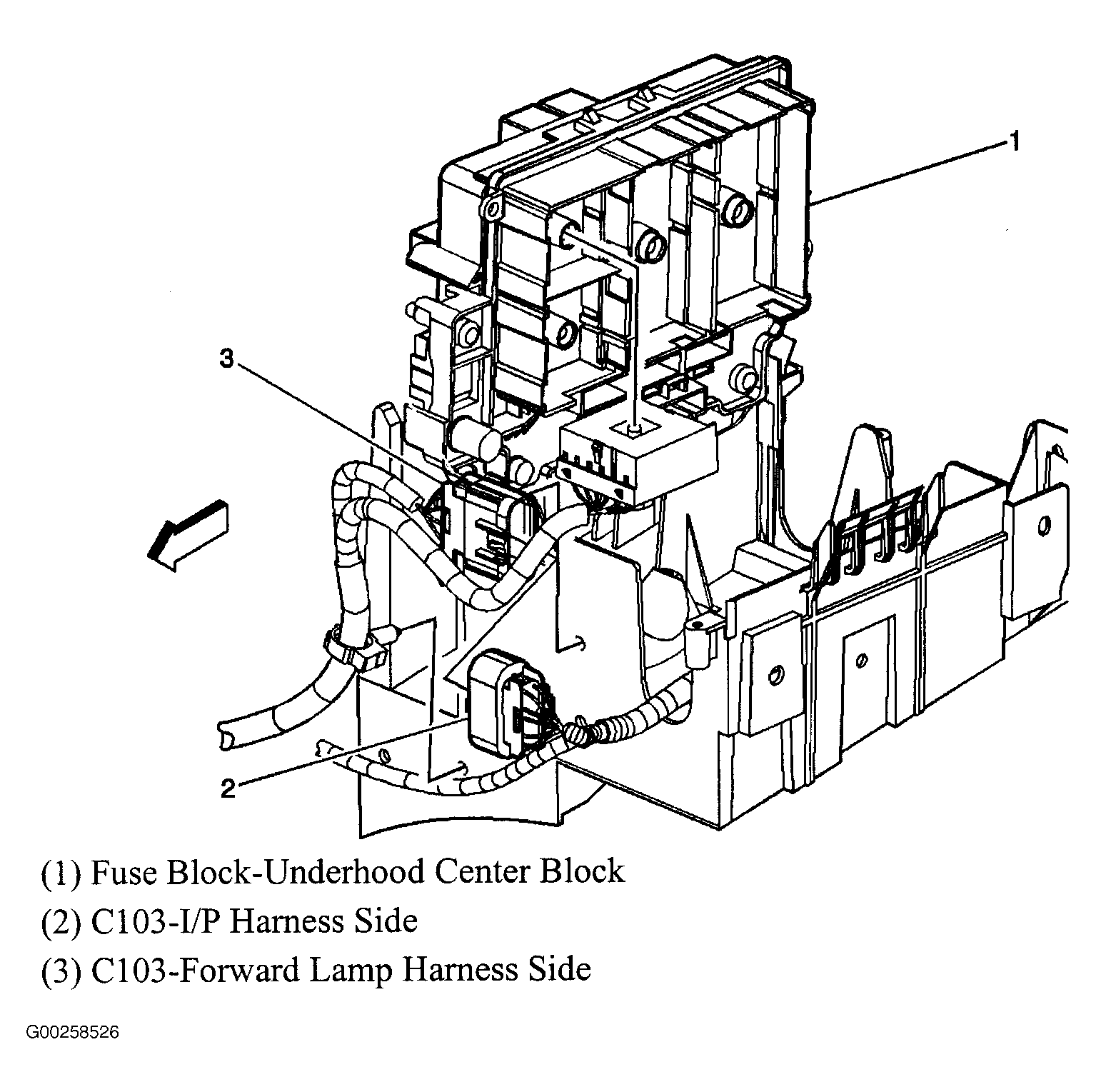

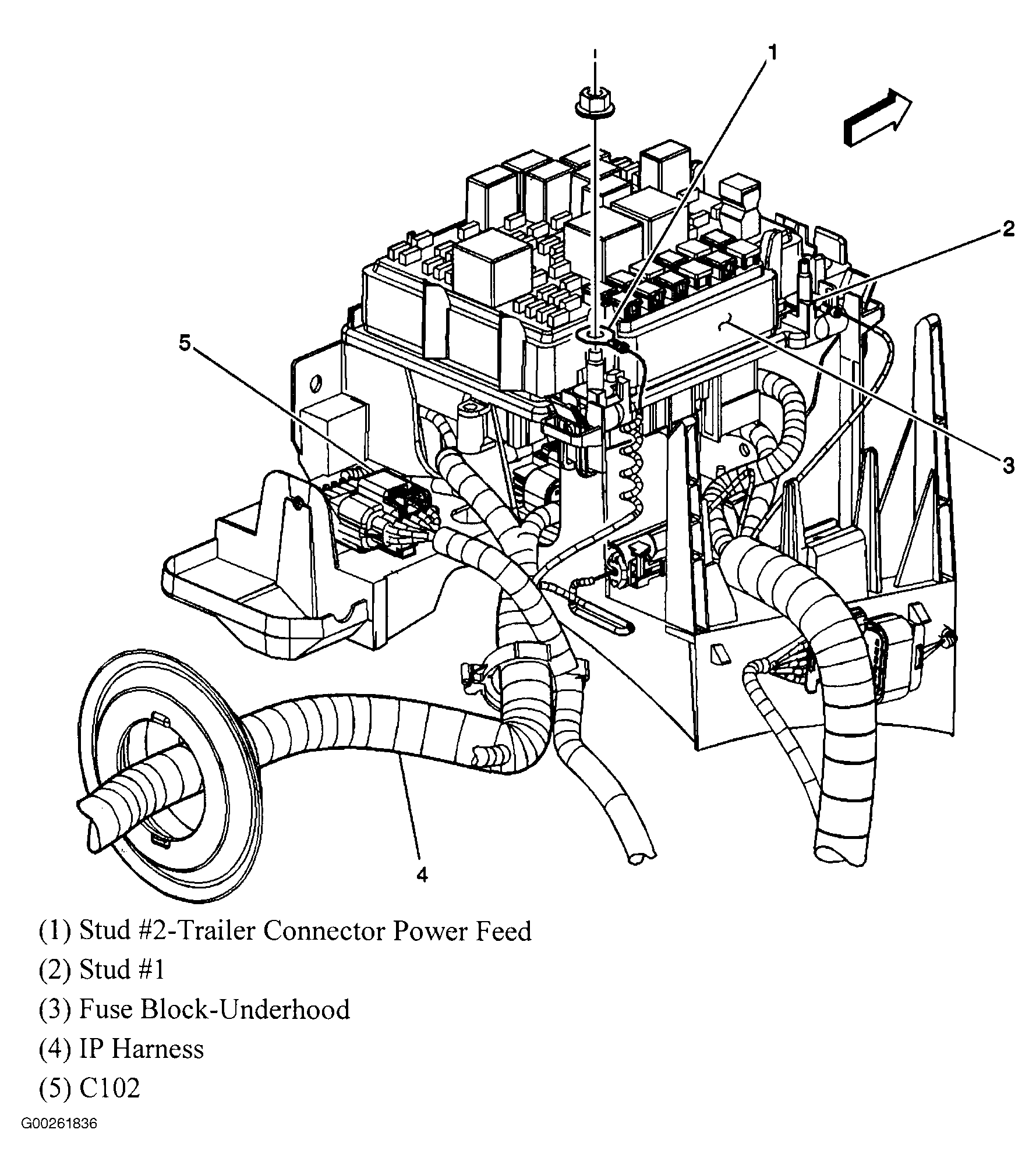

Fig 27: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

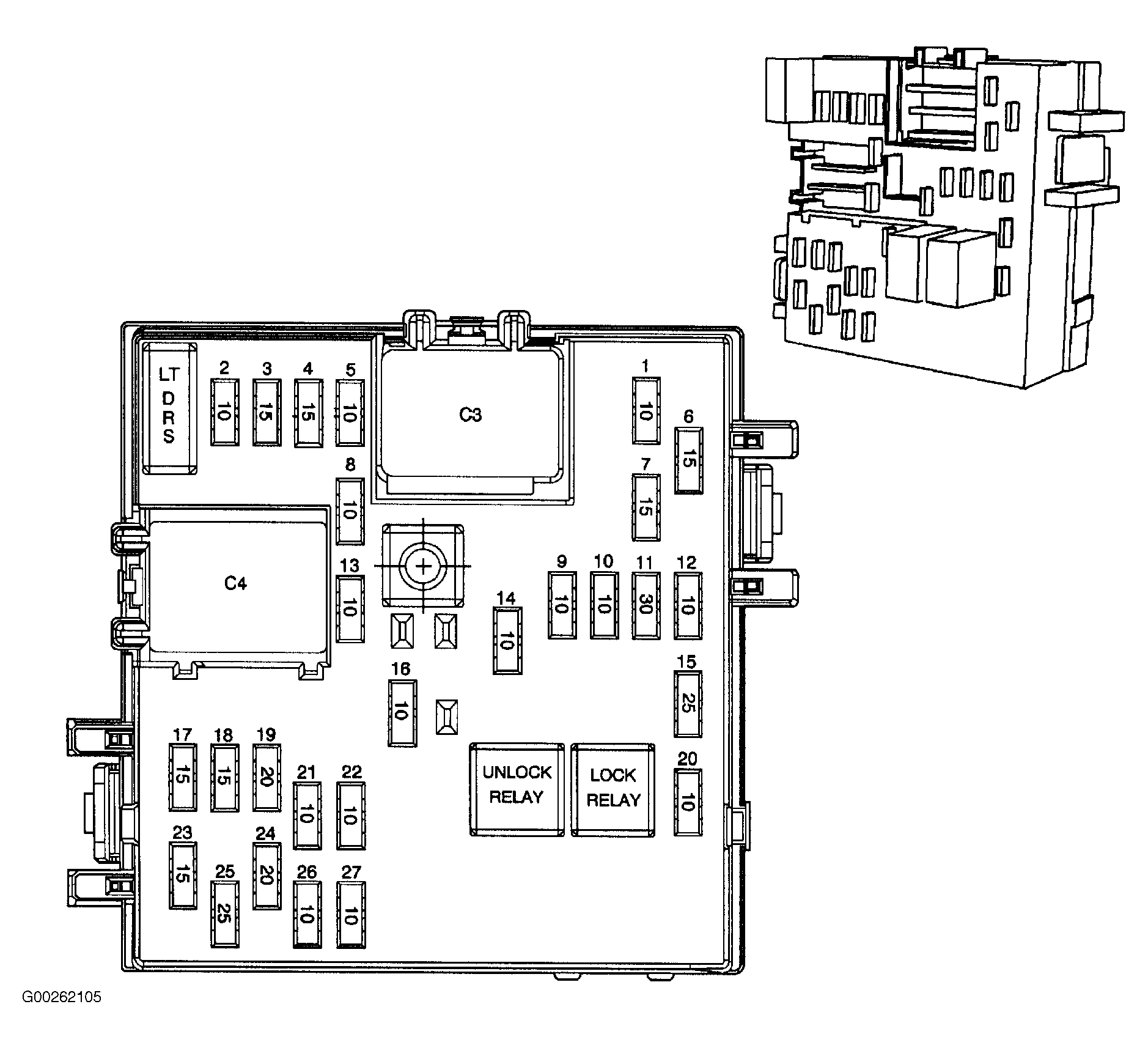

Fig 28: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 29: Bottom Of Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

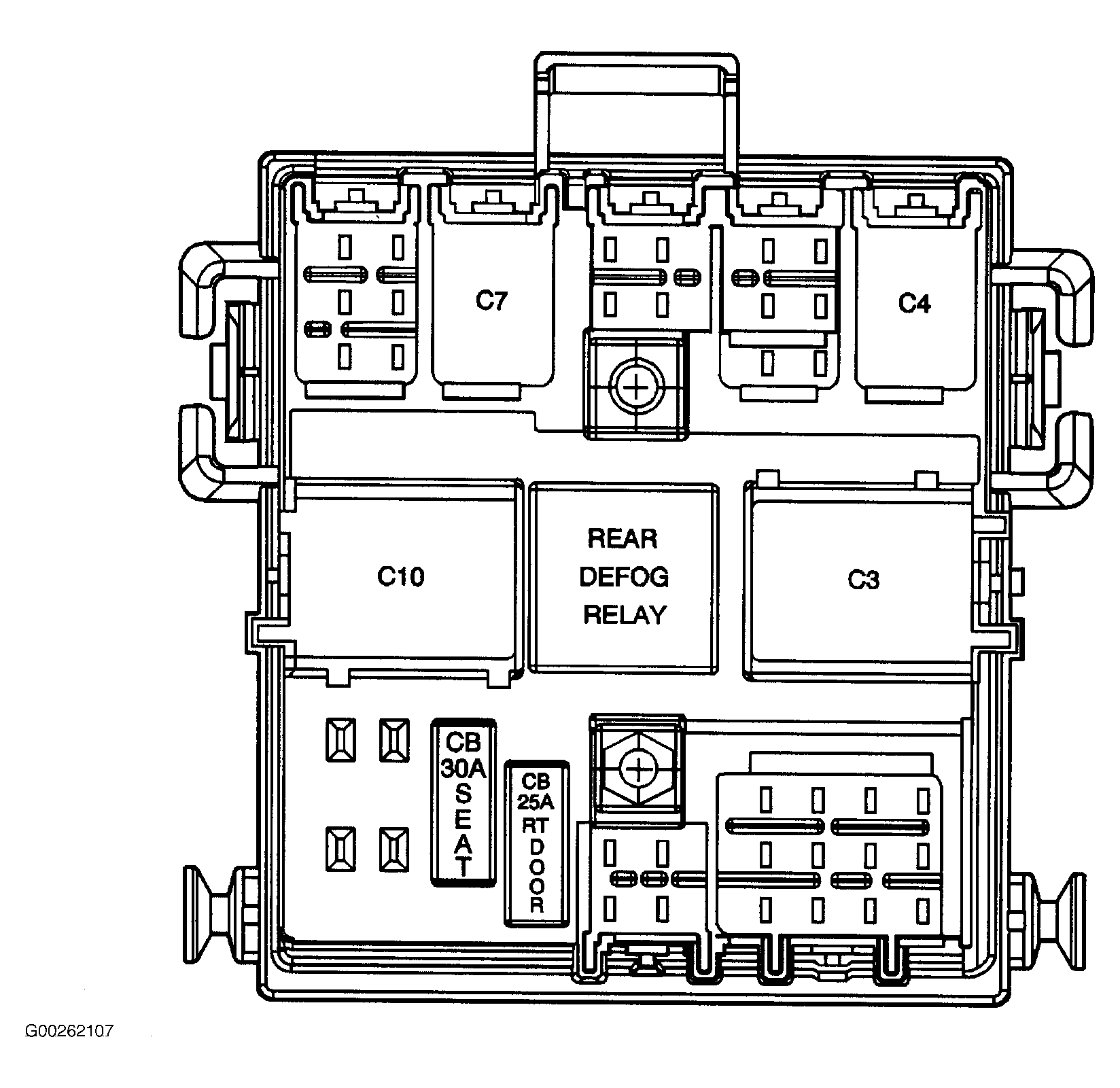

Fig 30: Instrument Panel Relay Block
Courtesy of GENERAL MOTORS CORP.

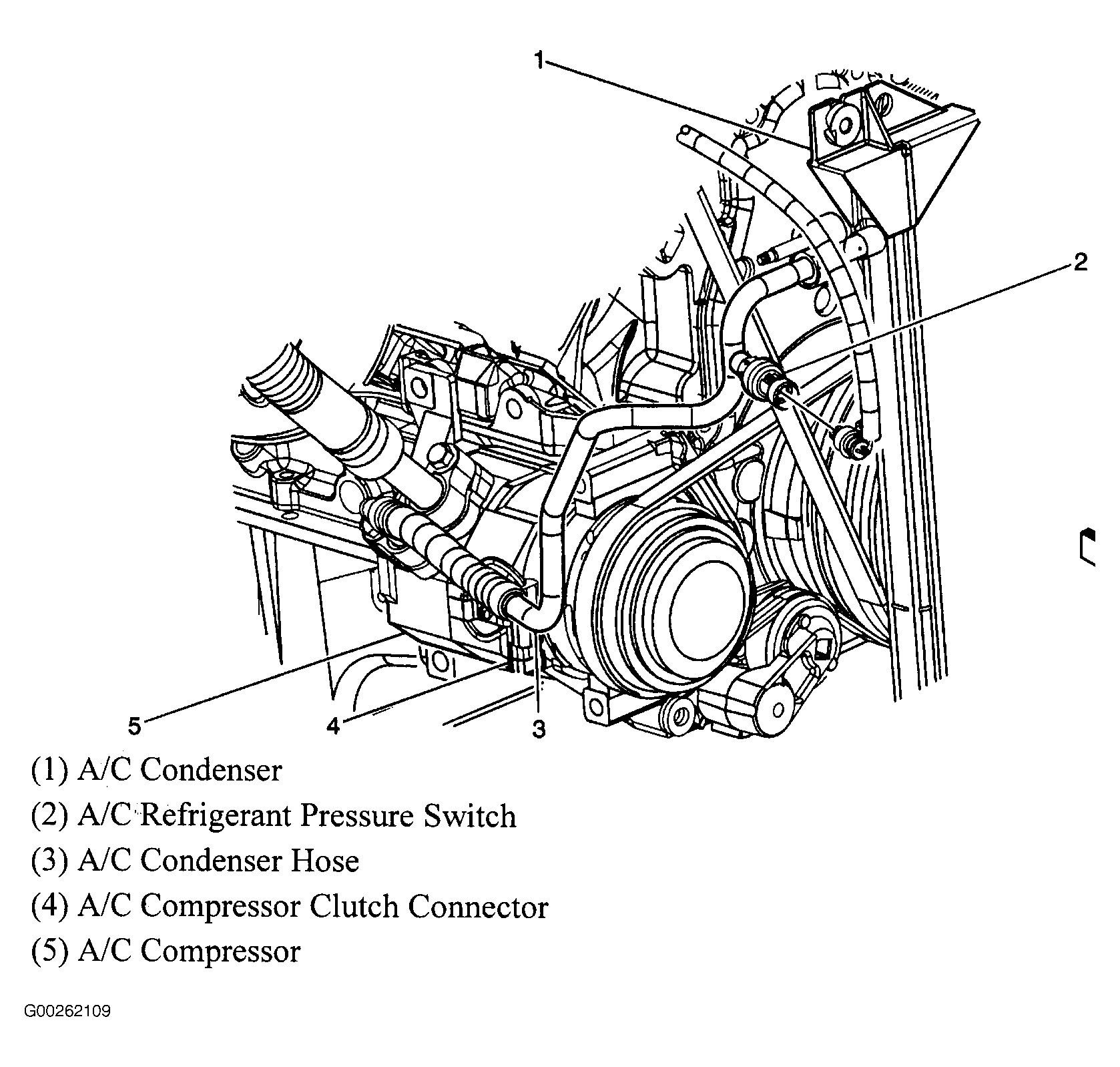

Fig 31: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

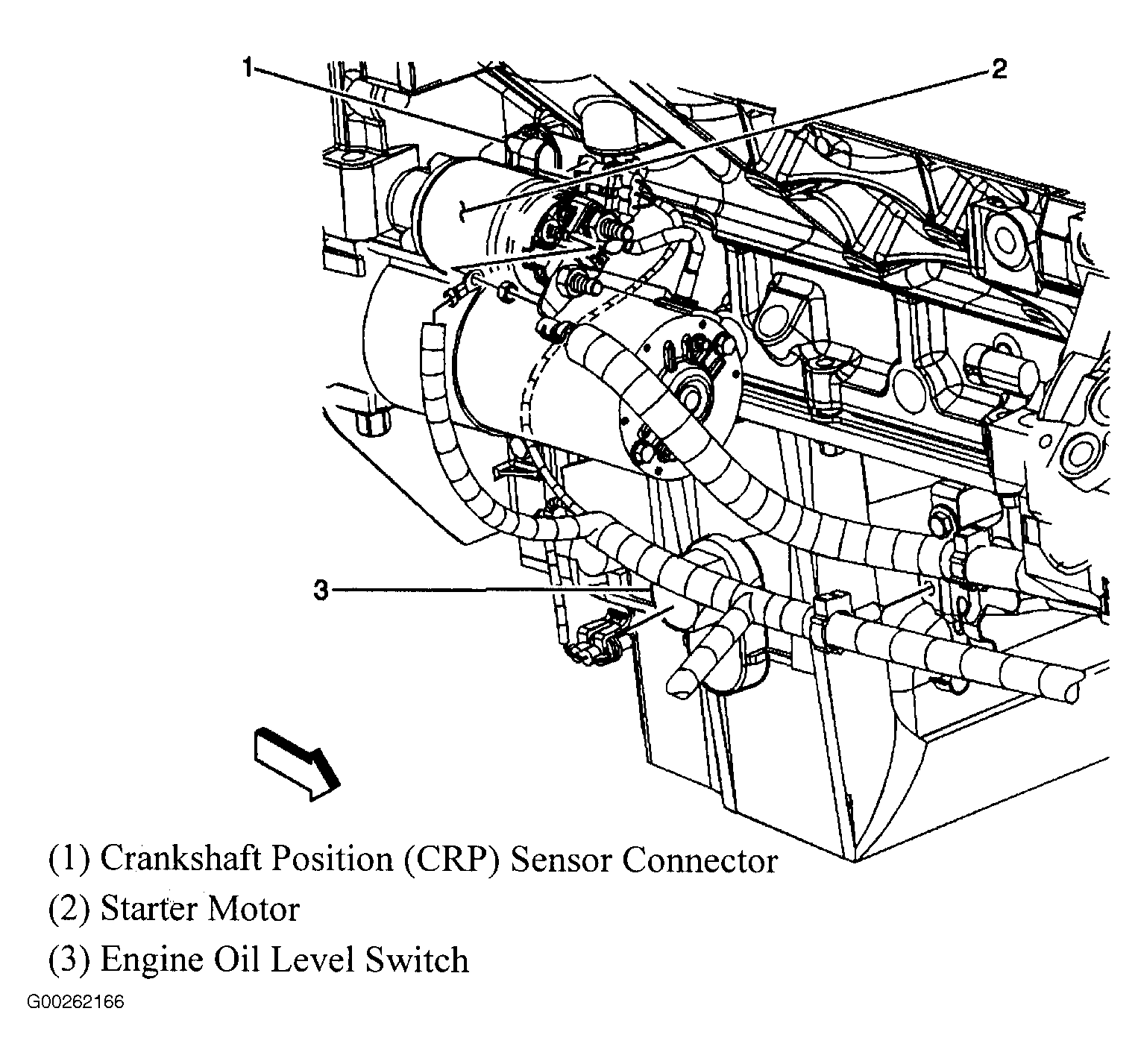

Fig 32: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

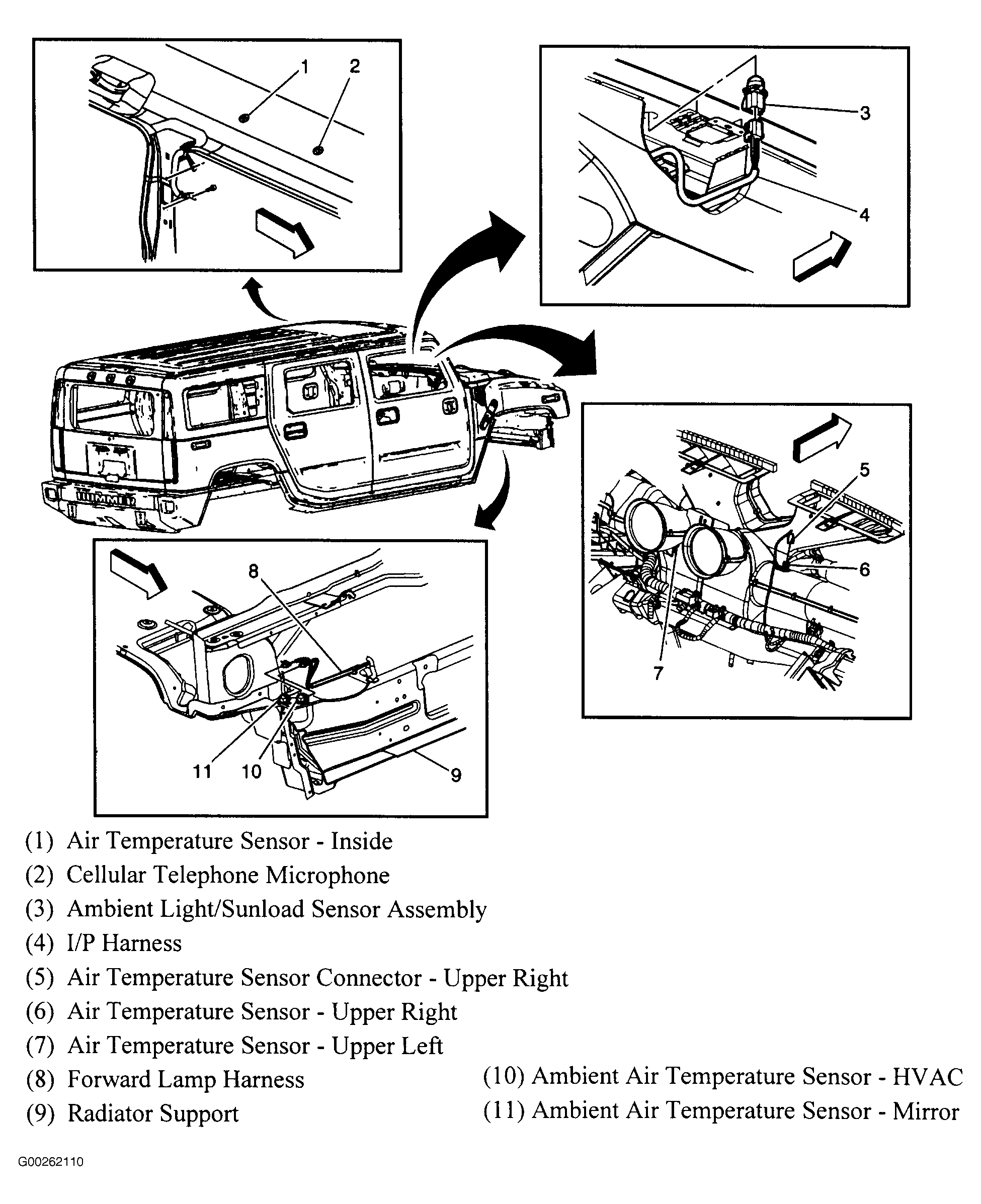

Fig 33: HVAC Subsystem Components
Courtesy of GENERAL MOTORS CORP.
Fig 34: HVAC Module
Courtesy of GENERAL MOTORS CORP.

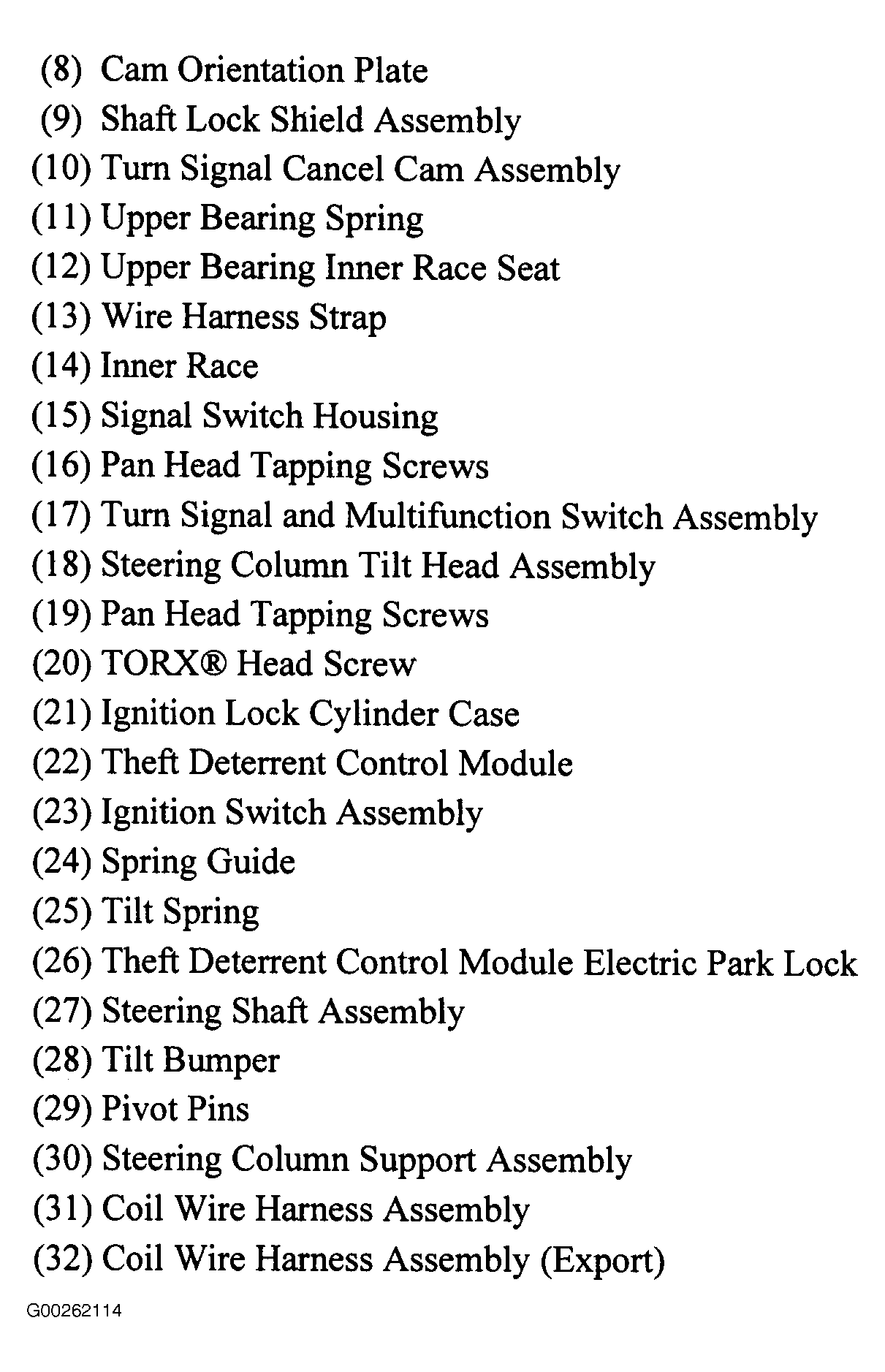

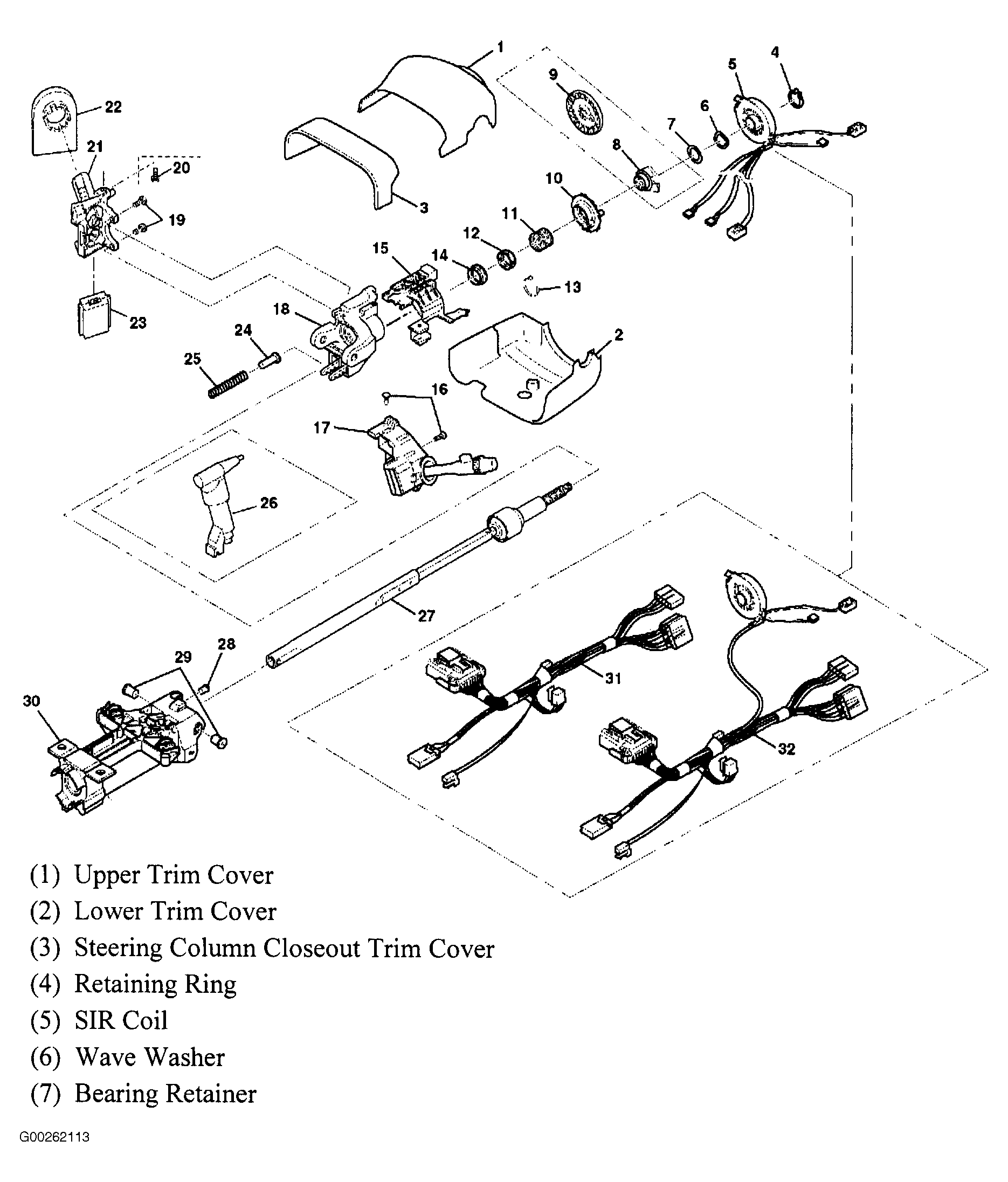

Fig 35: Steering Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Steering Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

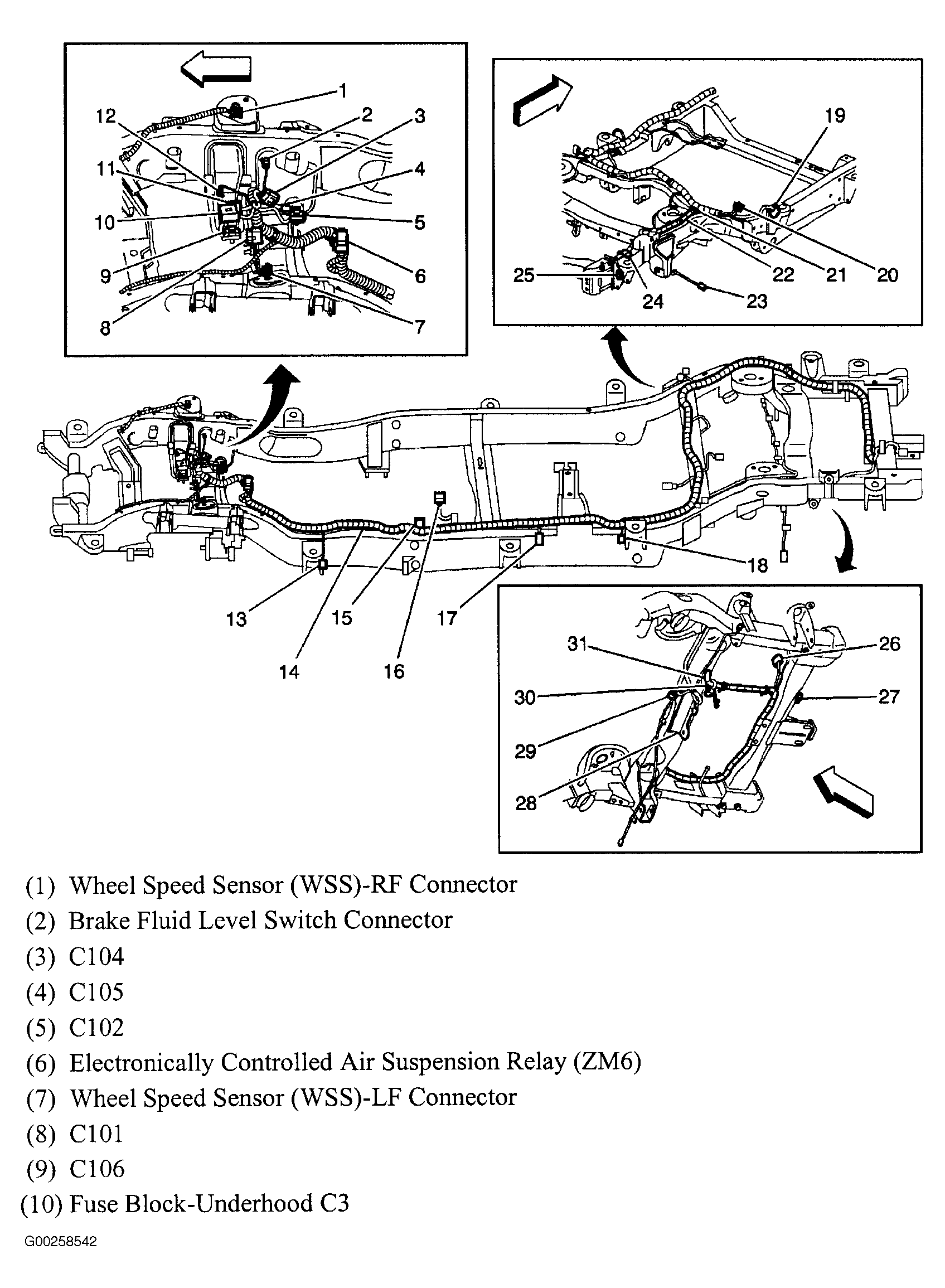

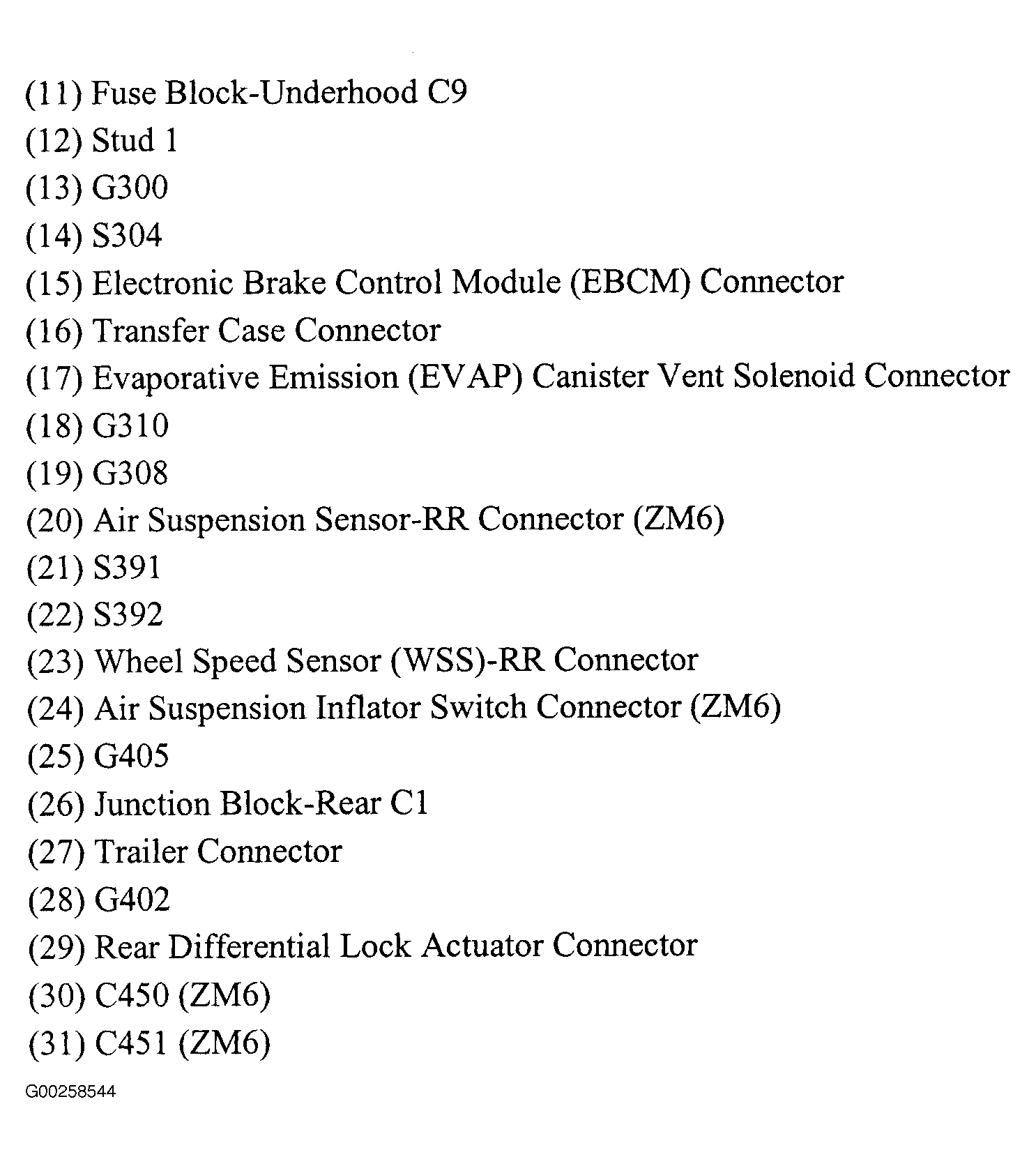

Fig 37: Center Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

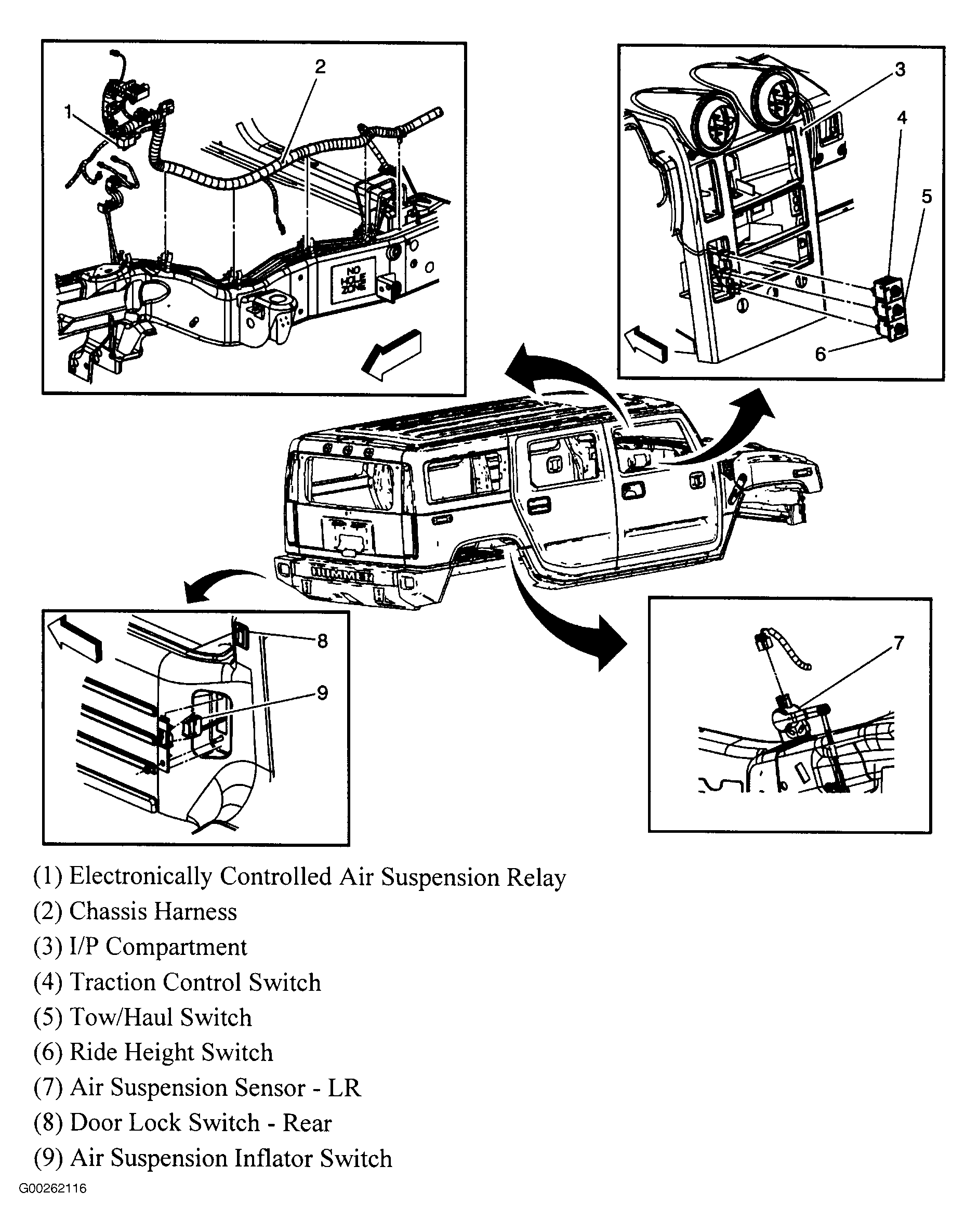

Fig 38: Air Suspension Components
Courtesy of GENERAL MOTORS CORP.

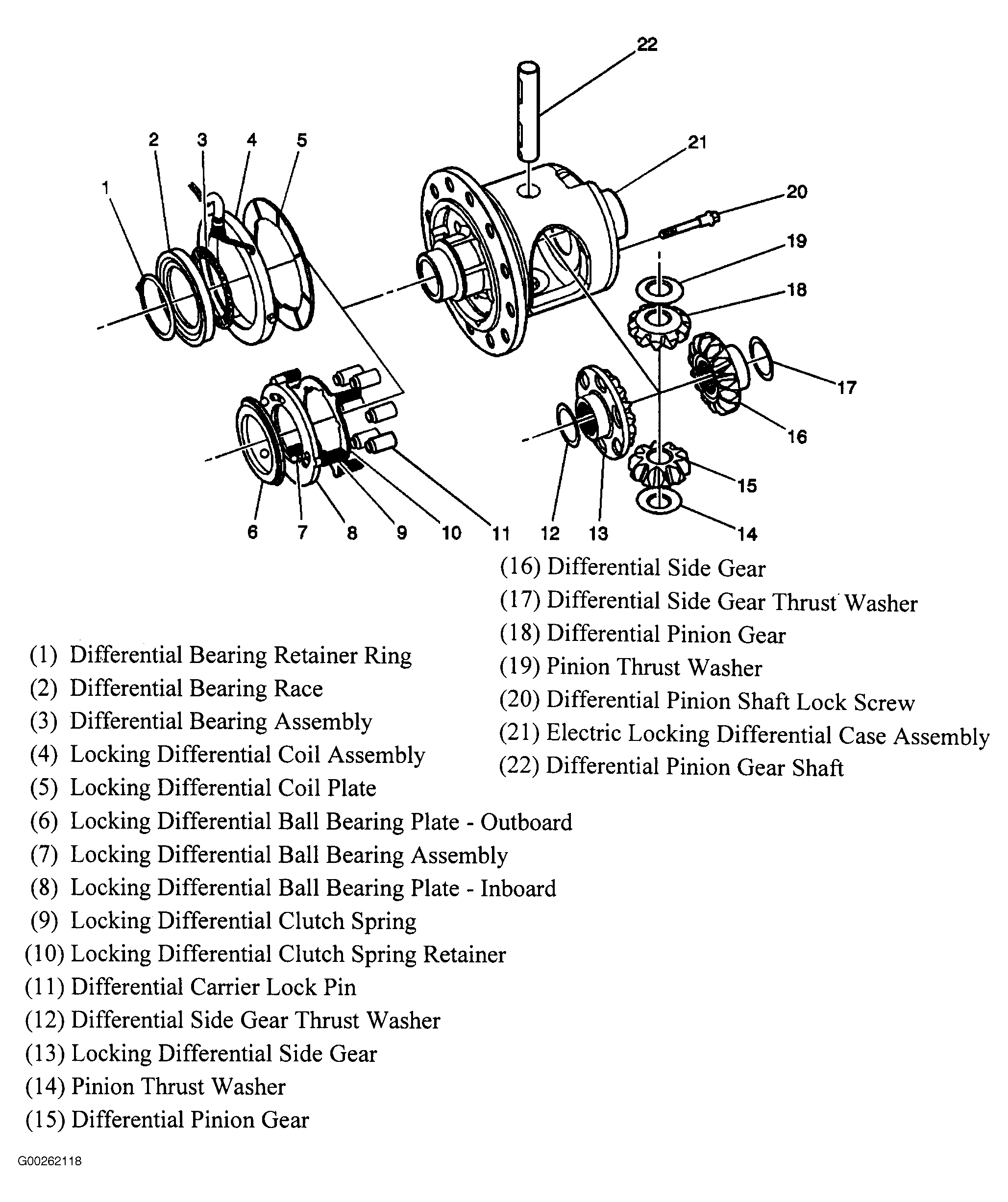

Fig 39: Locking Differential
Courtesy of GENERAL MOTORS CORP.

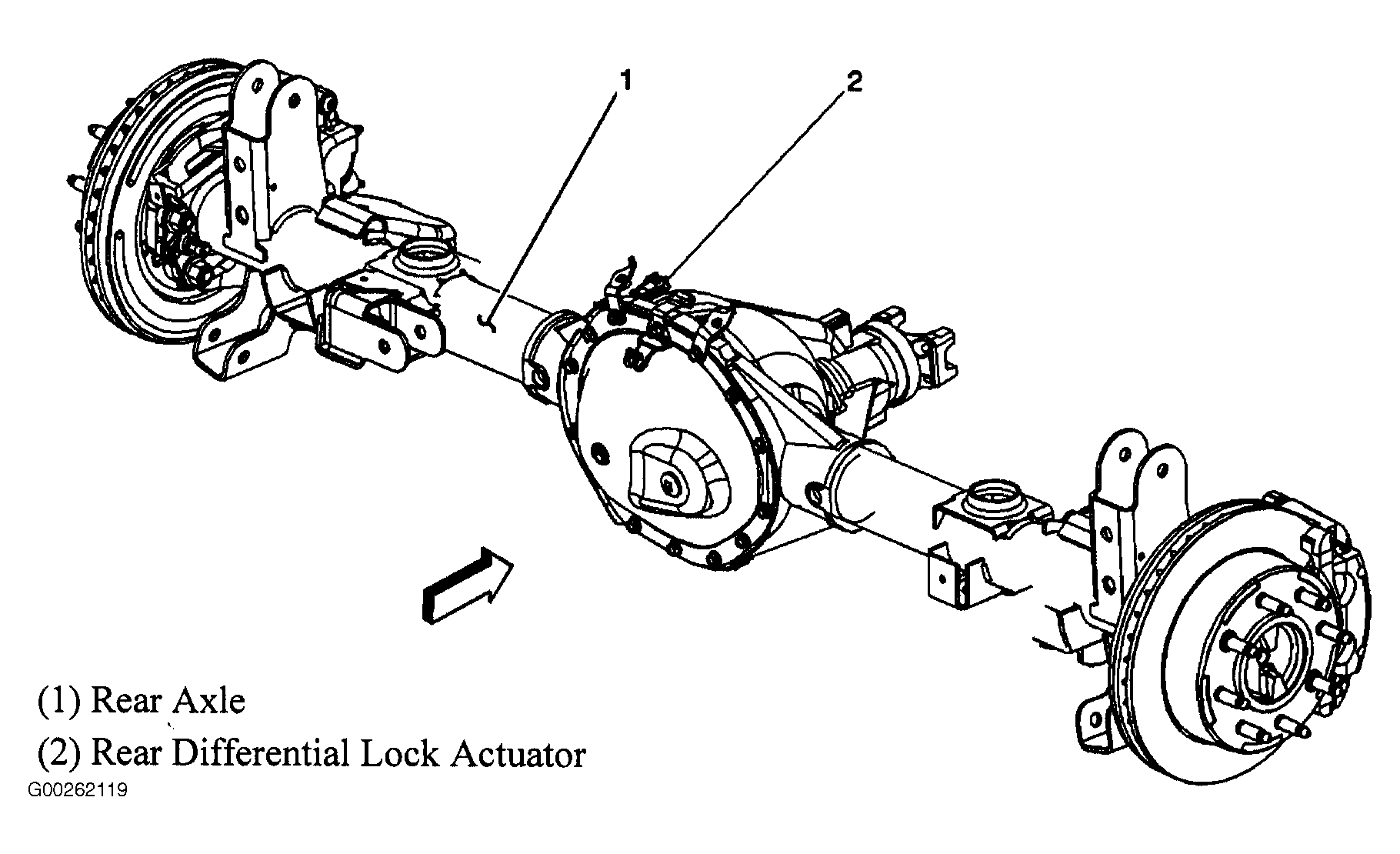

Fig 40: Rear Axle
Courtesy of GENERAL MOTORS CORP.

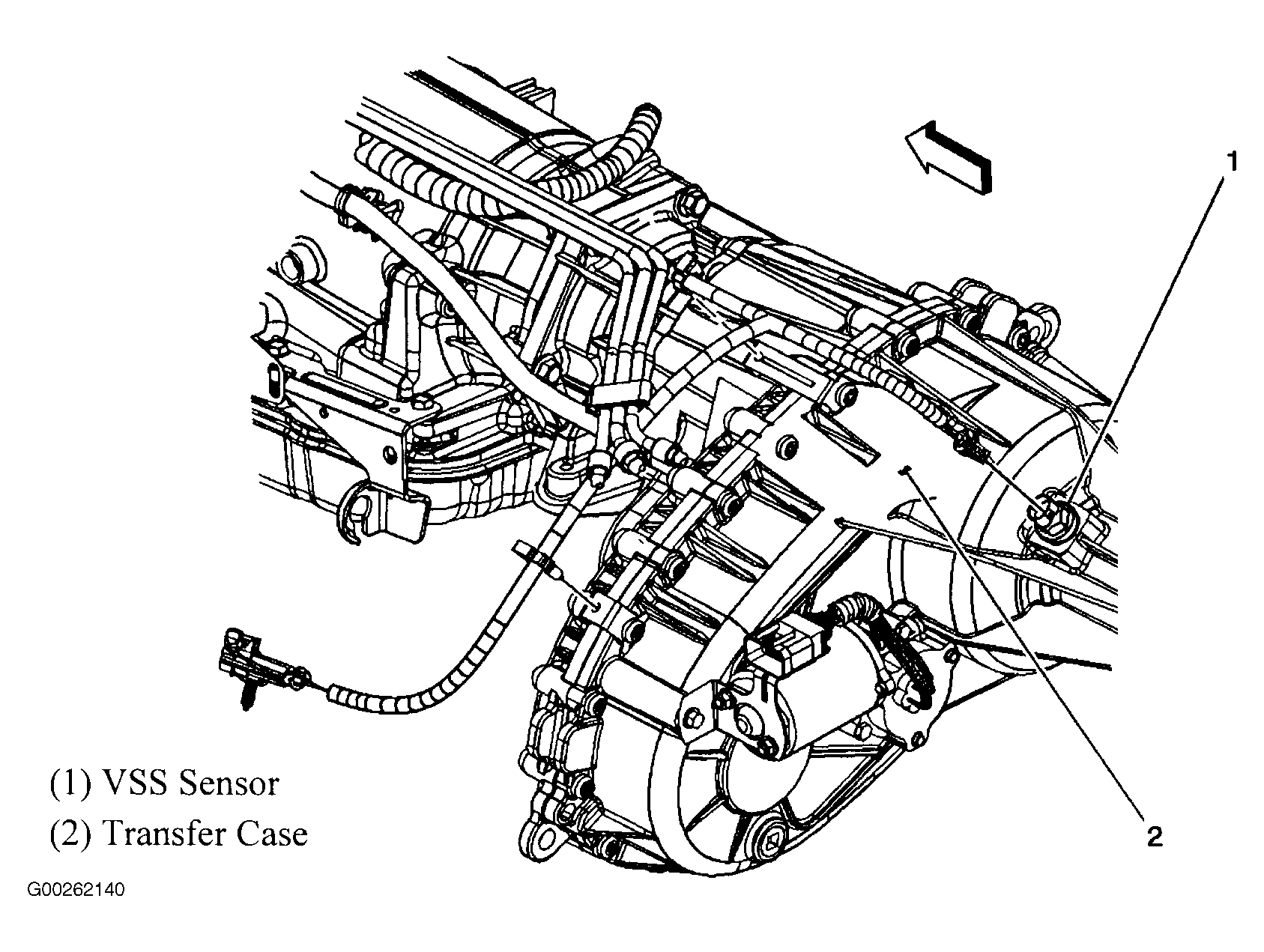

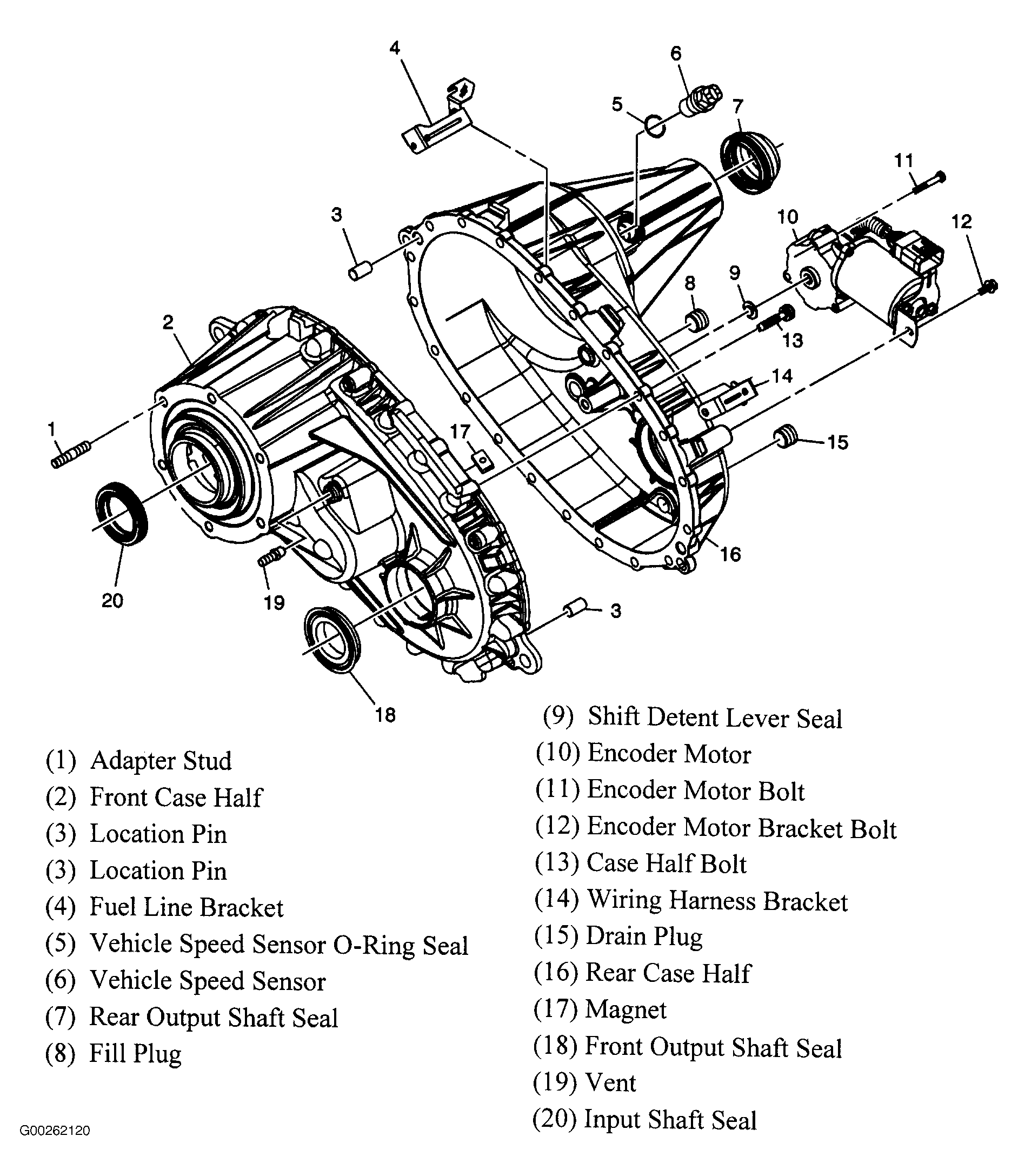

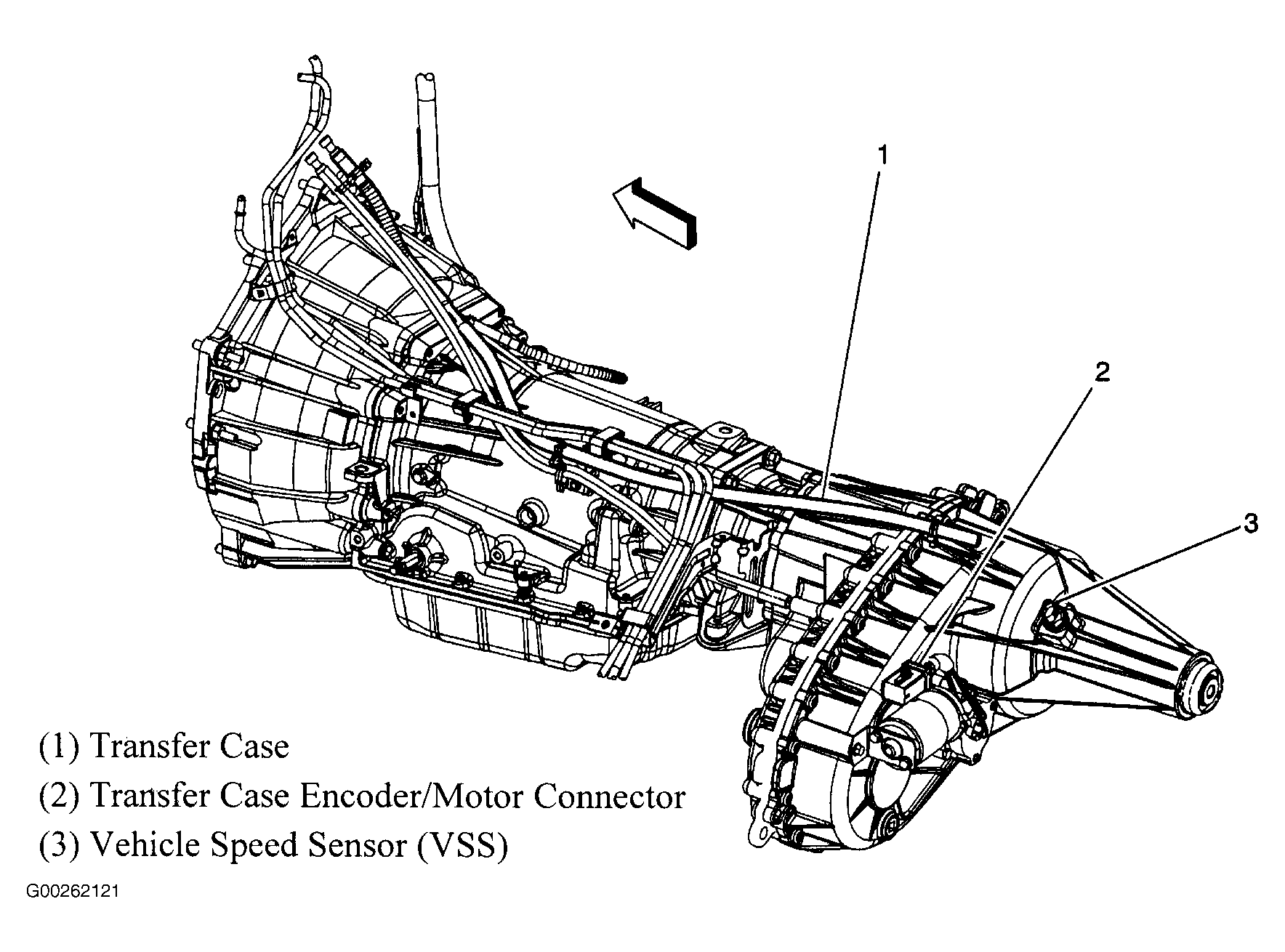

Fig 41: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 42: Rear Of Transmission
Courtesy of GENERAL MOTORS CORP.

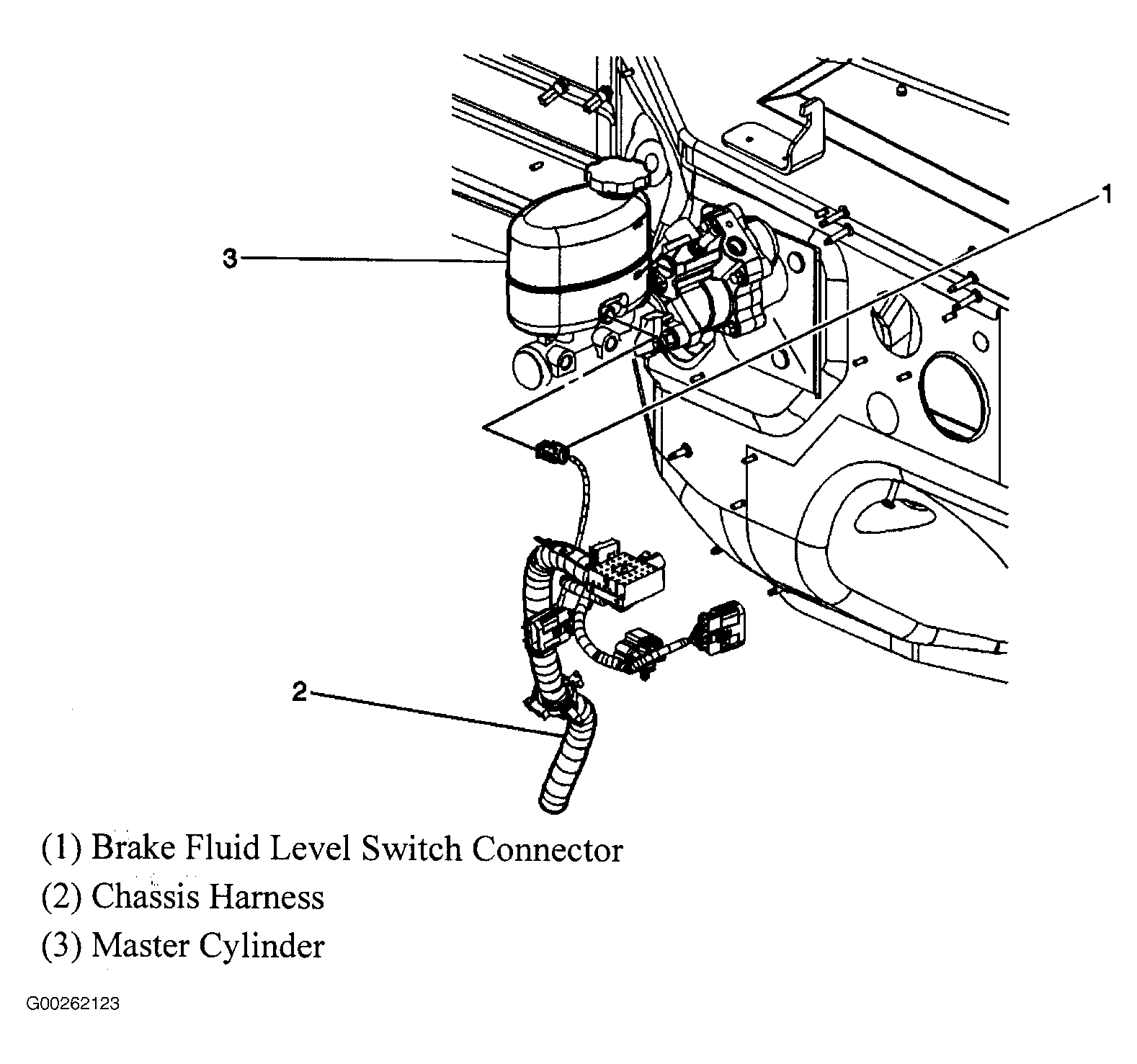

Fig 43: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

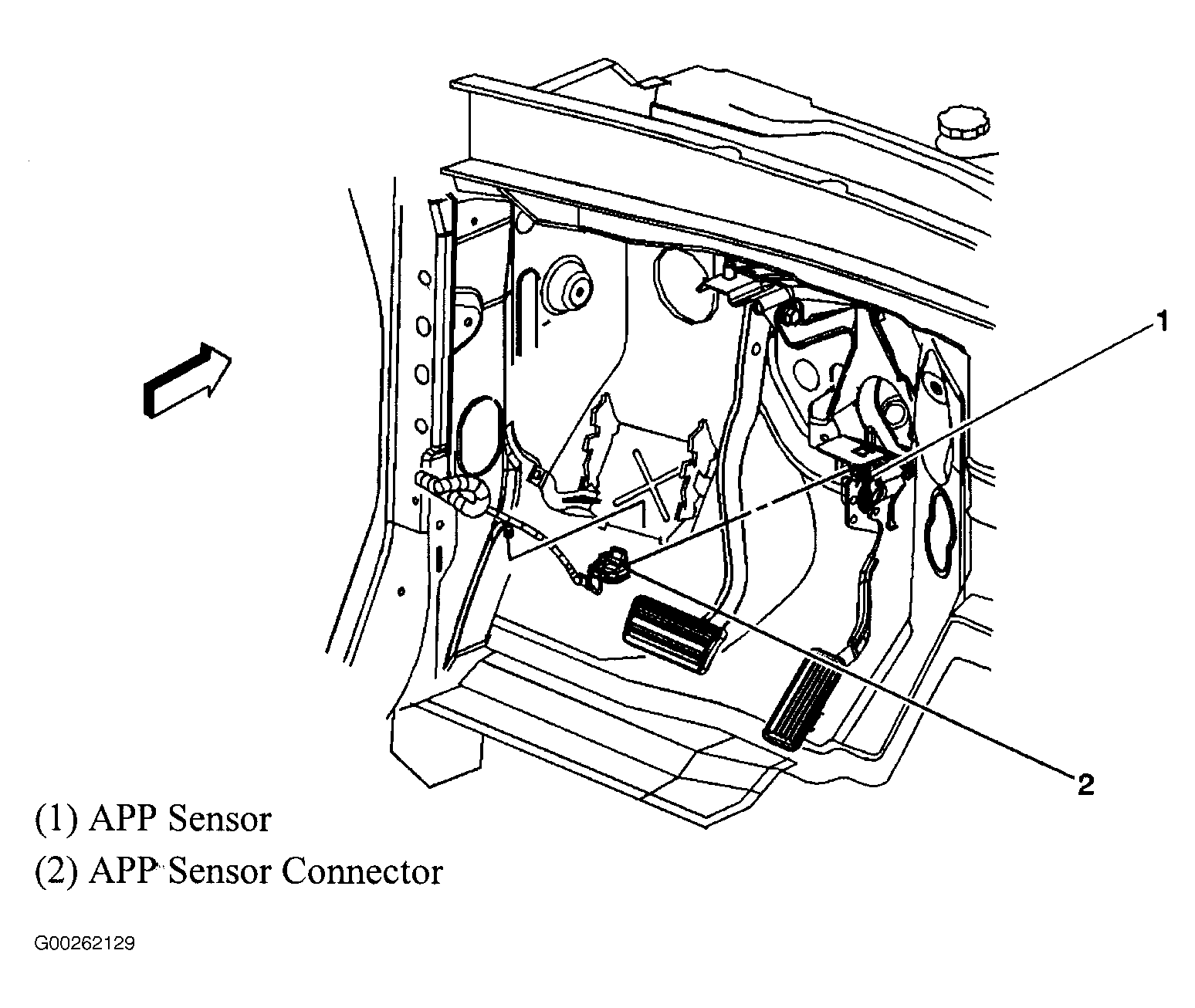

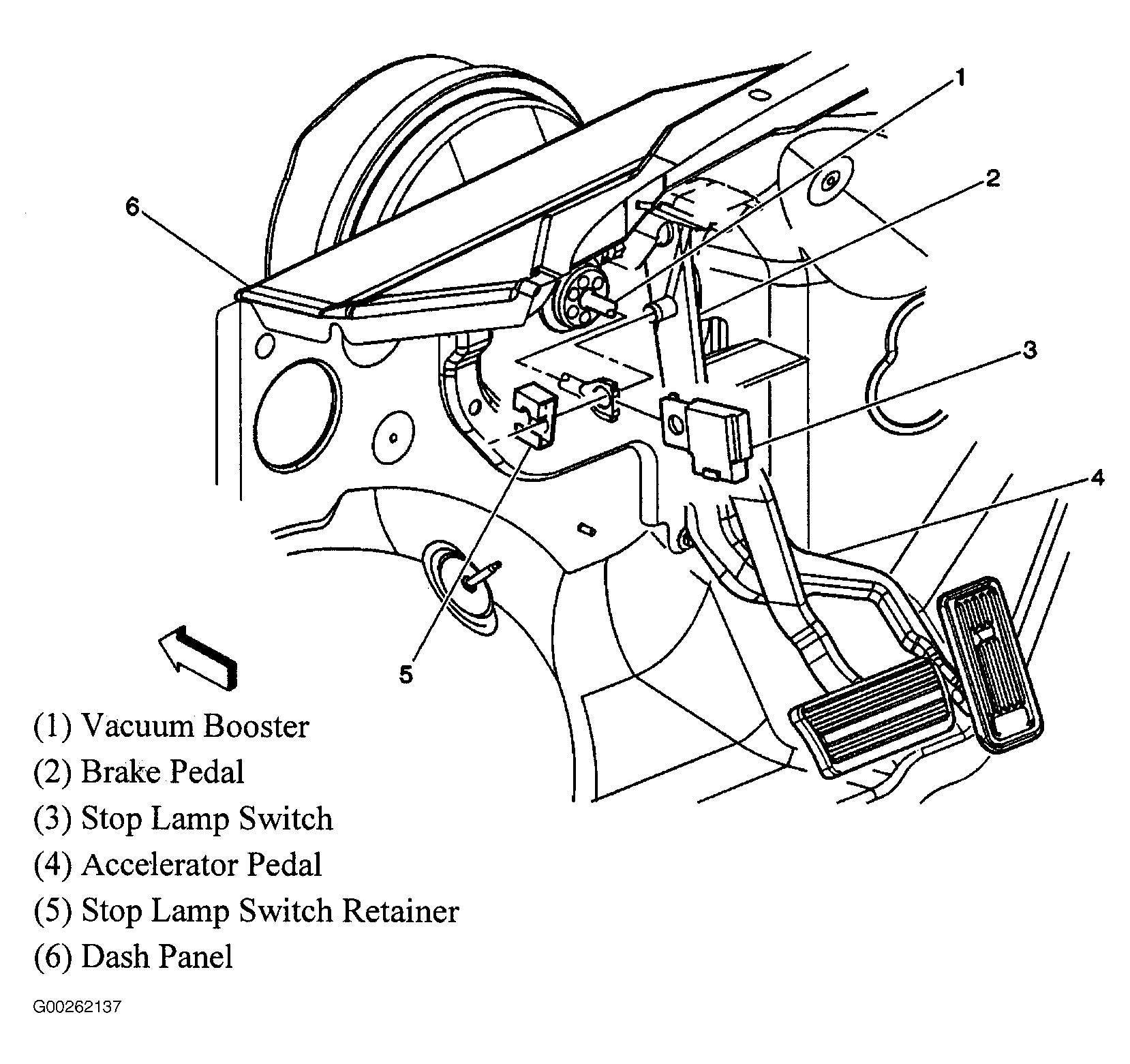

Fig 44: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 45: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Side & Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

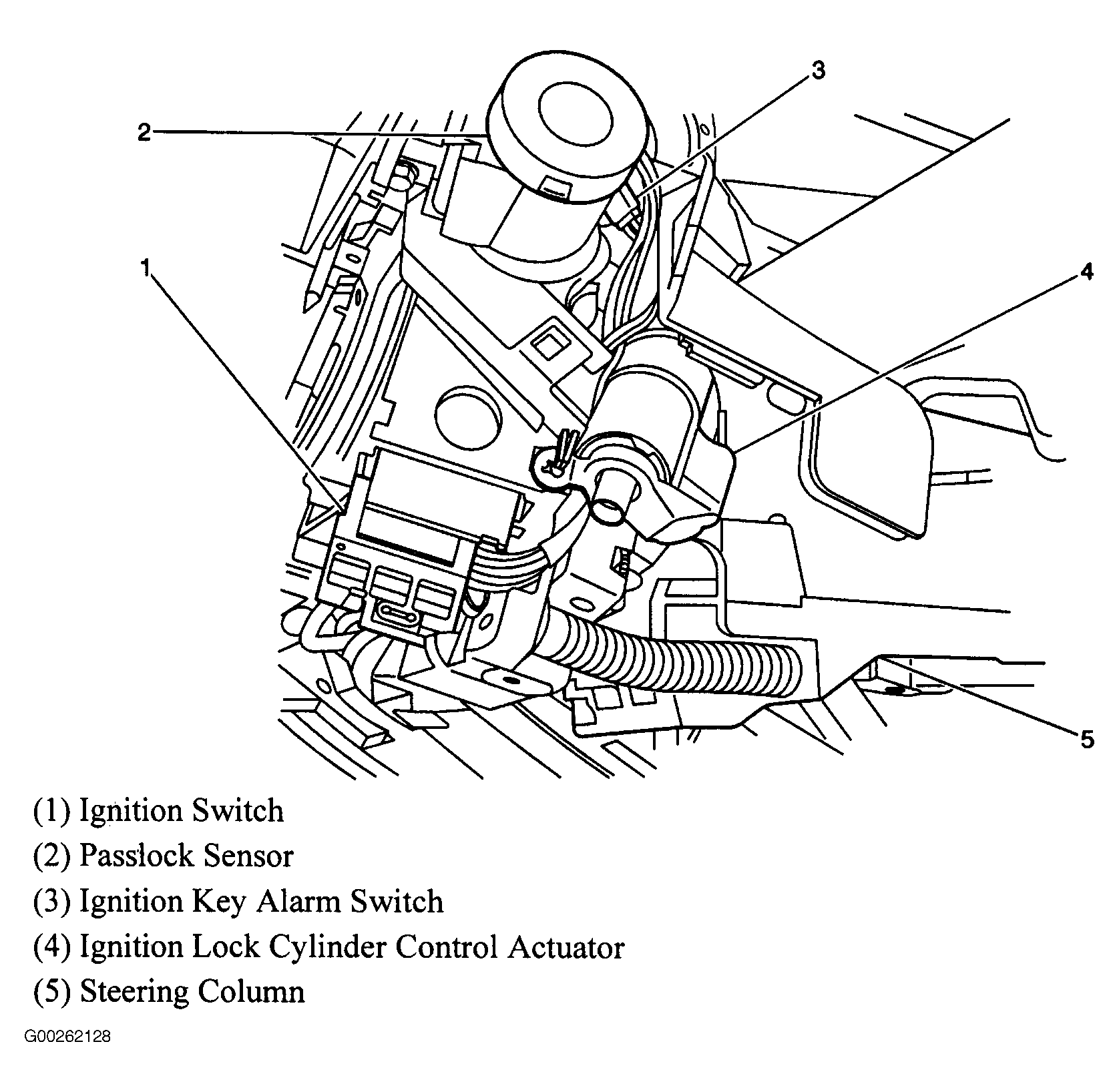

Fig 47: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 48: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

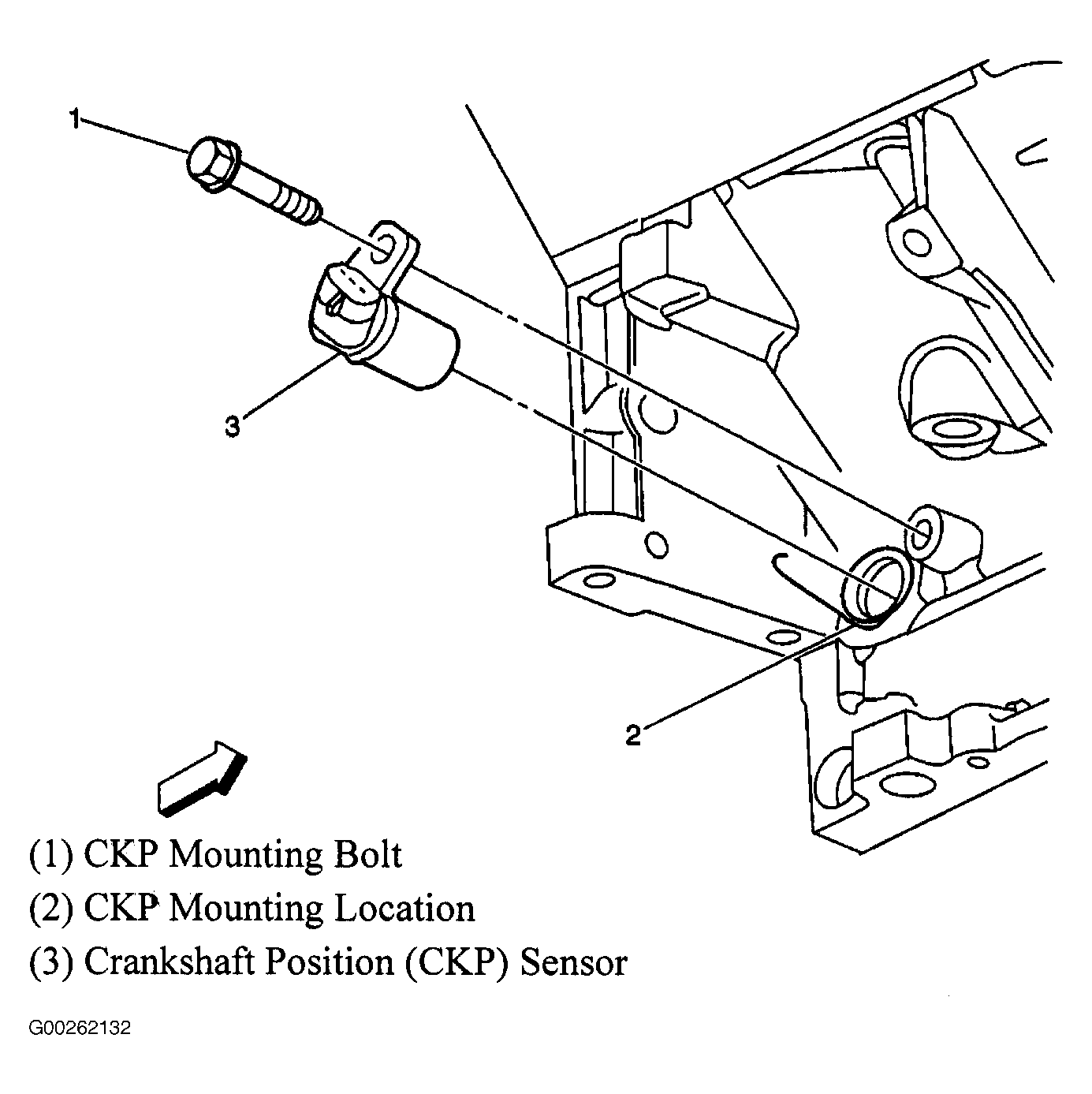

Fig 51: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

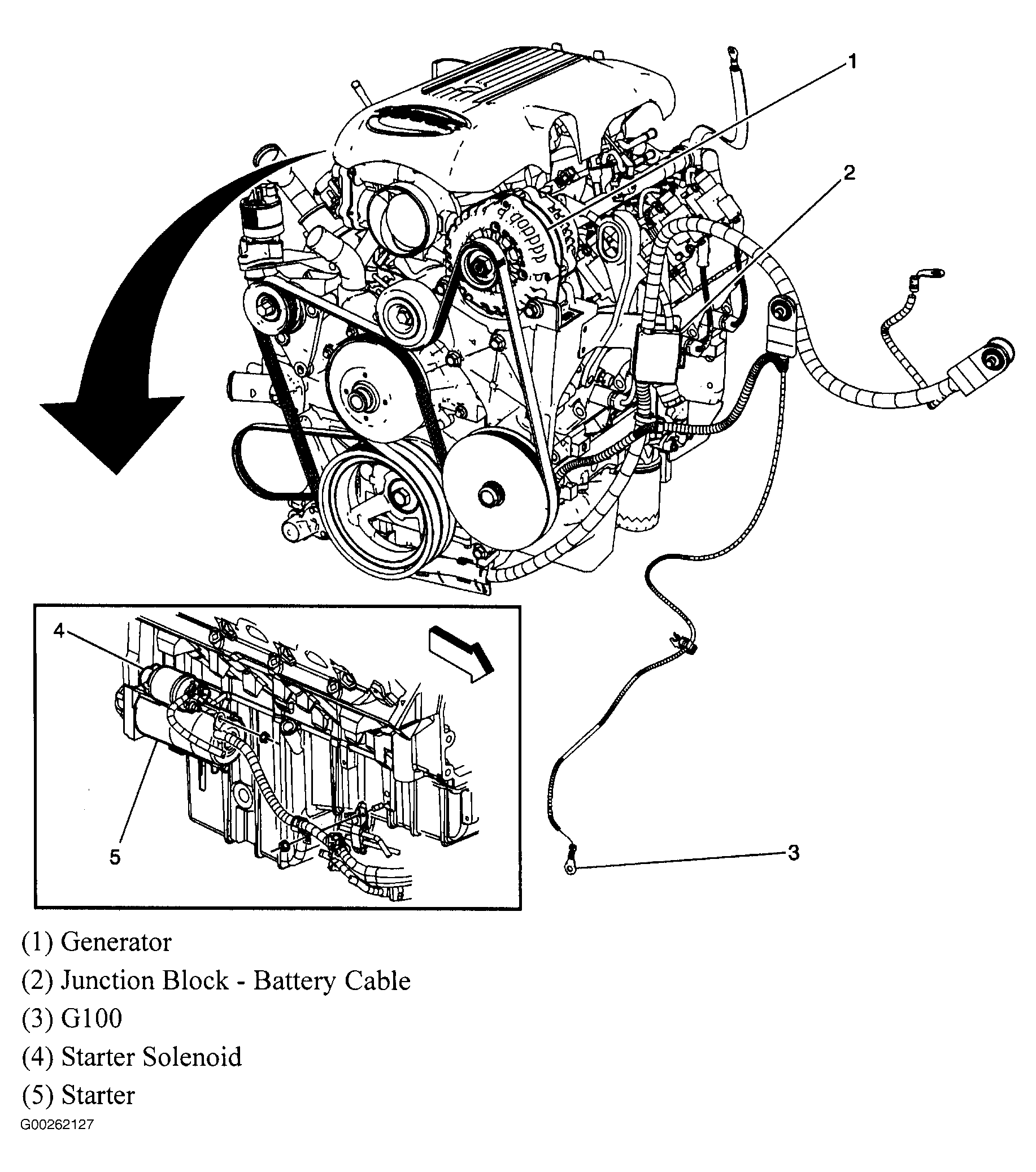

Fig 52: Engine Compartment & Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

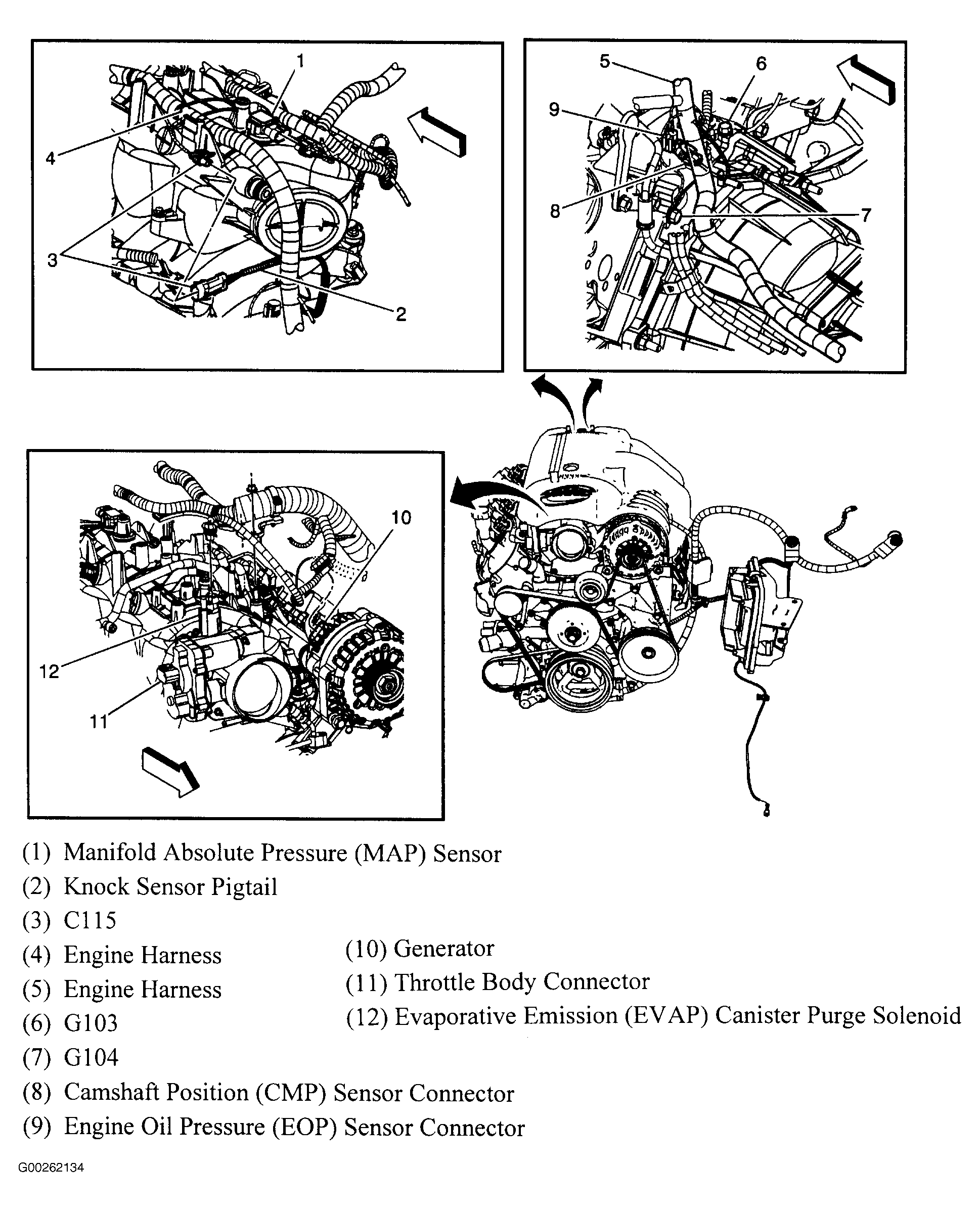

Fig 53: Right Rear, Left Rear & Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 54: Frame
Courtesy of GENERAL MOTORS CORP.

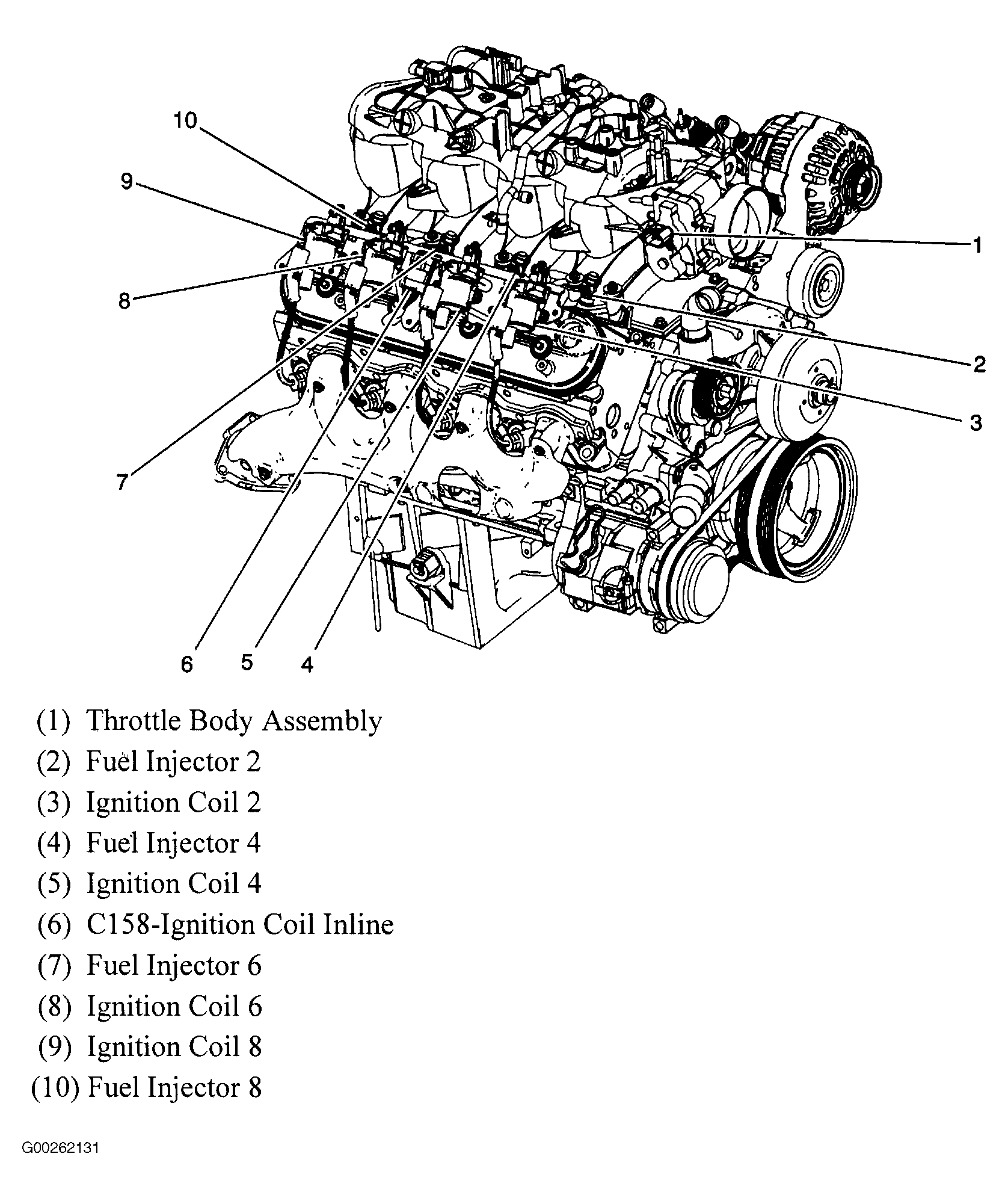

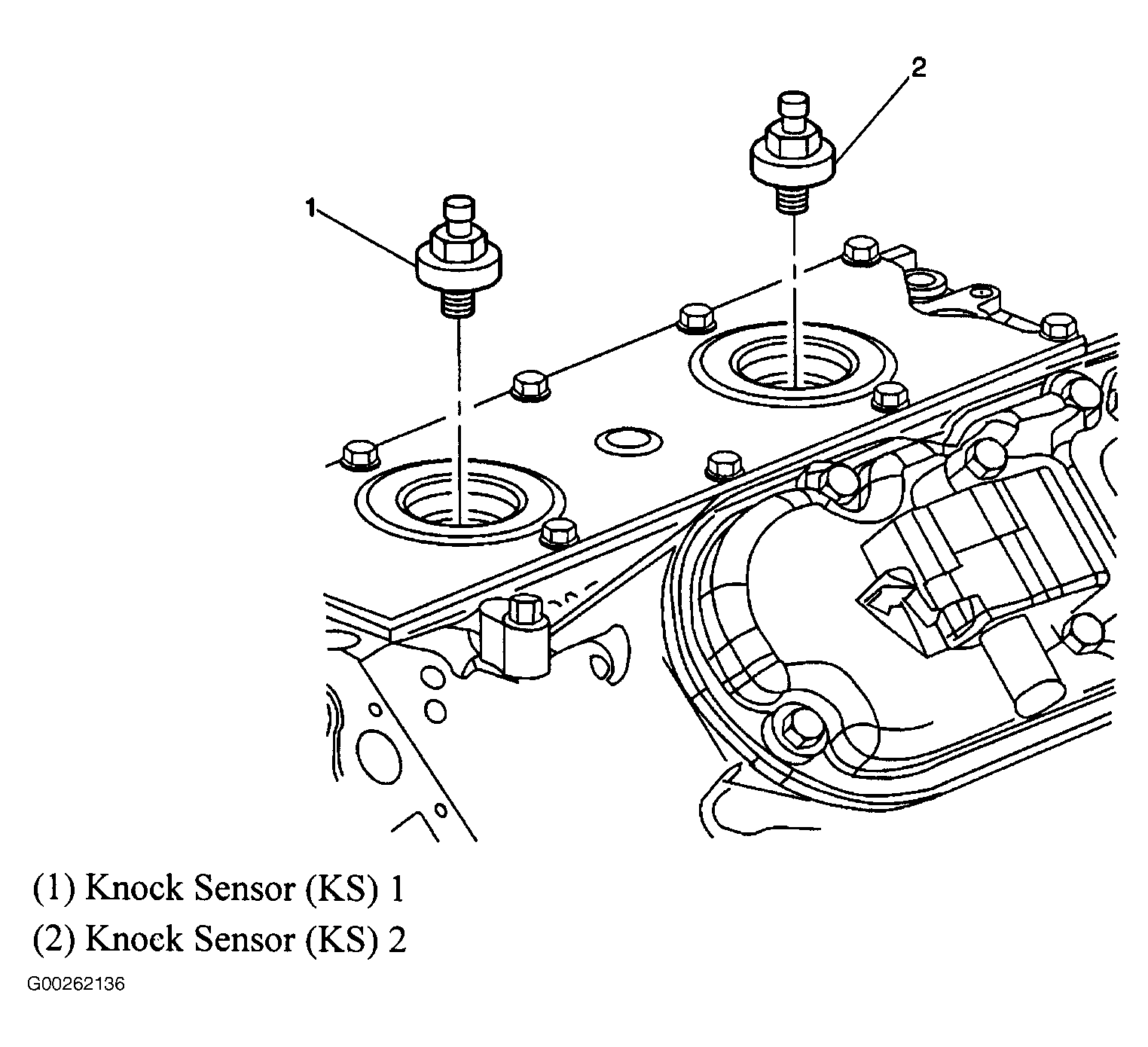

Fig 55: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

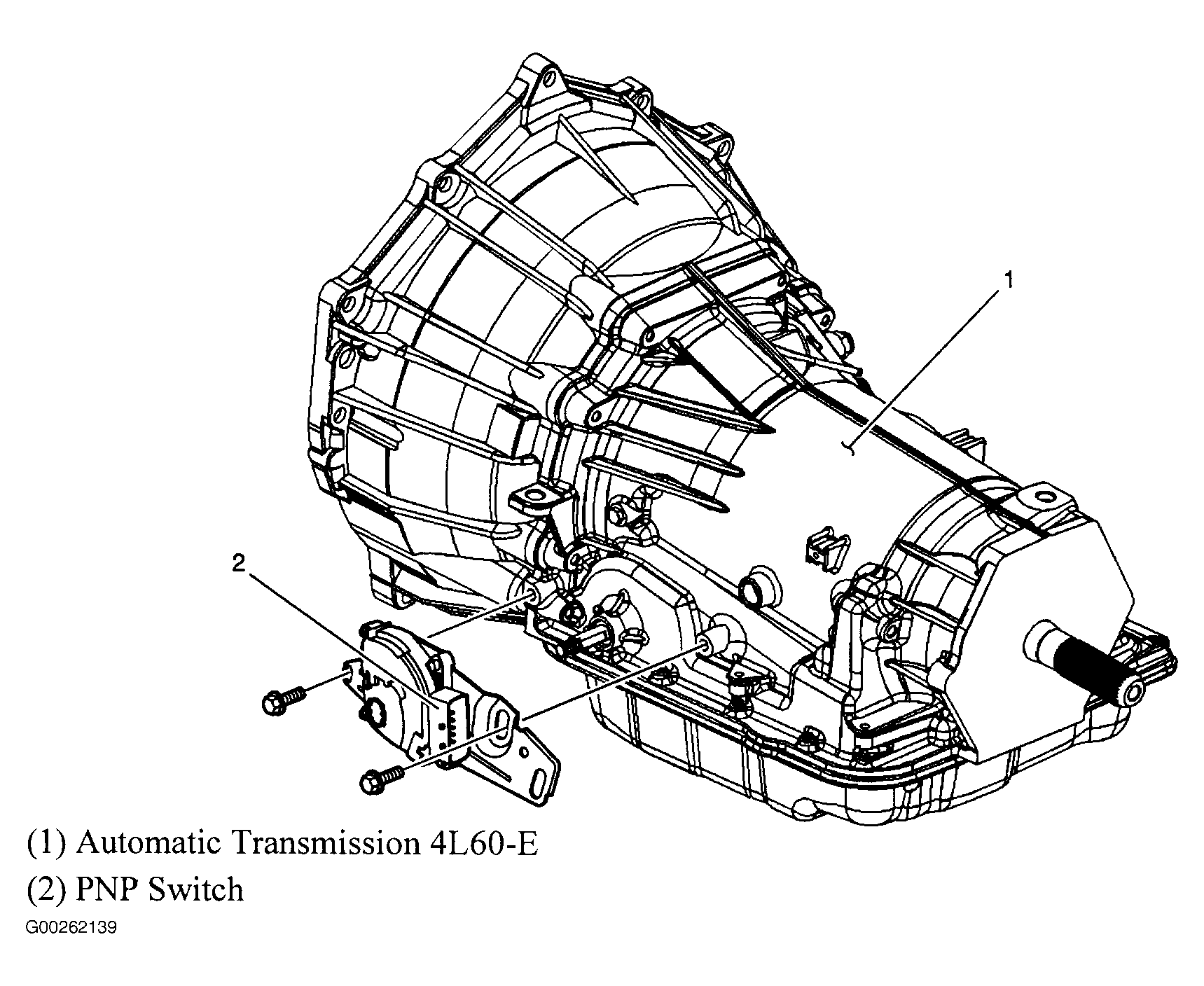

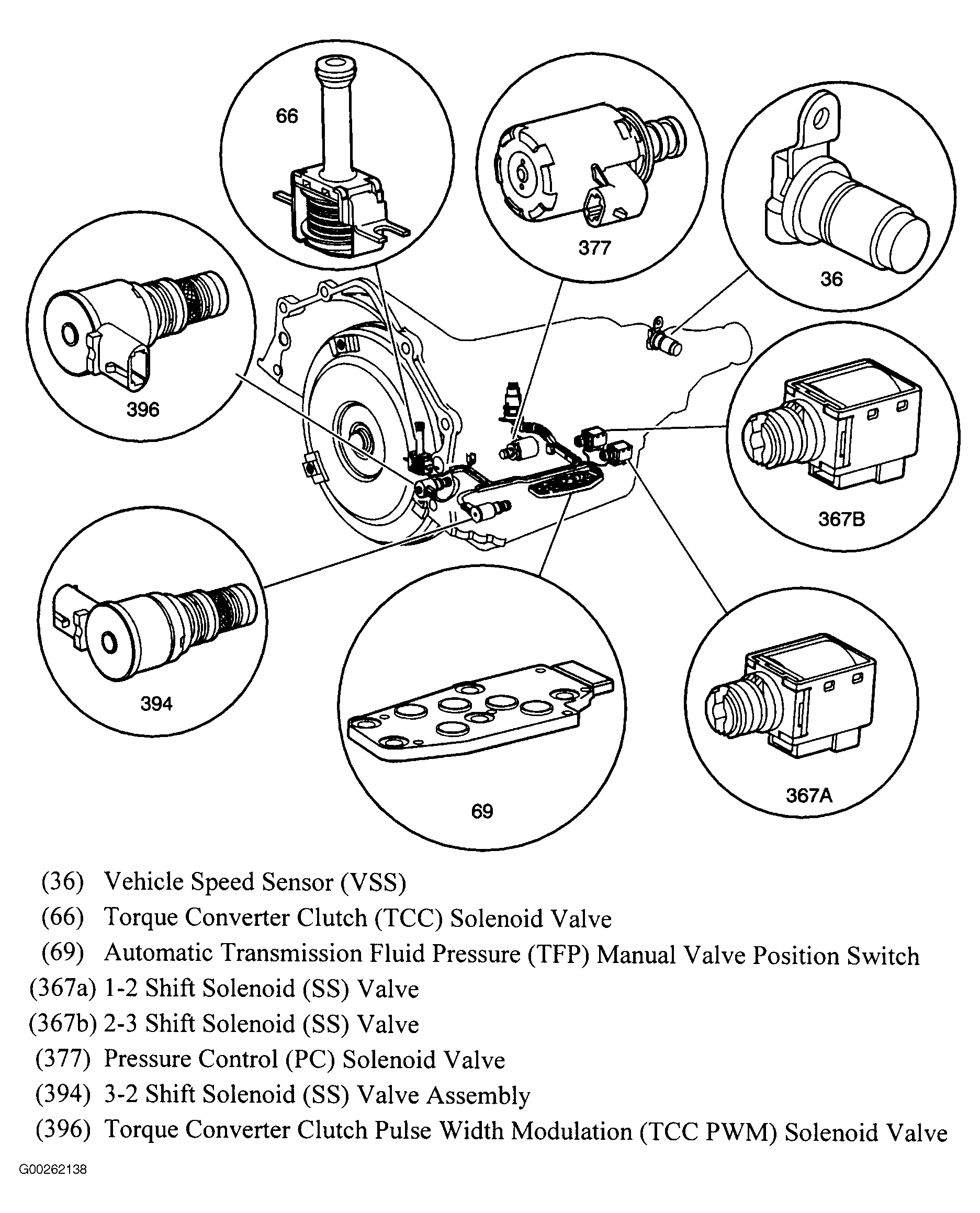

Fig 57: Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 58: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 59: Rear Of Transfer Case
Courtesy of GENERAL MOTORS CORP.

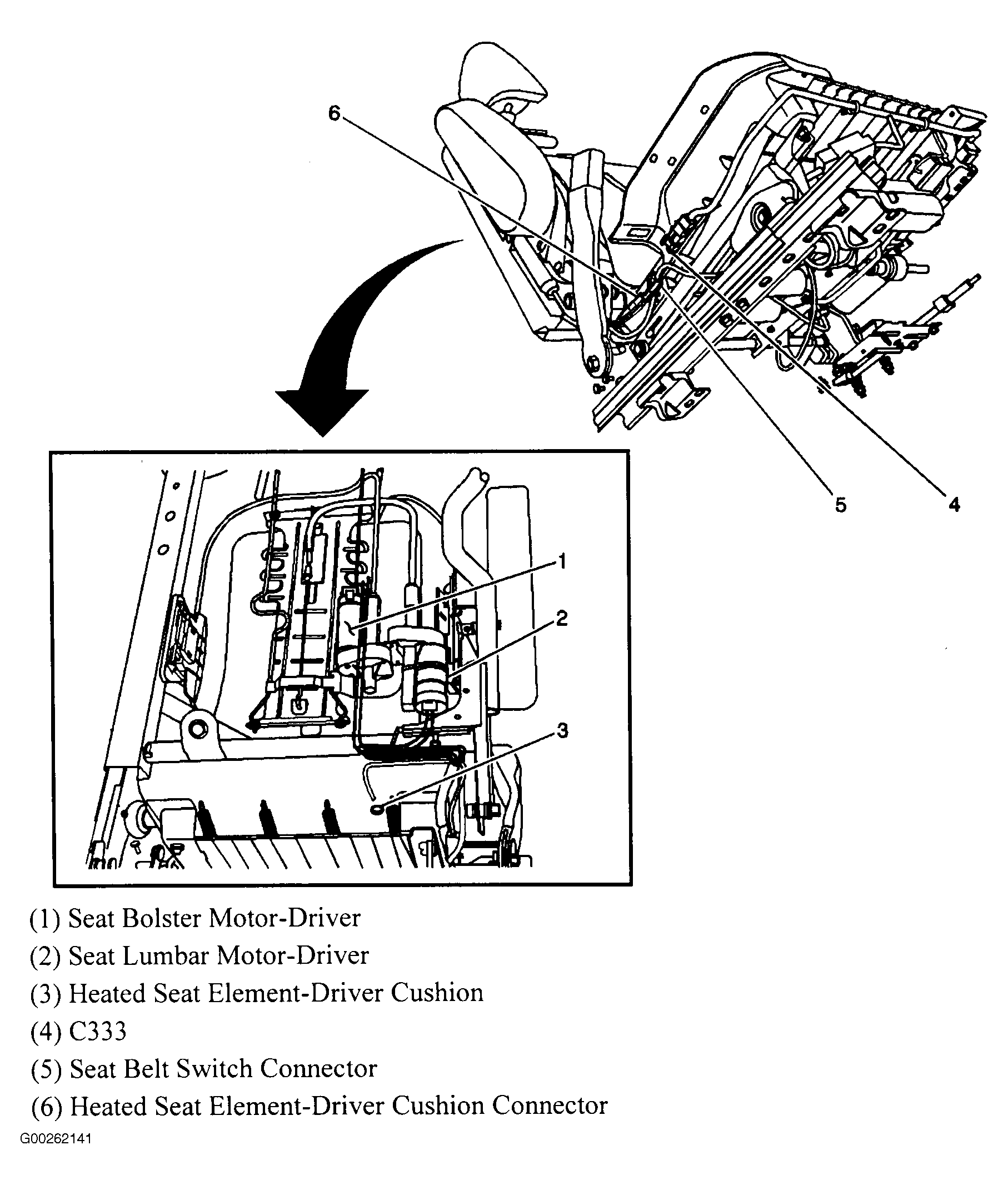

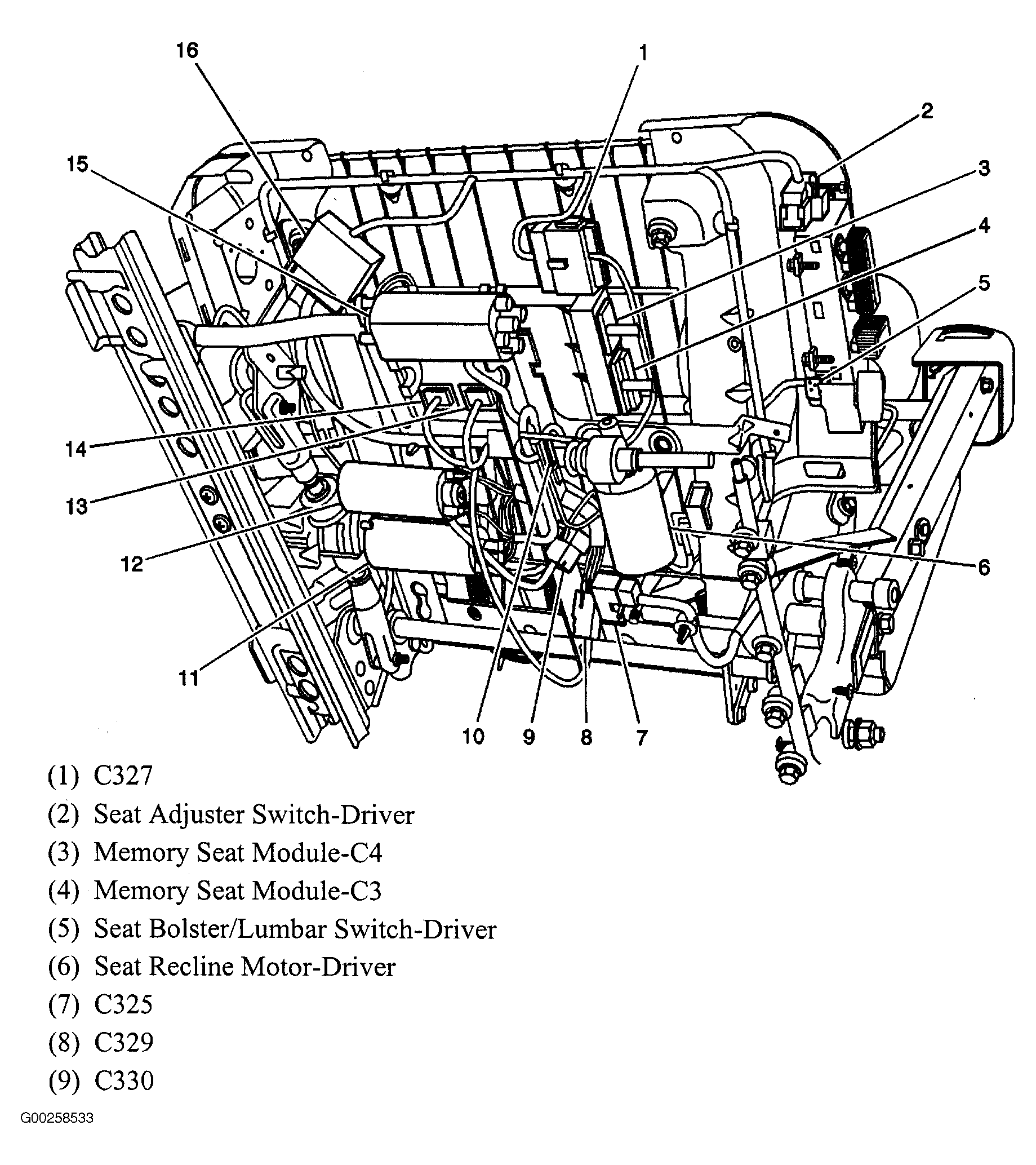

Fig 60: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 61: SIR Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 62: SIR Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

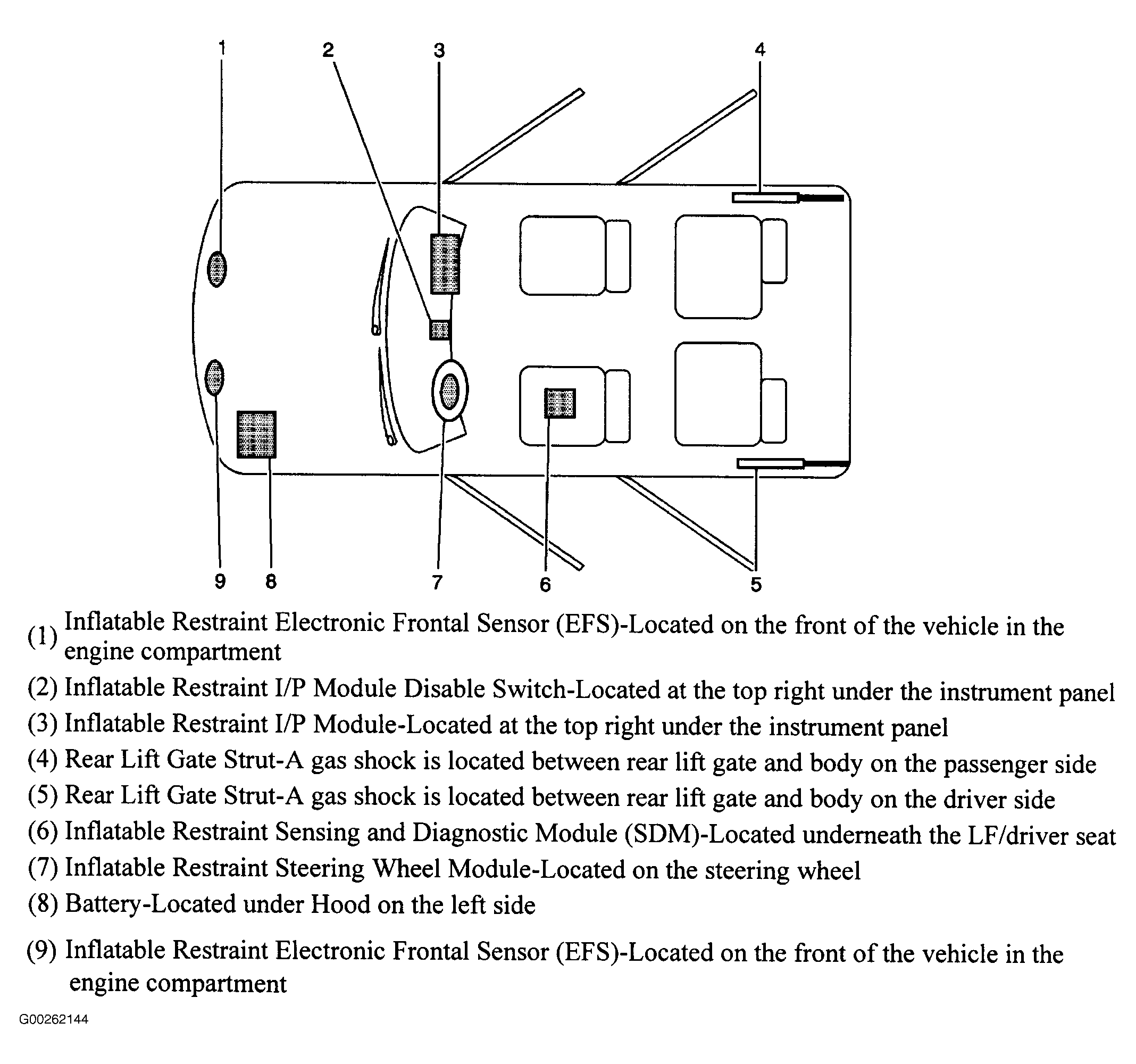

Fig 63: SIR Components
Courtesy of GENERAL MOTORS CORP.

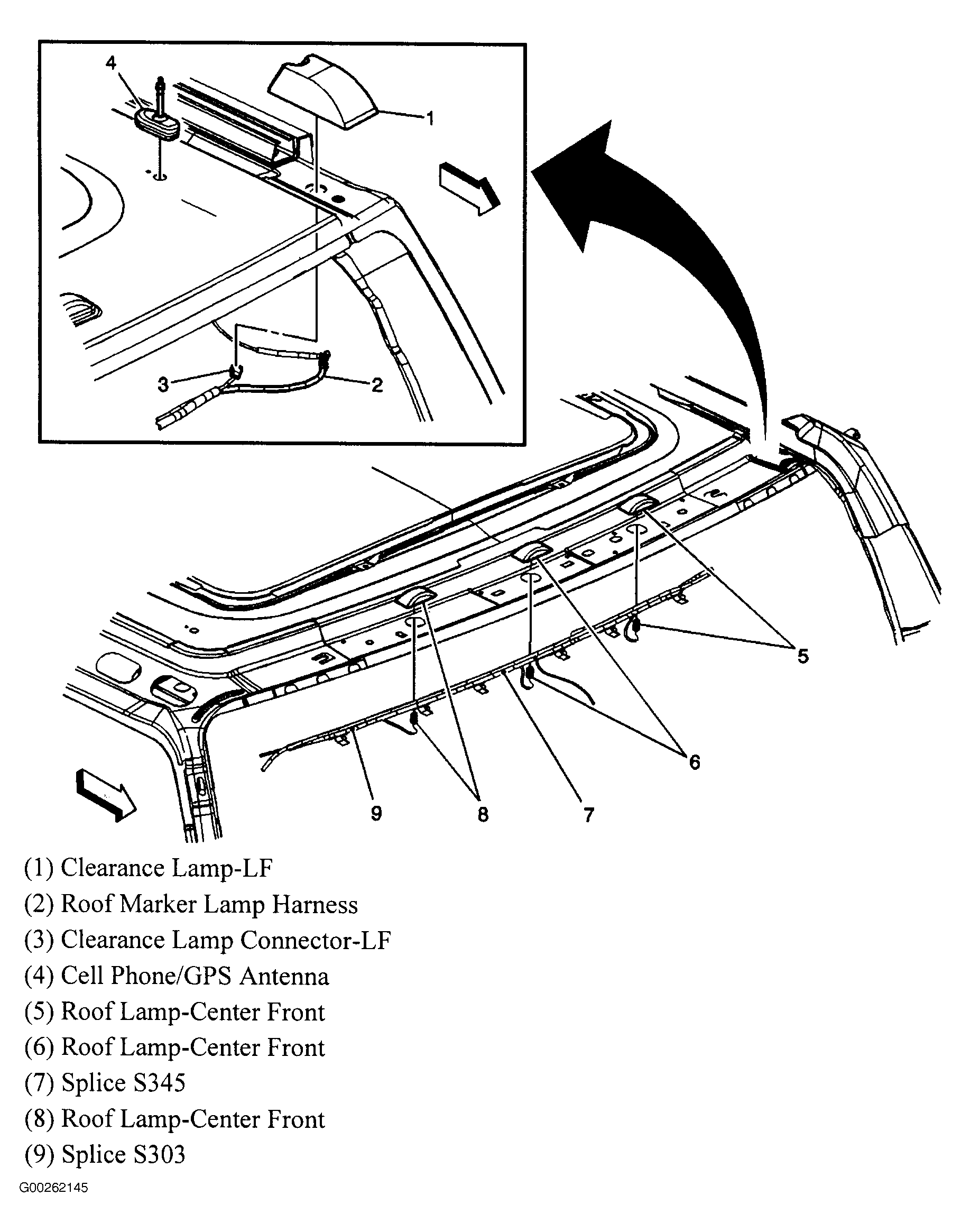

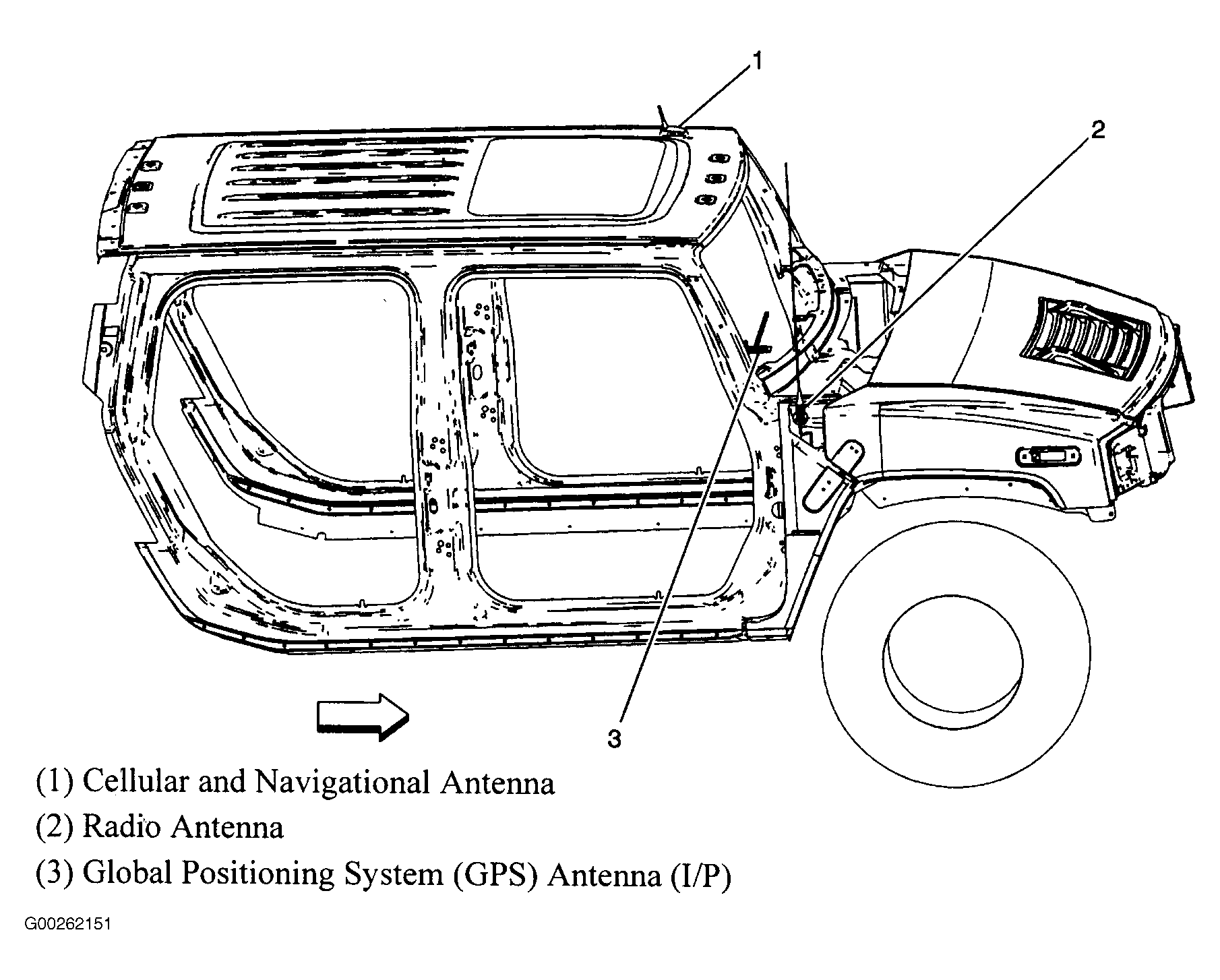

Fig 64: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 65: Top Of Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 66: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

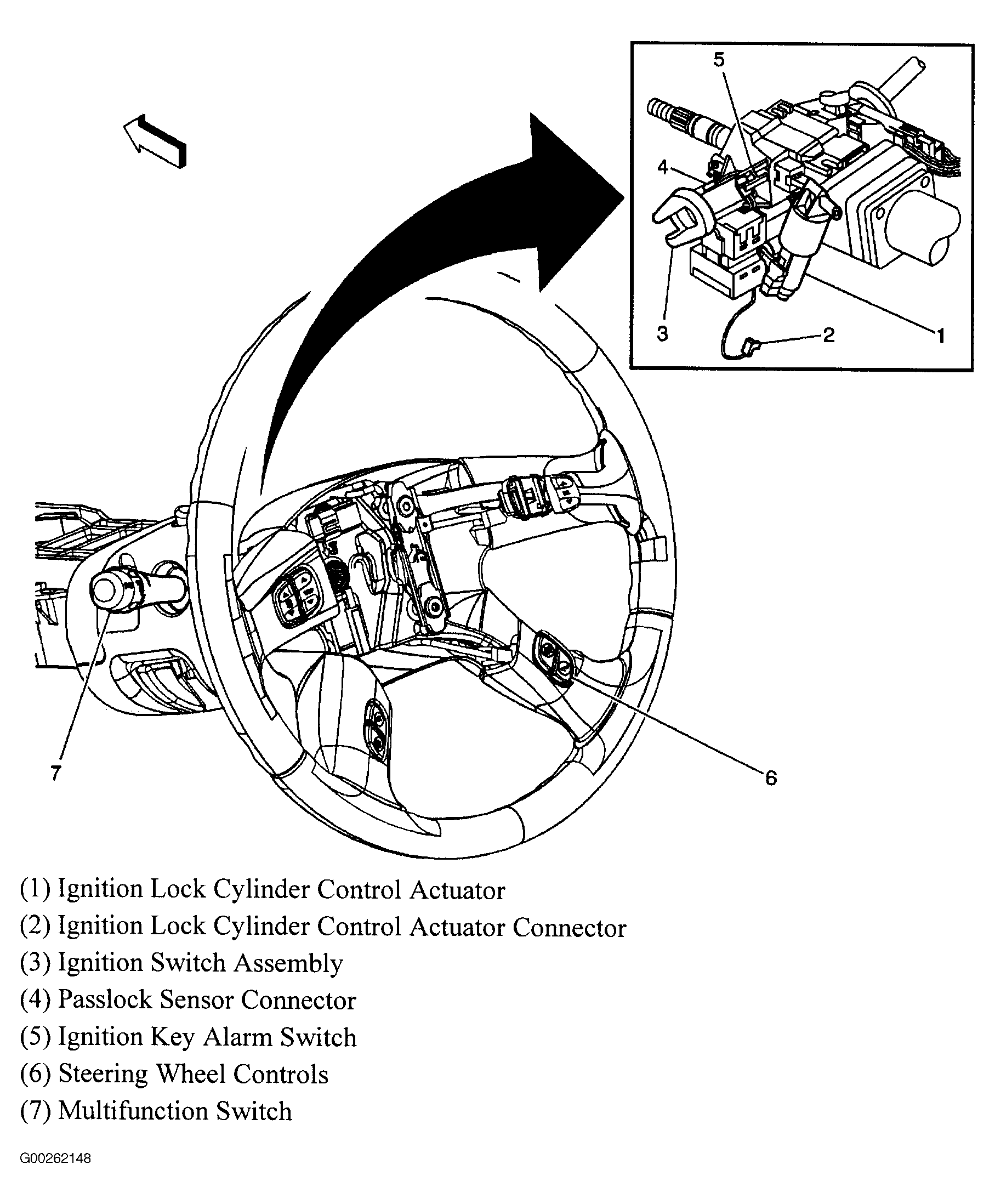

Fig 67: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 68: Front Floor Console & Headliner
Courtesy of GENERAL MOTORS CORP.

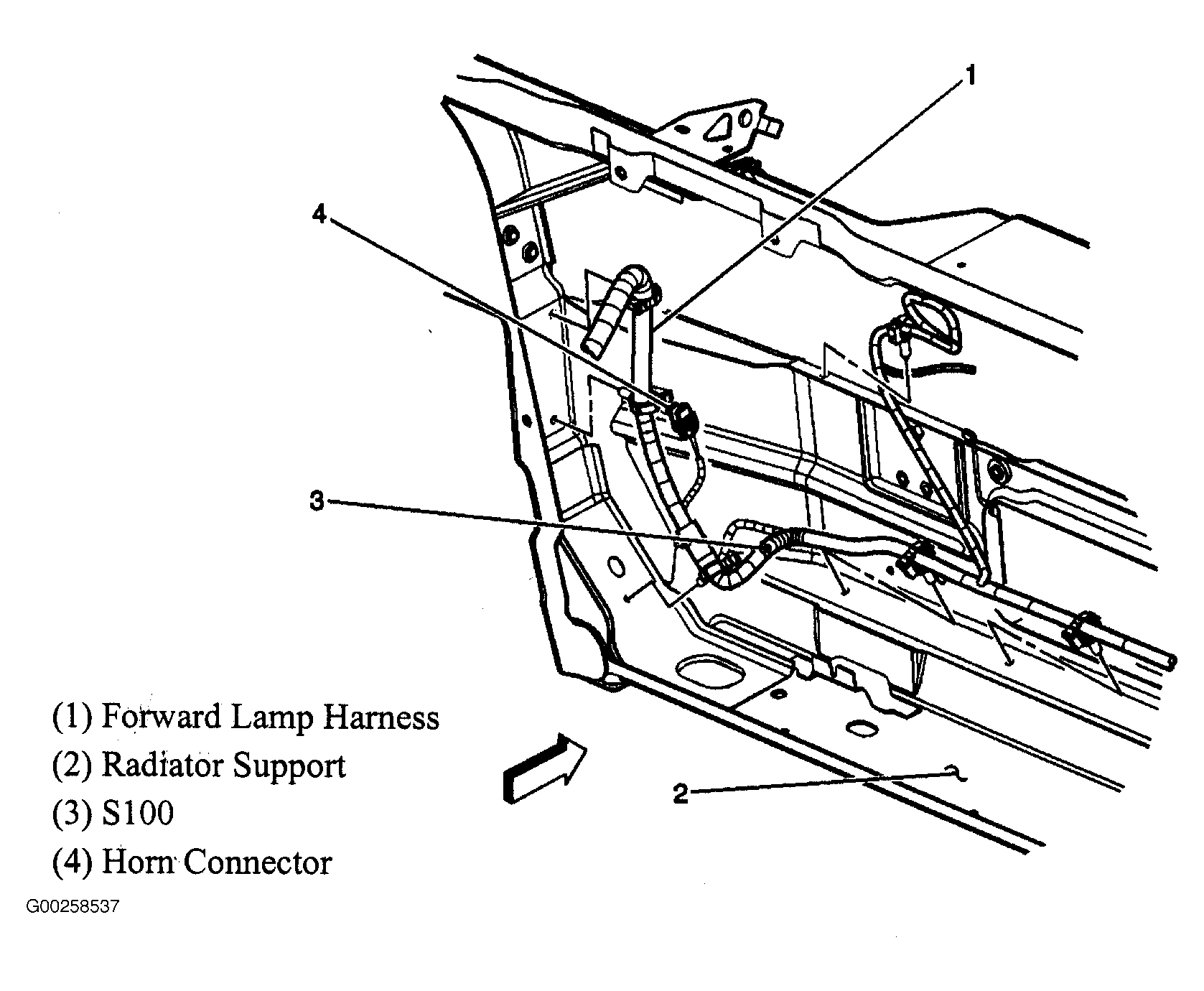

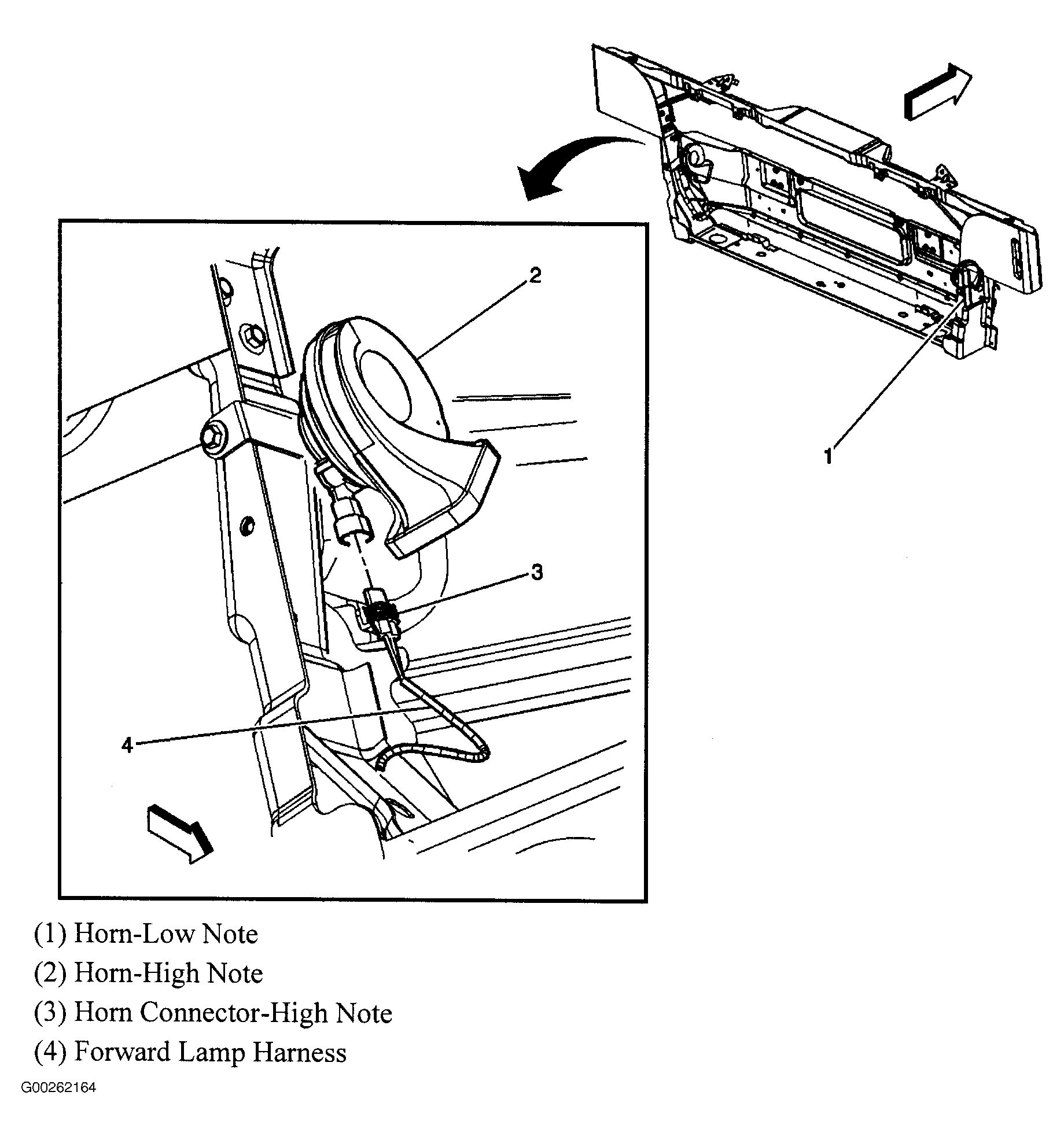

Fig 69: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

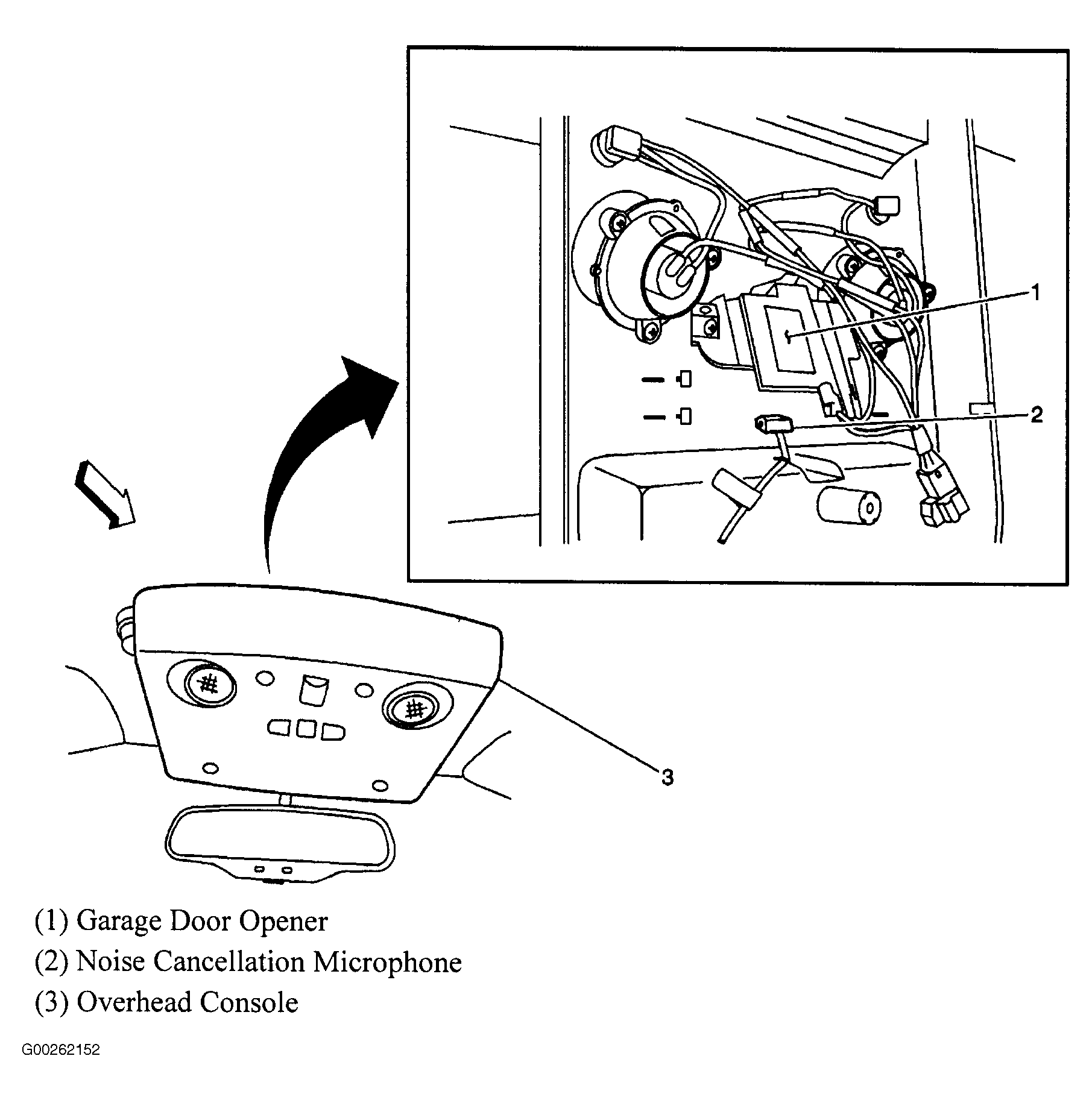

Fig 70: Overhead Console
Courtesy of GENERAL MOTORS CORP.
Fig 71: Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 72: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 73: Passenger Door
Courtesy of GENERAL MOTORS CORP.

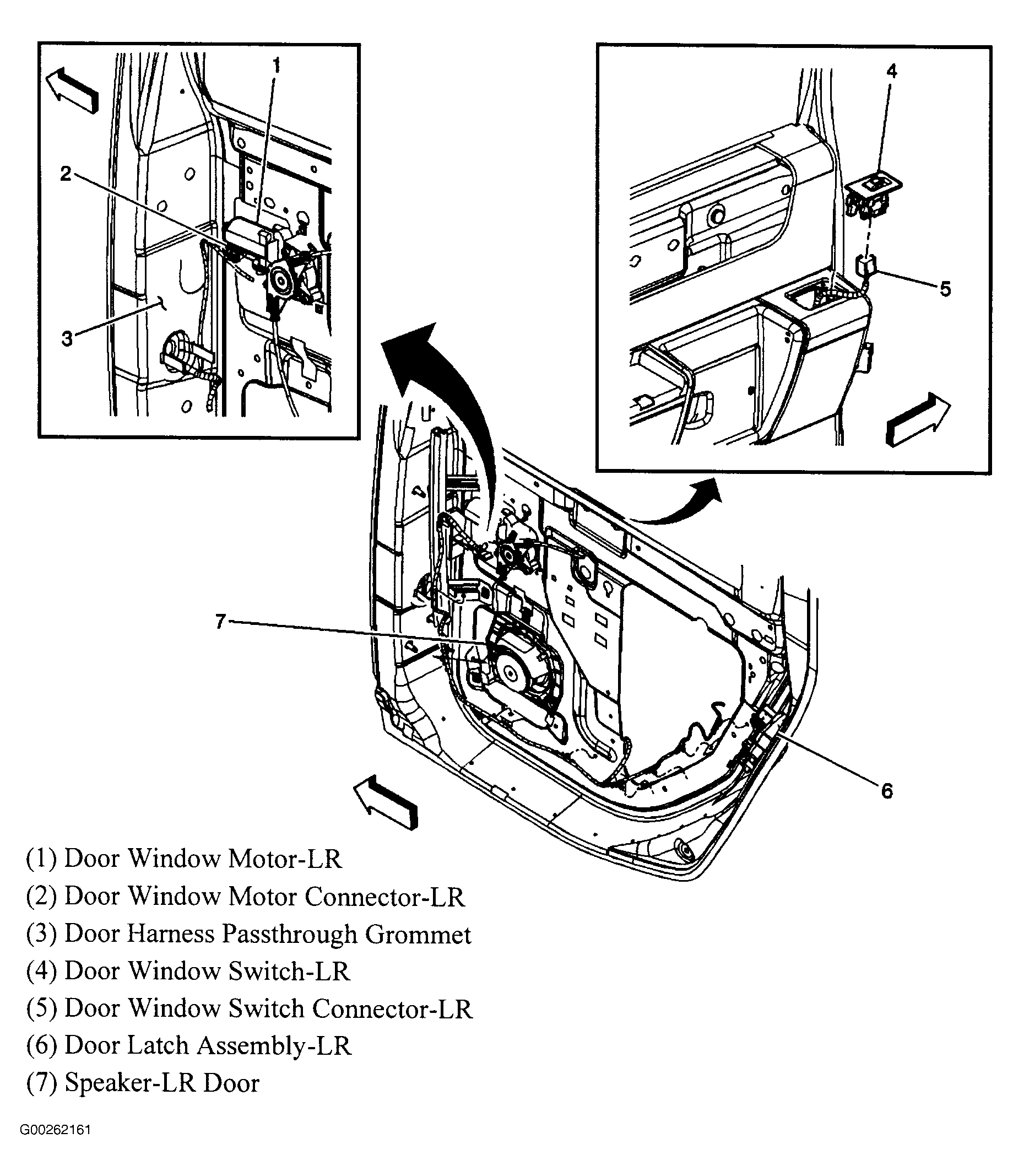

Fig 74: Left/Right Rear Doors
Courtesy of GENERAL MOTORS CORP.

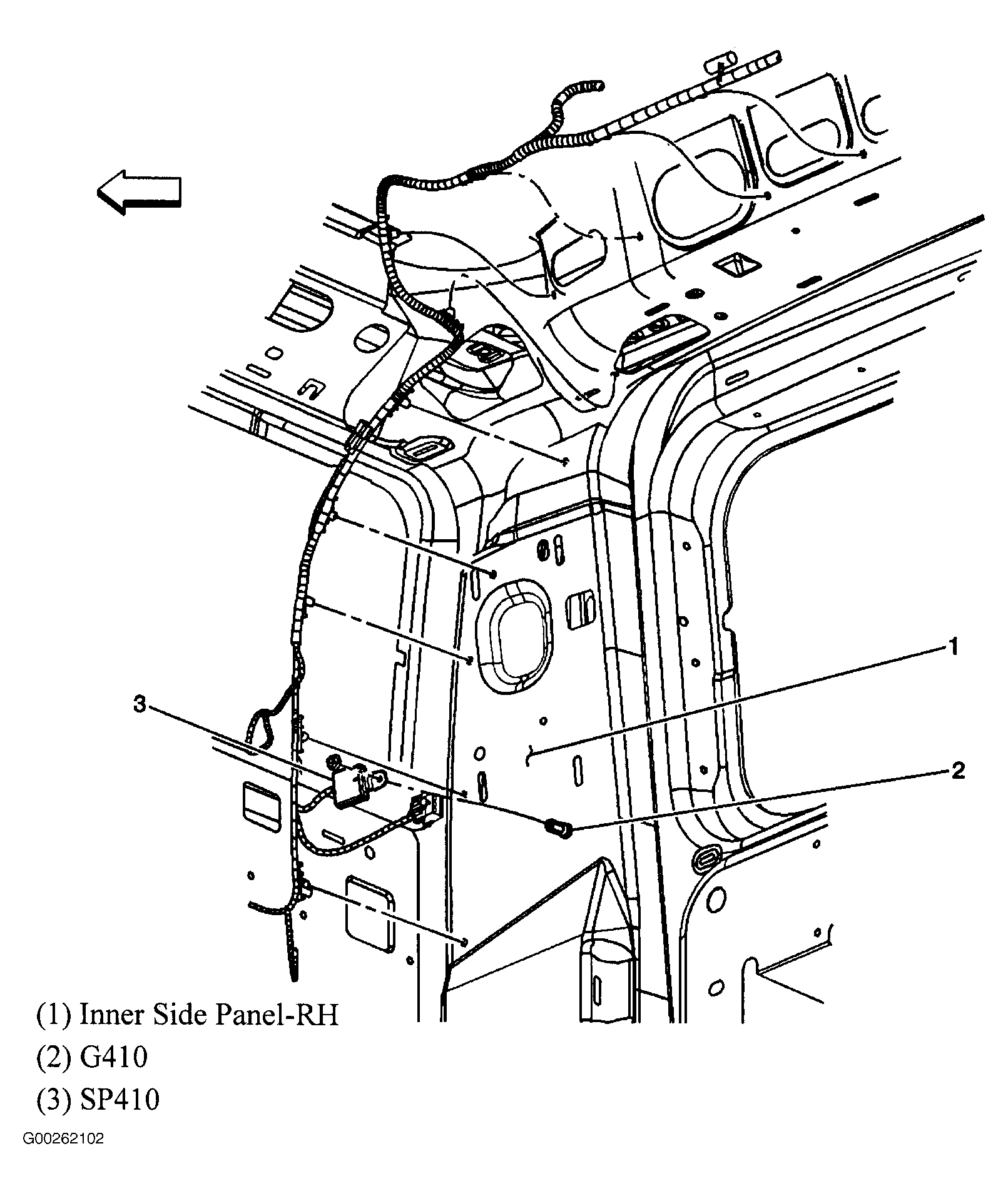

Fig 75: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

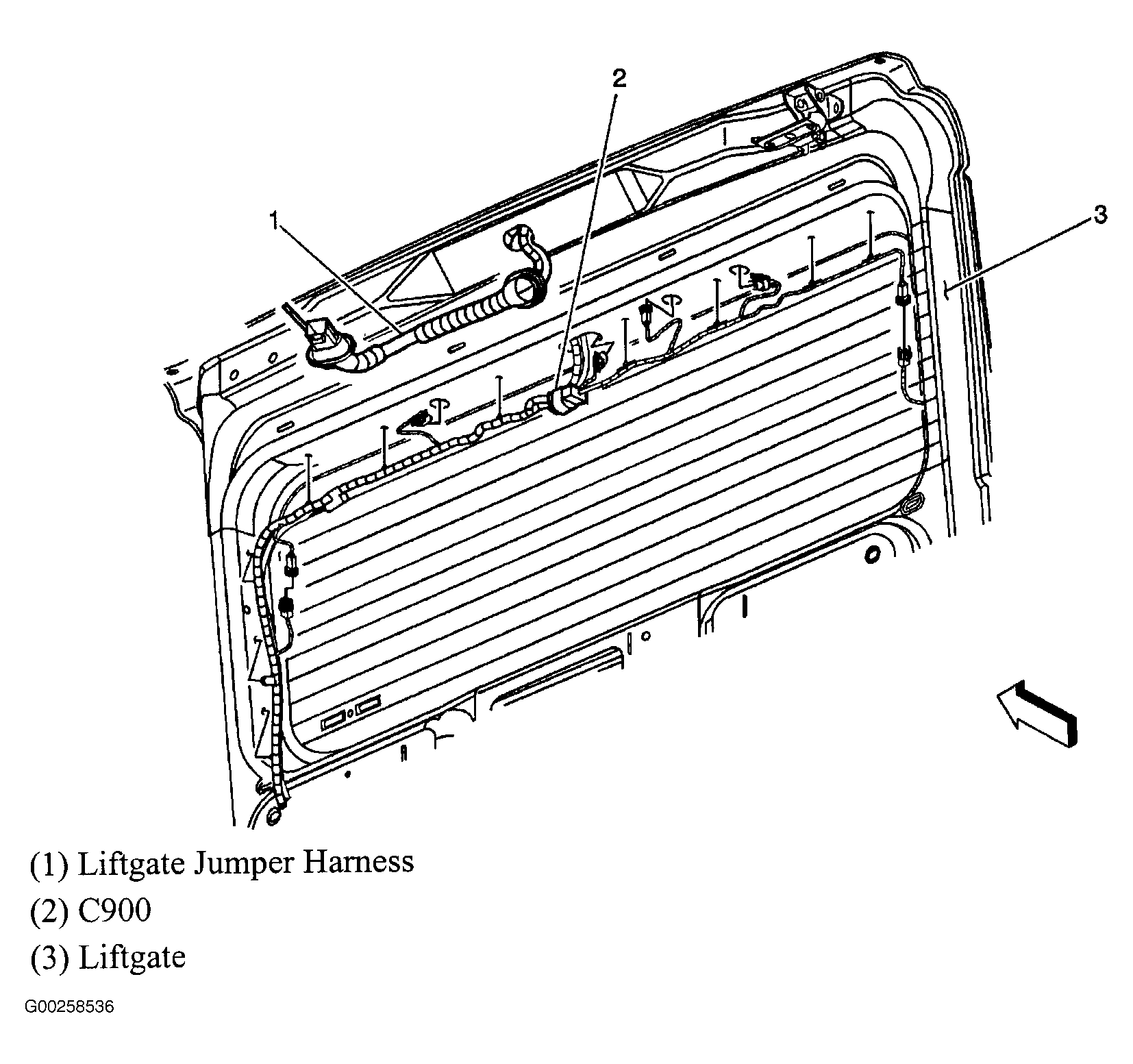

Fig 76: Liftgate
Courtesy of GENERAL MOTORS CORP.

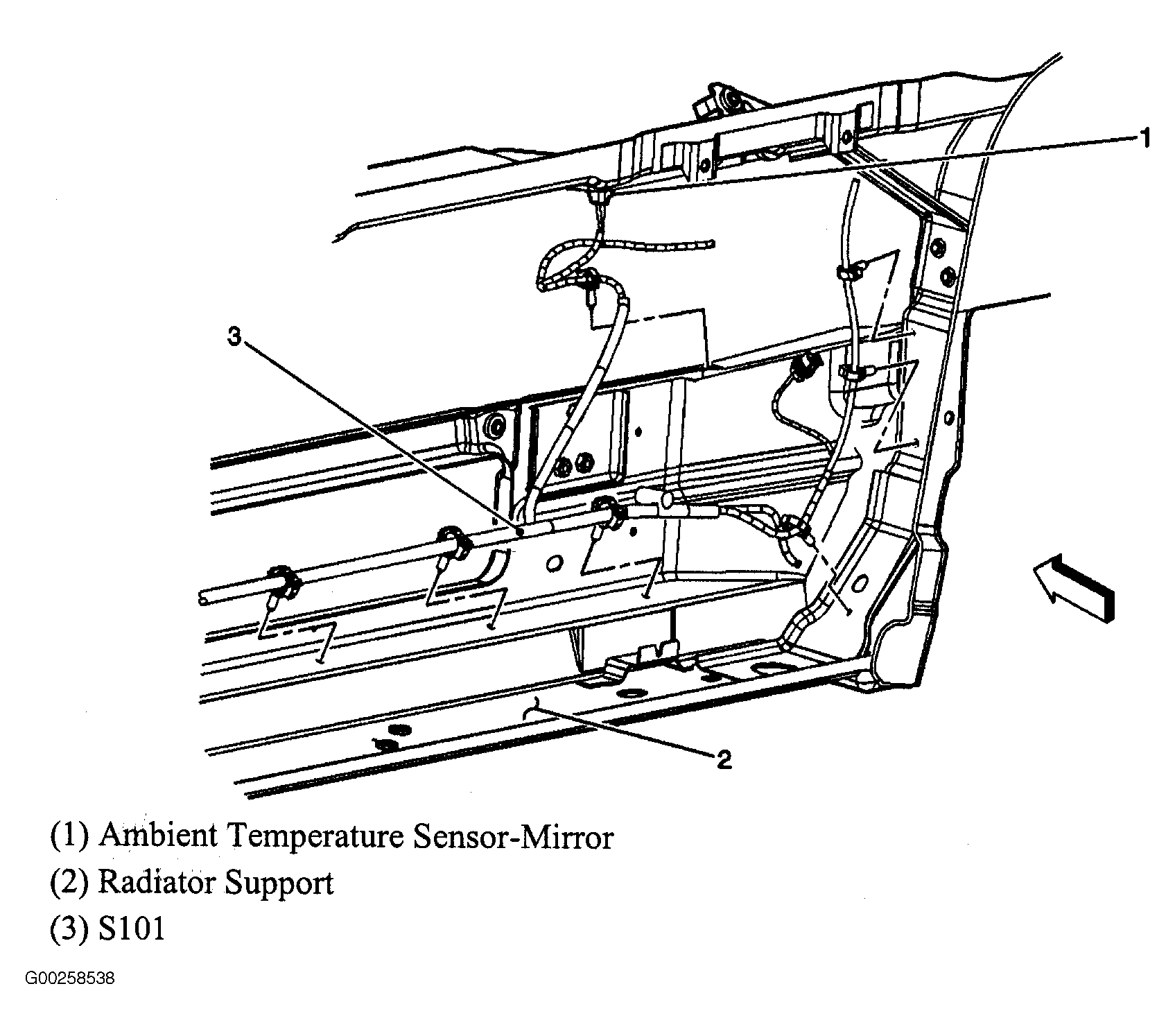

Fig 77: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 78: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 79: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 80: Upper Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

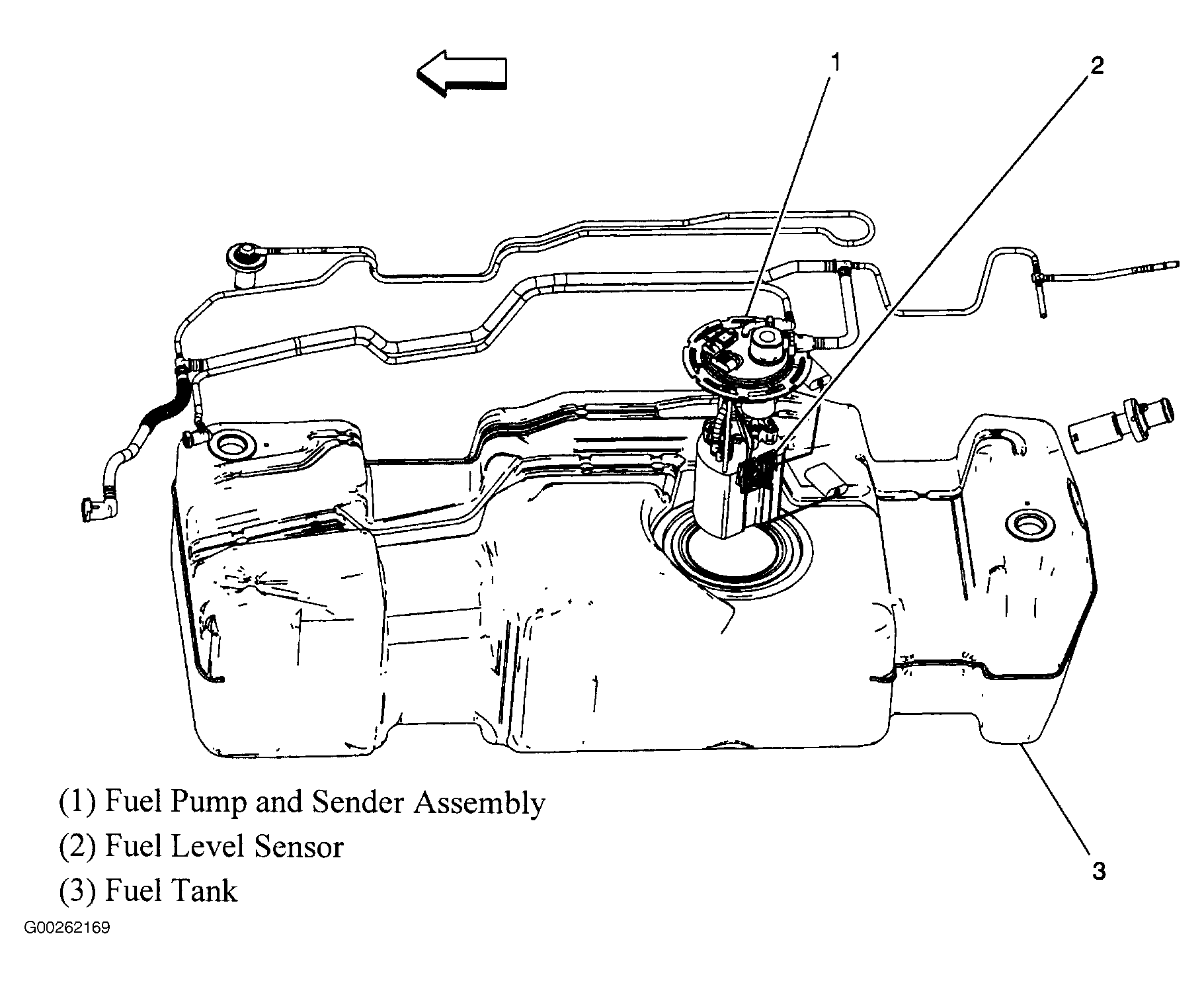

Fig 81: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 82: Front Of Roof
Courtesy of GENERAL MOTORS CORP.

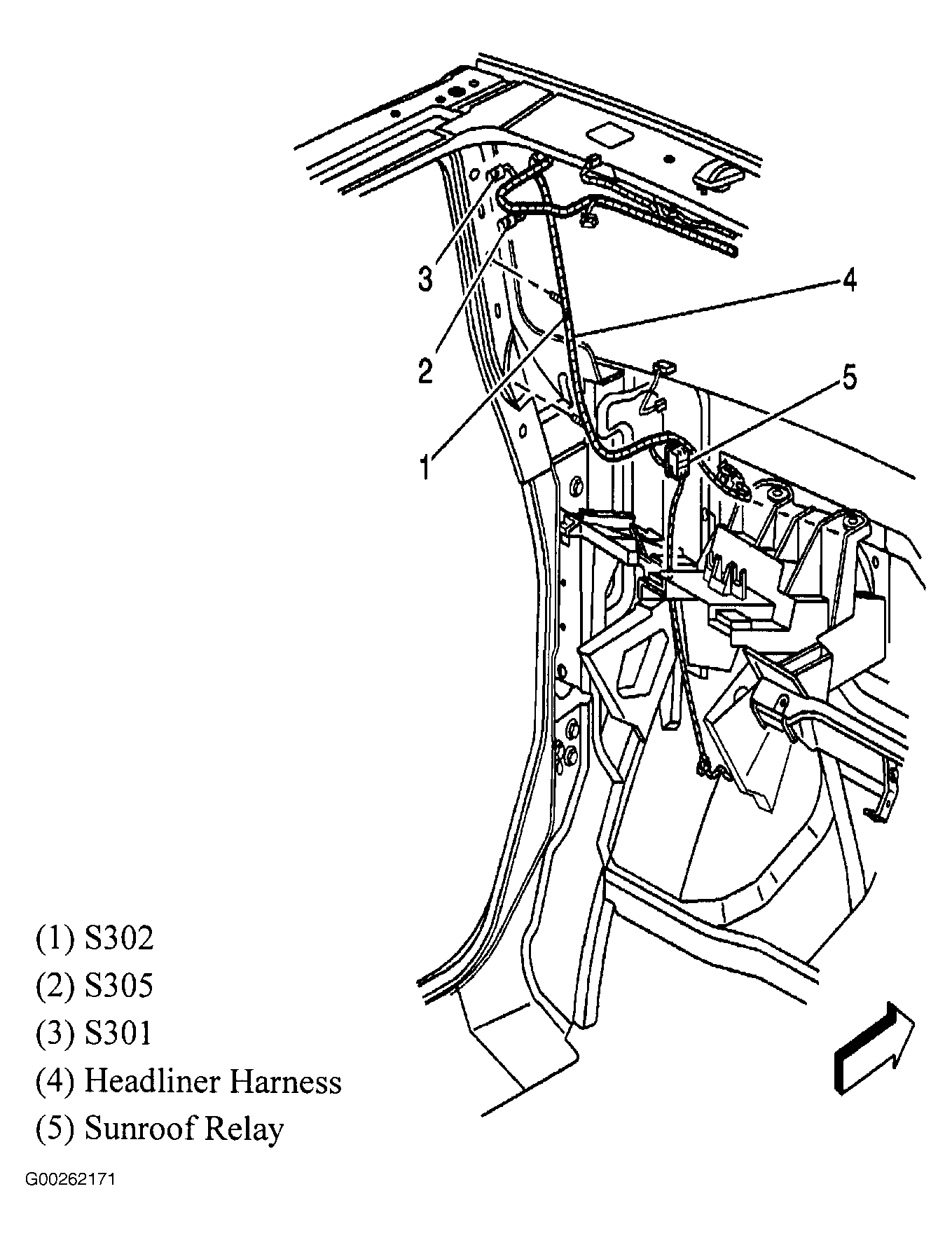

Fig 83: Left "A" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 84: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 85: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.

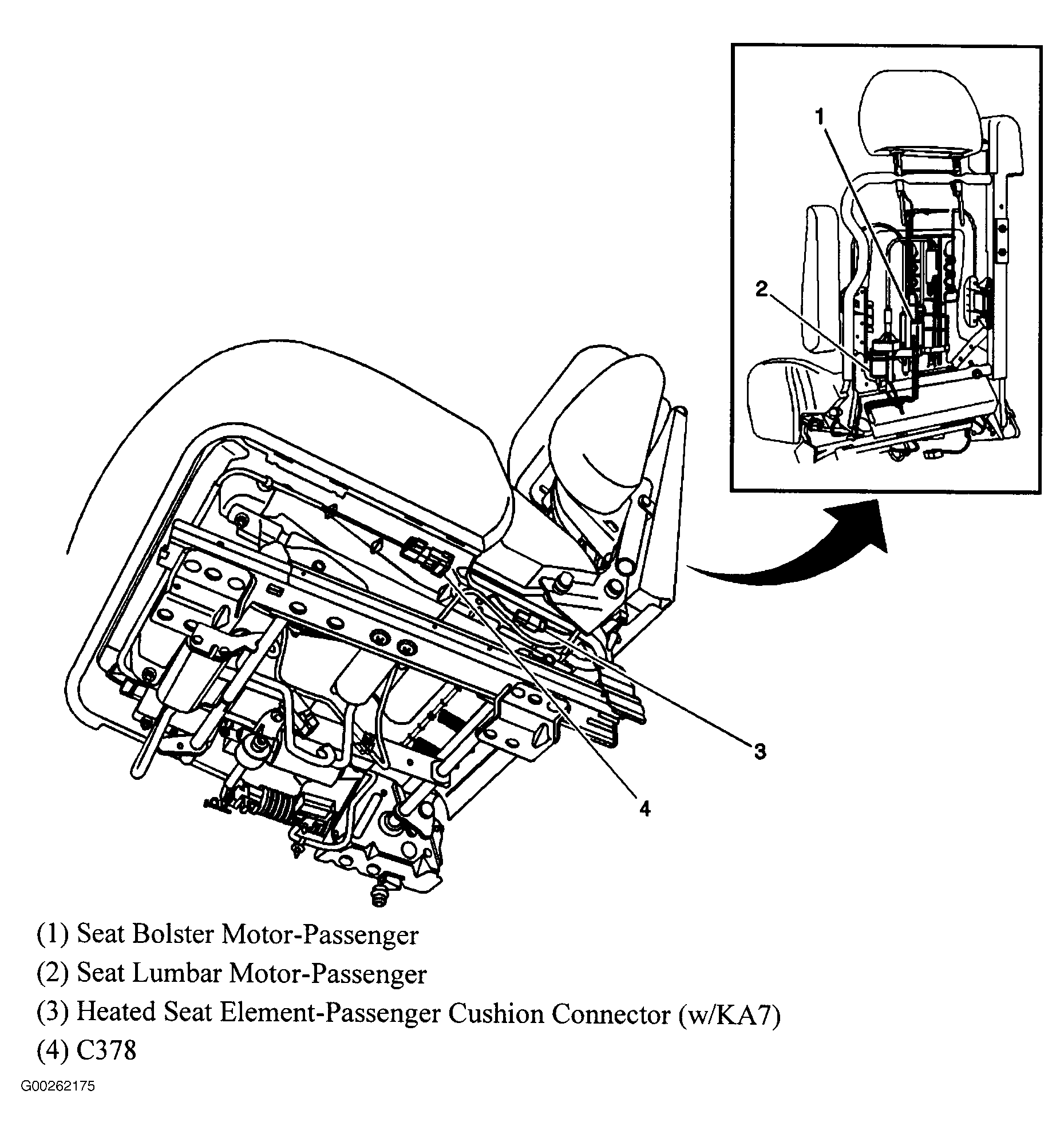

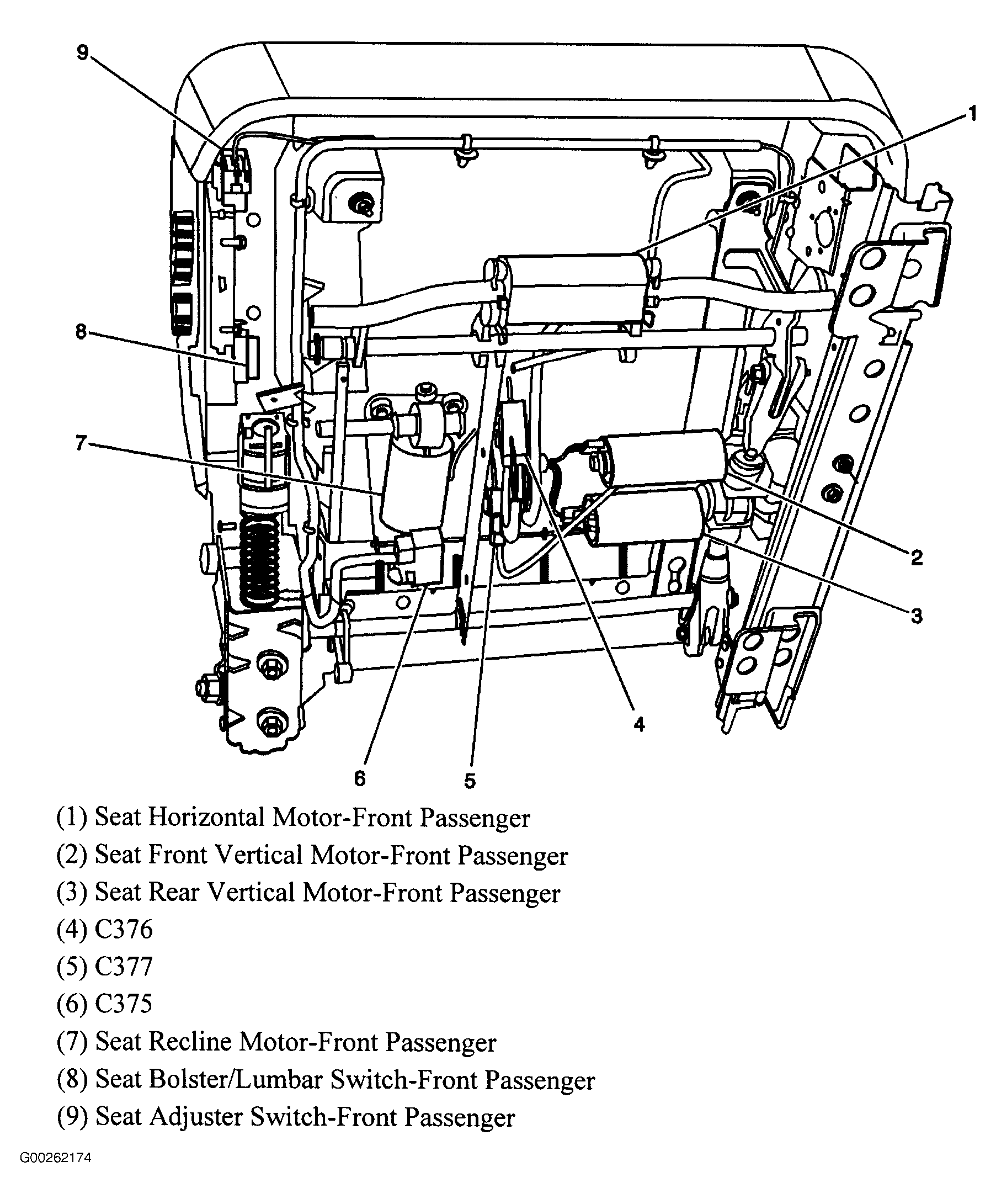

Fig 86: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 87: 2nd Row Seats
Courtesy of GENERAL MOTORS CORP.
Fig 88: Wiper/Washer System Components
Courtesy of GENERAL MOTORS CORP.
Fig 89: Front Floor Console
Courtesy of GENERAL MOTORS CORP.

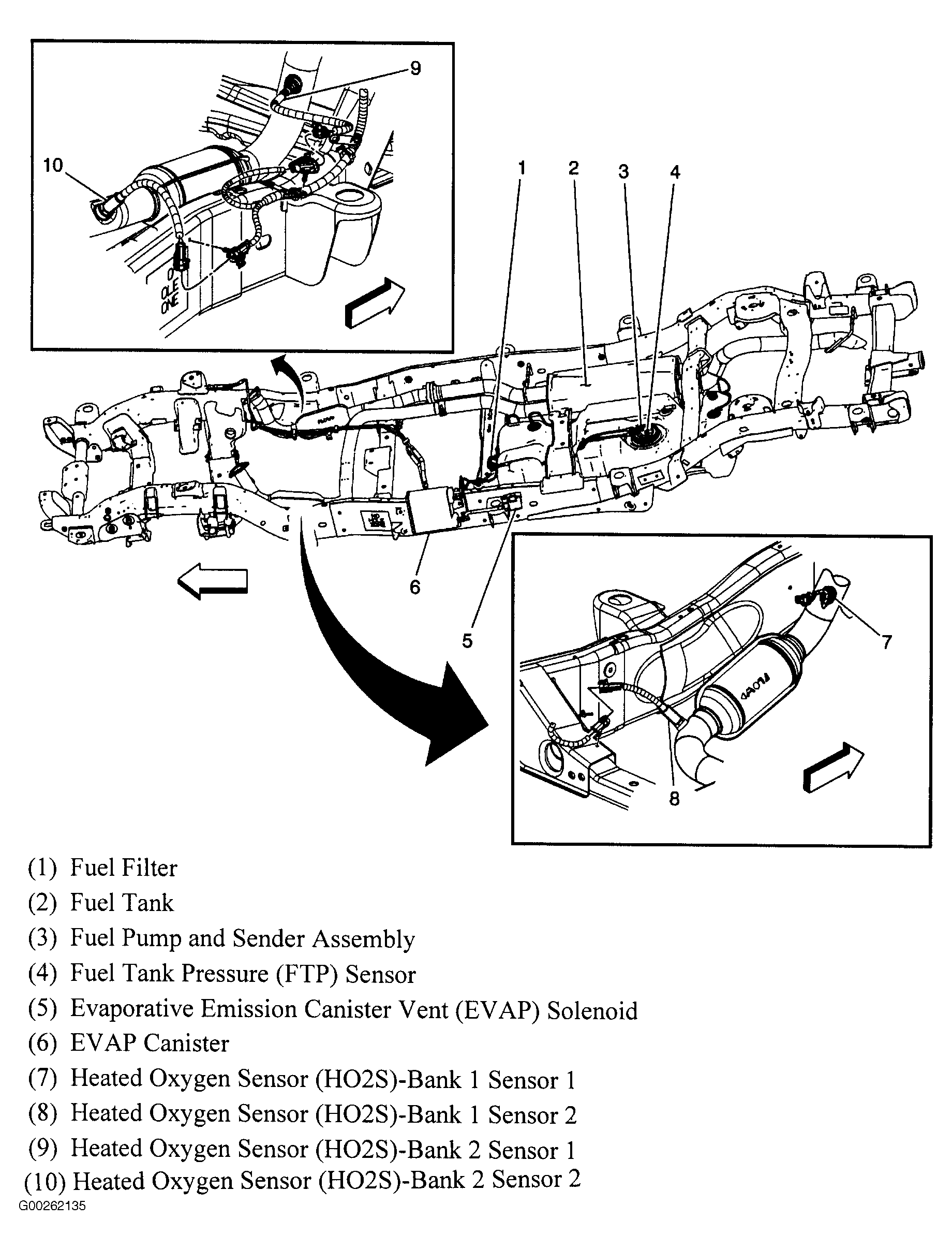

Fig 90: Chassis (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 91: Chassis (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

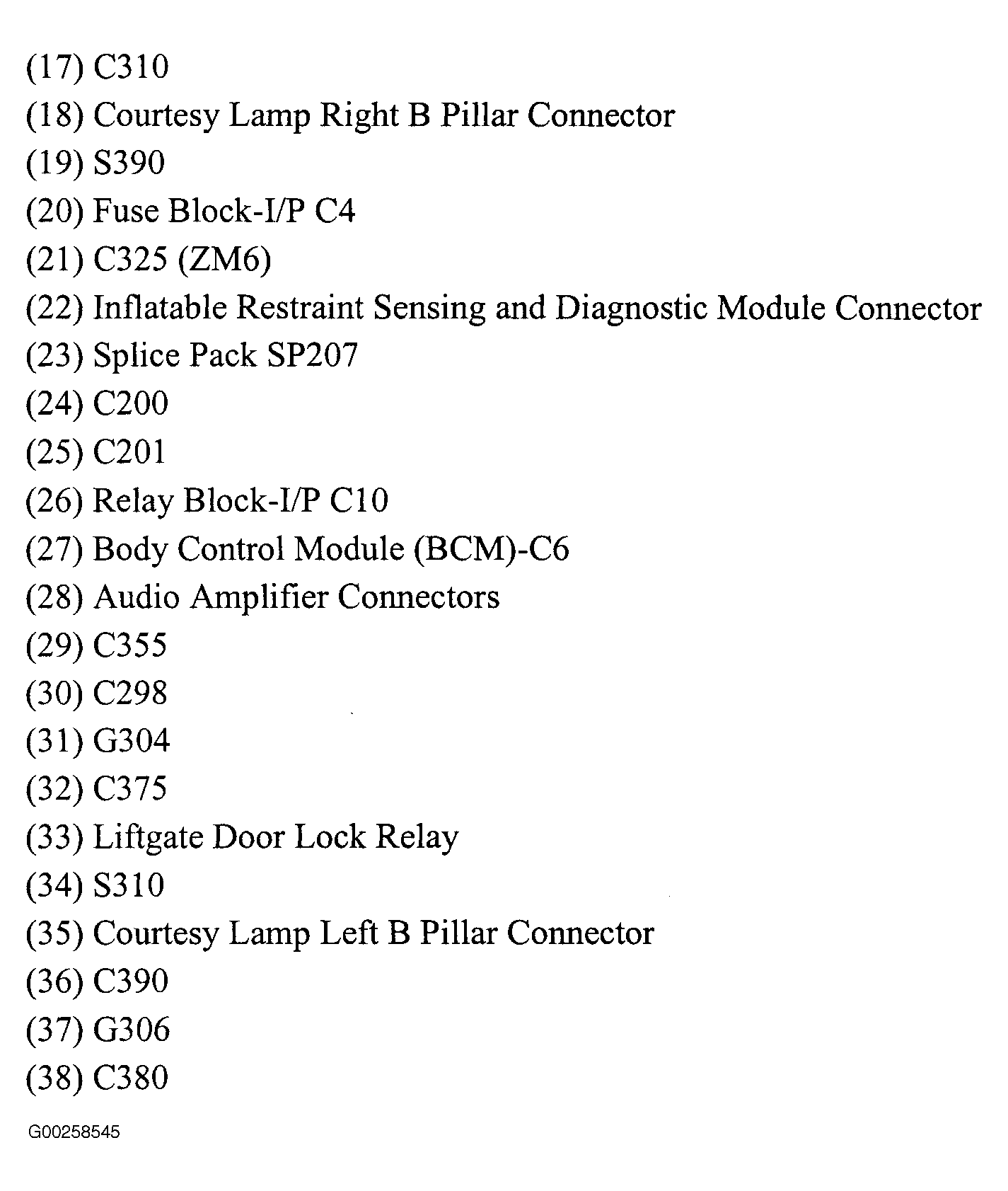

Fig 92: Vehicle Floor (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Vehicle Floor (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

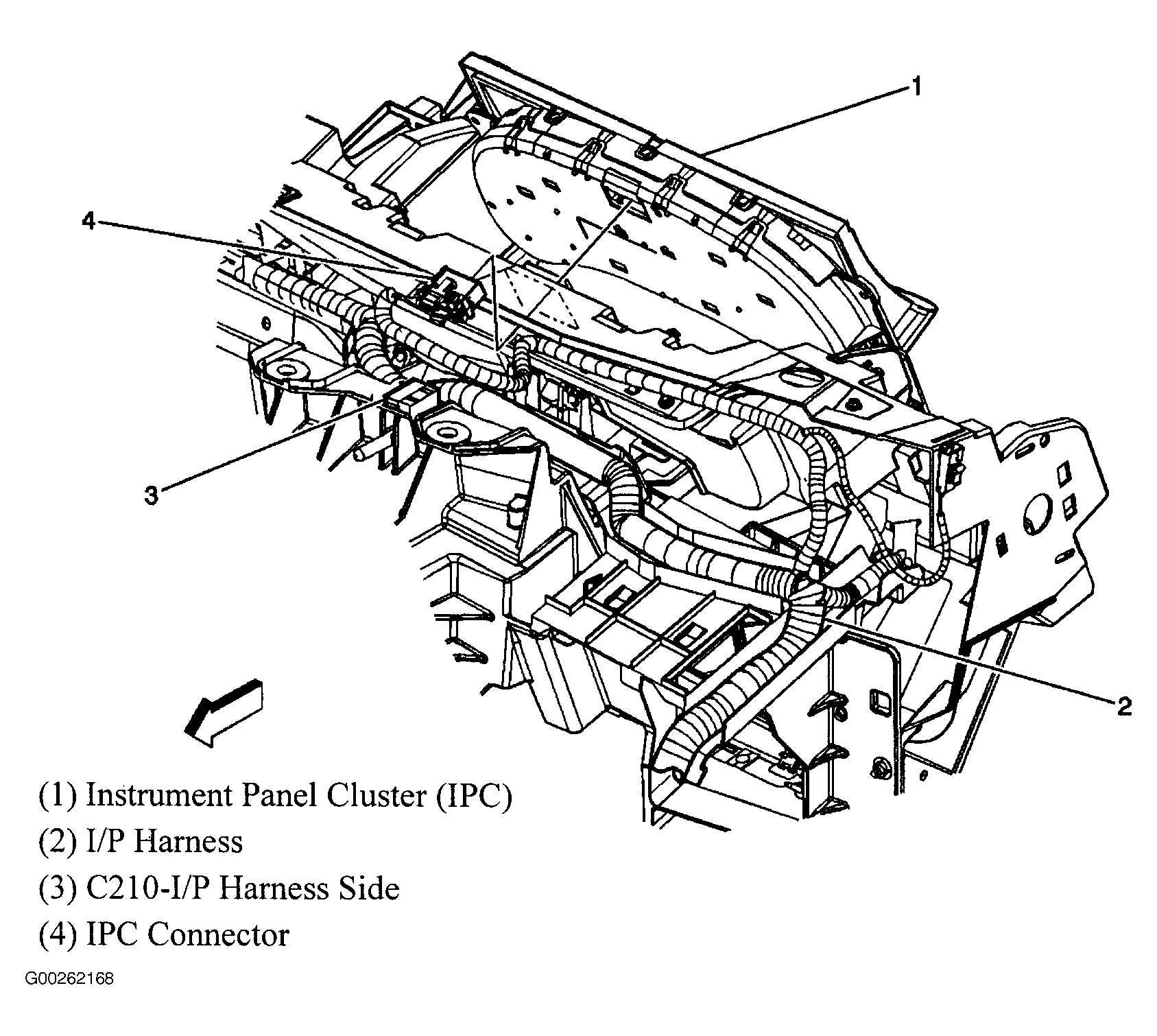

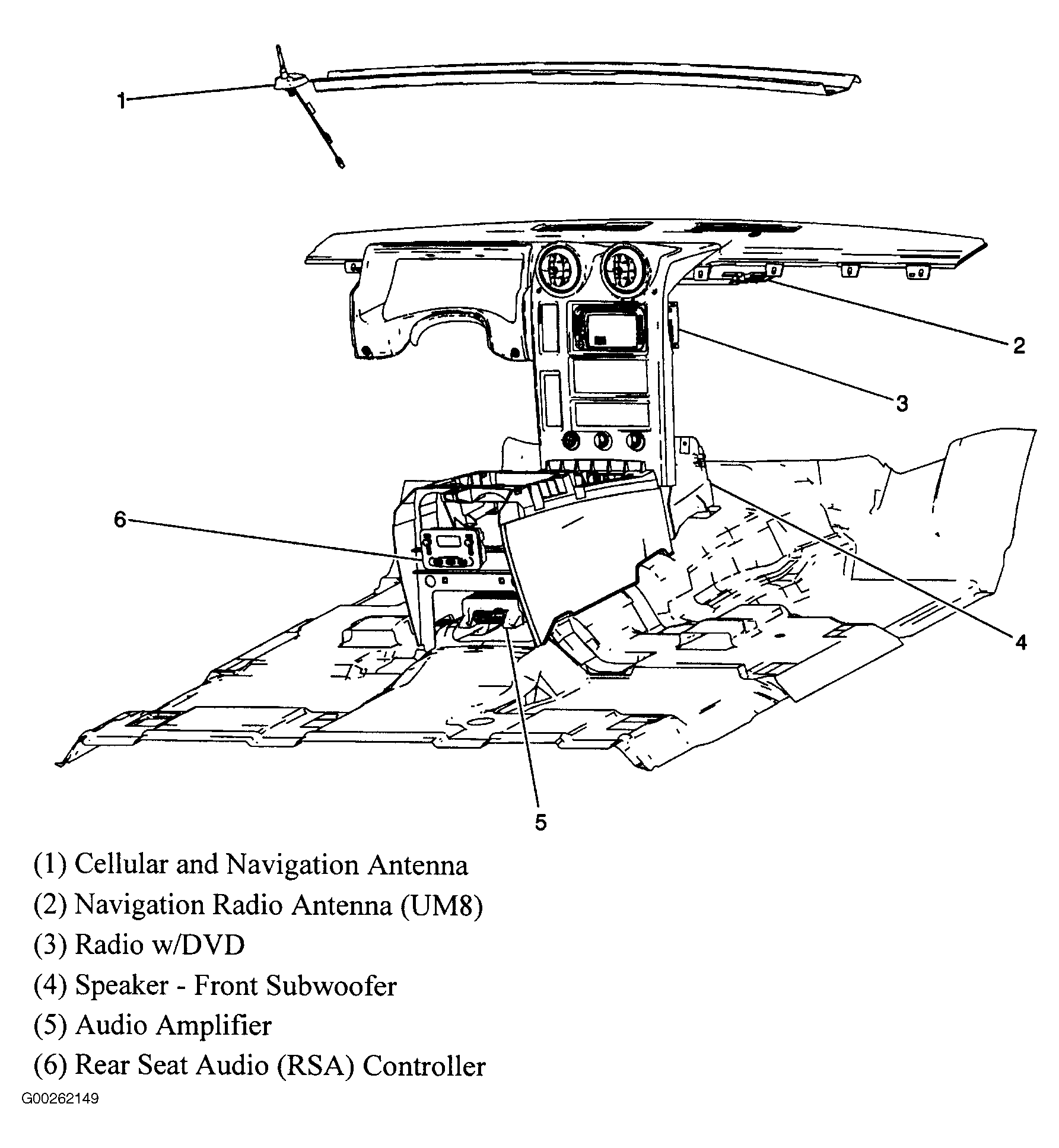

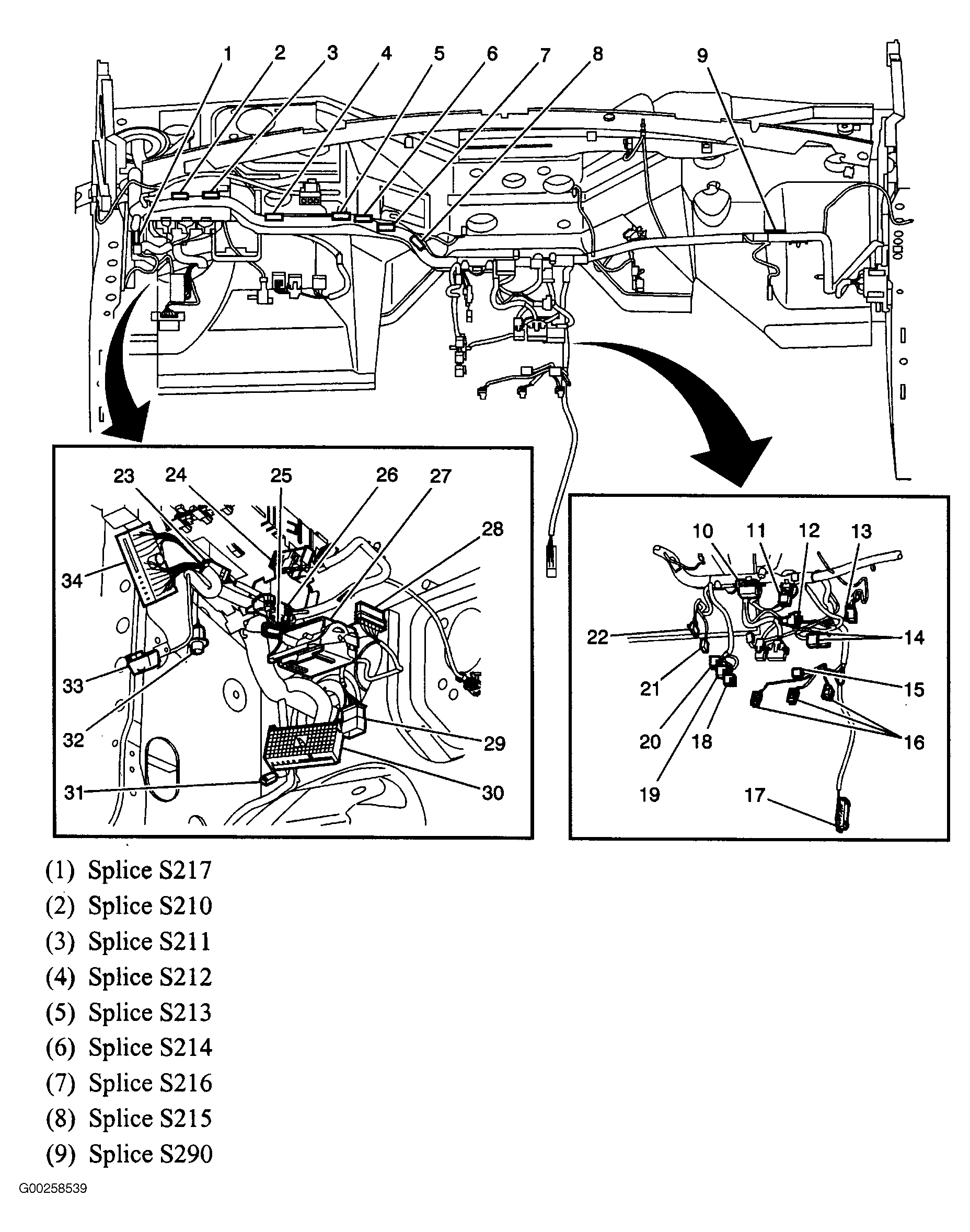

Fig 94: Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 95: Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 96: Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 97: Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 98: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 99: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 100: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 101: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 102: Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 103: Top Of Liftgate
Courtesy of GENERAL MOTORS CORP.
