Front Toe Adjustment

Loosen the jam nut on the tie rod (1).

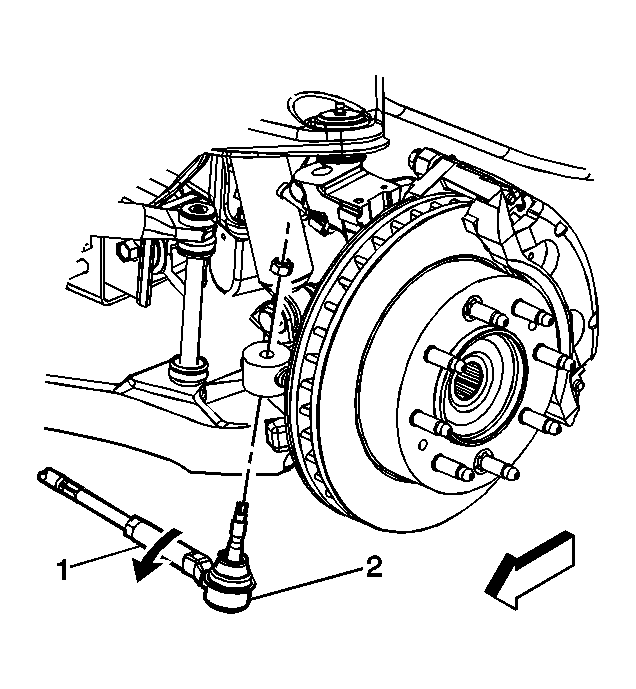

Fig 1: Loosening Jam Nut On Tie Rod
Courtesy of GENERAL MOTORS CORP.
Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications .

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the jam nut on the tie rod.
Tighten: Tighten the tie rod jam to 68 N.m (50 lb ft).
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
