Automatic Transmission Shift Lock Control Schematics

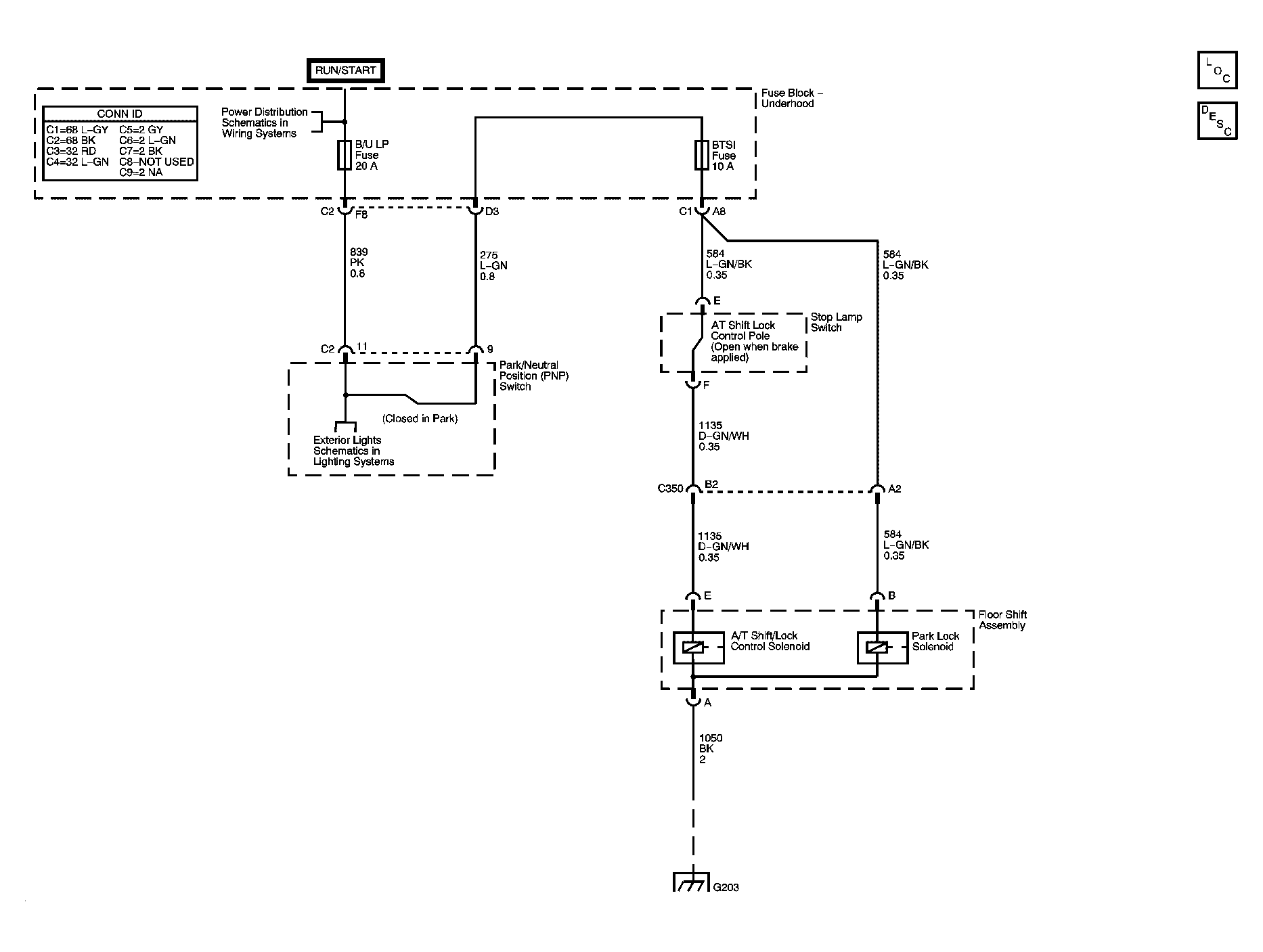

Fig 1: Automatic Transmission Shift Lock Control
GM1177399Courtesy of GENERAL MOTORS CORP.
