Transmission

TRANSMISSION ID AND VIN DERIVATIVE LOCATION

A Transmission ID Tag and a VIN Derivation stamp is located on the transmission case.

4L60-E AUTOMATIC TRANSMISSION

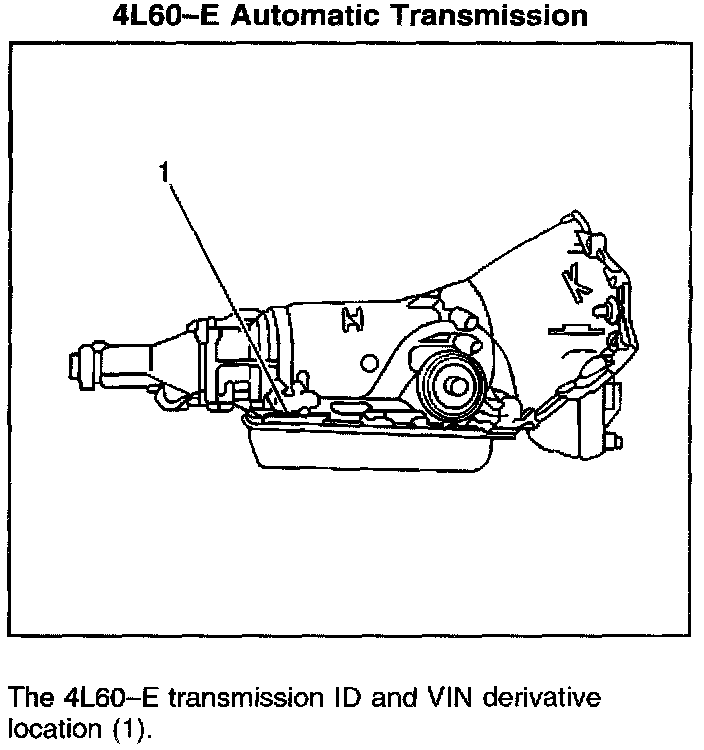

4L60-E Automatic Transmission:




The 4L60-E transmission ID and VIN derivative location (1).
