Keyless Entry Transmitter Battery: Service and Repair

TRANSMITTER BATTERY REPLACEMENT

REMOVAL PROCEDURE
Under normal use, the Bailey in the transmitter will last about 2 years, for battery replacement, use a Panasonic 3 volt, type CR2032, or the equivalent.

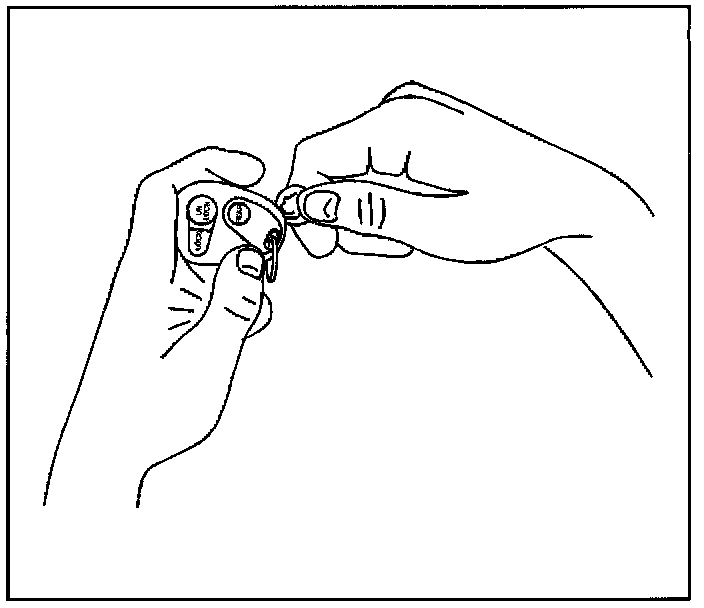

1. In order to open the transmitter case, perform the following steps:
1.1. Insert a dime between the two halves of the transmitter near the key ring hole.
1.2. Twist the dime.

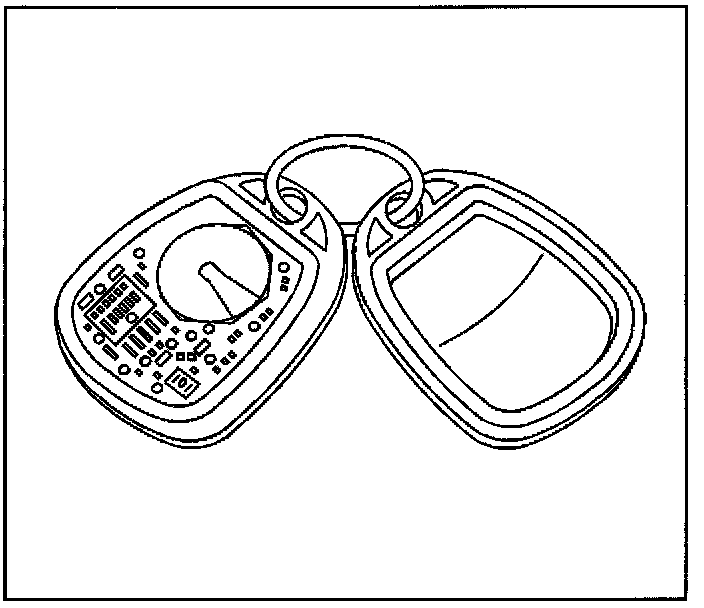

2. Remove the battery.

INSTALLATION PROCEDURE

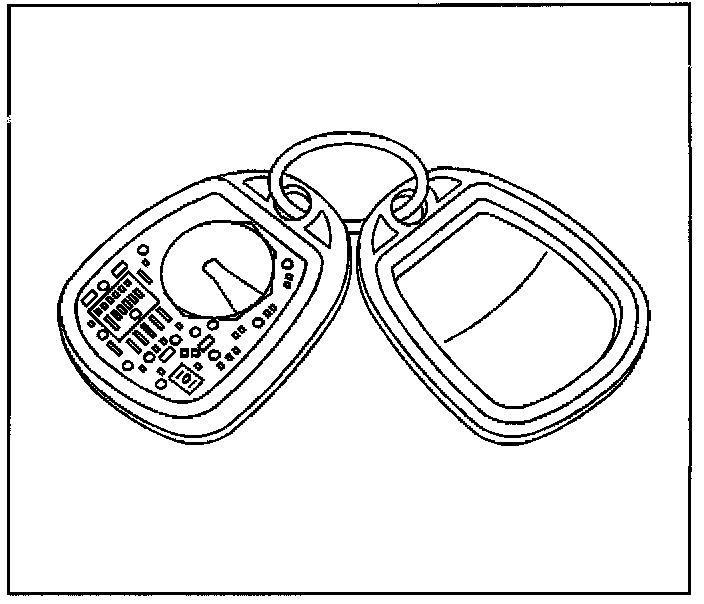

1. Install the battery with the (+) side down.
2. In order to close the transmitter case, perform the following steps:
2.1. Align the top and bottom covers.
2.2. Snap together the top and bottom covers.
2.3. Inspect the operation of the transmitter.
