Lumbar Switch Replacement

Lumbar Switch Replacement

Removal Procedure

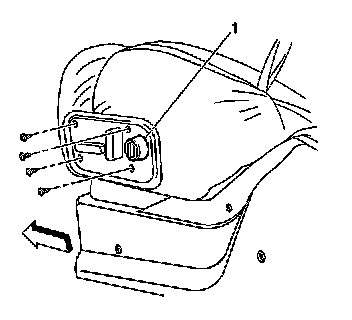

1. Remove the power seat switch bezel containing the lumbar switch (1) from the seat. Refer toDriver or Passenger Seat Adjuster Switch Bezel Replacement (Service and Repair) .
2. Remove the lumbar switch screws from the power seat switch bezel.
3. Remove the lumbar switch.



Installation Procedure

1. Install the lumbar switch to the power seat switch bezel.

Notice: Refer to Fastener Notice Service Precautions .

2. Install the lumbar switch screws.

Tighten the screws to 2 Nm (18 lb in).





3. Install the power seat switch bezel (1) to the seat. Refer toDriver or Passenger Seat Adjuster Switch Bezel Replacement (Service and Repair) .
