System Diagram

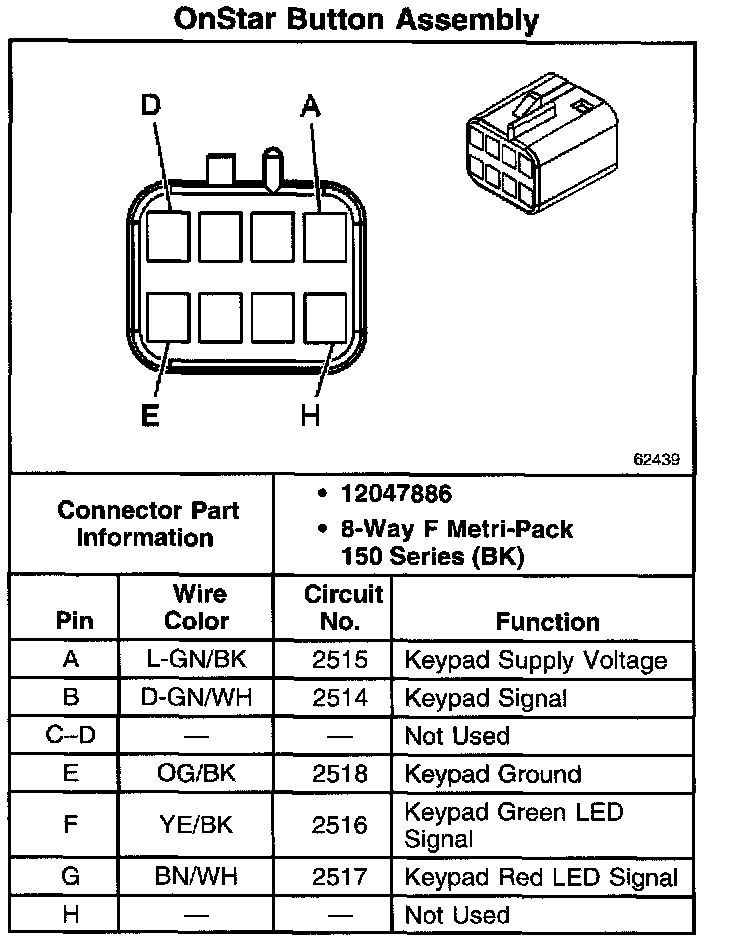

Onstar Button Assembly:

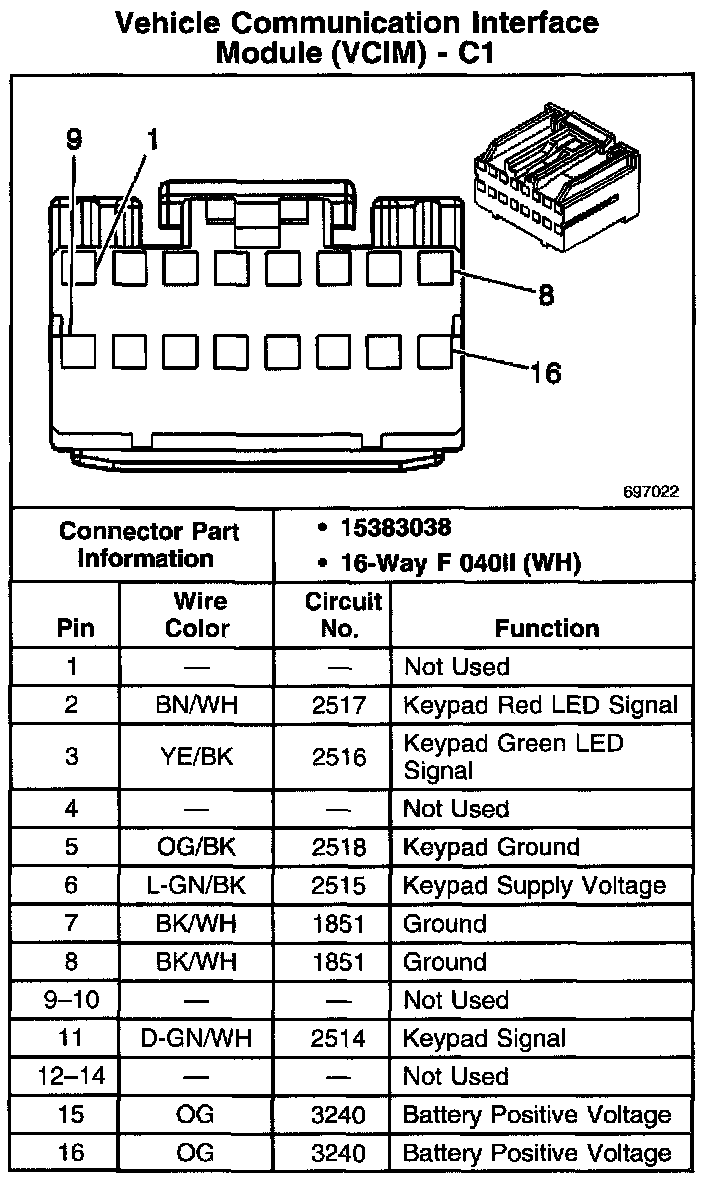

Vehicle Communication Interface Module (VCIM)-c1:

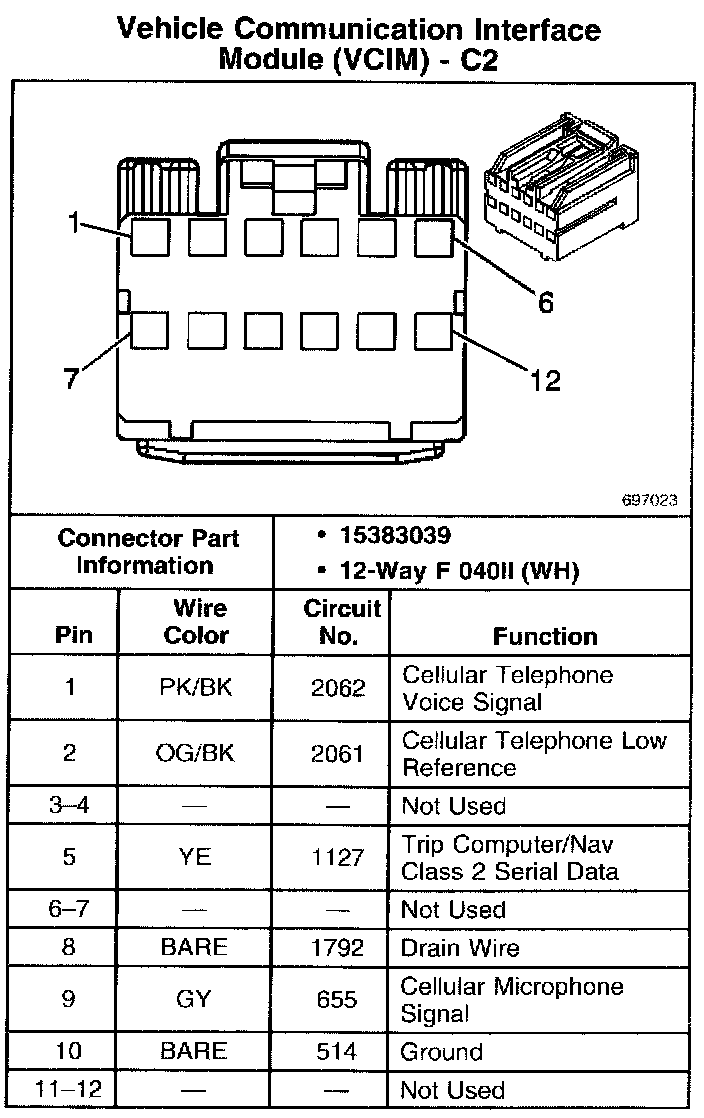

Vehicle Communication Interface Module (VCIM)-c2:
