Combination Switch

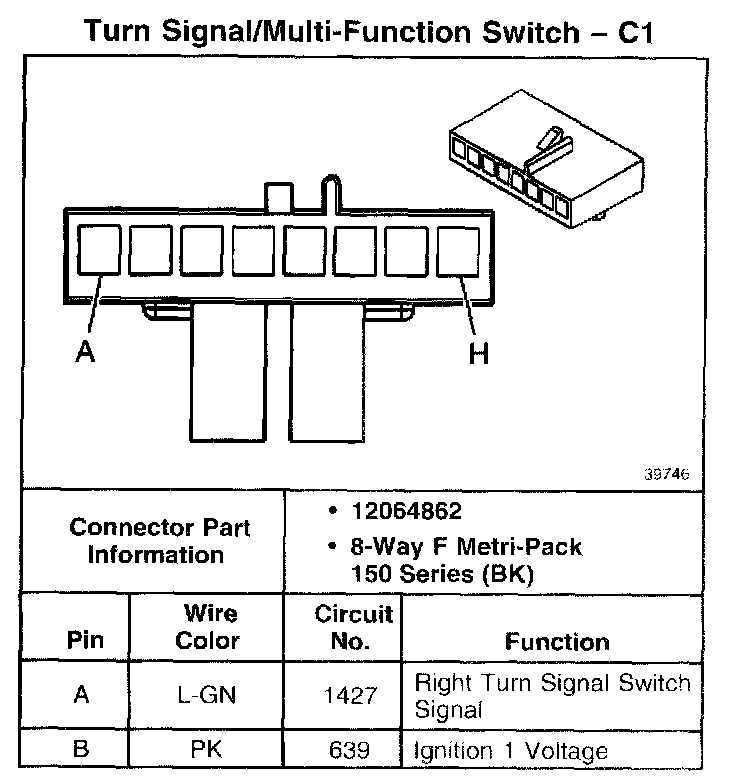

Turn Signal/Multi-Function Switch - C1 Part 1:

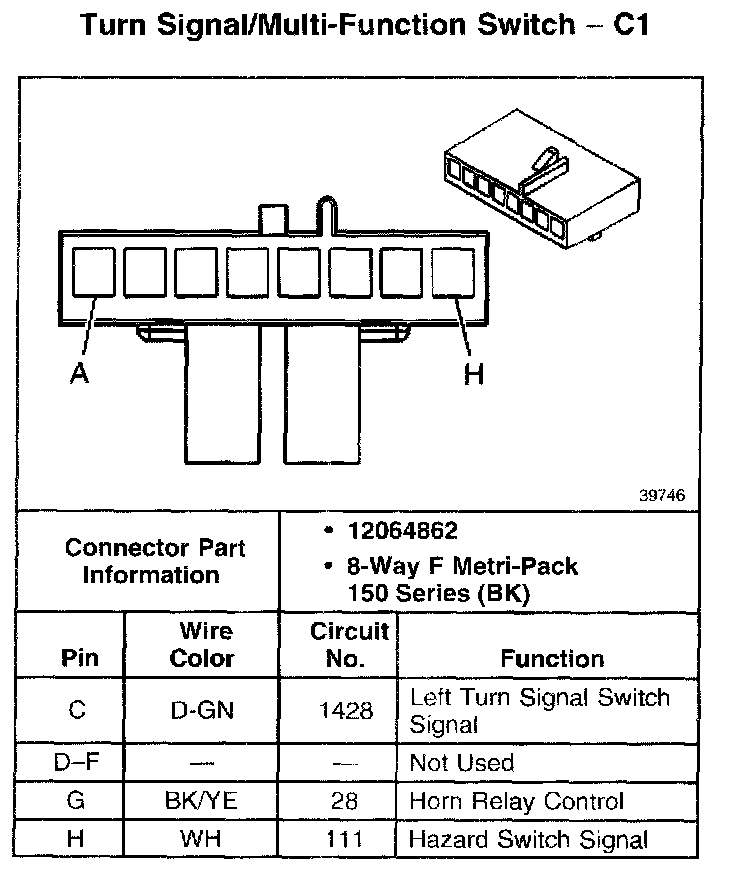

Turn Signal/Multi-Function Switch - C1 Part 2:

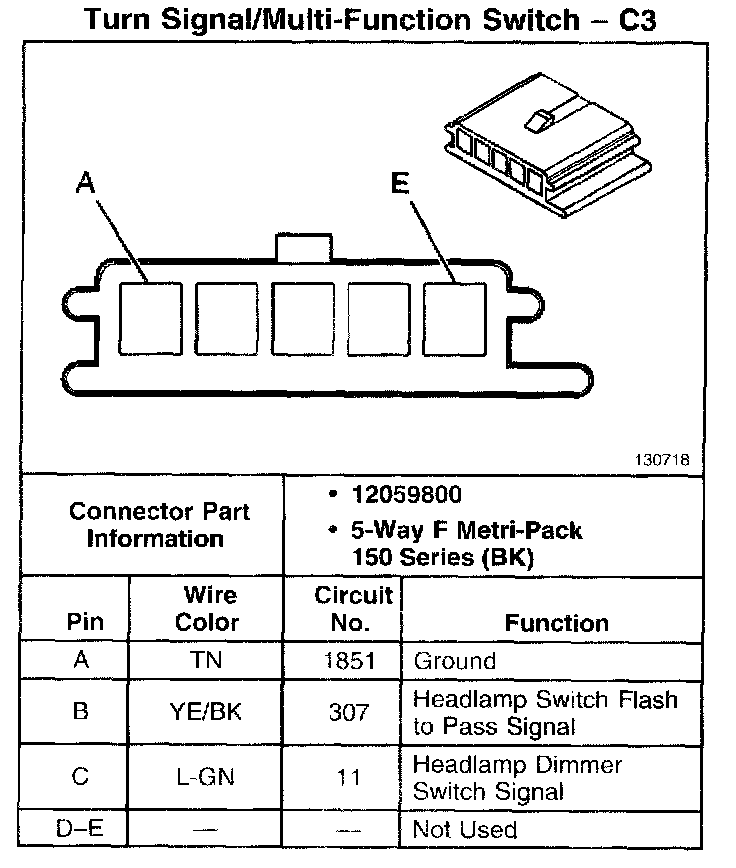

Turn Signal/Multi-Function Switch - C3:

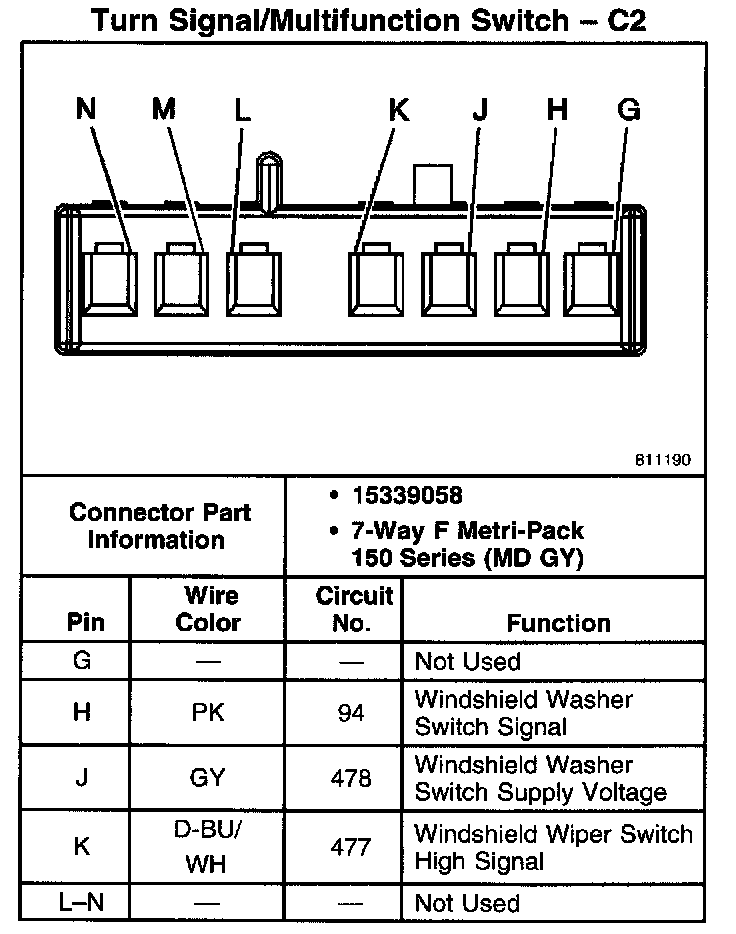

Turn Signal/Multifunction Switch - C2:

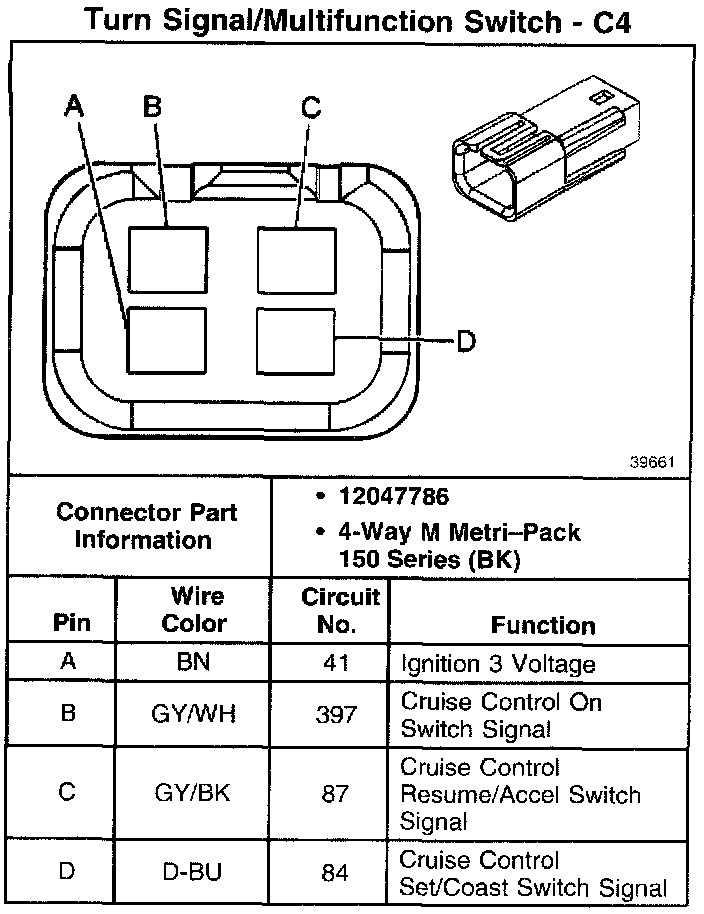

Turn Signal/Multifunction Switch- C4:
