Front Passenger Door Module (FPDM) - C2

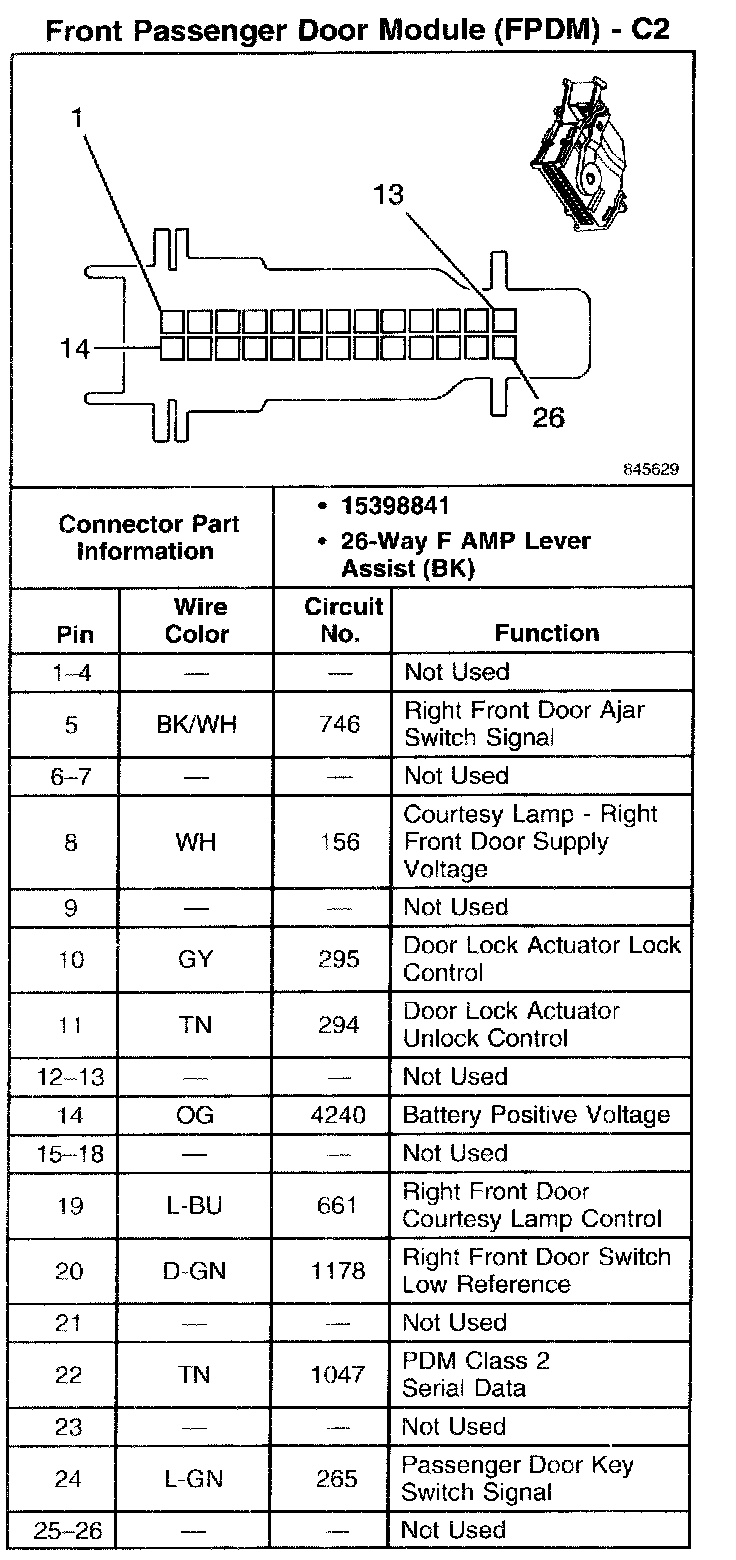

Front Passenger Door Module (FPDM) - C2:

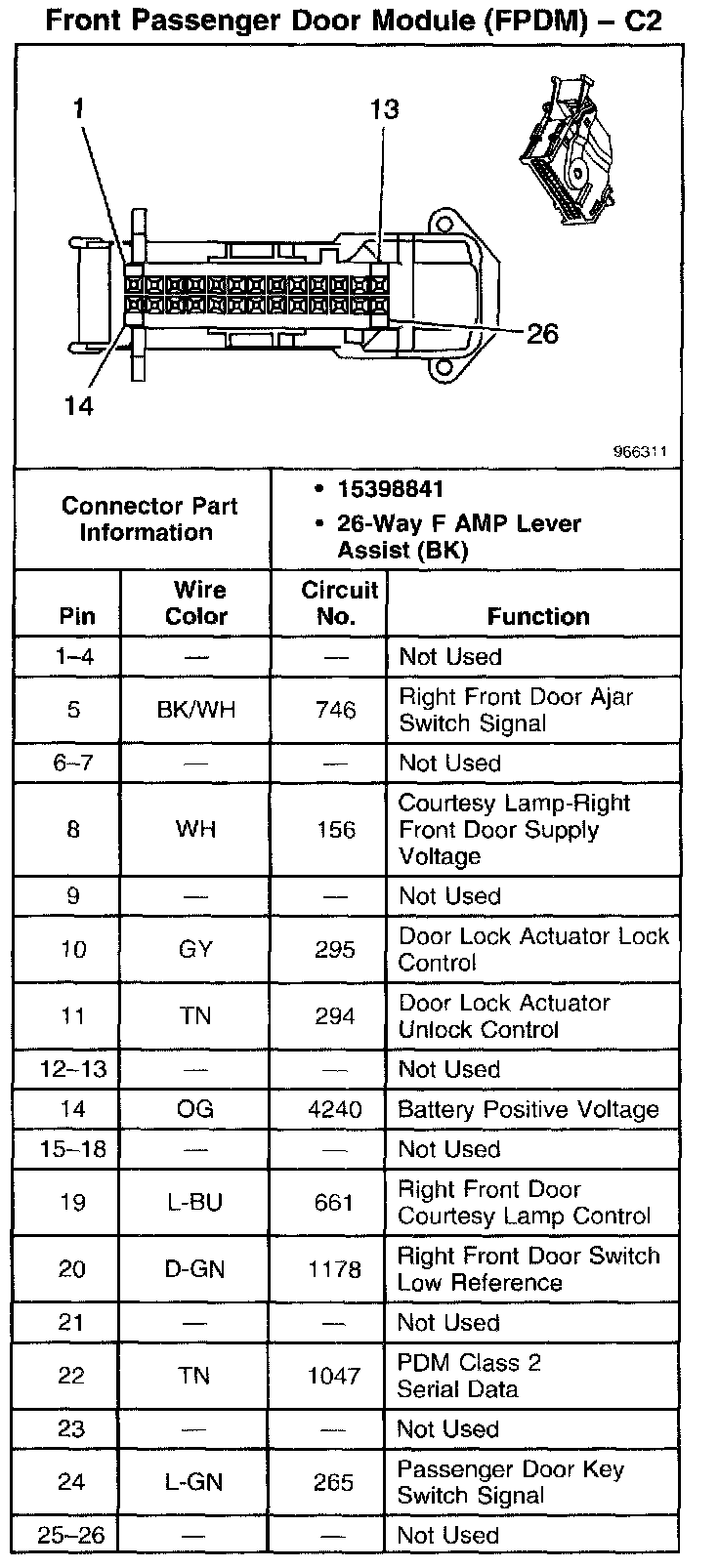

Front Passenger Door Module(FPDM)-C2:
