Electronic Brake Control Module

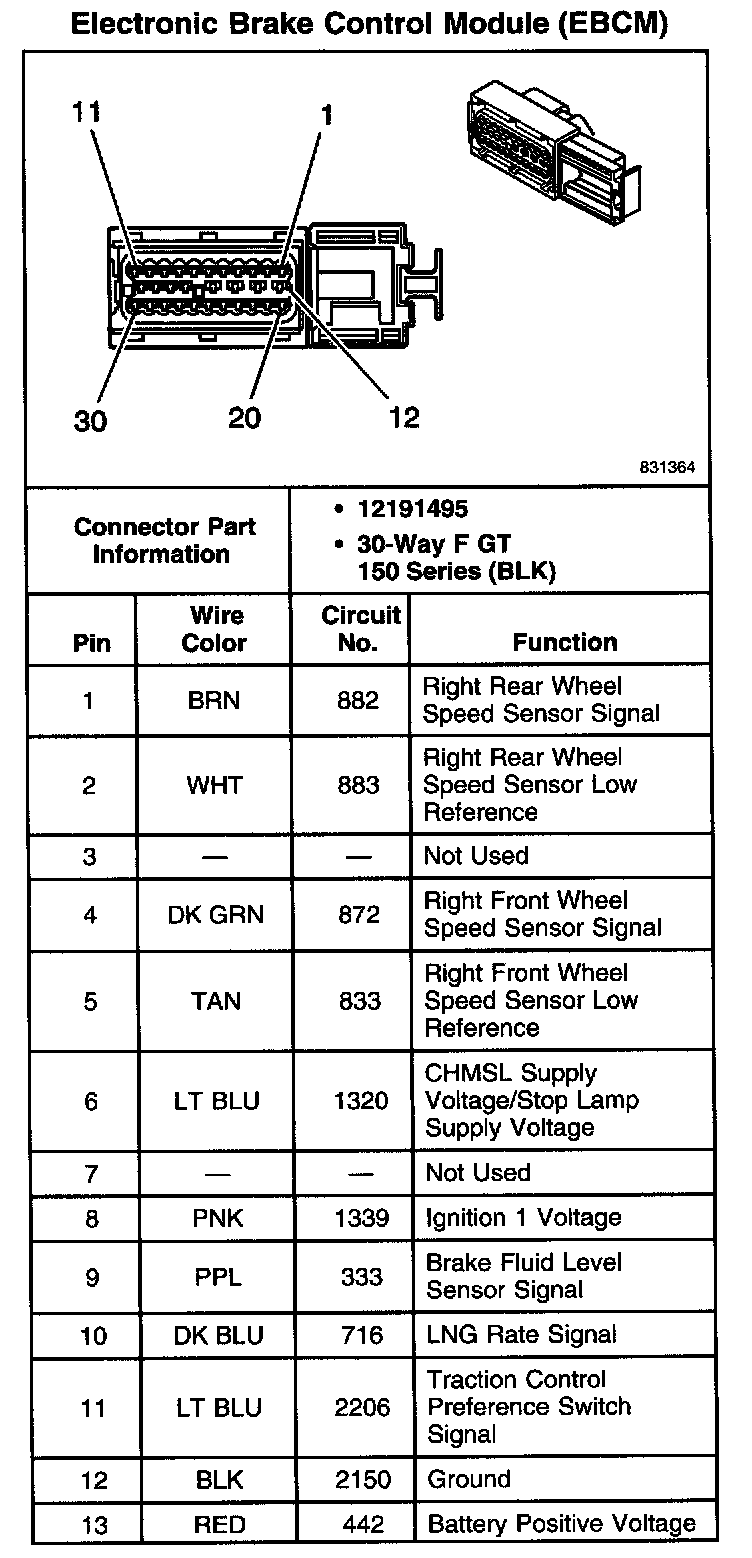

Electronic Brake Control Module (EBCM) Part 1:

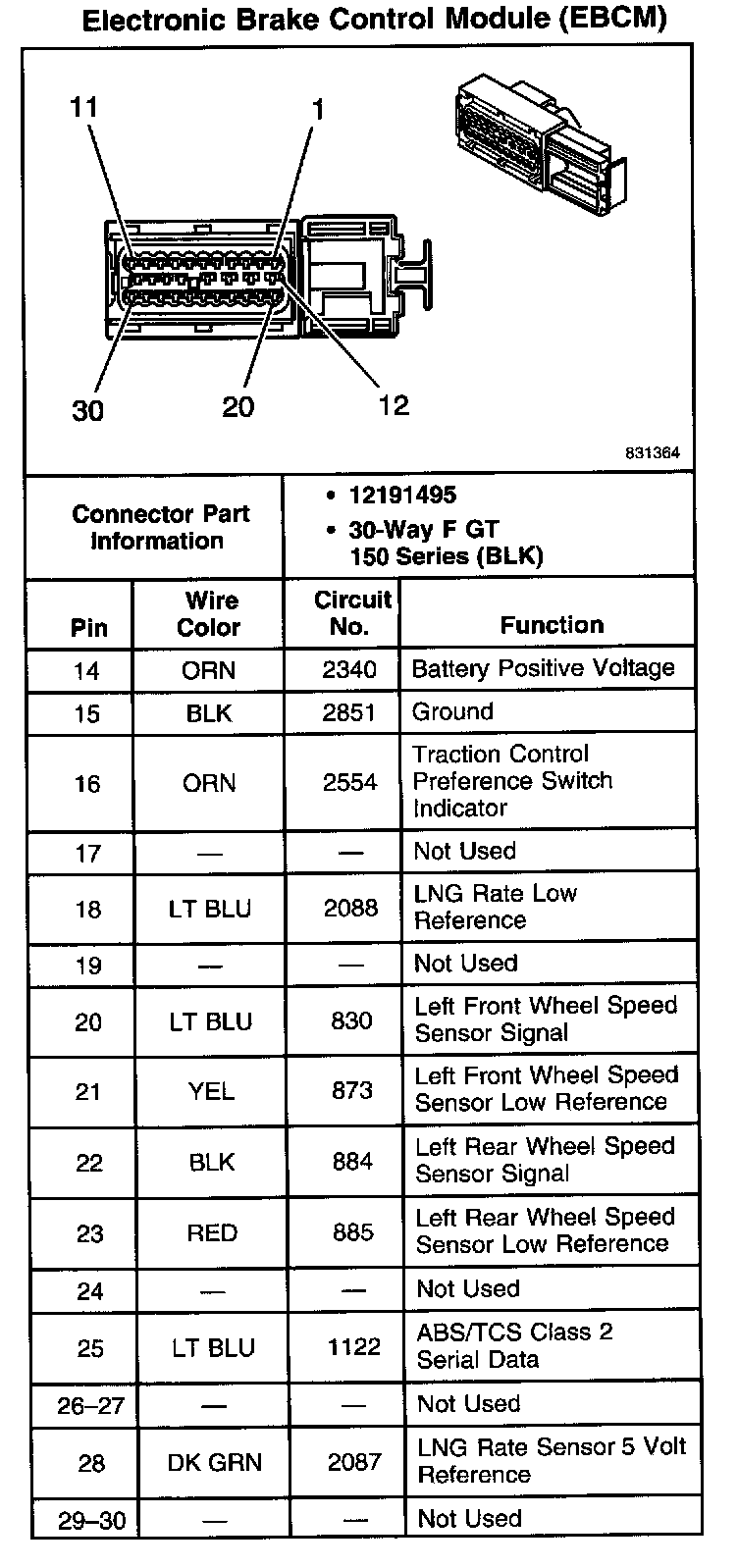

Electronic Brake Control Module (EBCM) Part 2:
