Fluid Pressure Sensor/Switch, A/T

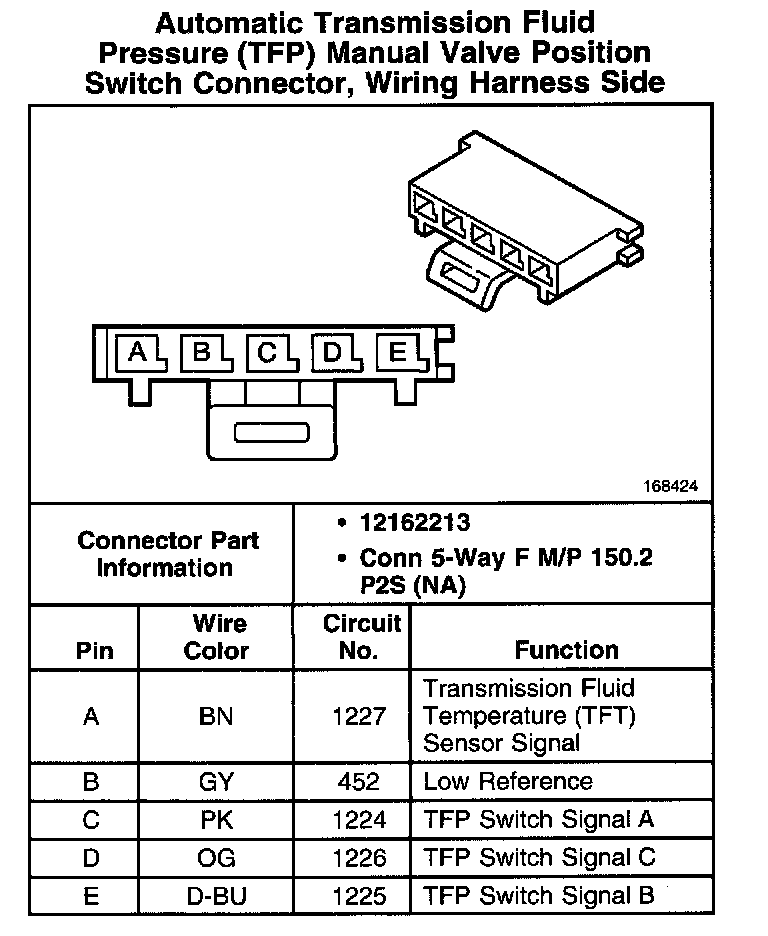

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side:
