Fog/Driving Lamp Relay

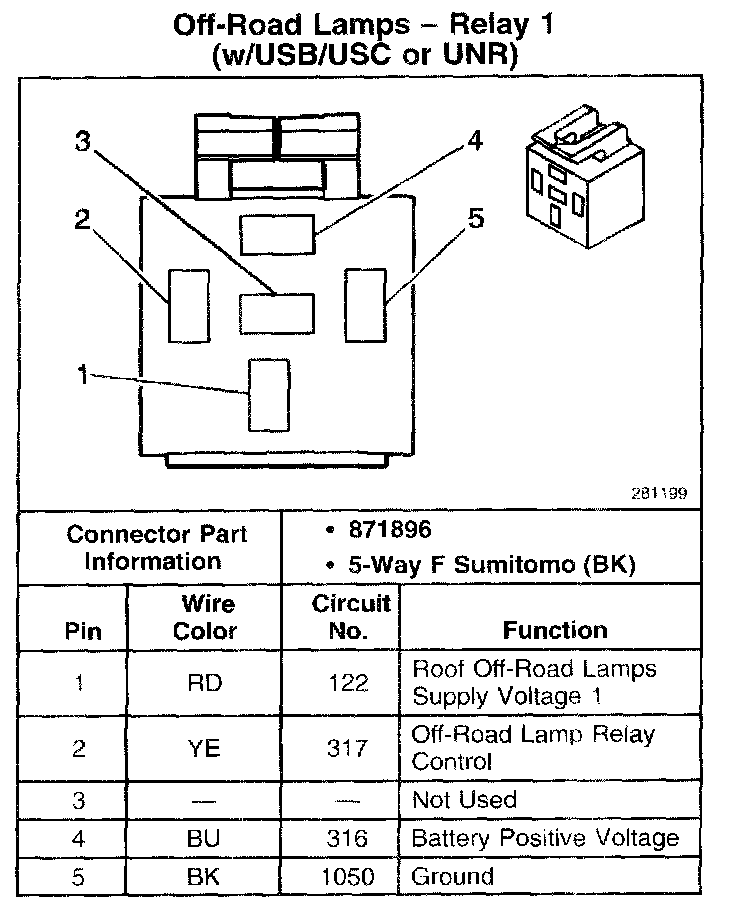

Off-Road Lamps - Relay 1 (With RPO Code USB/USC Or UNR):

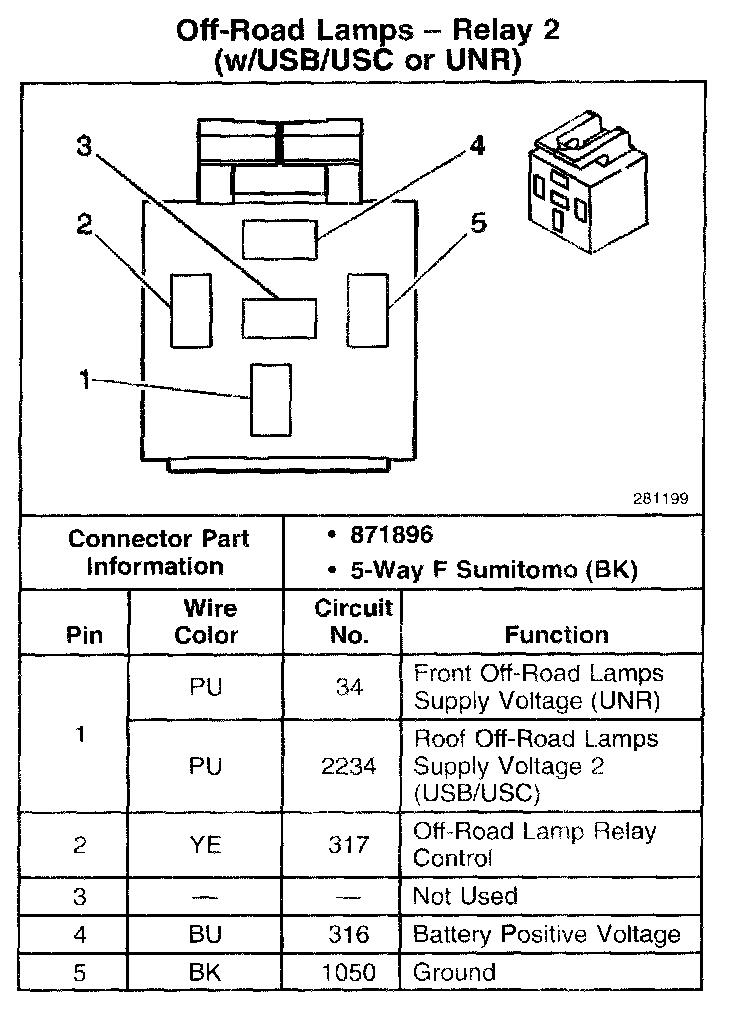

Off-Road Lamps - Relay 2 (With RPO Code USB/USC Or UNR):
