Hummer
>>
2004
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Master Connector List

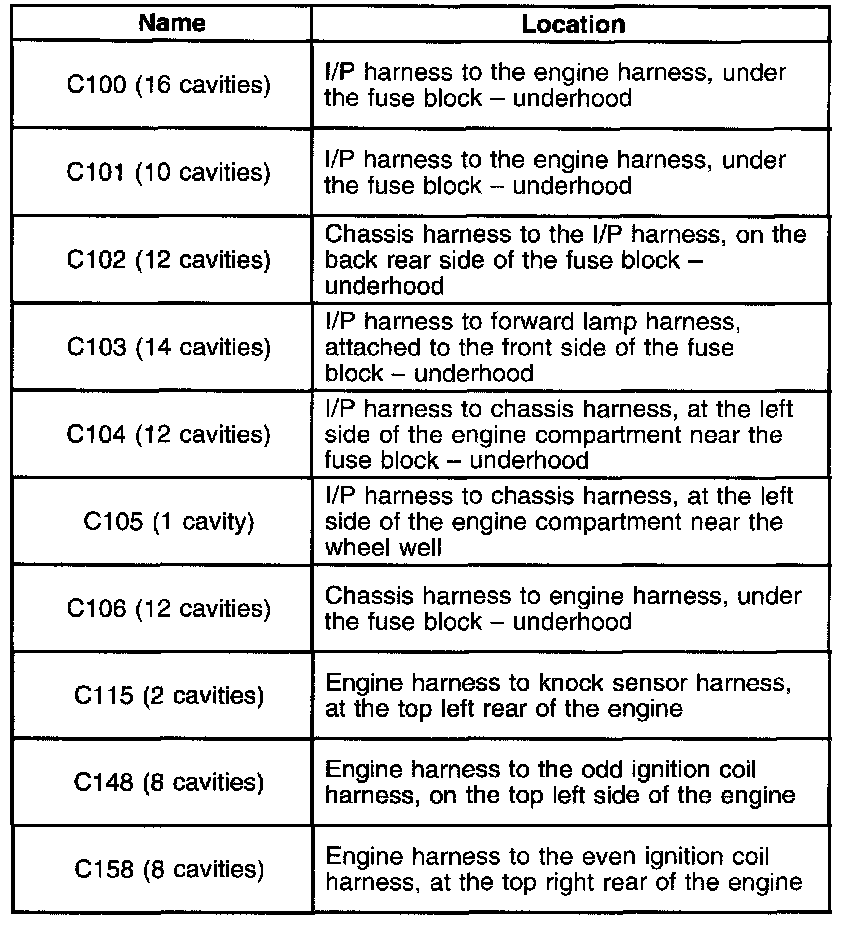

C100 - C158:

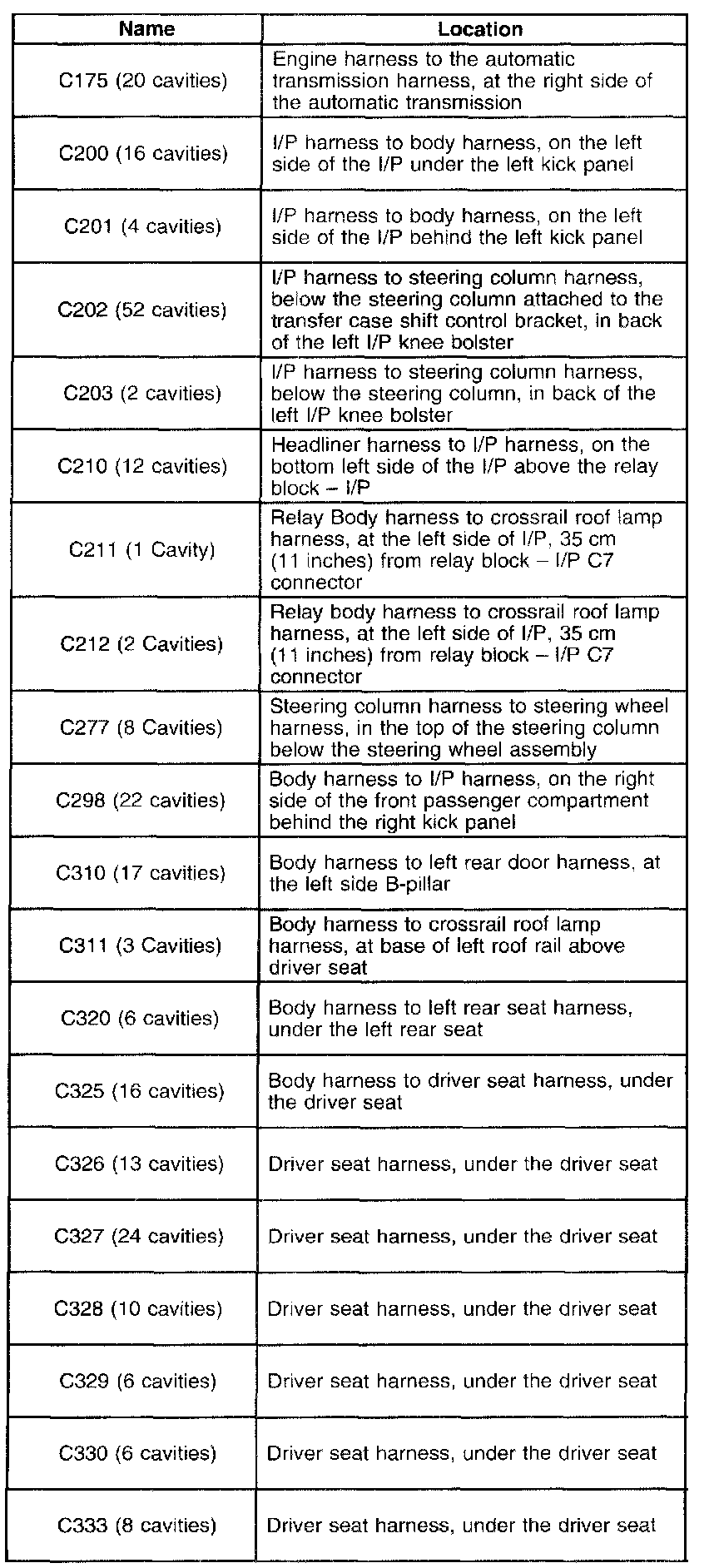

C175 - C333:

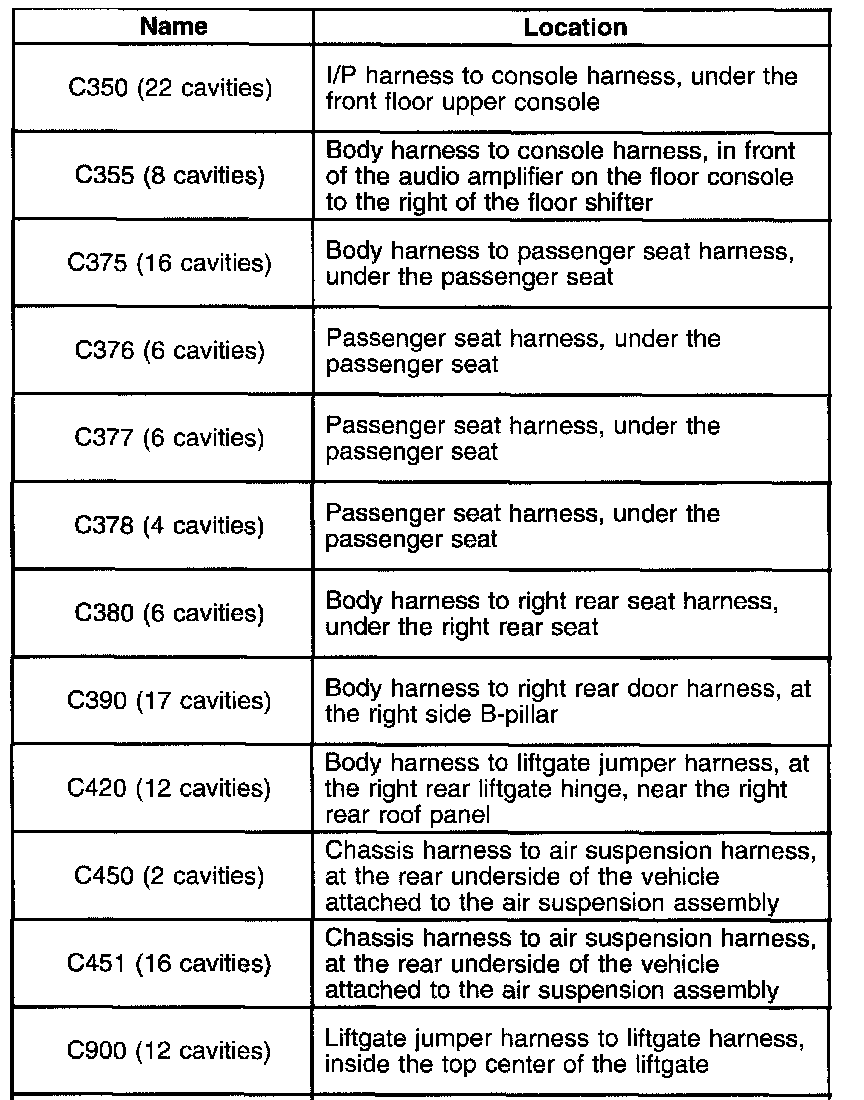

C350 - C900:
