Chassis Views

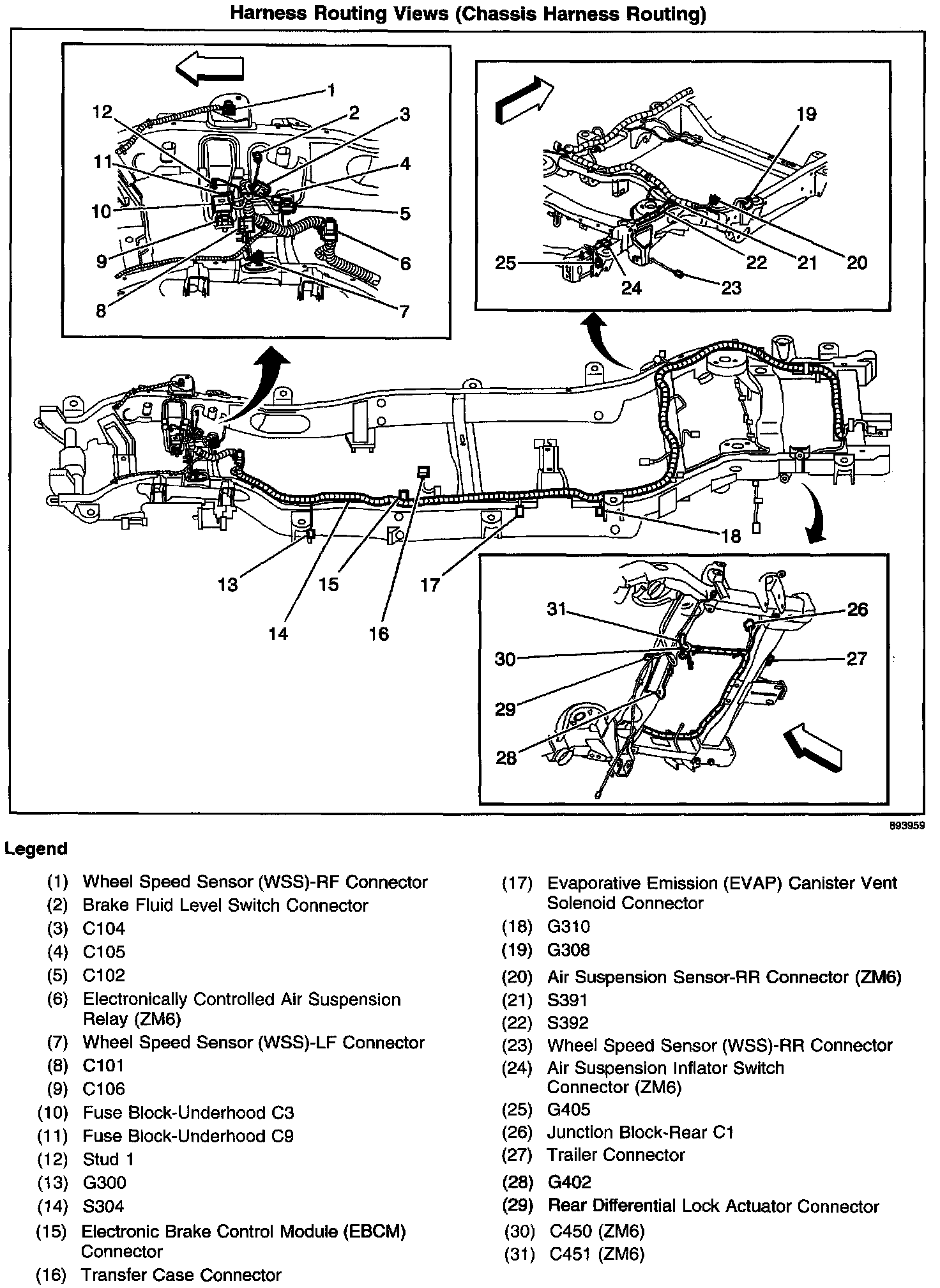

Harness Routing Views (Chassis Harness Routing):

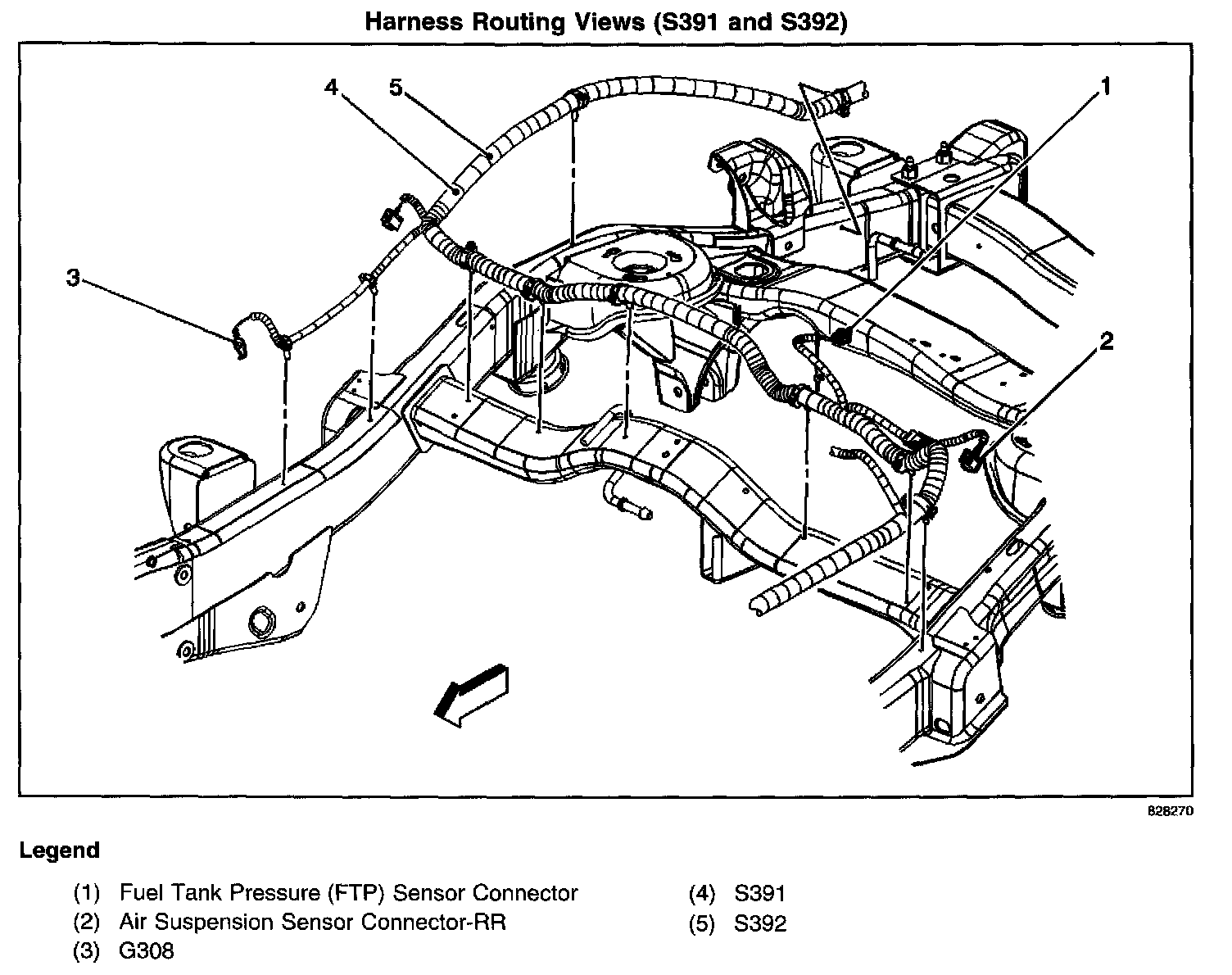

Harness Routing Views (S391 And S392):
