Instrument Panel Views

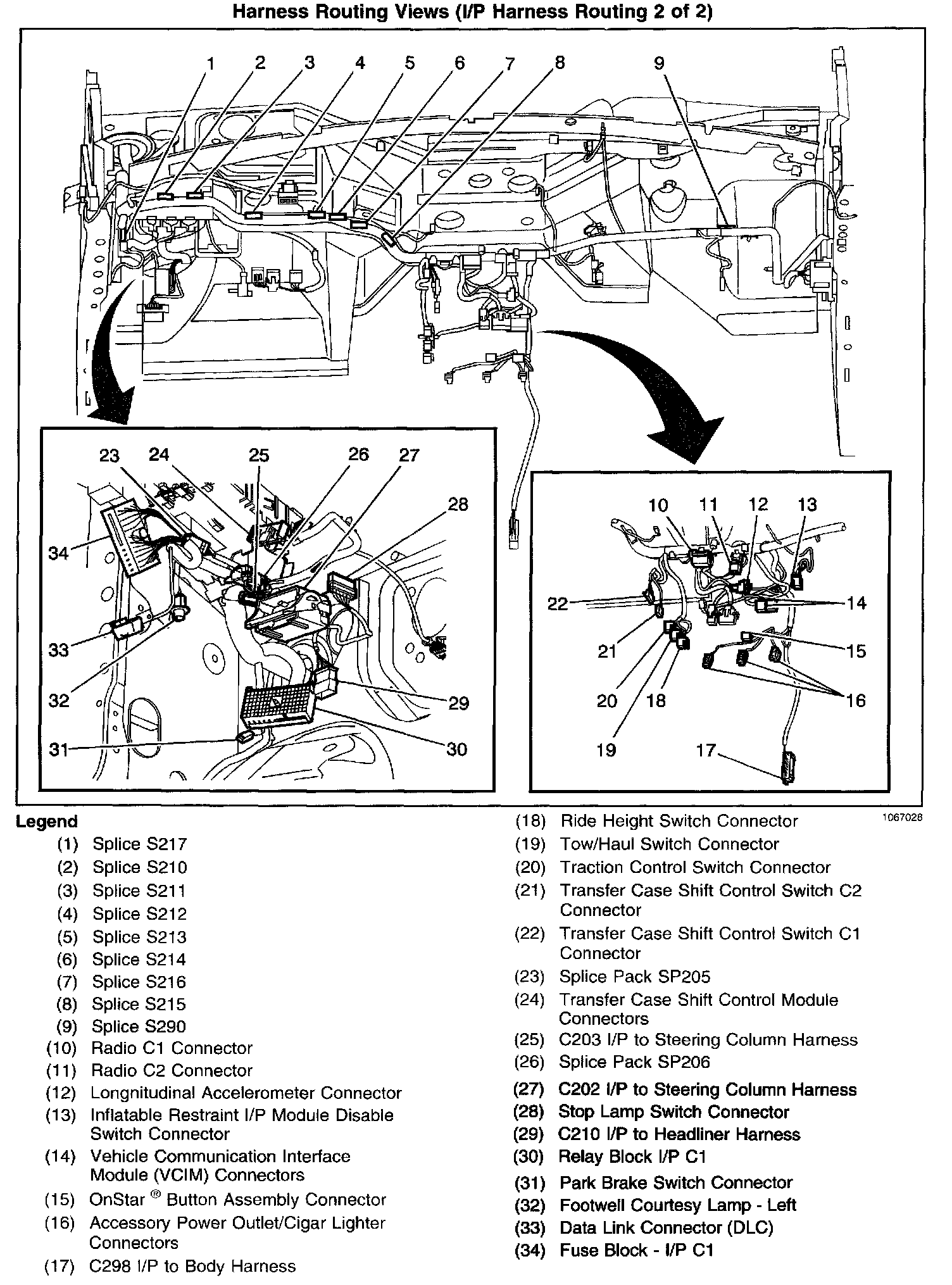

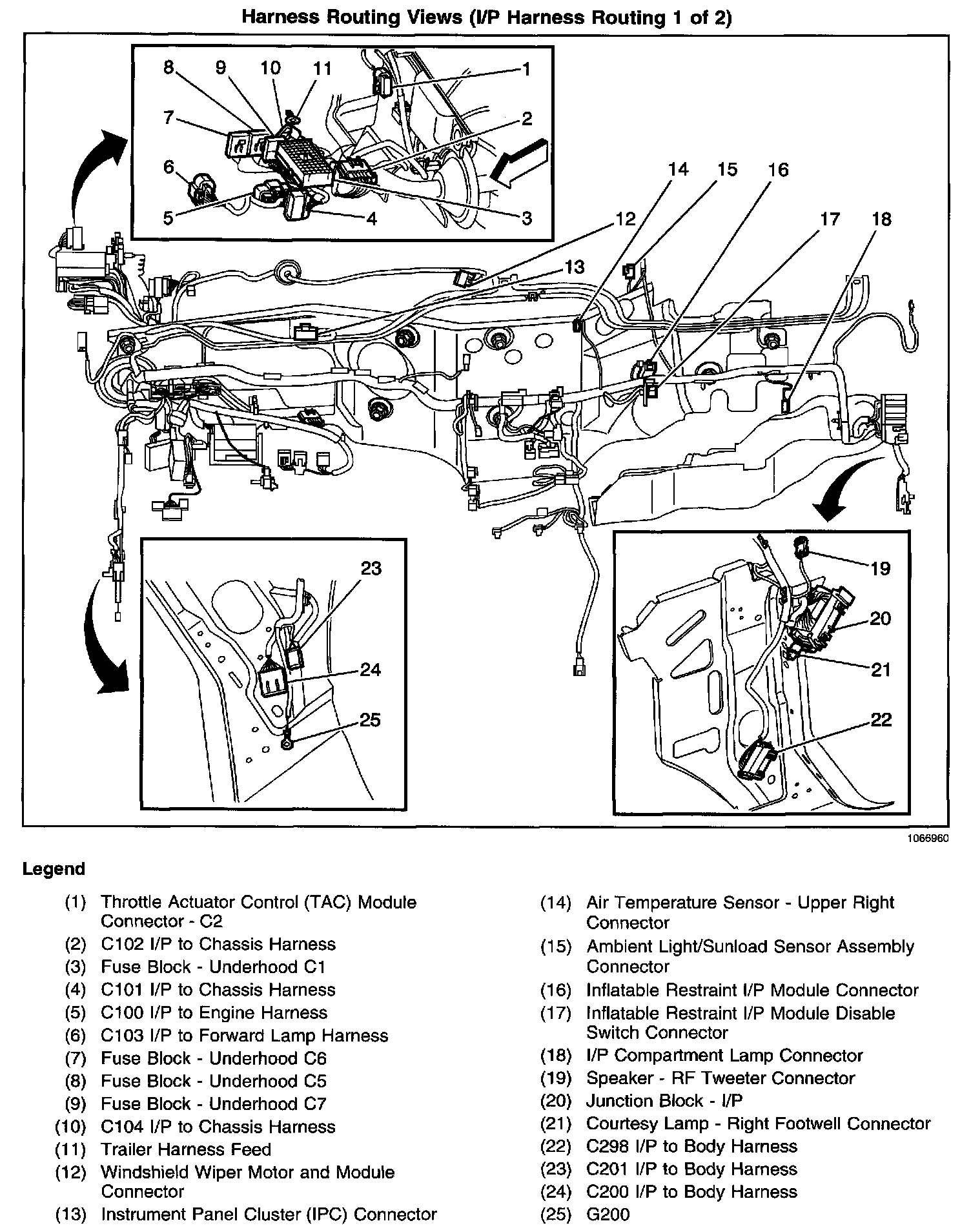

Harness Routing Views (I/P Harness Routing):
Harness Routing Views (I/P Harness Routing):
