Fuse Block: Locations

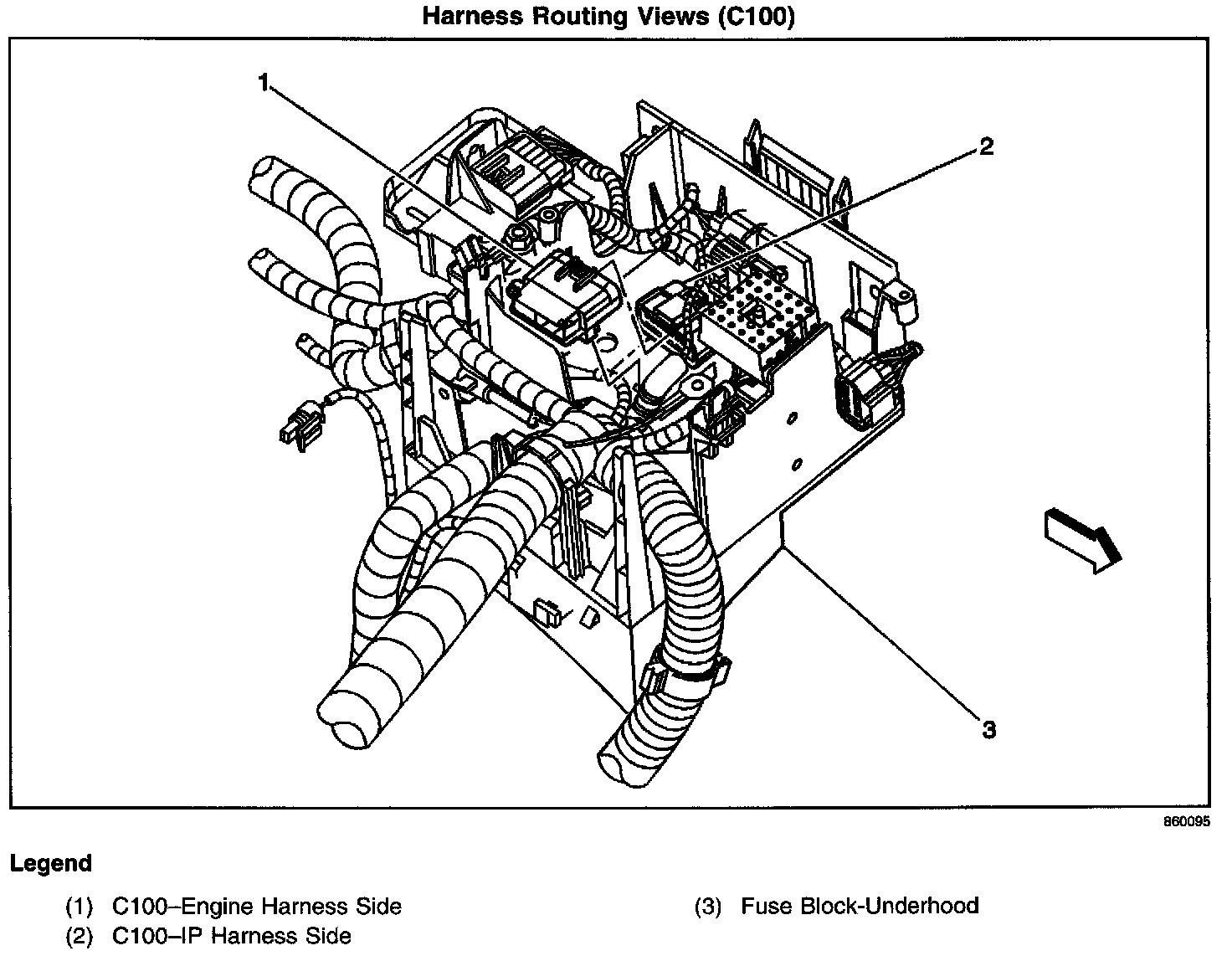

Harness Routing Views (C100):

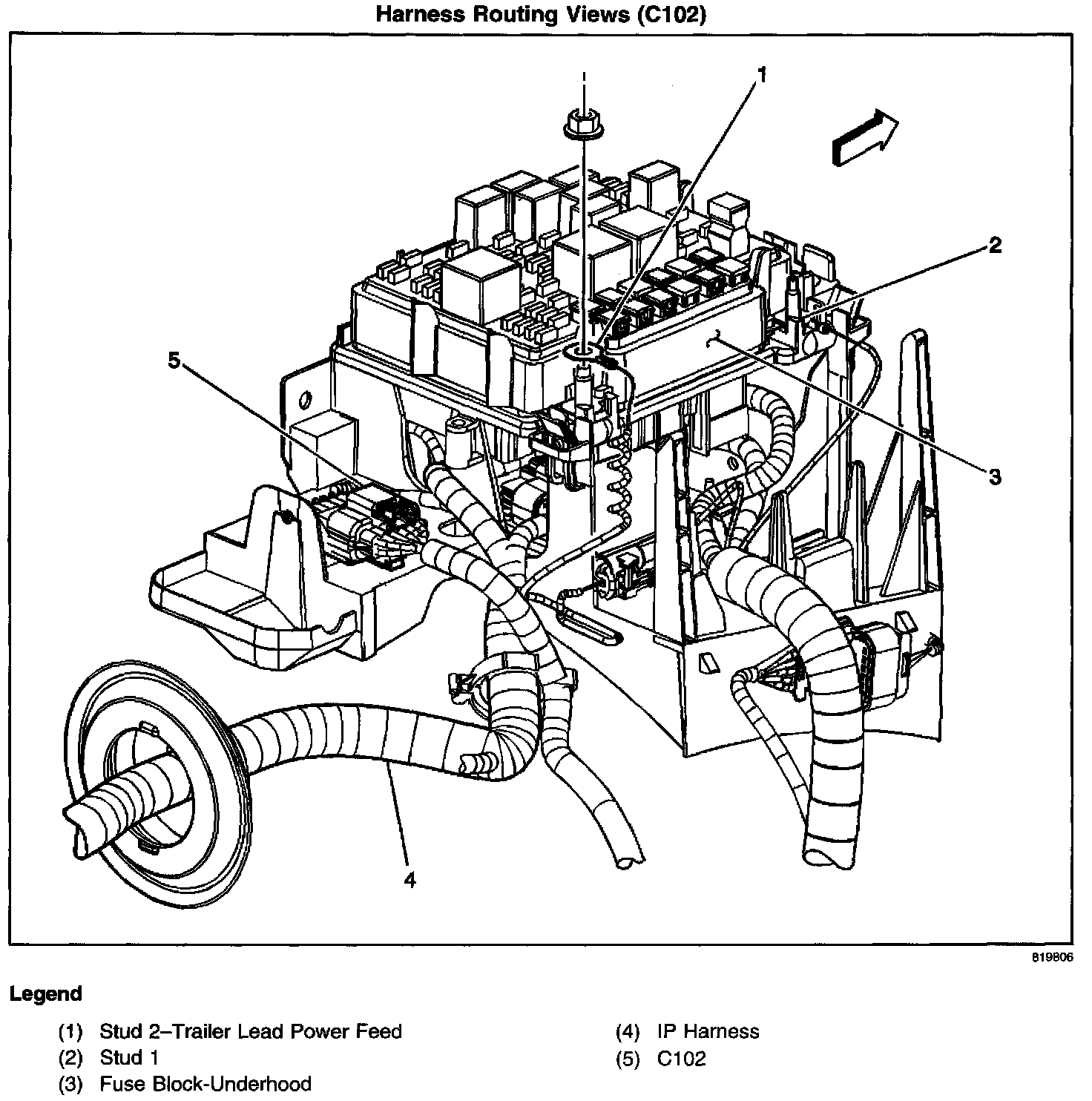

Harness Routing Views (C102):

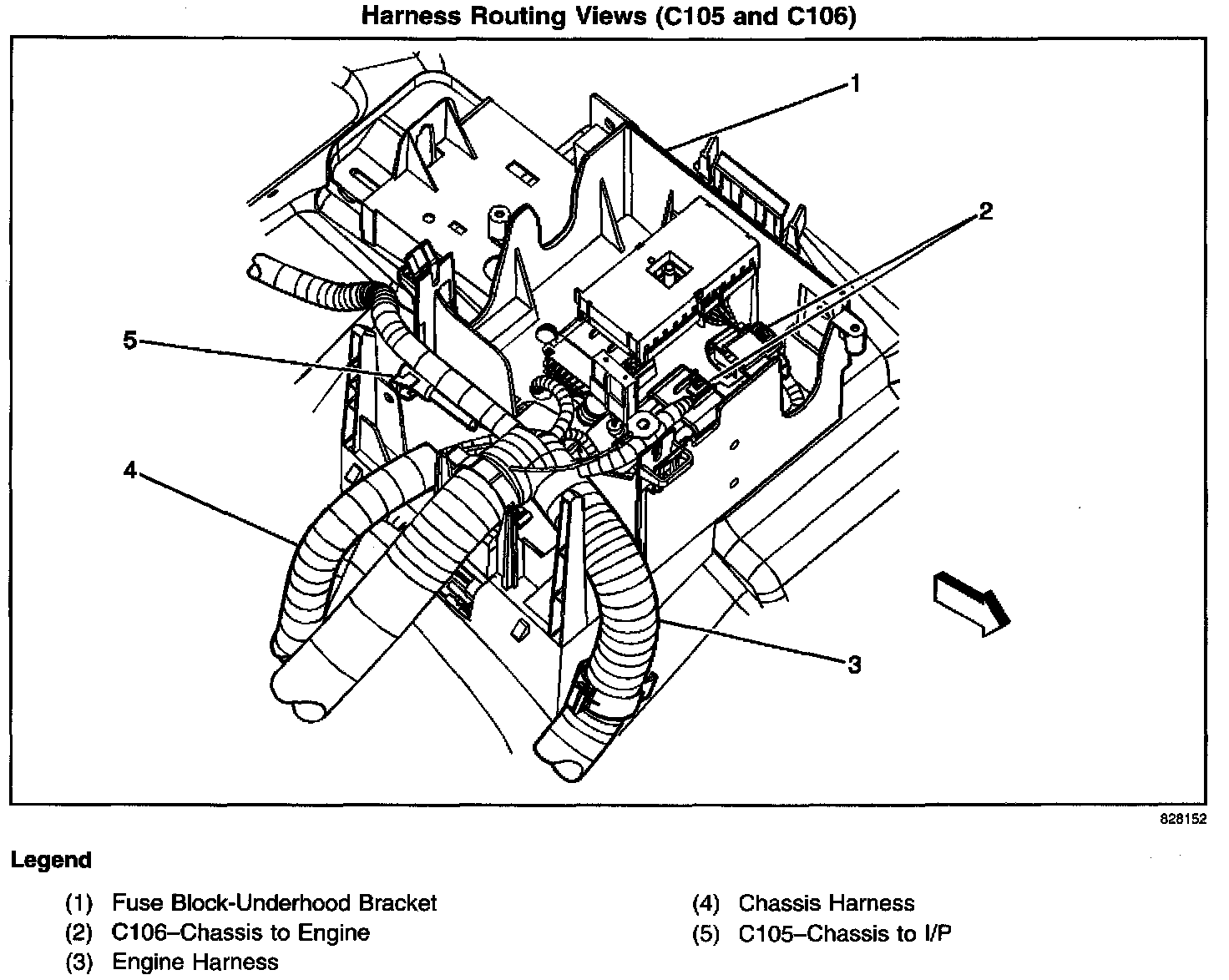

Harness Routing Views (C105 And C106):

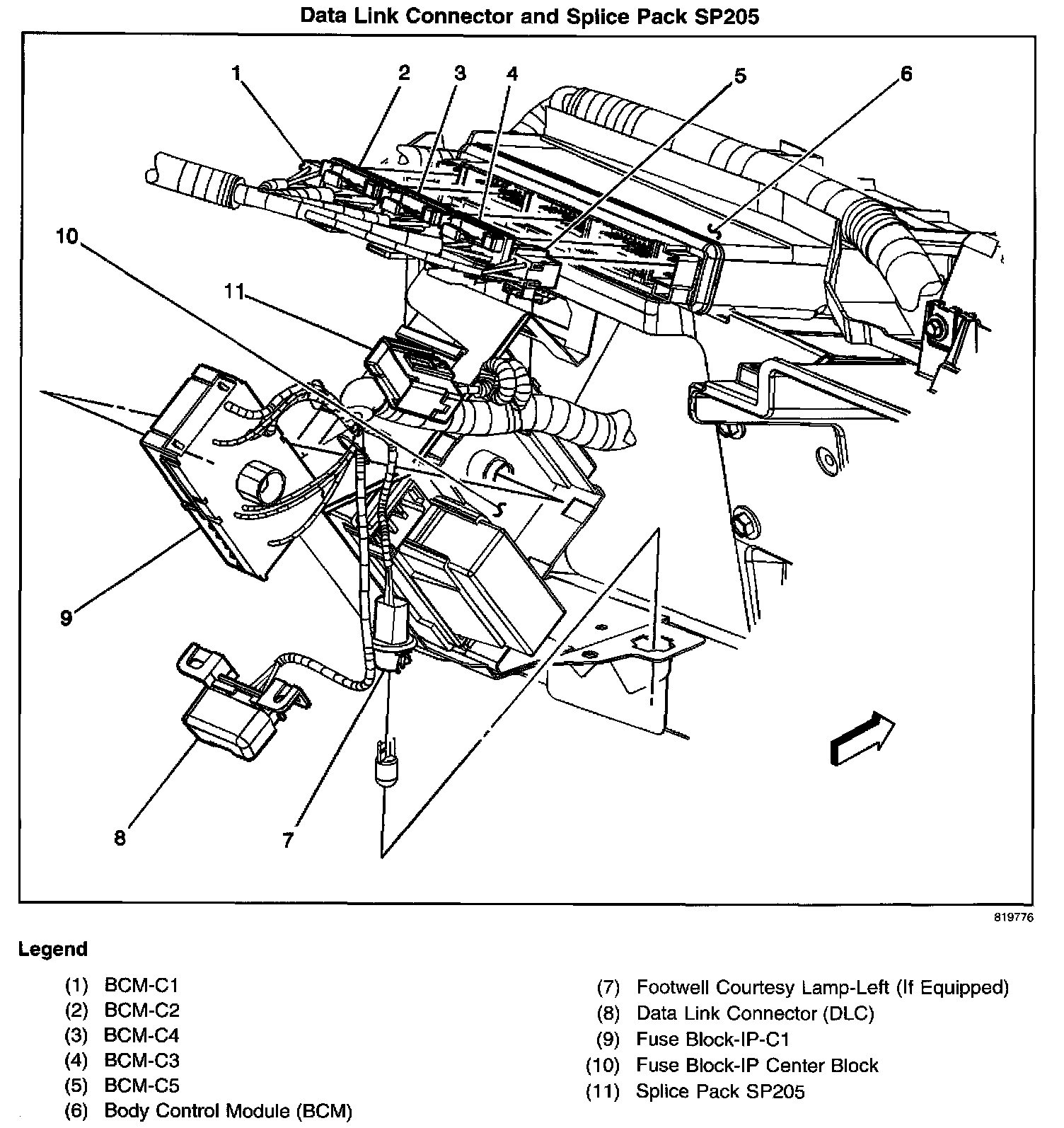

Data Link Connector And Splice Pack SP205:

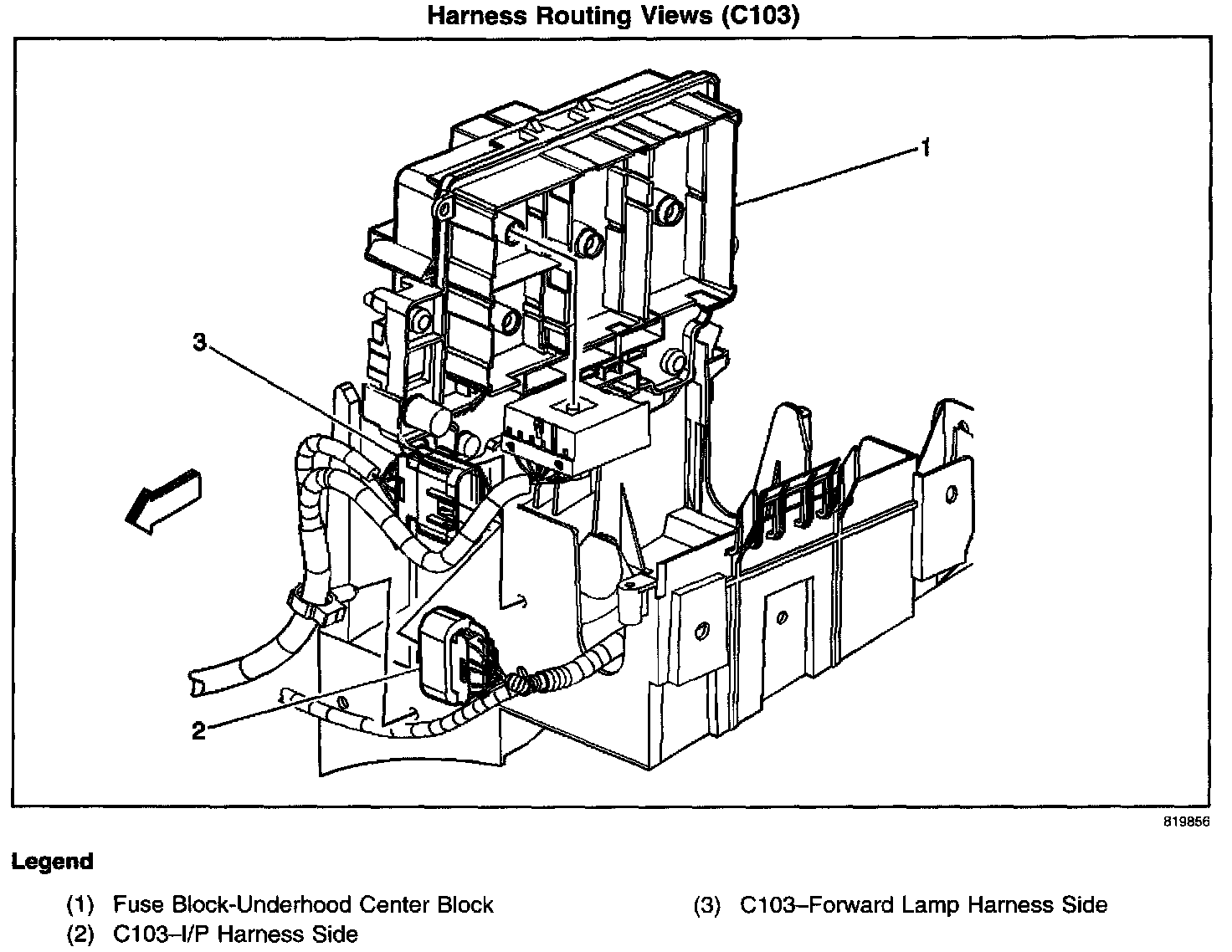

Harness Routing Views (C103):

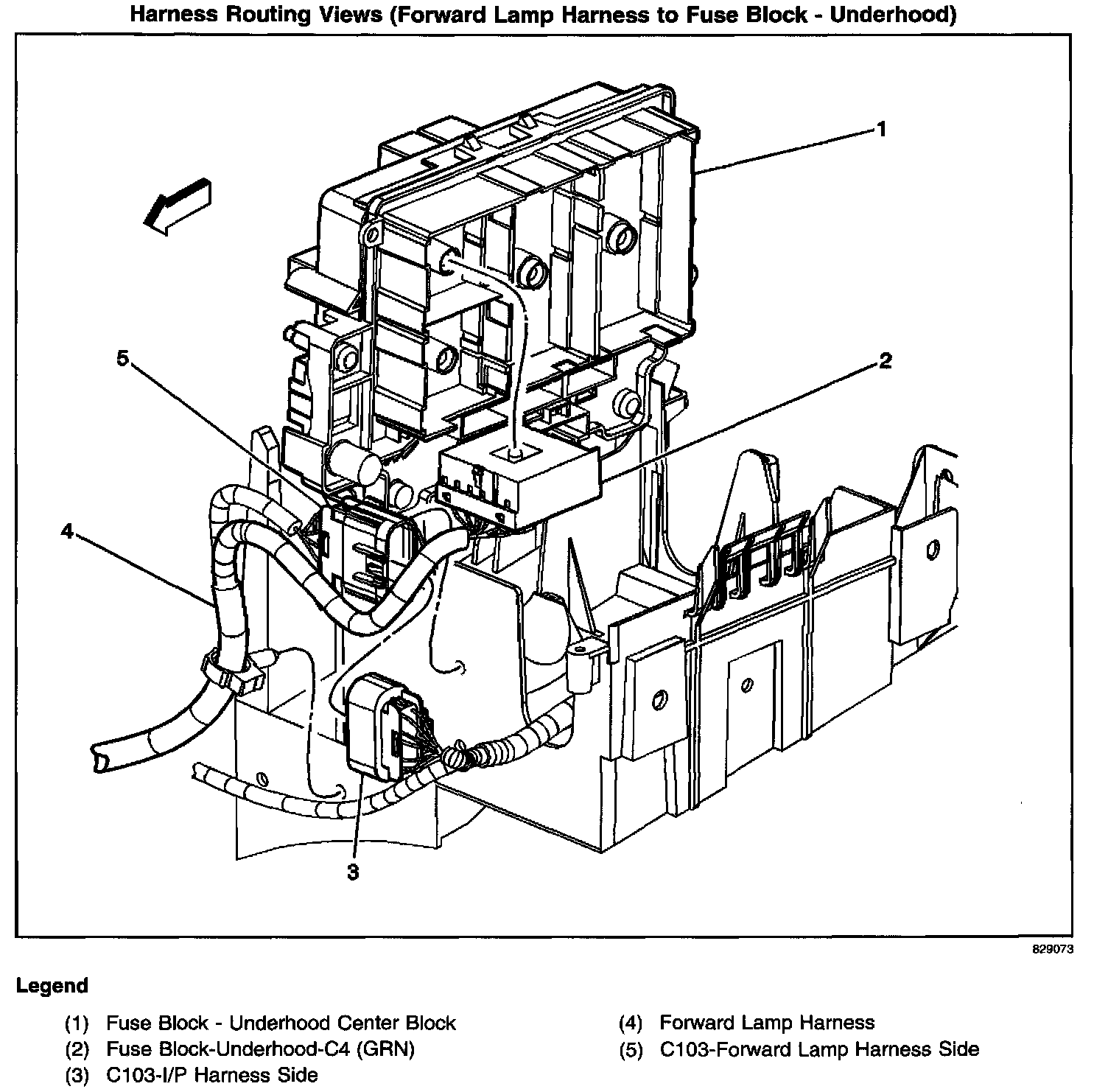

Harness Routing Views (Forward Lamp Harness To Fuse Block - Underhood):




Fuse Block-I/P:




Data Link Connector And Splice Pack SP205:
