Body Control Module Replacement

BODY CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the battery cable.

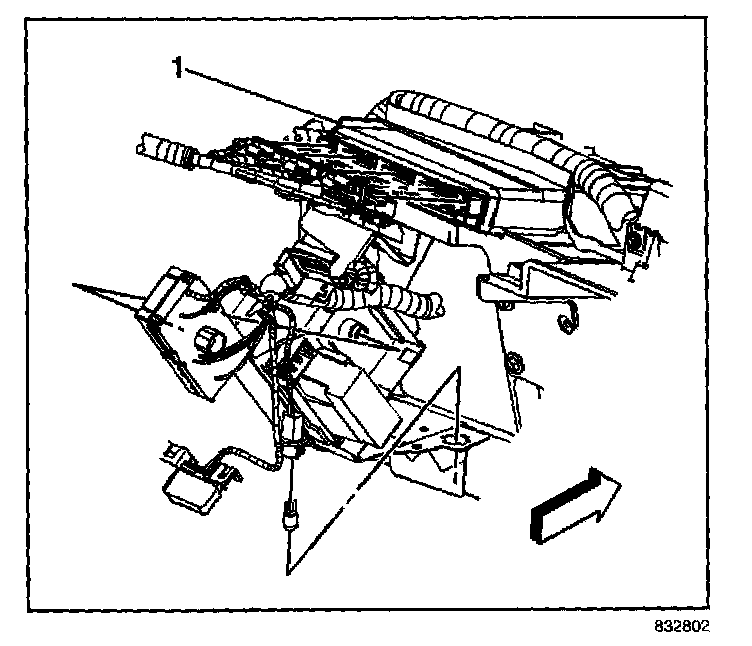

2. Remove the I/P carrier.

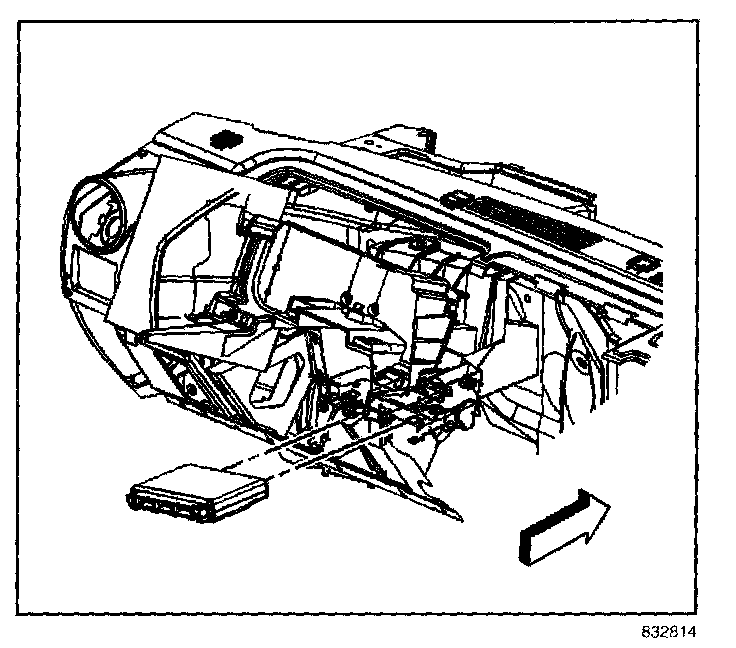

3. Remove the body control module (1) from the body control module bracket.

INSTALLATION PROCEDURE




1. Install the body control module (1) into the bracket.
2. Install the I/P carrier.
3. Connect the battery negative cables.
4. Setup the body control modules customized options. Refer to Body Control Module (BCM) Programming/RPO Configuration.
