Electronic Throttle Control Module: Service and Repair

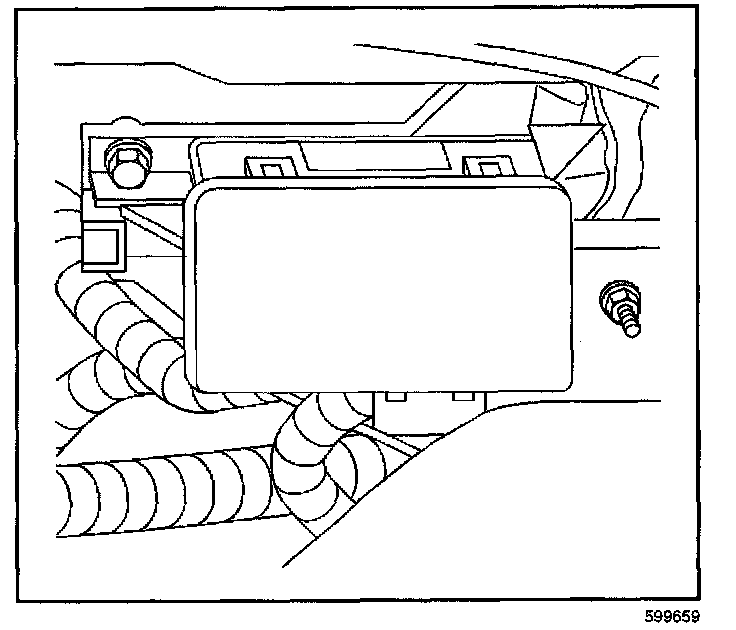

THROTTLE ACTUATOR CONTROL (TAC) MODULE REPLACEMENTREMOVAL PROCEDURE
1. Remove the left hand corner brace from the cowl.
2. Remove the TAC module mounting nuts.
3. Disconnect the TAC module electrical connectors from the TAC module.

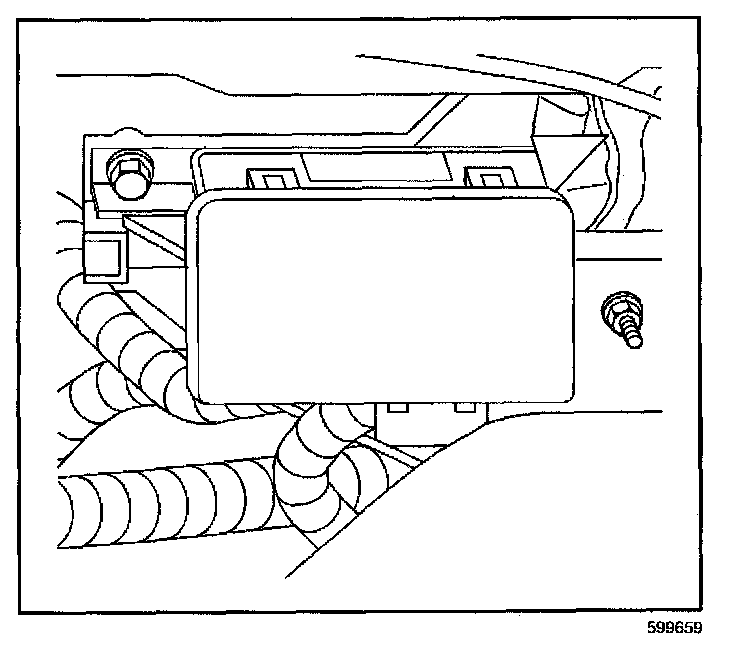

INSTALLATION PROCEDURE
1. Connect the TAC module electrical connectors to the TAC module.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the TAC module onto the studs and install the mounting nuts.
Tighten
Tighten the TAC mounting nuts to 9 N.m (80 lb in).
3. Install the left hand corner brace.
Tighten
Tighten the corner brace bolts to 25 N.m (18 lb ft).
