Installation Procedure

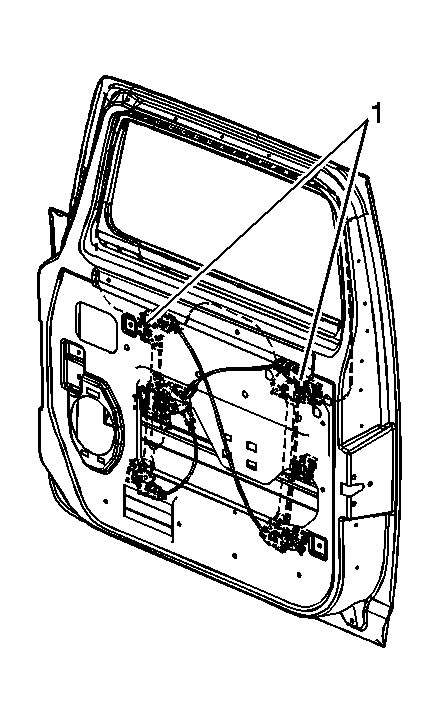

Fig 1: Front Door Window

Courtesy of GENERAL MOTORS CORP.

Slide the window through the opening of the window frame into position into the window clamps (1).
Install the outer window belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer - Front .

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the water deflector. Refer to Water Deflector Replacement - Front Door .
Tighten: Tighten the clamps to 9 N.m (6 lb ft).
Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Operate the window to ensure proper operation.
