Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 4: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 5: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 6: Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 7: Rear Cargo Storage Bin
Courtesy of GENERAL MOTORS CORP.
Fig 8: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Left Front Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 10: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 12: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 18: Vehicle Floor
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 20: Right Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 22: Rear Of Left Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 23: Rear Of Right Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 24: Right Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 25: Rear Bumper Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 26: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 27: Instrument Panel Relay Block
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 29: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 30: HVAC Subsystem Components
Courtesy of GENERAL MOTORS CORP.
Fig 31: HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 32: Steering Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Steering Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

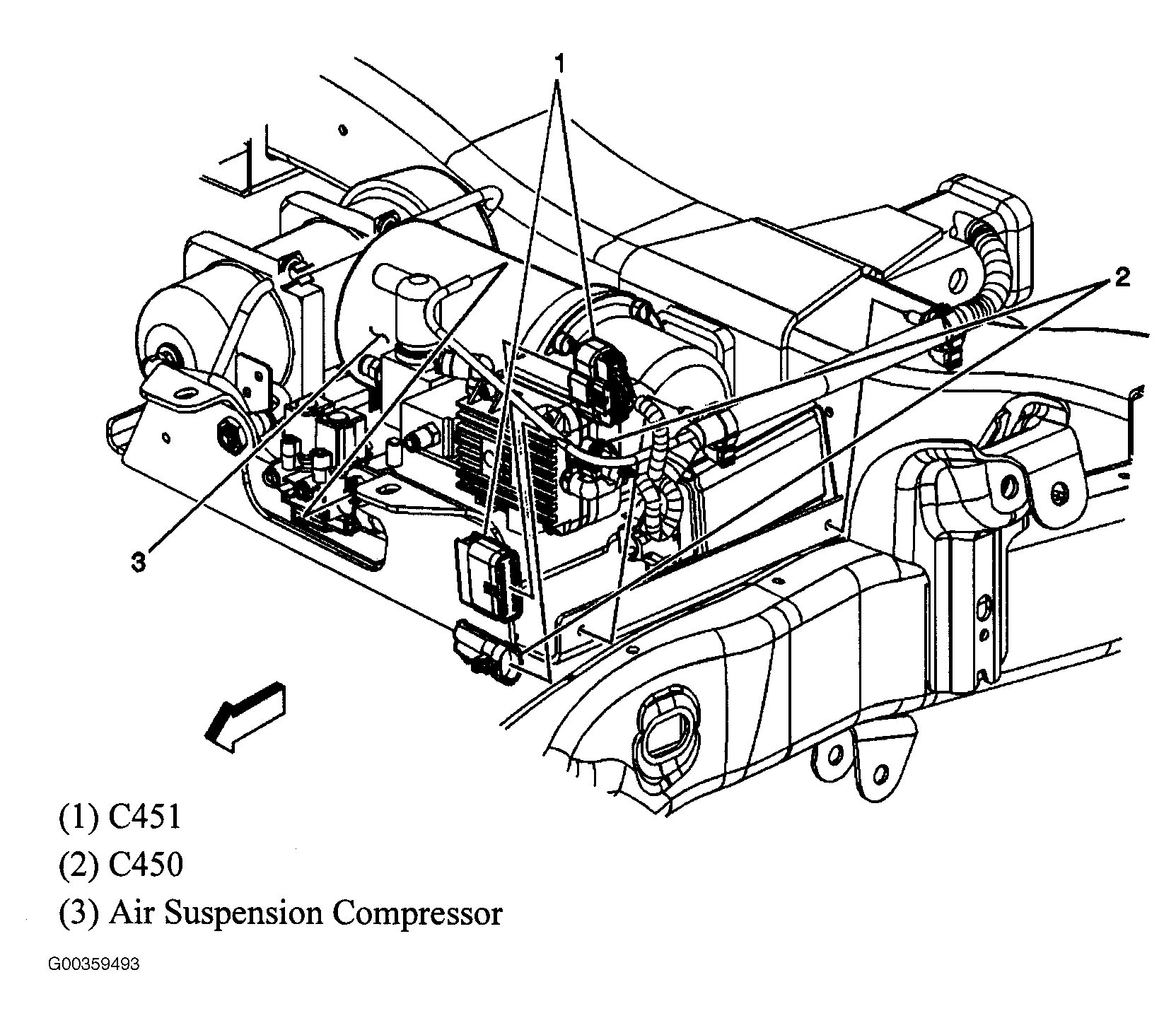

Fig 34: Air Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 35: Locking Differential
Courtesy of GENERAL MOTORS CORP.
Fig 36: Rear Axle
Courtesy of GENERAL MOTORS CORP.
Fig 37: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 38: Rear Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 39: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 40: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 41: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Side & Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 43: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 44: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 46: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 47: Engine Compartment & Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Rear, Left Rear & Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 49: Frame
Courtesy of GENERAL MOTORS CORP.
Fig 50: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 51: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 52: Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 53: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 54: Rear Of Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 55: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 56: SIR Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 57: SIR Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 58: SIR Components
Courtesy of GENERAL MOTORS CORP.

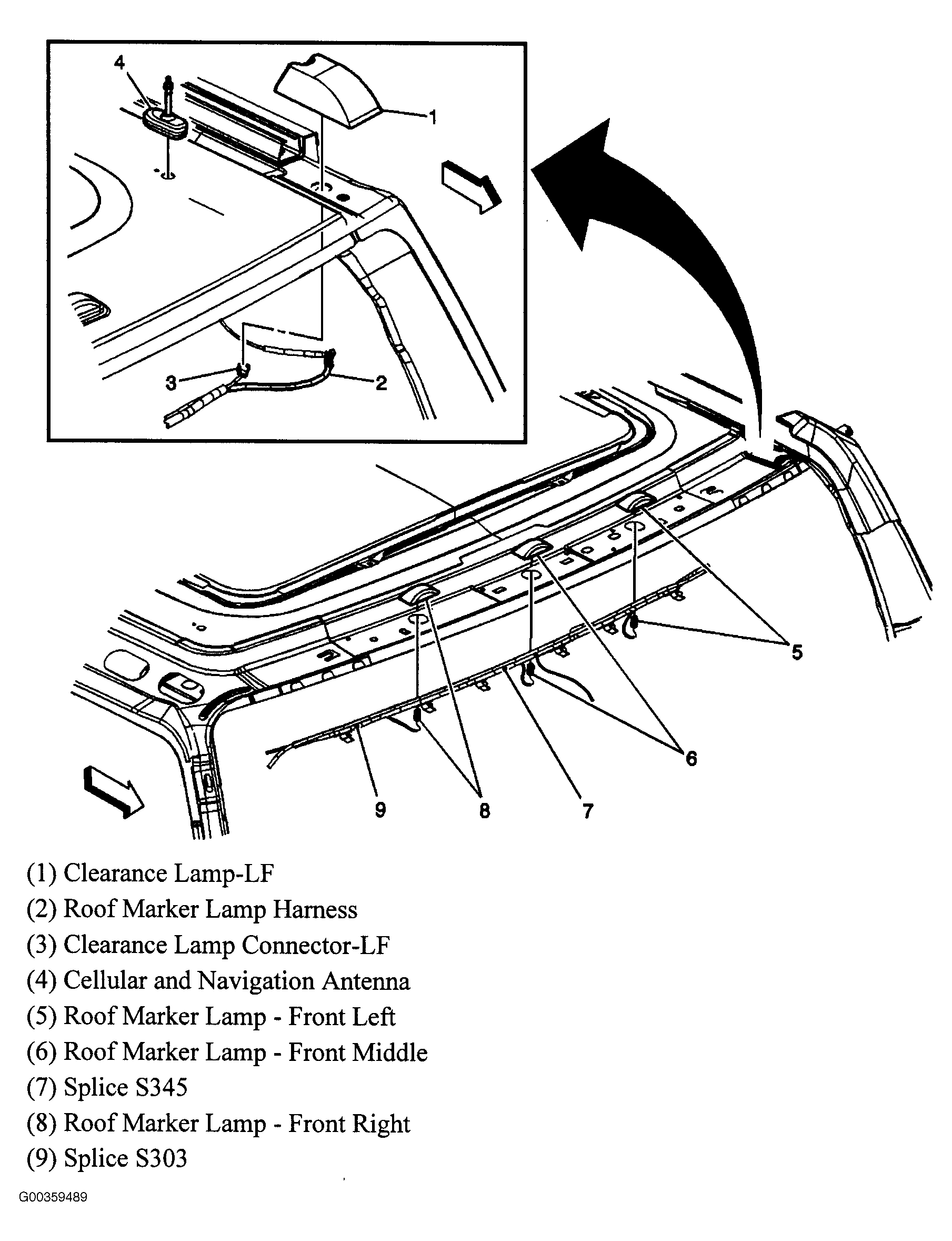

Fig 59: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 60: Top Of Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 61: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 62: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 63: Front Floor Console & Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 64: Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 65: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 66: Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 67: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 68: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 69: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 70: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 71: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 72: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 73: Upper Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 74: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 75: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 76: Left "A" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 77: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 78: Under Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 79: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 80: 2nd Row Seats
Courtesy of GENERAL MOTORS CORP.
Fig 81: Wiper/Washer System Components
Courtesy of GENERAL MOTORS CORP.
Fig 82: Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 83: Chassis (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 84: Chassis (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

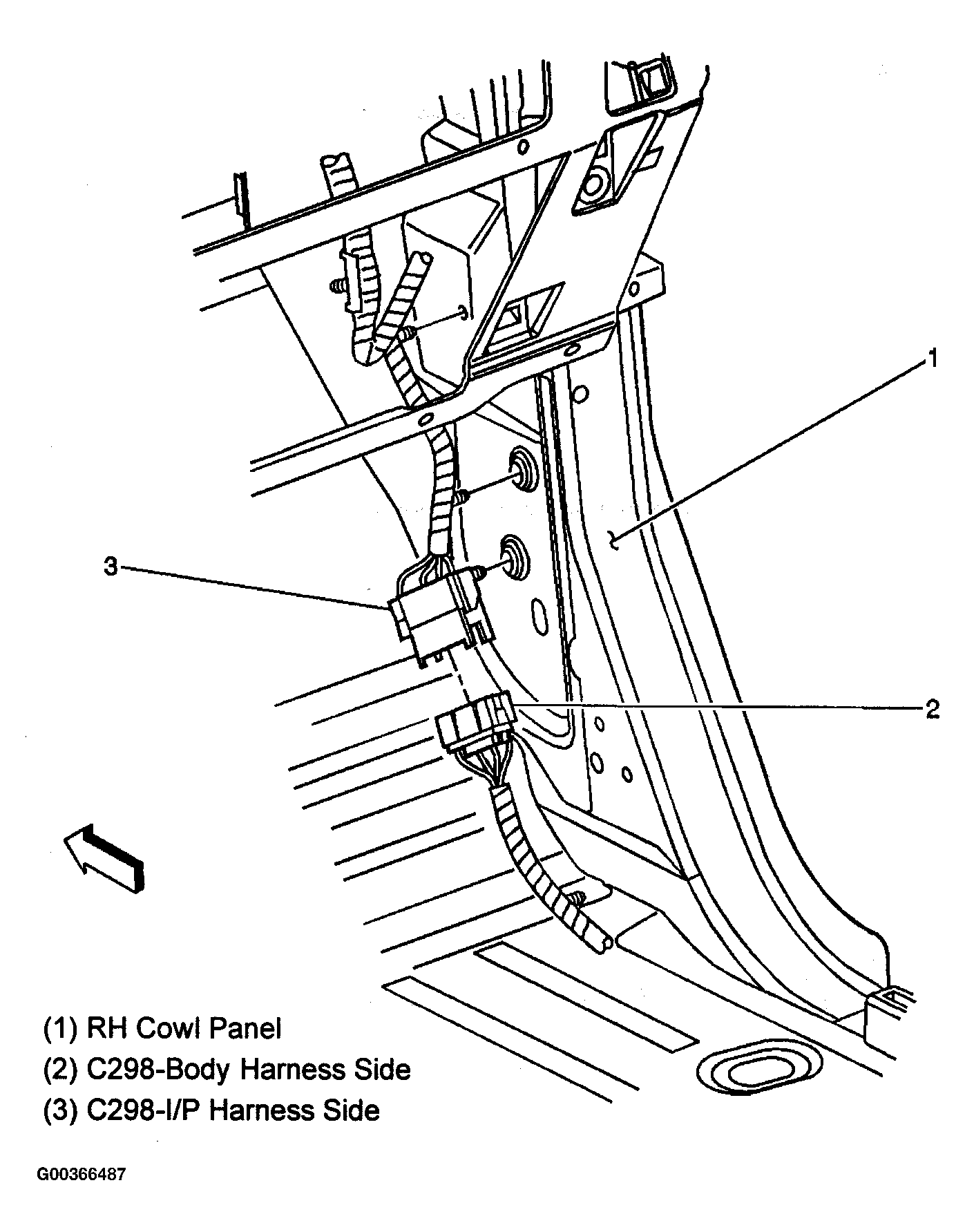

Fig 85: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 86: Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 87: Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 88: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 89: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 90: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 91: Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 92: Top Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 93: Front Roof Line
Courtesy of GENERAL MOTORS CORP.
Fig 94: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 95: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 96: Rear Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 97: Ground Location (G300)
Courtesy of GENERAL MOTORS CORP.
Fig 98: Lower Underside Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 99: Antenna Locations
Courtesy of GENERAL MOTORS CORP.
Fig 100: Second Row Heated Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 101: Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 102: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 103: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 104: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 105: Engine Electrical Components
Courtesy of GENERAL MOTORS CORP.
