Engine Controls Component Views

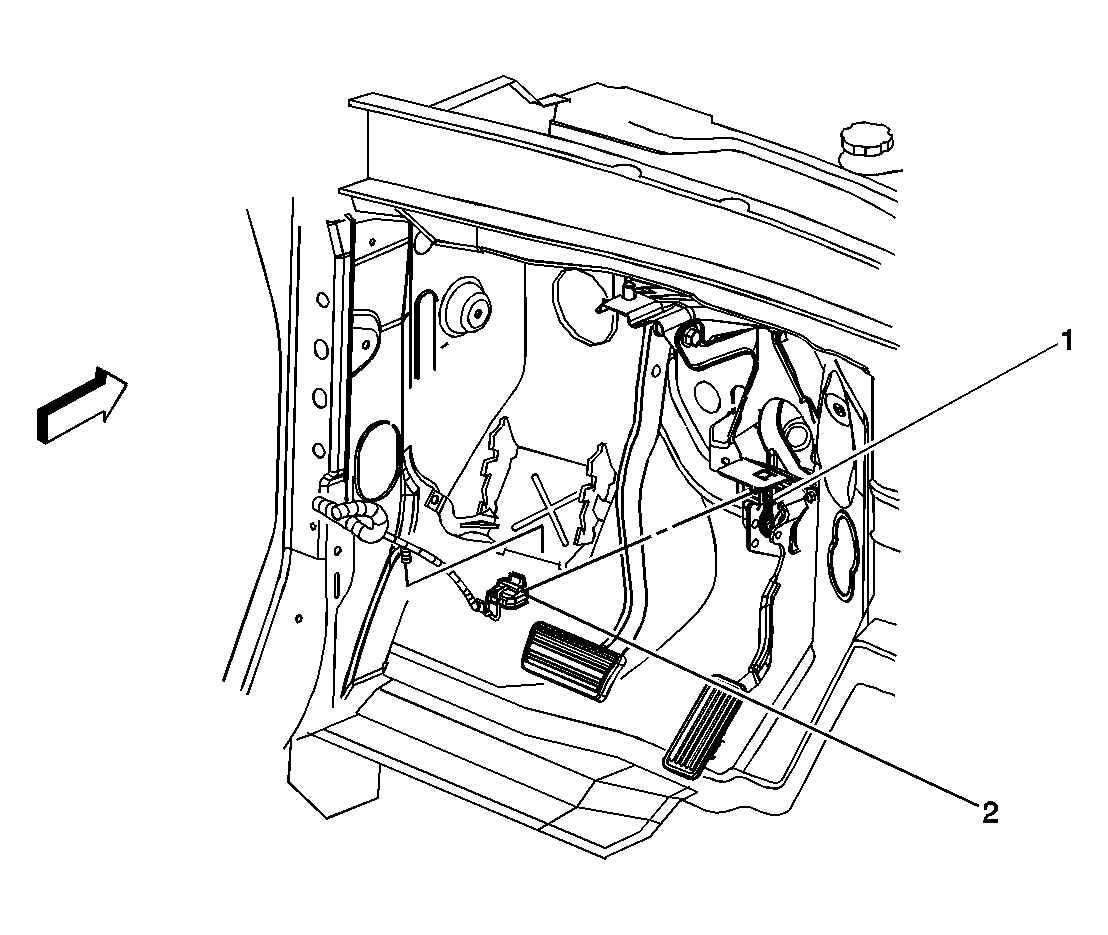

Fig 1: Lower Left Of I/P Component Views
GM819764Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 APP Sensor
2 APP Sensor Connector

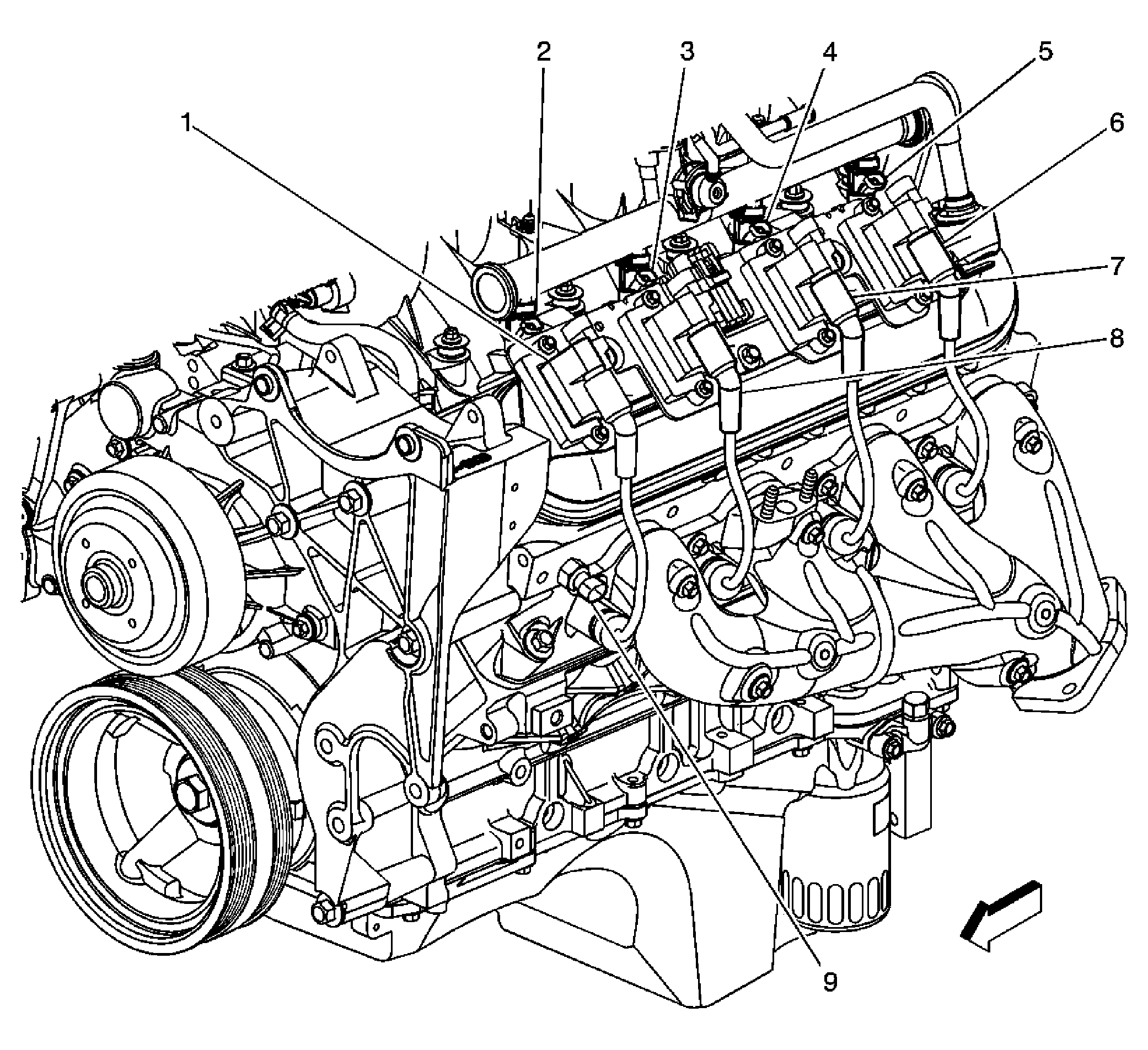

Fig 2: Left Side Of Engine Component Views
GM1454817Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 1
2 Fuel Injector 1
3 Fuel Injector 3
4 Fuel Injector 5
5 Fuel Injector 7
6 Ignition Coil 7
7 Ignition Coil 5
8 Ignition Coil 3
9 Engine Coolant Temperature (ECT) Sensor

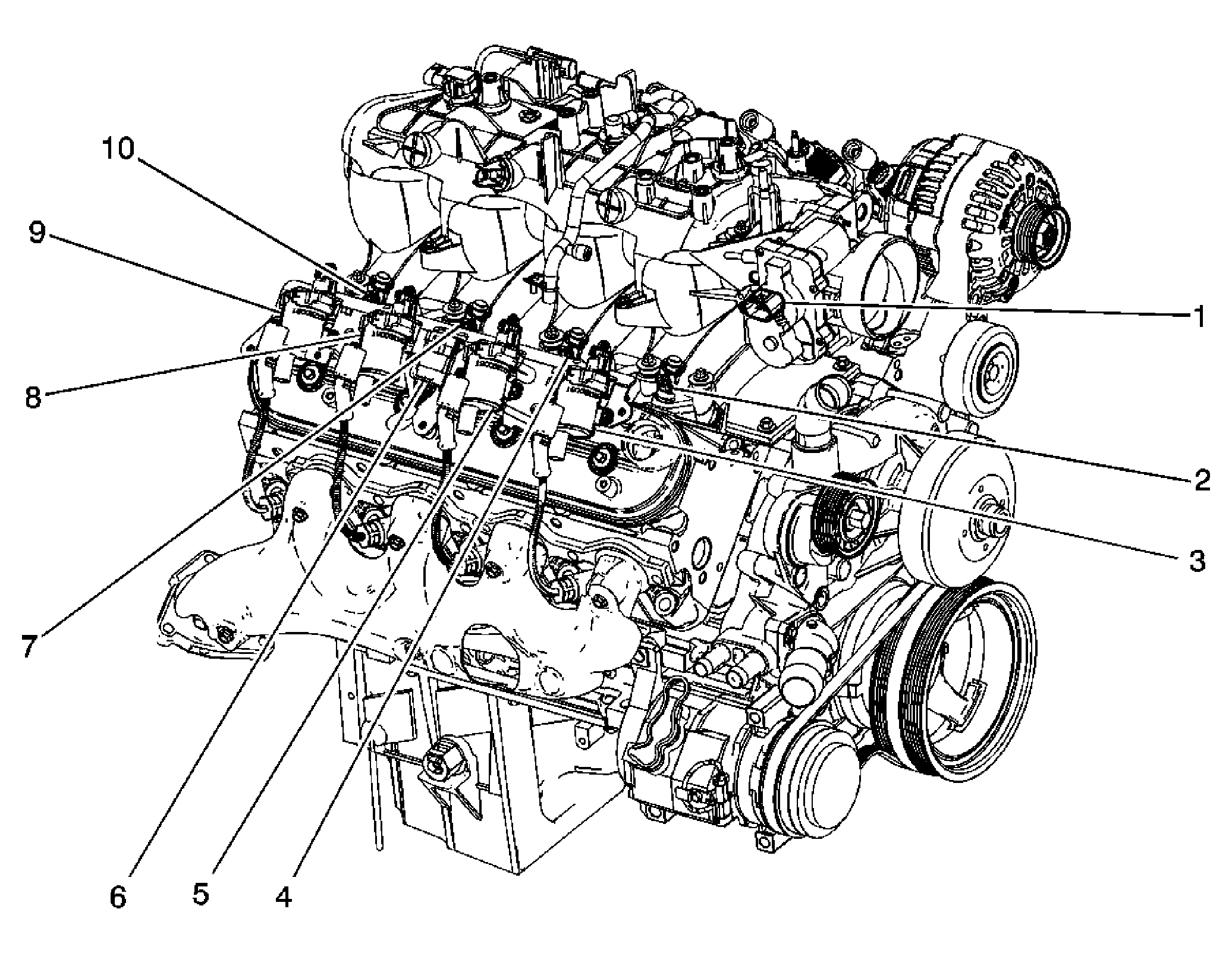

Fig 3: Right Side Of Engine Component Views
GM1203084Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Body Assembly
2 Fuel Injector 2
3 Ignition Coil 2
4 Fuel Injector 4
5 Ignition Coil 4
6 C158 - Ignition Coil Inline
7 Fuel Injector 6
8 Ignition Coil 6
9 Ignition Coil 8
10 Fuel Injector 8
Fig 4: Crankshaft Position (CKP) Sensor Location
GM222858Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 CKP Mounting Bolt
2 CKP Mounting Location
3 Crankshaft Position (CKP) Sensor

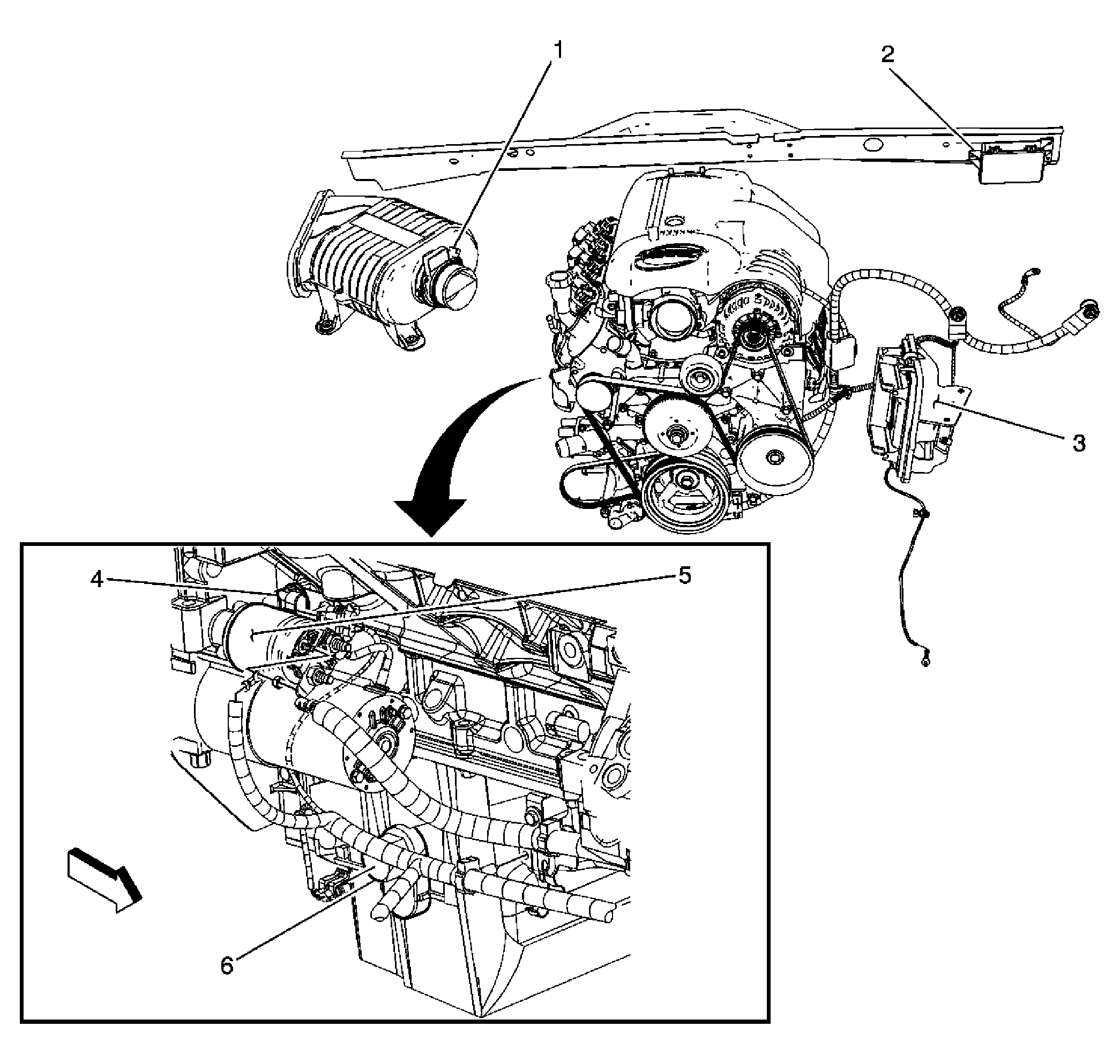

Fig 5: Engine Controls Component Views (1 Of 3)
GM1233798Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
2 Throttle Actuator Control (TAC) Module
3 Powertrain Control Module (PCM)
4 Crankshaft Position (CKP) Sensor
5 Starter Solenoid
6 Engine Oil Level Switch

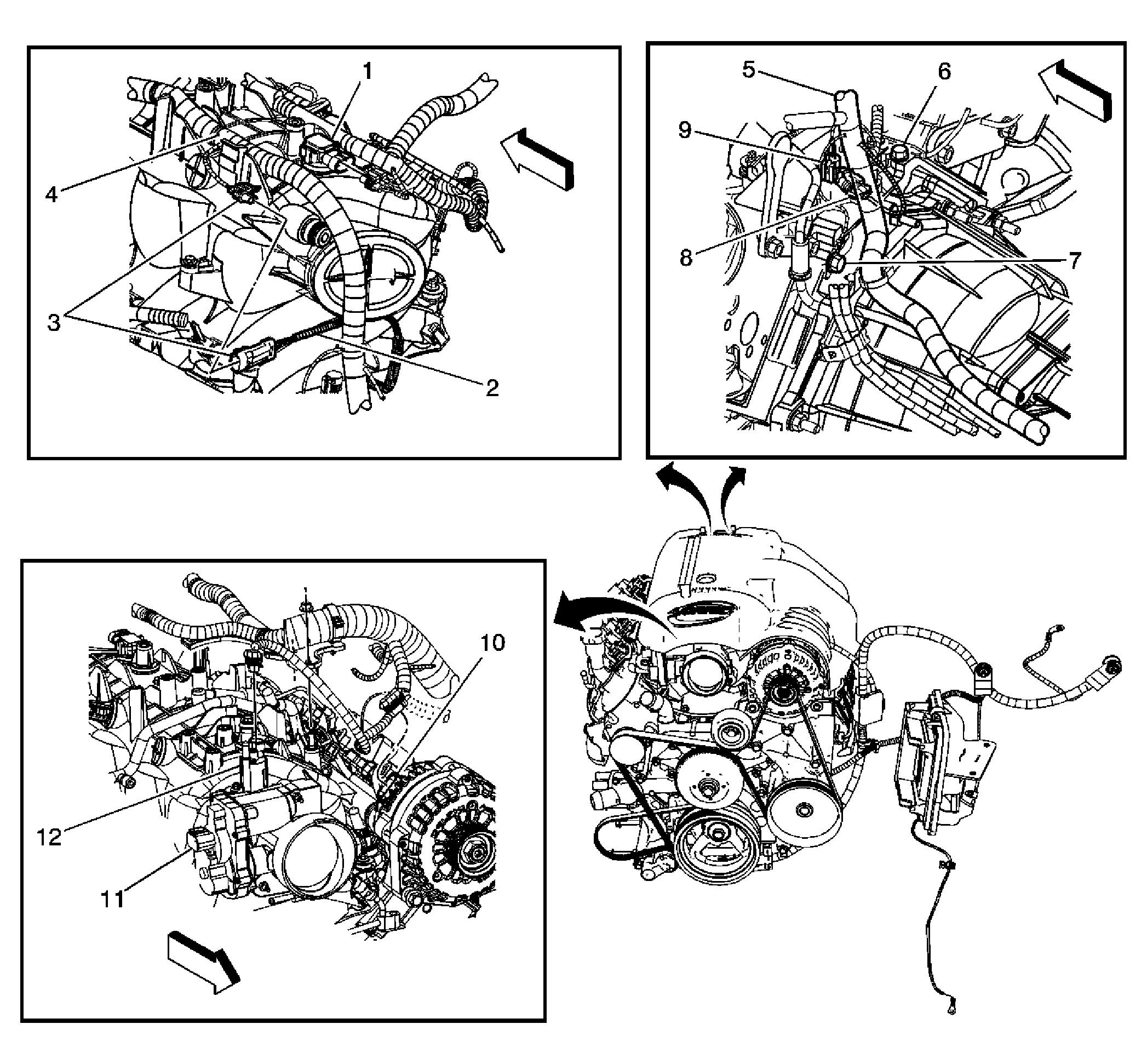

Fig 6: Engine Controls Component Views (2 Of 3)
GM1233881Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 Knock Sensor Pigtail
3 C115
4 Engine Harness
5 Engine Harness
6 G103
7 G104
8 Camshaft Position (CMP) Sensor Connector
9 Engine Oil Pressure (EOP) Sensor Connector
10 Generator
11 Throttle Body Connector
12 Evaporative Emission (EVAP) Canister Purge Solenoid

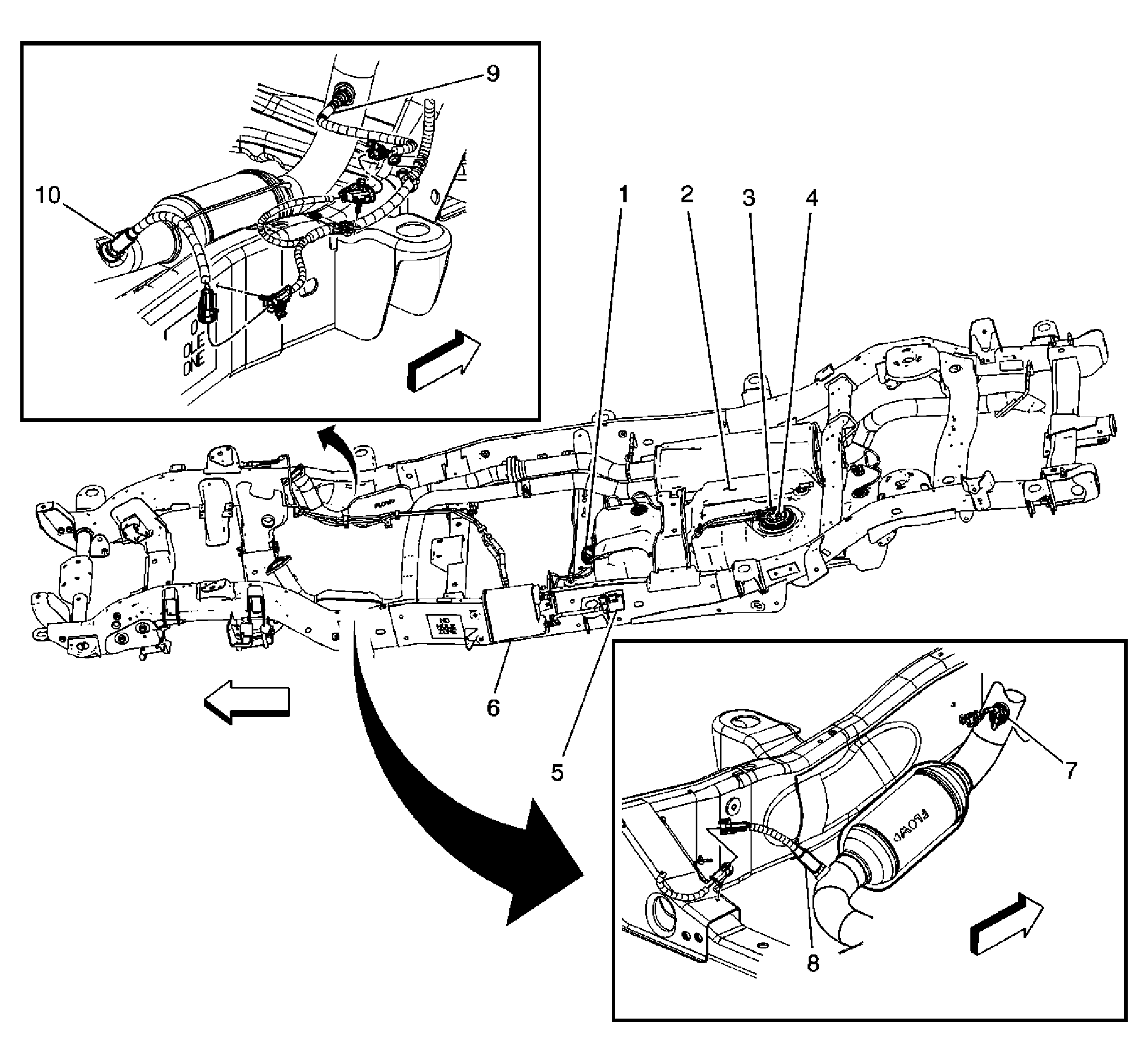

Fig 7: Engine Controls Component Views (3 Of 3)
GM1234260Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Filter
2 Fuel Tank
3 Fuel Pump and Sender Assembly
4 Fuel Tank Pressure (FTP) Sensor
5 Evaporative Emission Canister Vent (EVAP) Solenoid
6 EVAP Canister
7 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
8 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
9 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
10 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

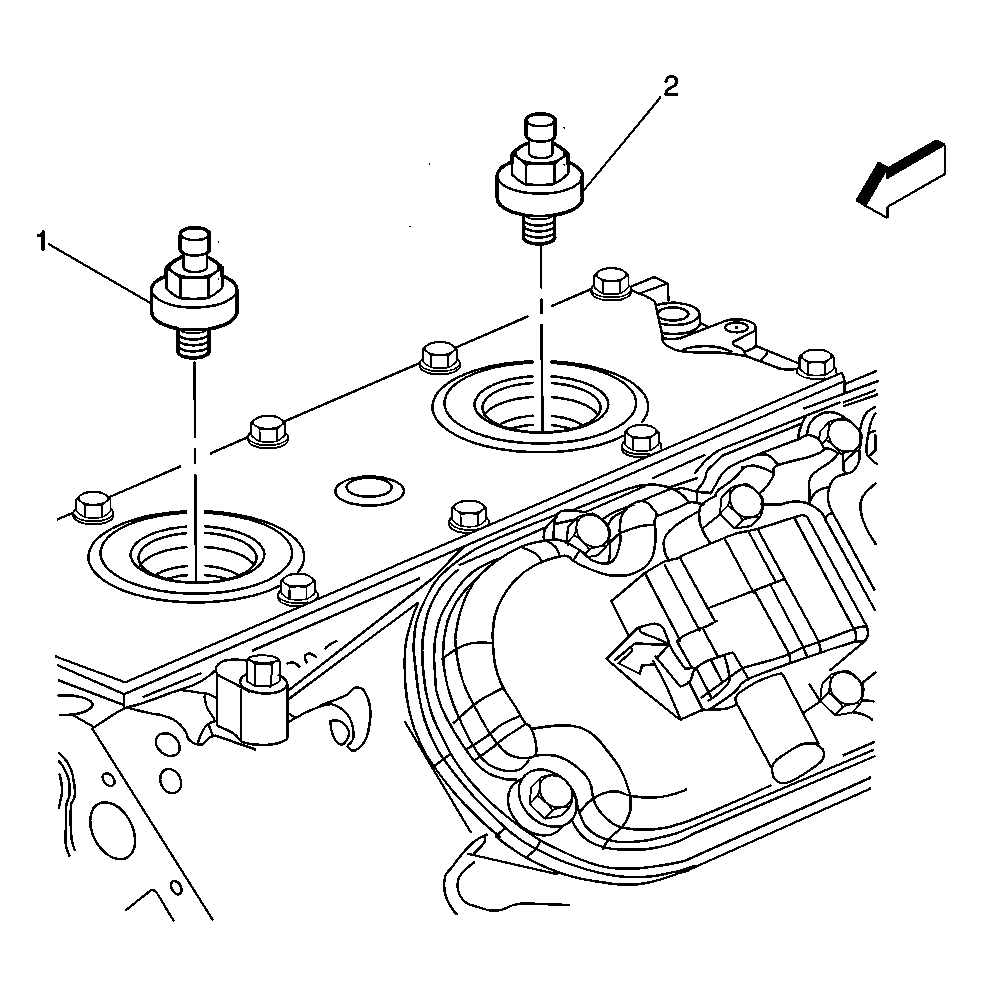

Fig 8: View Of Knock Sensors
GM198593Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Knock Sensor (KS) 1
2 Knock Sensor (KS) 2
