Fuel Sender Assembly

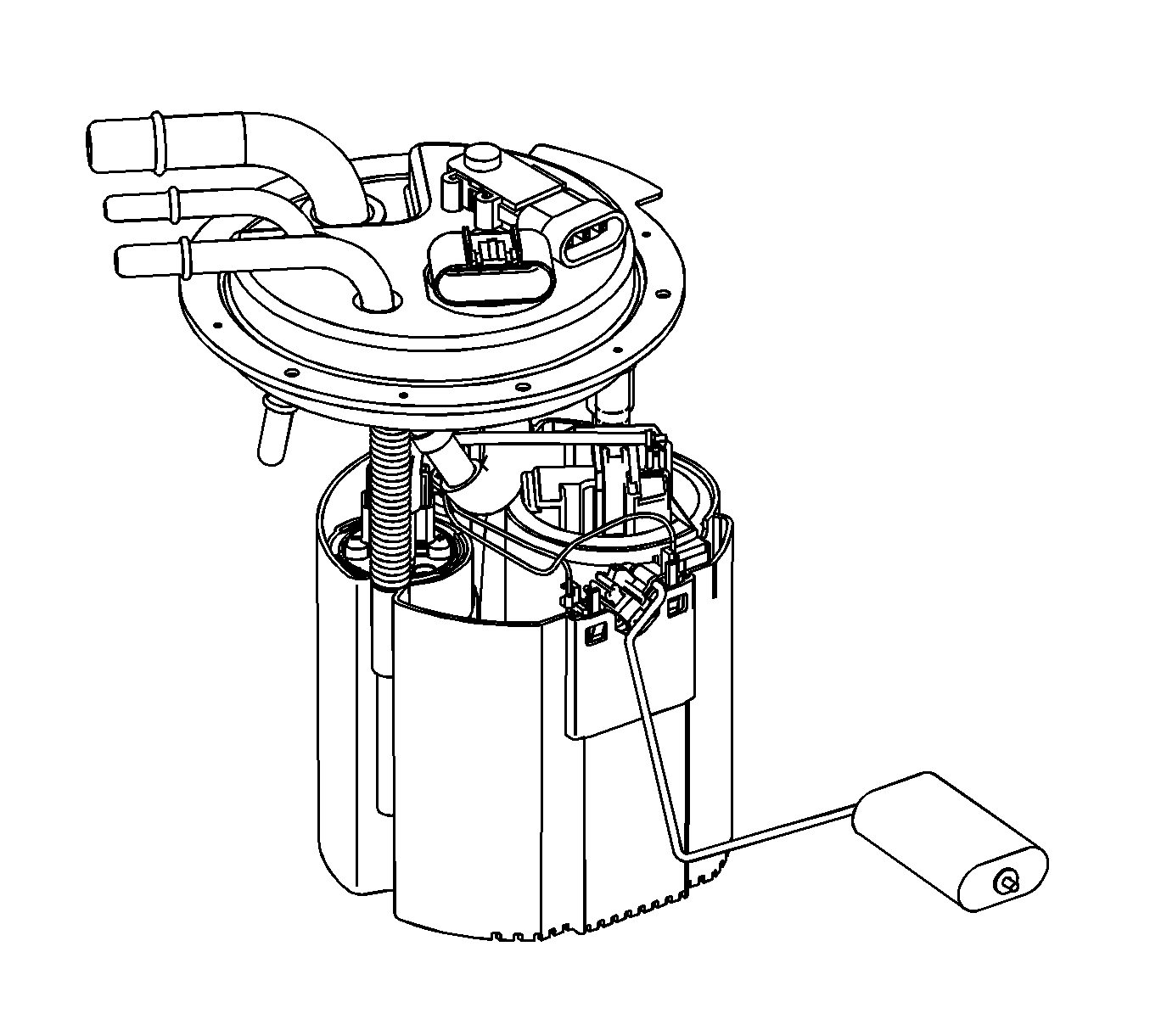

Fig 1: Identifying Fuel Sender Assembly

Courtesy of GENERAL MOTORS CORP.

The fuel sender assembly on single tank applications consists of the following major components:

• The fuel level sensor
• The fuel tank pressure (FTP) sensor
• The fuel tank fuel pump module
• The fuel strainer
• The fuel filter
