Removal Procedure

    NOTE: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.
  1. Remove the left instrument panel (I/P) lower closeout insulator panel.
  2. Disconnect the accelerator pedal position (APP) sensor harness connector.

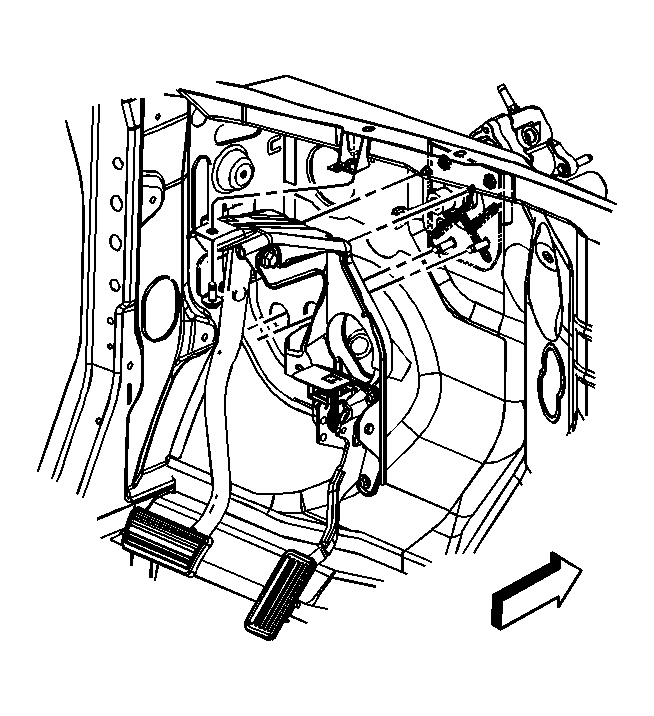

    Fig 1: APP Assembly
    GM832905Courtesy of GENERAL MOTORS CORP.

    Remove the accelerator pedal mounting bolts.

  3. Remove the APP assembly.
