Installation Procedure

    Fig 1: Identifying Fuel Sender Assembly
    GM371000Courtesy of GENERAL MOTORS CORP.
  1. Slide the fuel lever sensor (3) onto the reservoir until the retaining tabs snap into place.

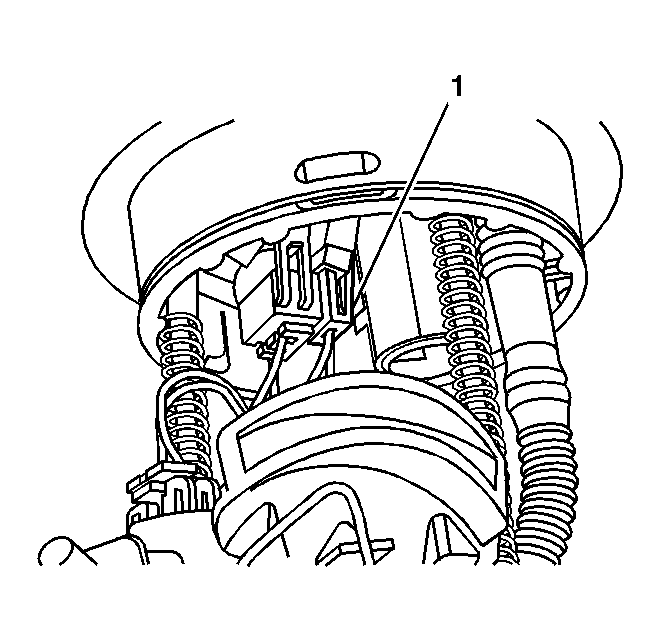

    2. Fig 2: Connecting Fuel Level Sensor Electrical Connectors To Module Connector
    GM818018Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel level sensor electrical connector (1) to the module connector.
  3. Install the fuel sender. Refer to Fuel Sender Assembly Replacement .
