Installation Procedure

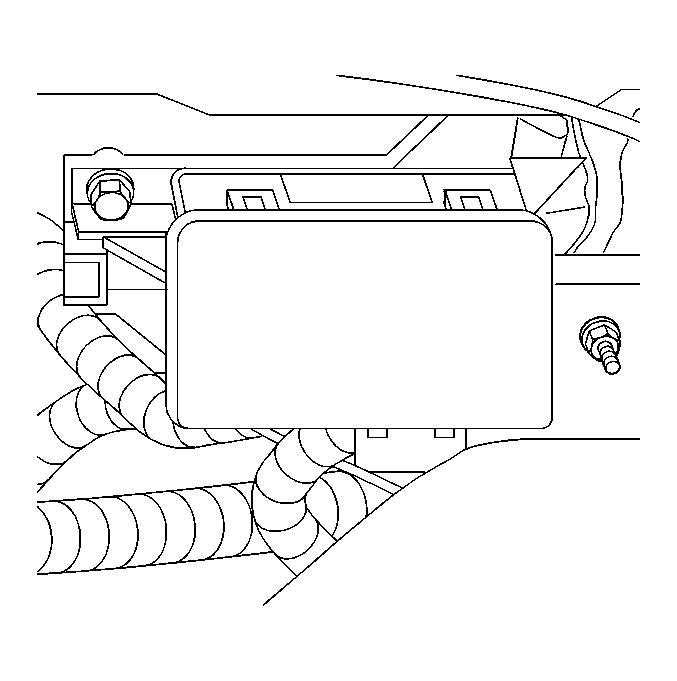

    Fig 1: TAC Module Electrical Connectors
    GM599659Courtesy of GENERAL MOTORS CORP.
  1. Connect the TAC module electrical connectors to the TAC module.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the TAC module onto the studs and install the mounting nuts.

    Tighten:  Tighten the TAC mounting nuts to 9 N.m (80 lb in).

  3. Install the left hand corner brace.

    Tighten:  Tighten the corner brace bolts to 25 N.m (18 lb ft).
