Global Positioning System Module

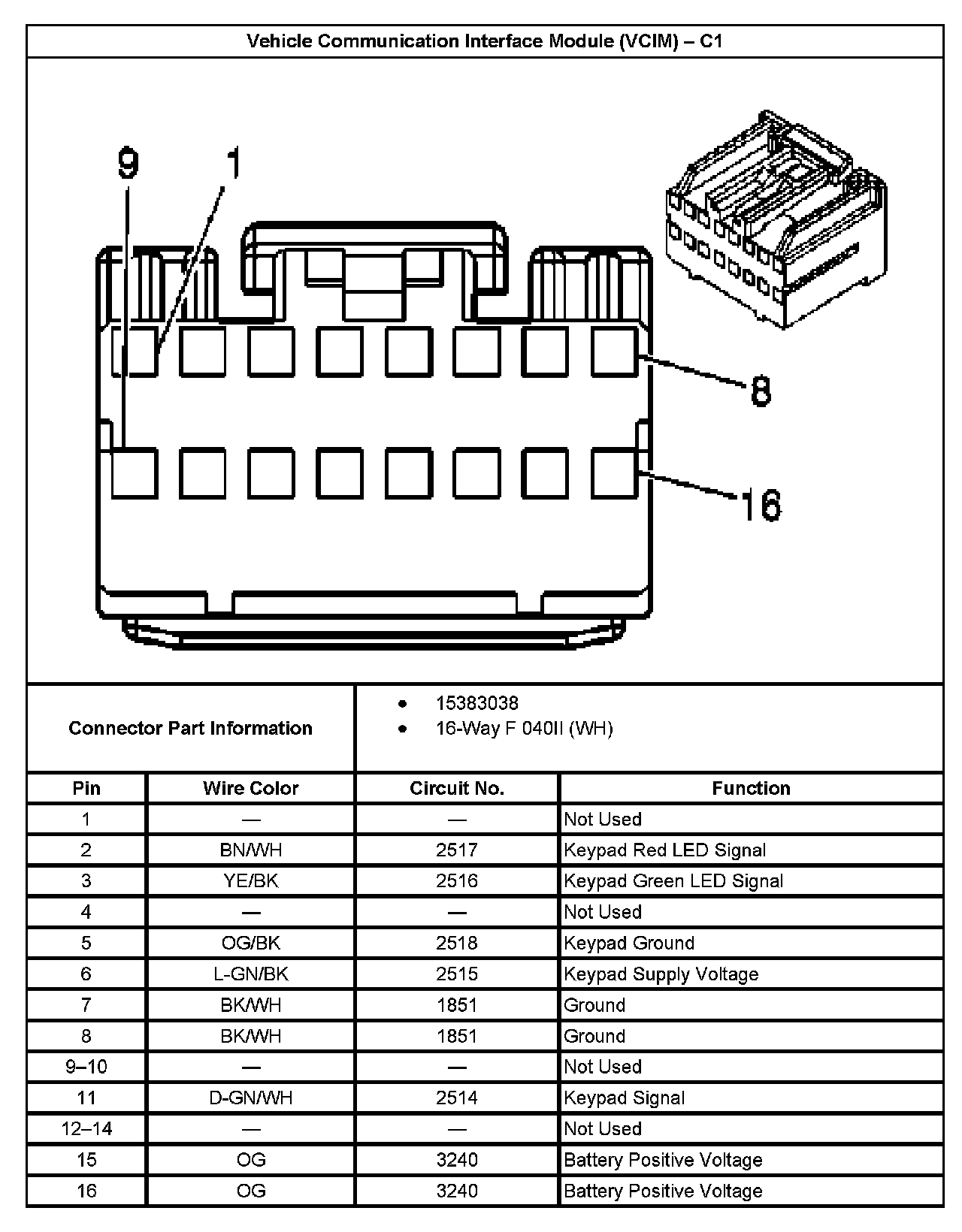

Vehicle Communication Interface Module (VCIM) - C1:

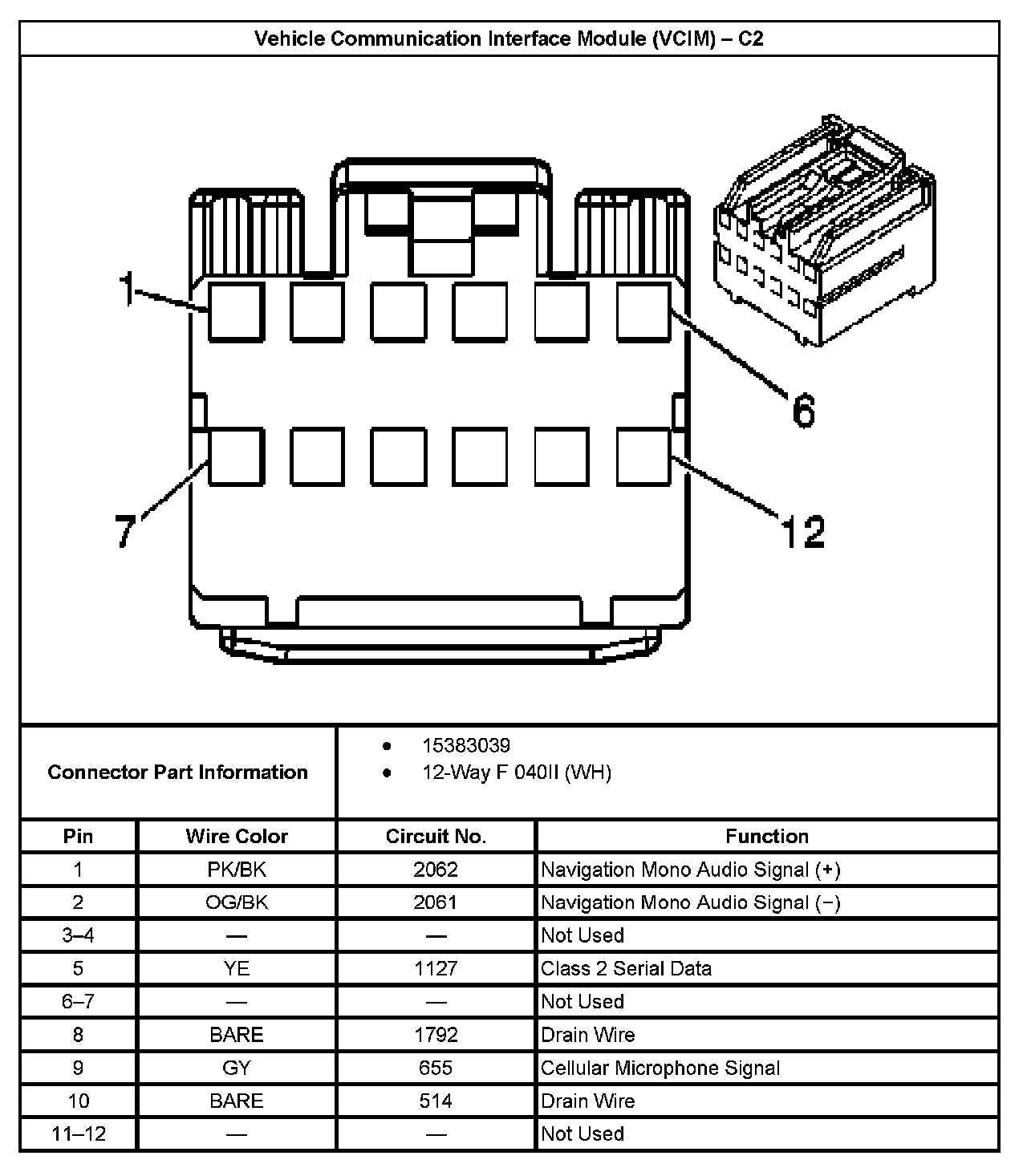

Vehicle Communication Interface Module (VCIM) - C2:
