Wheel Speed Sensor

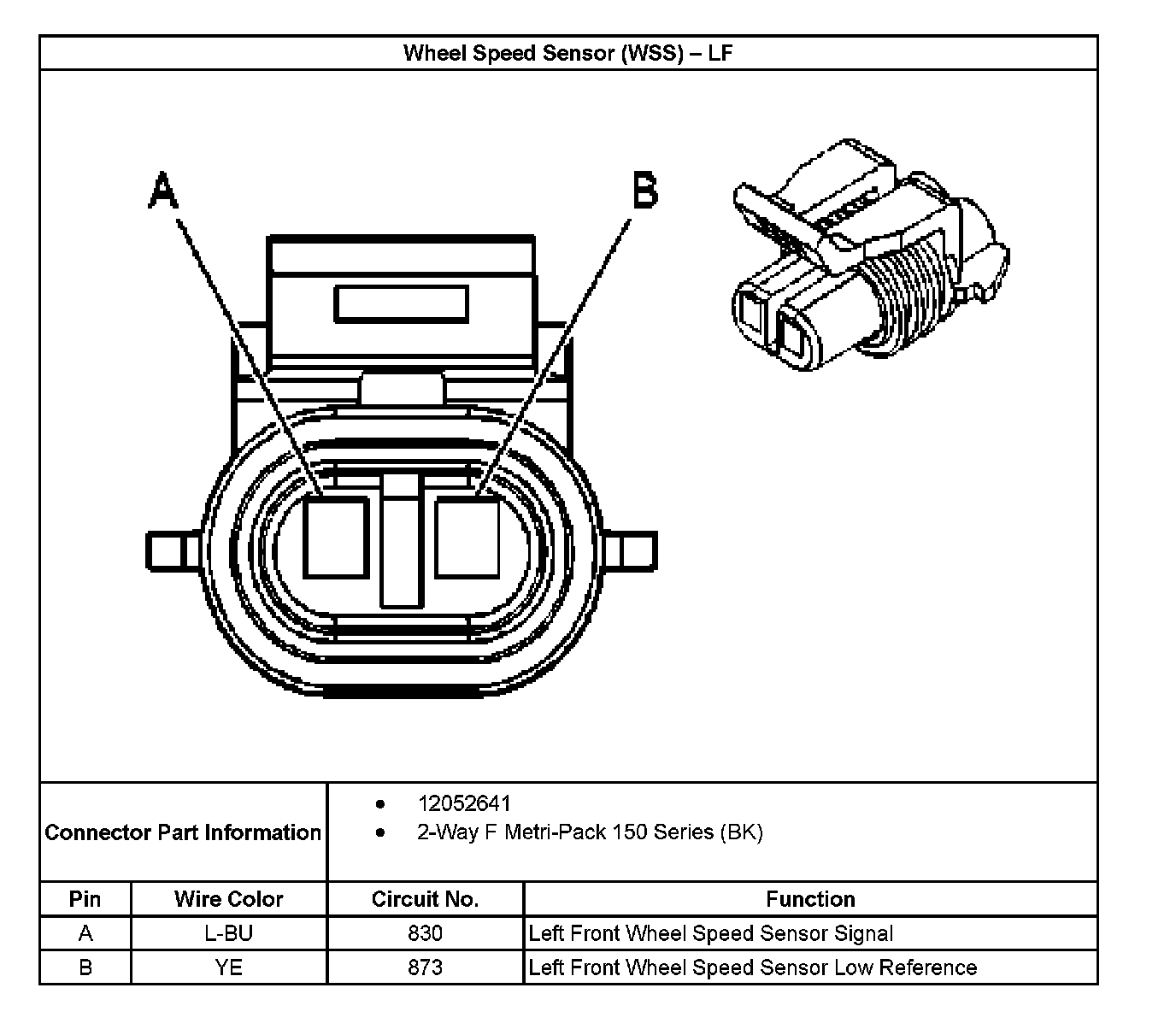

Wheel Speed Sensor - LF:

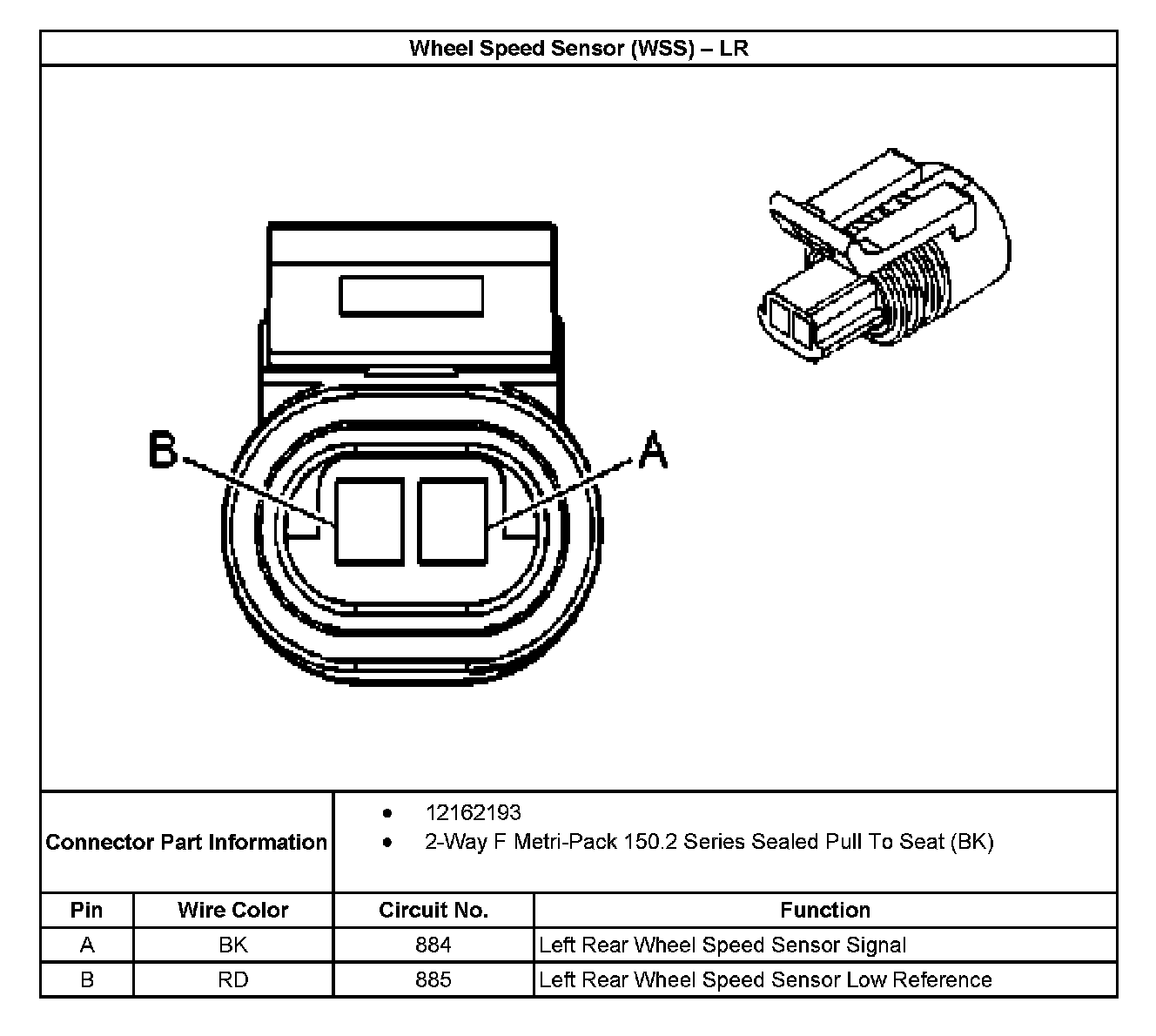

Wheel Speed Sensor - LR:

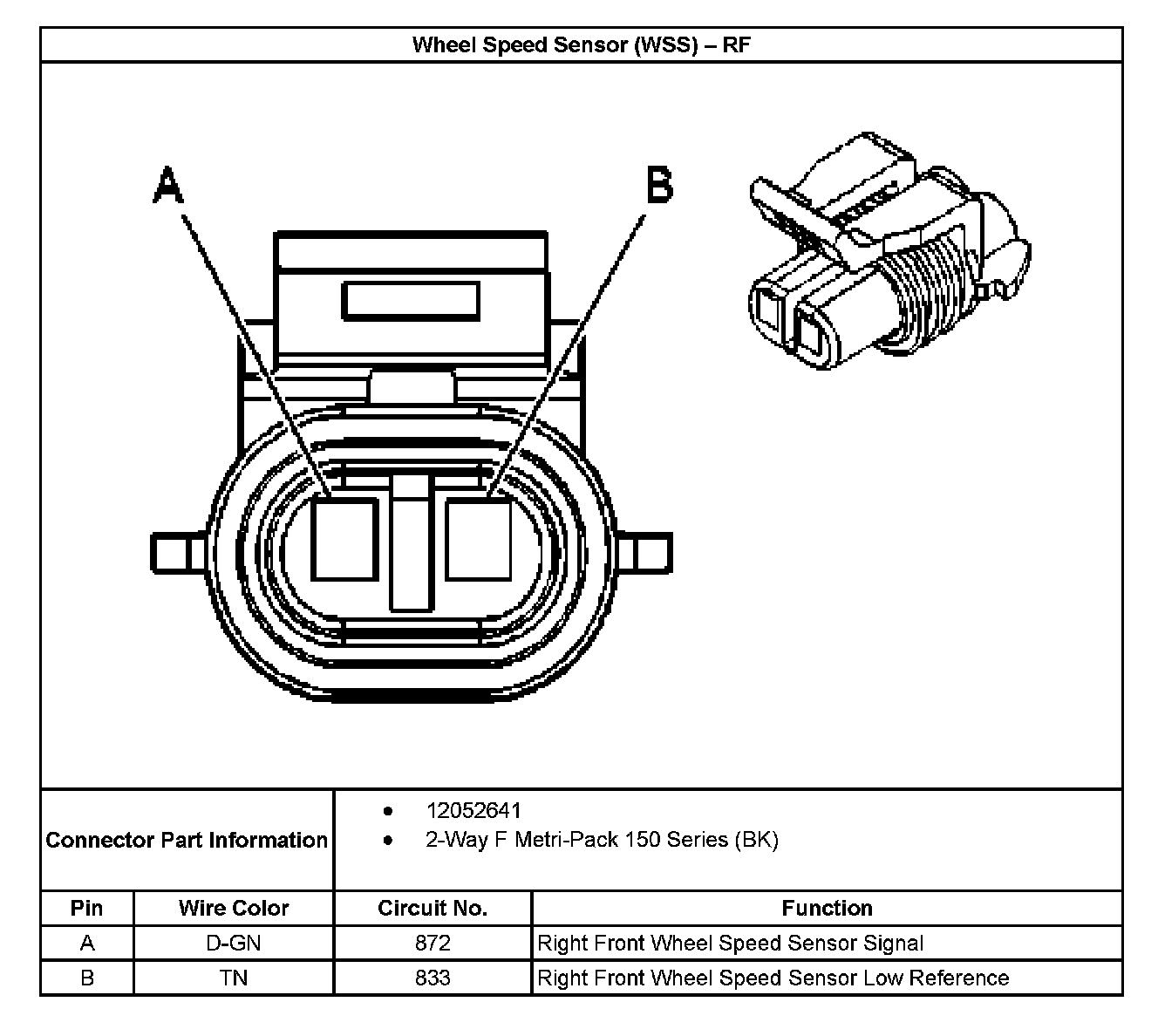

Wheel Speed Sensor - RF:

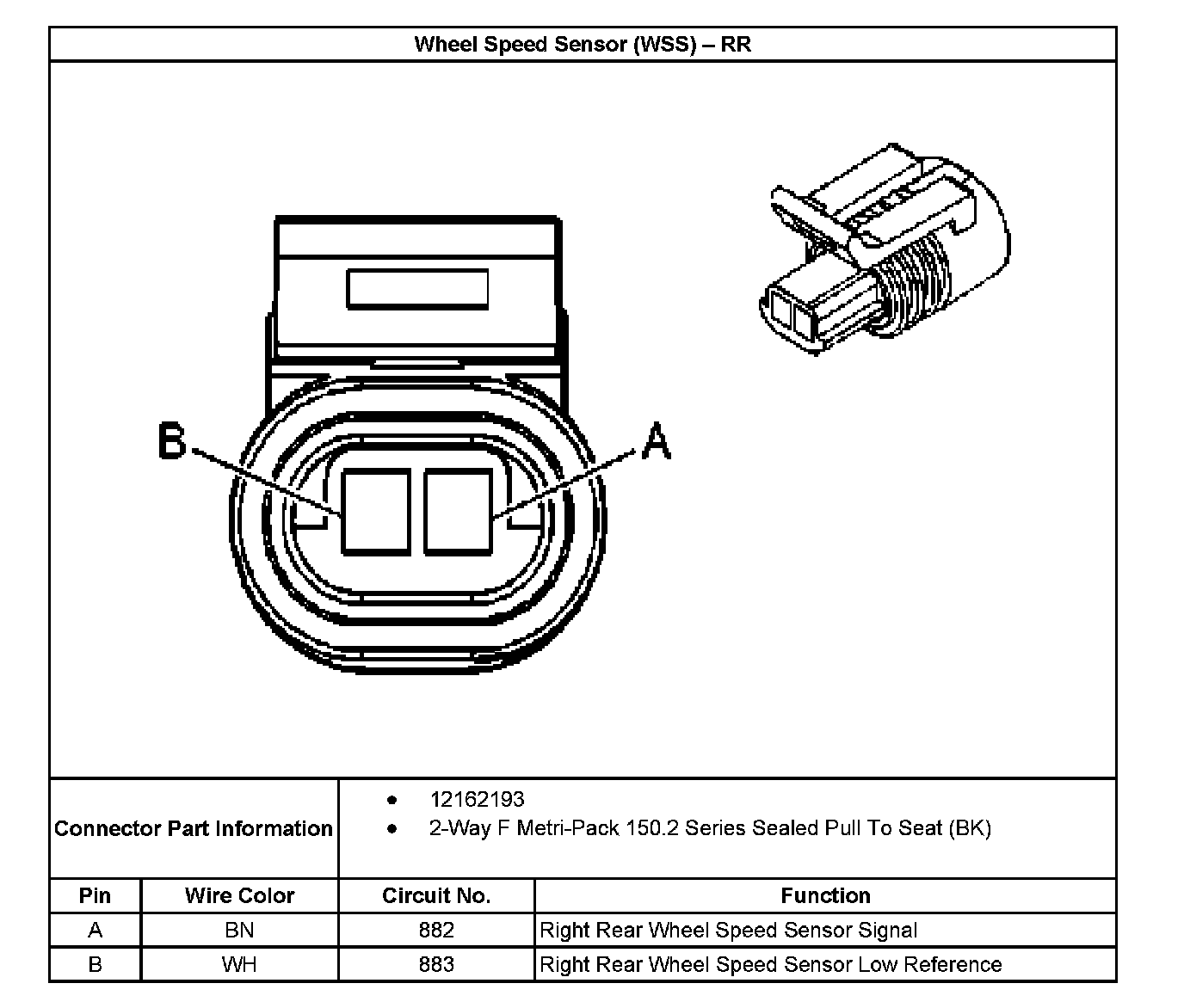

Wheel Speed Sensor - RR:
