Electrical Diagrams



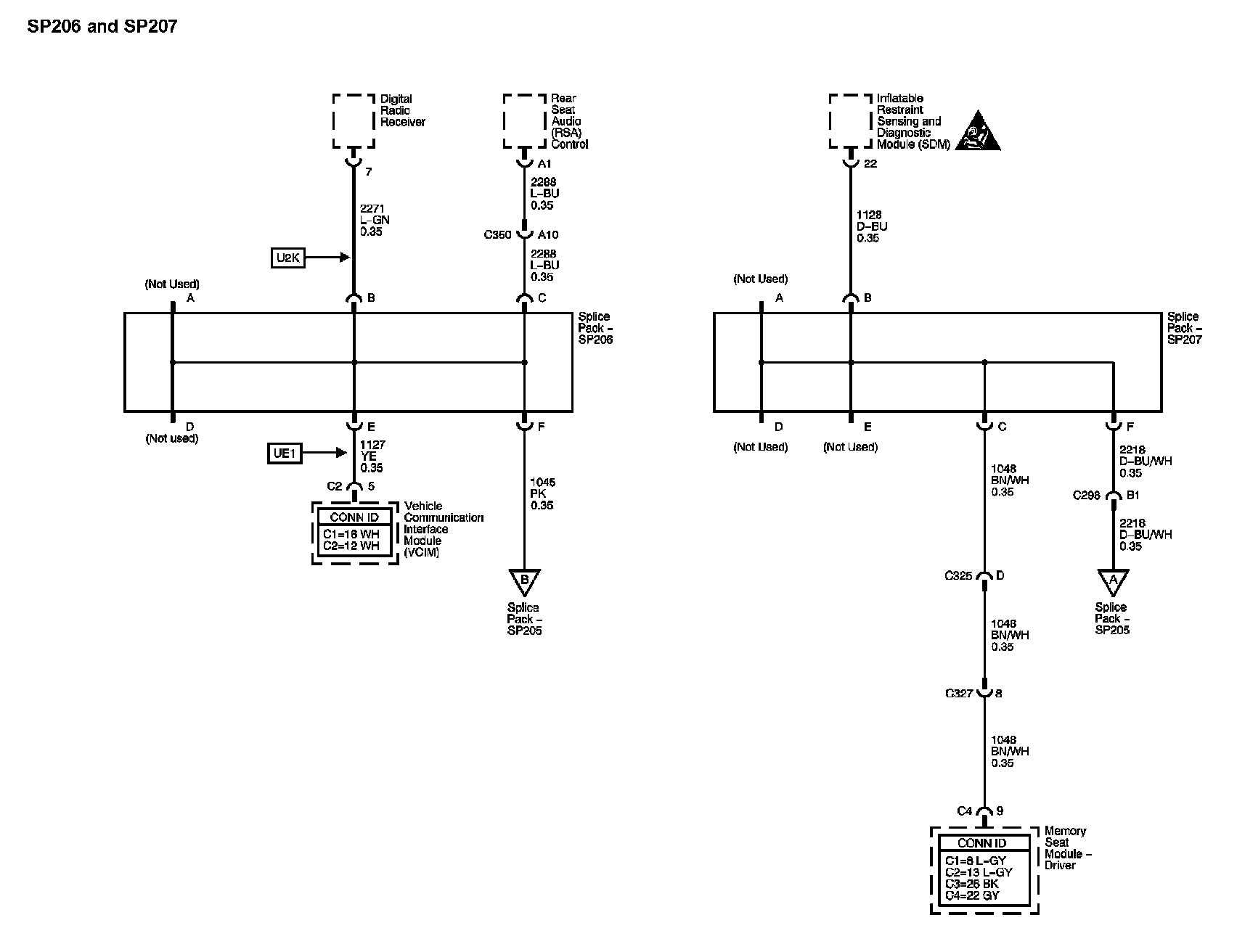

Data Link Connector (DLC) Diagram 1:

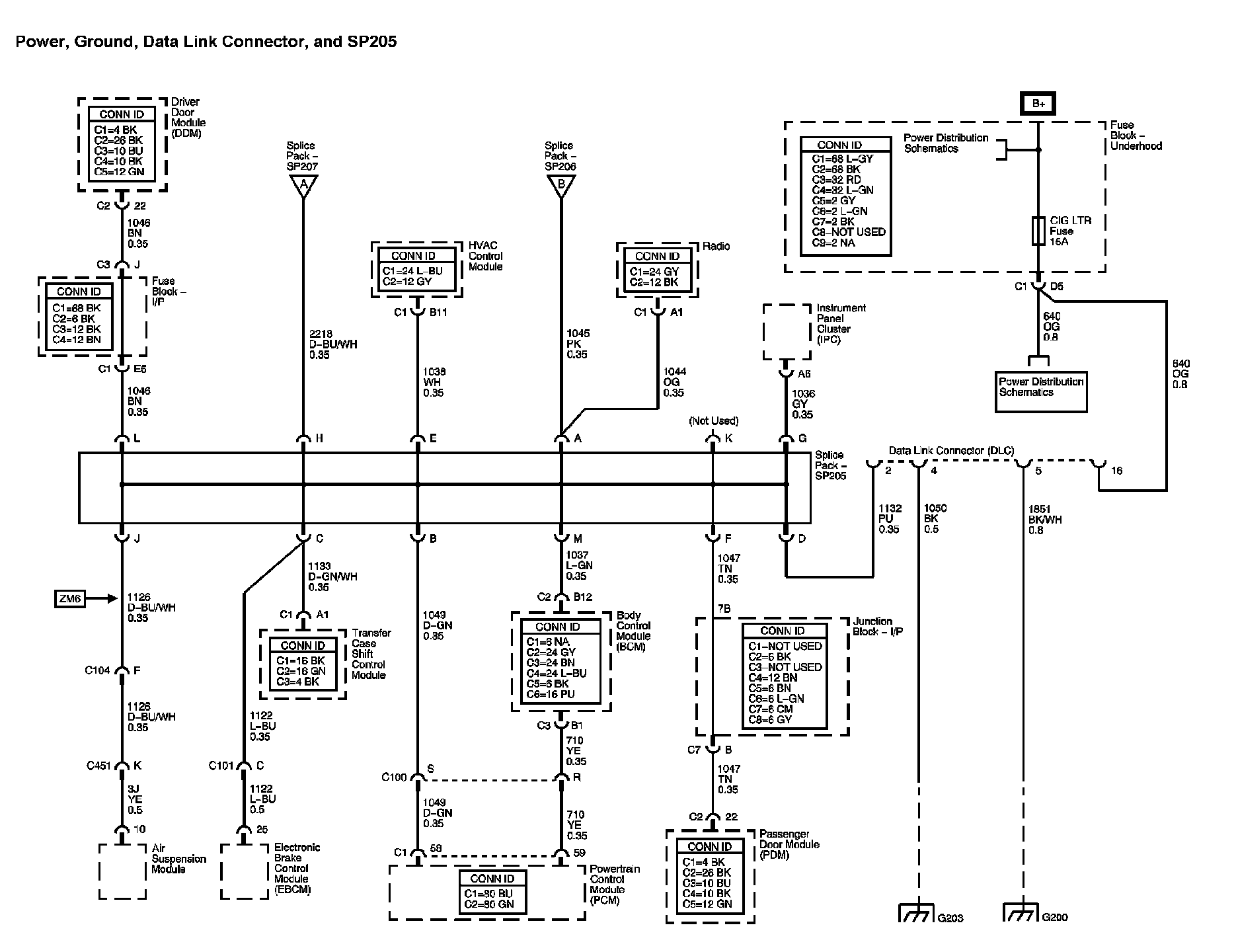

Data Link Connector (DLC) Diagram 2:






Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
