Retained Accessory Power (RAP) Diagrams

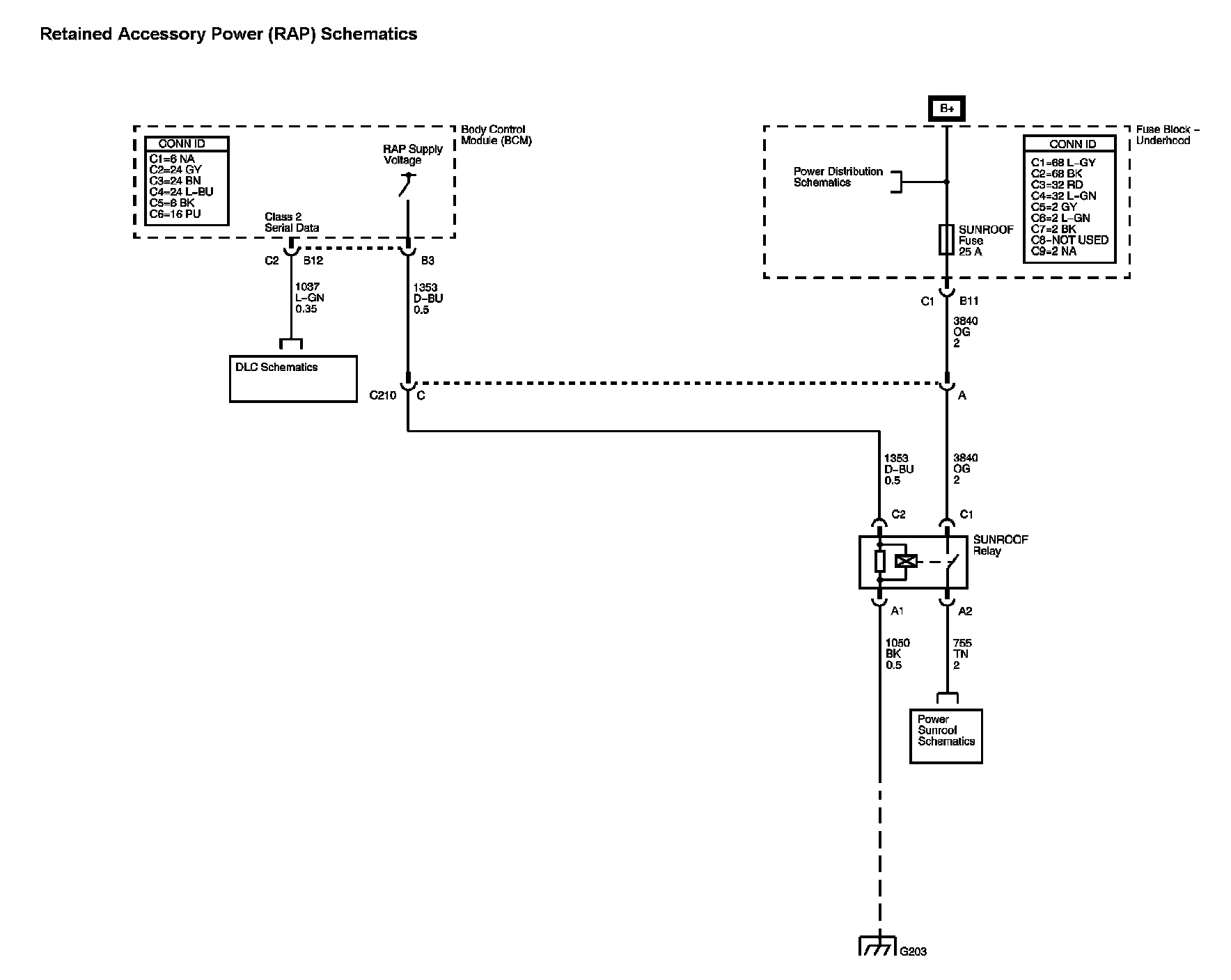

Retained Accessory Power (RAP) Diagram:






Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
