Switch Replacement - Midgate Window

SWITCH REPLACEMENT - MIDGATE WINDOW

REMOVAL PROCEDURE




1. Remove the driver side instrument panel (I/P) accessory trim plate.




2. Release the midgate switch clips and partially remove the midgate switch from the I/P switch carrier.

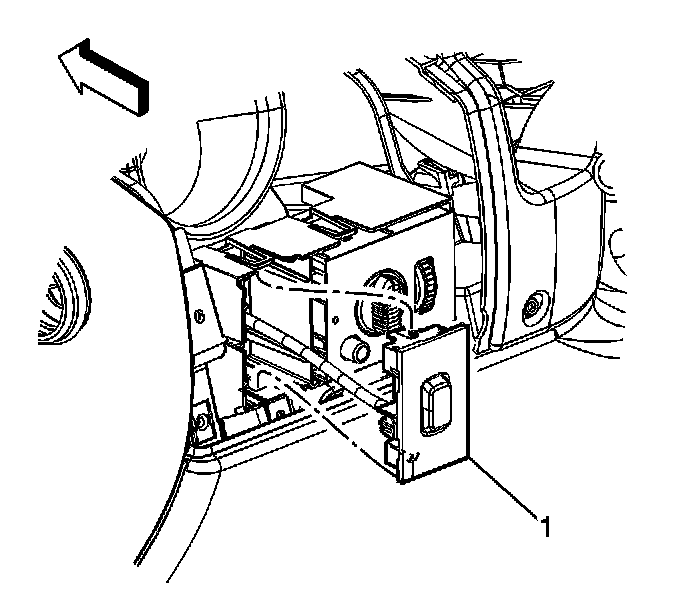

3. Disconnect the electrical connector from the midgate switch (1).
4. Remove the midgate switch (1) from the vehicle.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the midgate switch (1).
2. Align the switch (1) to the I/P and snap into place.




3. Install the driver side I/P accessory trim plate.
