Power Door Systems Component Views

Fig 1: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Outside Rearview Mirror
3	Memory/Heated Seat Switch
4	Driver Door Module (DDM) Connector - C5
5	Driver Door Module (DDM)
6	Fuse Block - I/P - C3
7	Speaker - Left Front Door
8	Window Motor - Driver
9	Door Courtesy Lamp - Left Front
10	Door Latch Assembly - Driver
11	Door Lock Cylinder

Fig 2: Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door
2	Outside Rearview Mirror
3	Passenger Door Module (PDM)
4	Door Latch Assembly - Passenger
5	Door Courtesy Lamp - Right Front
6	Window Motor - Passenger
7	Speaker - Right Front Door
8	Junction Block - I/P - C2
9	Junction Block - I/P - C7
10	Heated Seat Switch

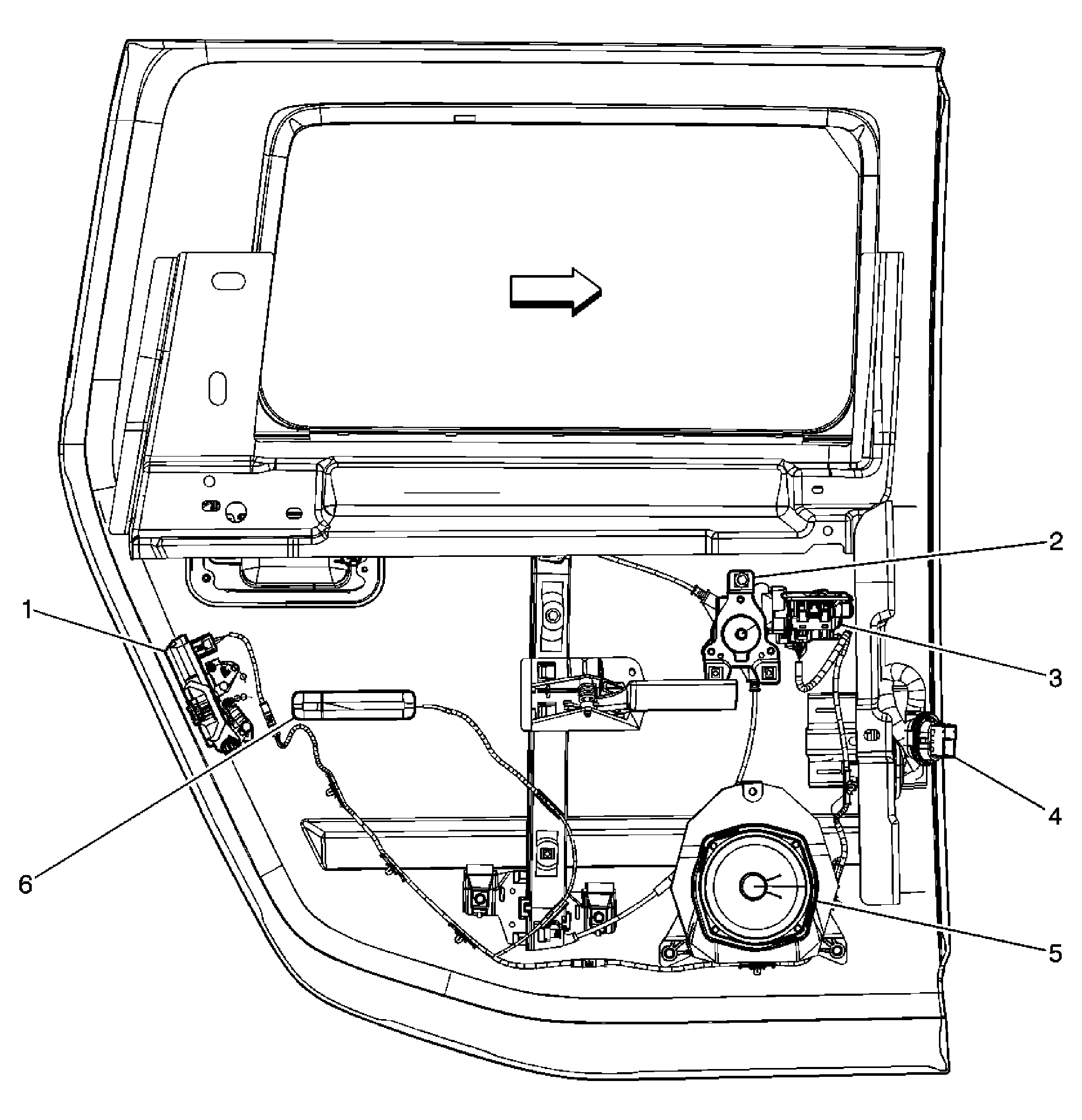

Fig 3: Left Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Left Rear
2	Window Motor - Left Rear
3	Window Switch - Left Rear
4	C310
5	Speaker - Left Rear
6	Door Courtesy Lamp - Left Rear

Fig 4: Right Rear Door

Courtesy of GENERAL MOTORS CORP.

Fig 5: Liftgate Relay Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right B-Pillar
2	C390
3	G306
4	Liftgate Lock Relay (Except SUT)
5	Courtesy Lamp - Right B-Pillar
6	Body Harness

Fig 6: Door Lock Actuator - Liftgate Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL) Connector
2	Rear Window Defogger Grid Connector
3	Rear Window Defogger Grid Connector
4	Splice S900
5	Rear Window Wiper Module - w/Motor
6	Door Lock Actuator - Liftgate
7	Liftgate Ajar Switch - Left
8	Liftgate Ajar Switch - Right
9	Splice S902
10	Splice S901
