Installation Procedure

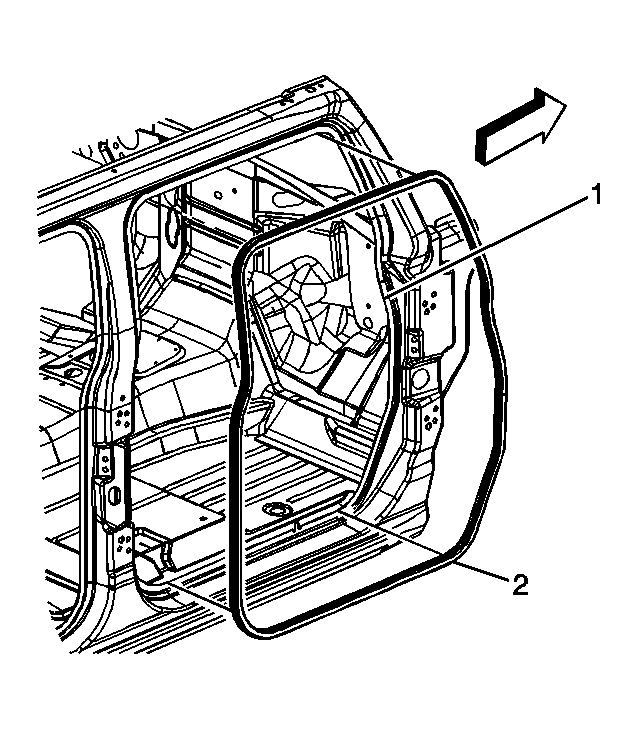

    Fig 1: Front Door Opening Weatherstrip
    GM862061Courtesy of GENERAL MOTORS CORP.
  1. Starting at the top center of the door opening, install the weatherstrip (2) to the pinch-weld flange (1) and work down the right and left sides towards the bottom center, being careful not to stretch the weatherstrip during installation.
  2. Use a rubber mallet to ensure proper seating of the weatherstrip on the pinch-weld flange.
  3. Close the door.
