Installation Procedure

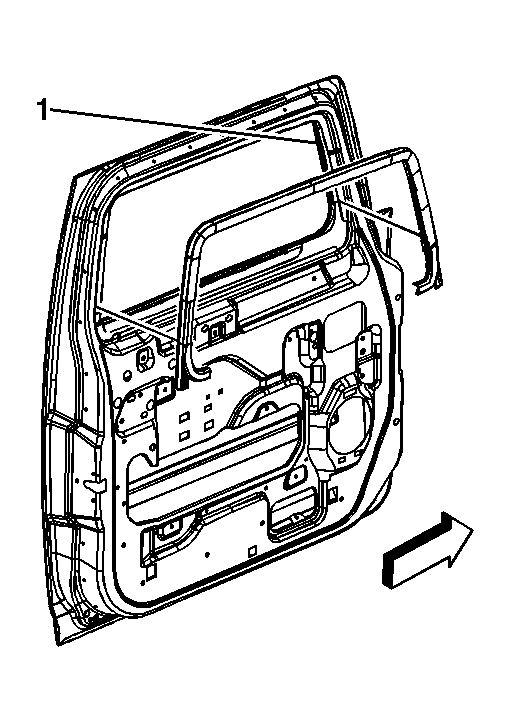

    Fig 1: Front Door Window Weatherstrip
    GM839442Courtesy of GENERAL MOTORS CORP.
  1. Install weatherstrip down onto the flange in the door frame (1), ensuring that it is fully seated.
  2. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Raise the window and inspect for proper fit.
