Door Control Module Schematics

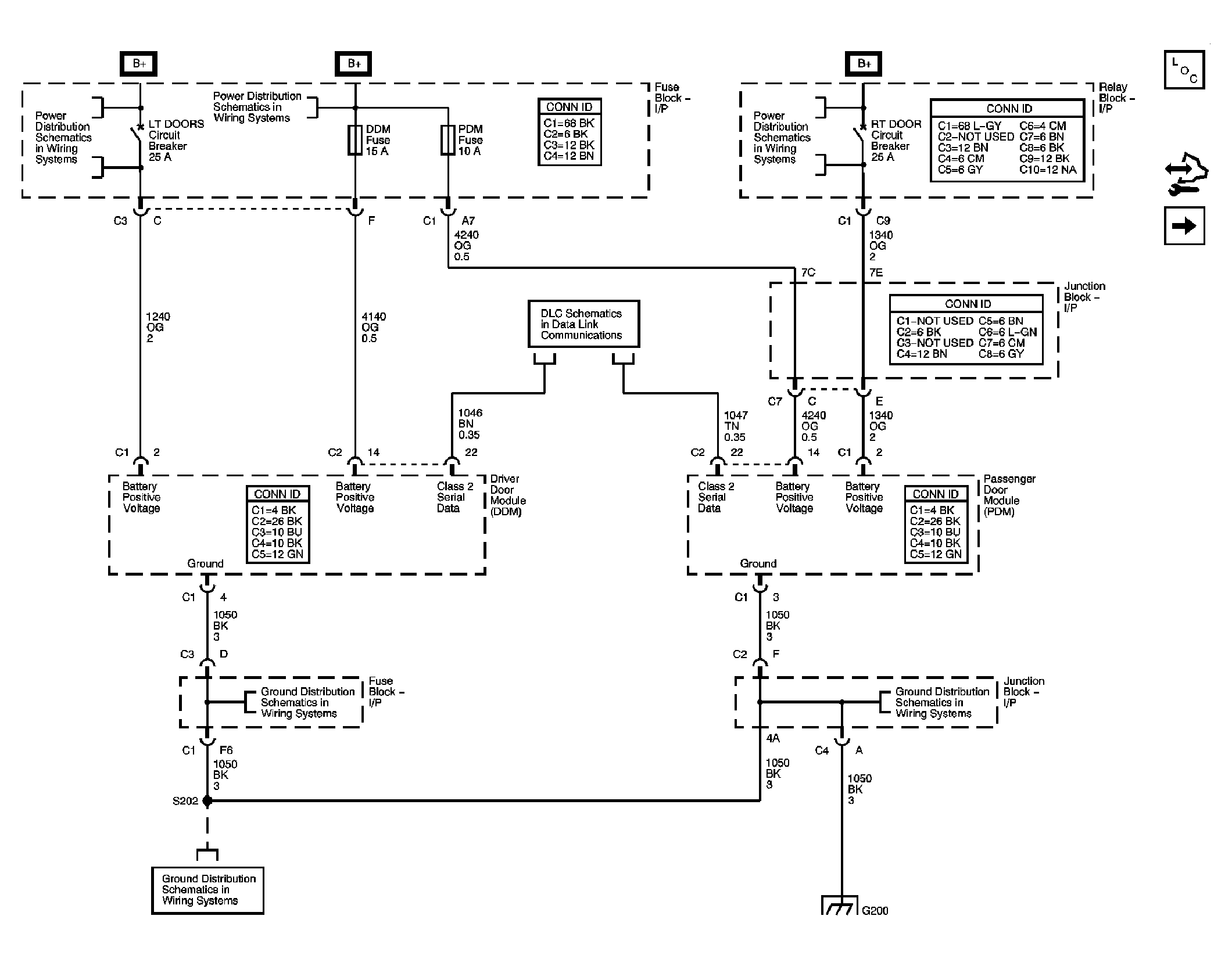

Fig 1: Power, Ground, and Serial Data

GM1608116

Courtesy of GENERAL MOTORS CORP.

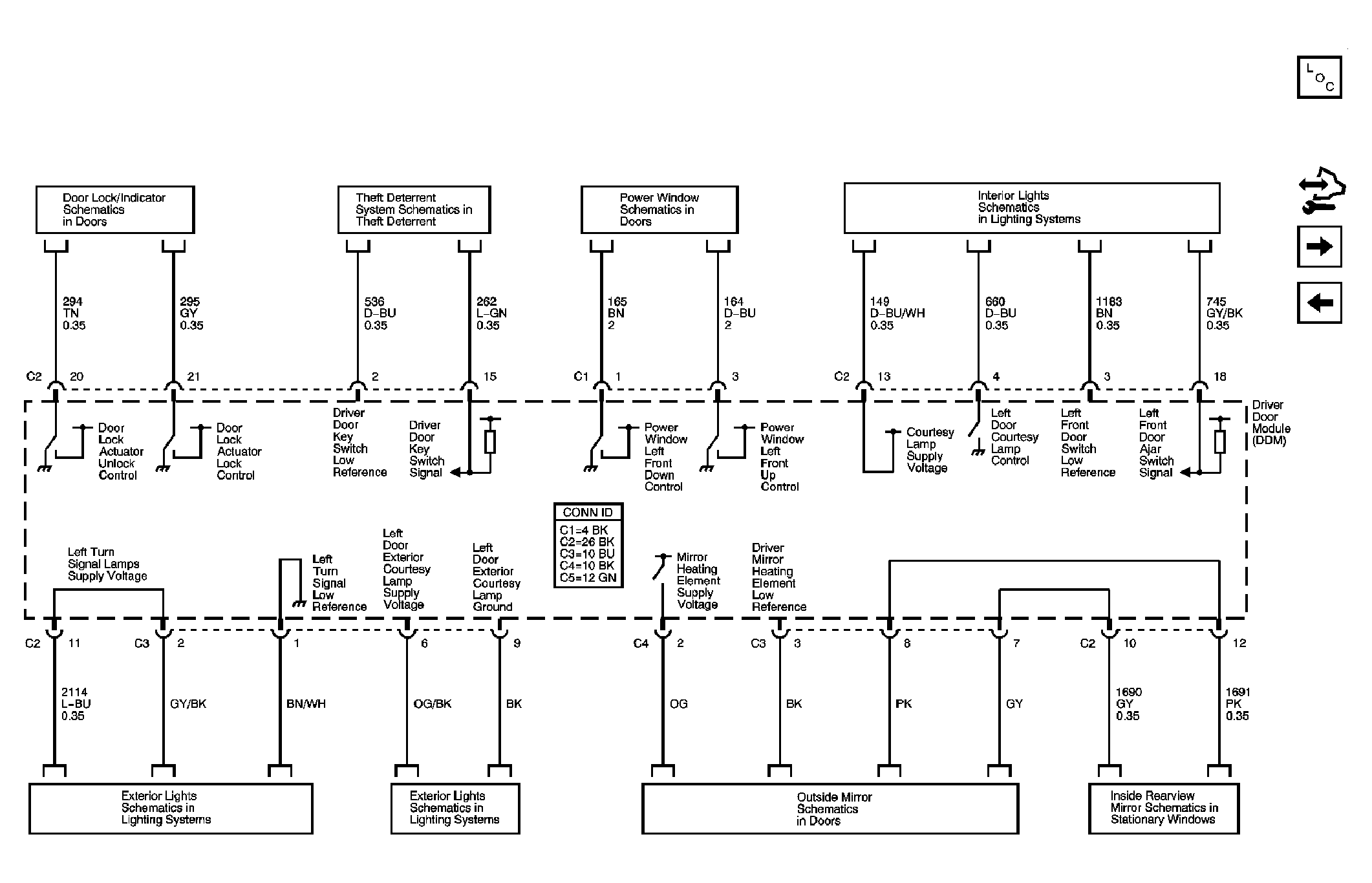

Fig 2: Driver Door Module References 1 of 2

GM1608117

Courtesy of GENERAL MOTORS CORP.

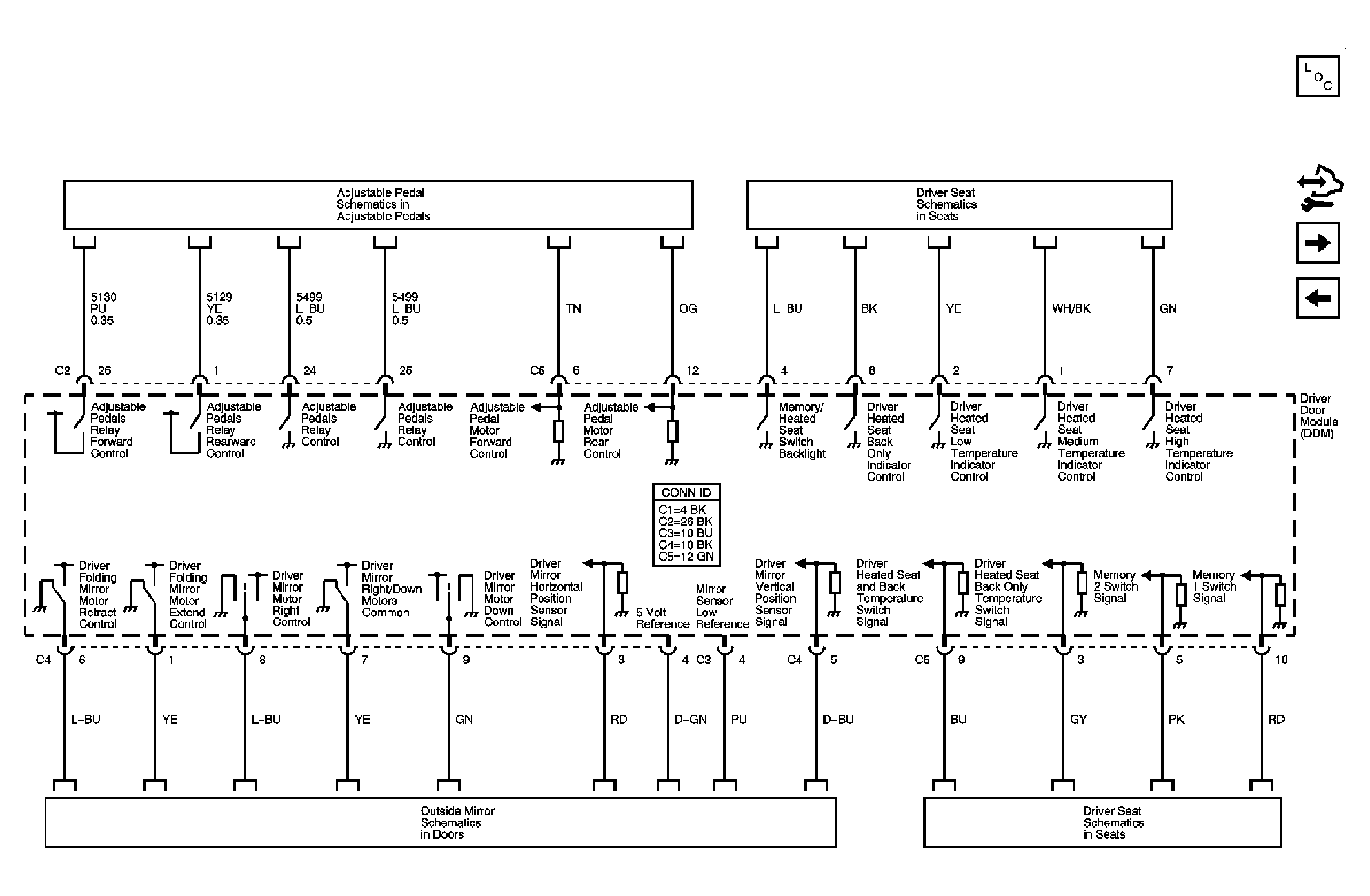

Fig 3: Driver Door Module References 2 of 2

GM1608118

Courtesy of GENERAL MOTORS CORP.

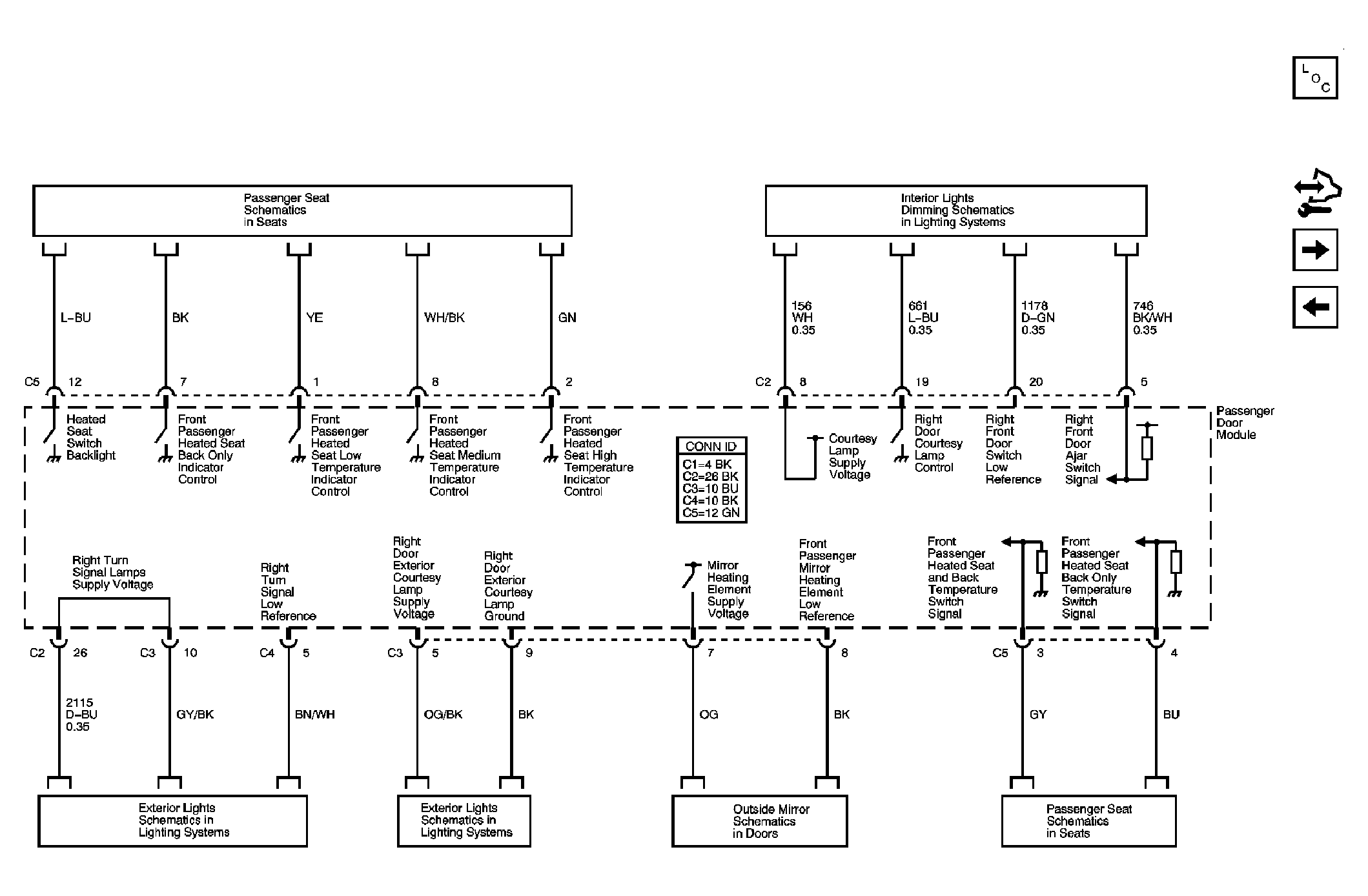

Fig 4: Passenger Door Module References 1 of 2

GM1608119

Courtesy of GENERAL MOTORS CORP.

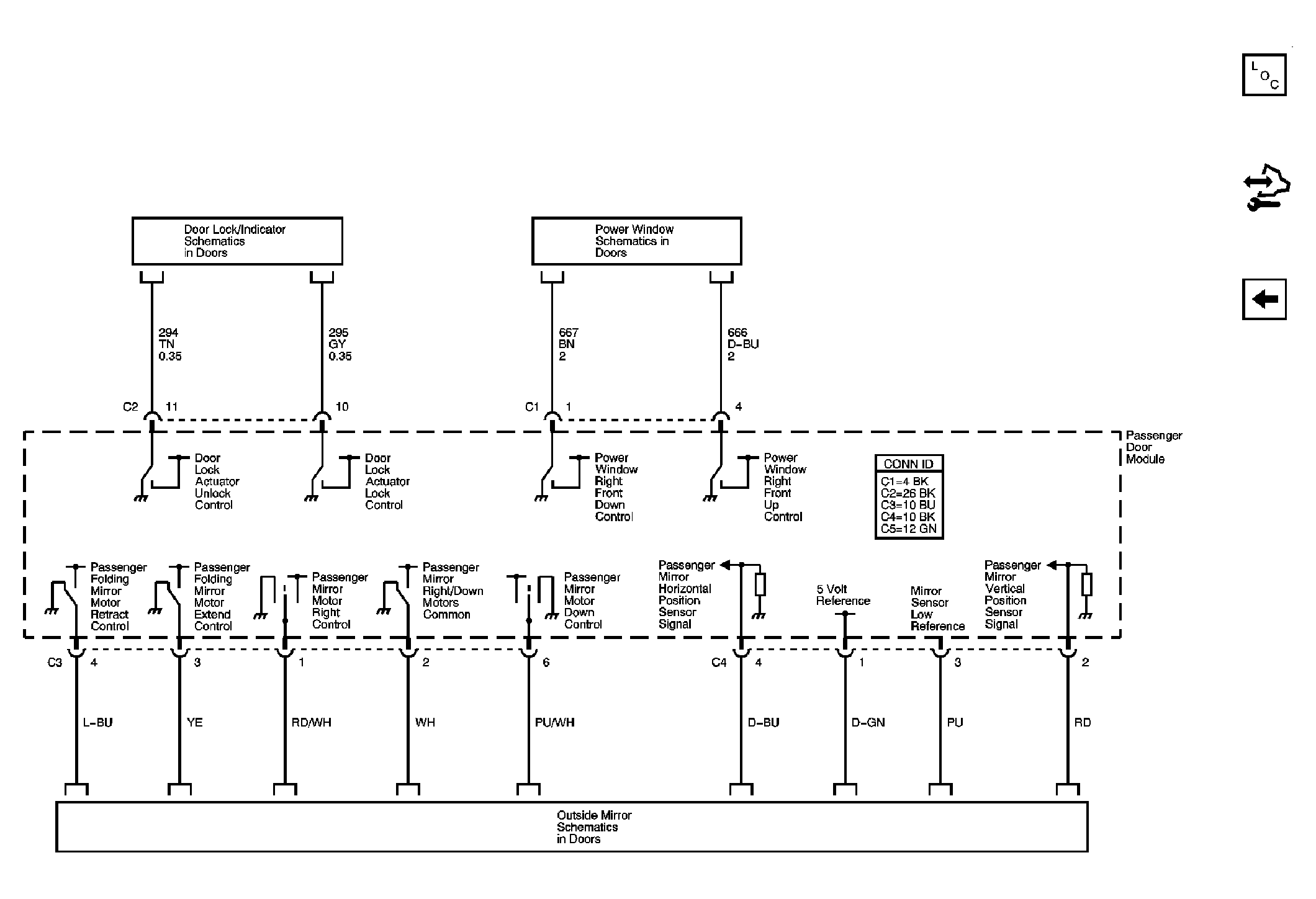

Fig 5: Passenger Door Module References 2 of 2

GM1608121

Courtesy of GENERAL MOTORS CORP.
