Power Seat Switch

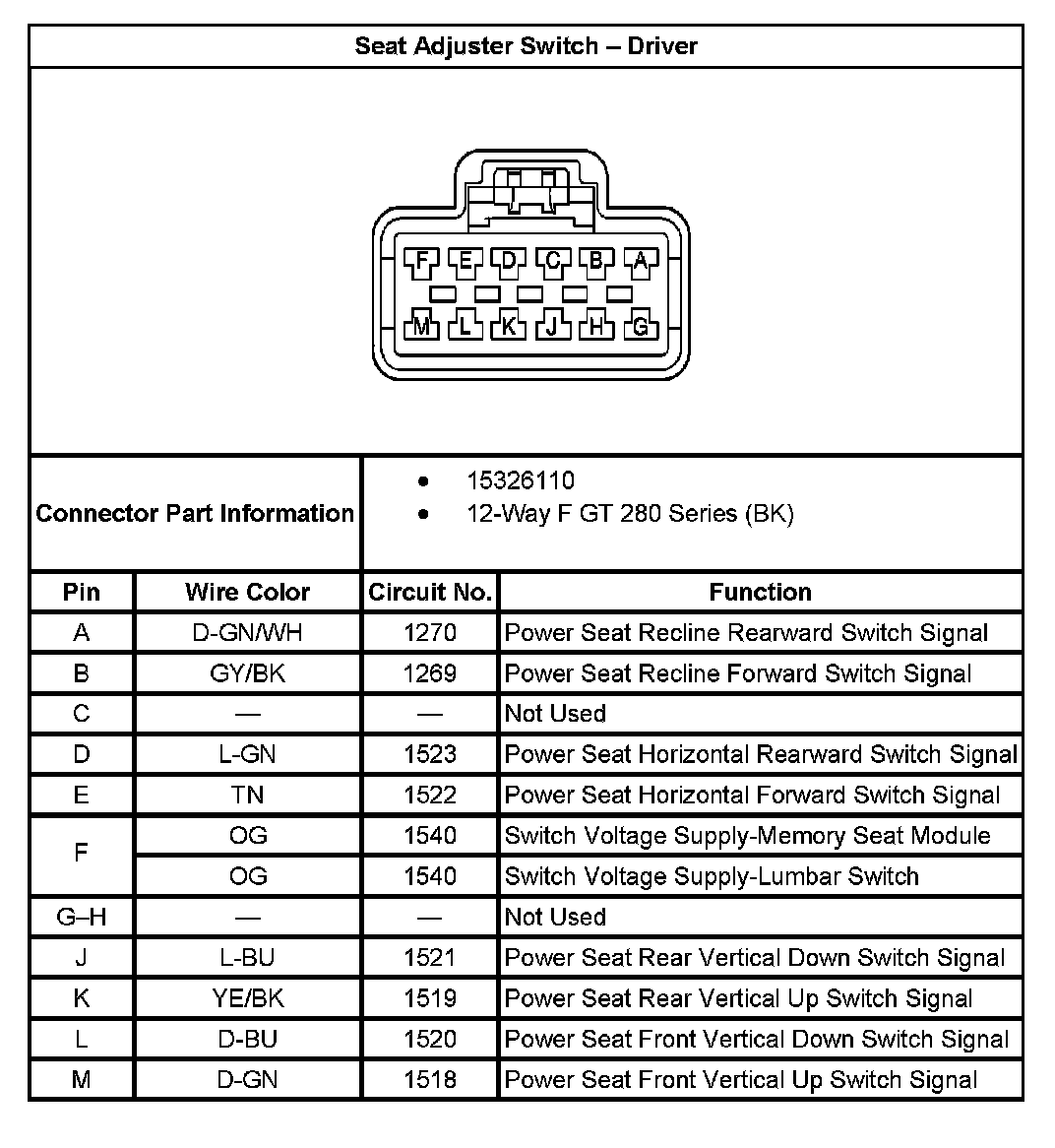

Seat Adjuster Switch - Driver:

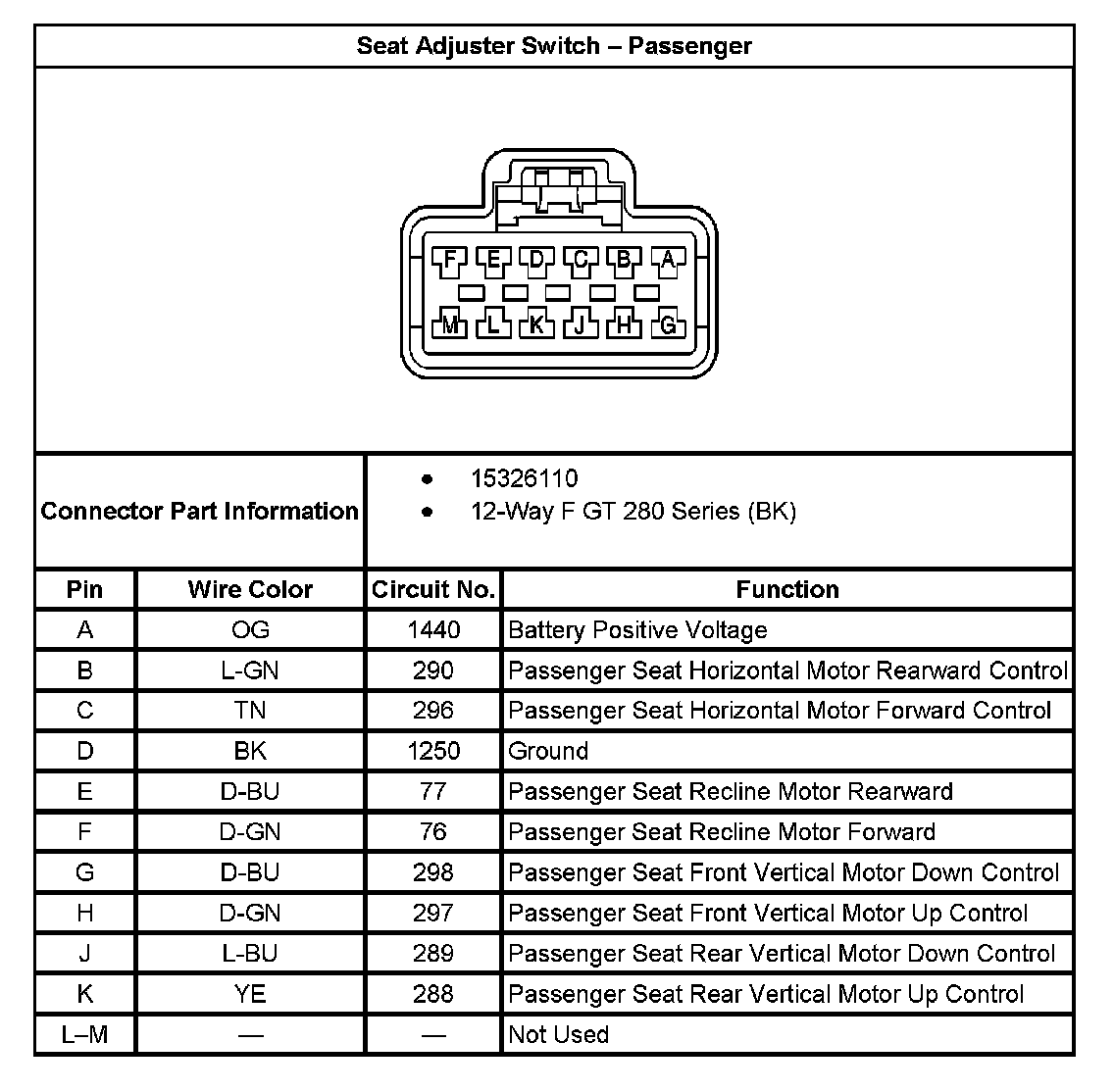

Seat Adjuster Switch - Passenger:



Seat Bolster/Lumbar Switch - Driver:



Seat Bolster/Lumbar Switch - Passenger:
