Relay Block - I/P C7

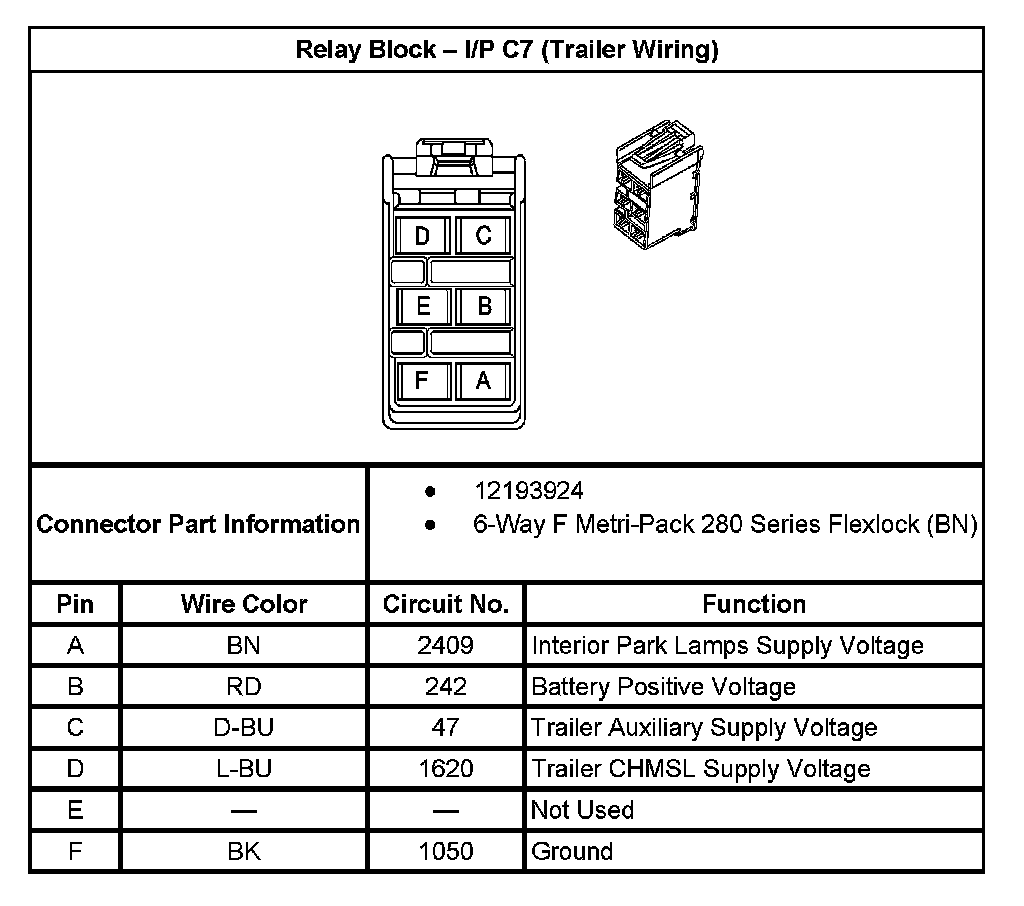

Relay Block - I/P C7 (Trailer Wiring):

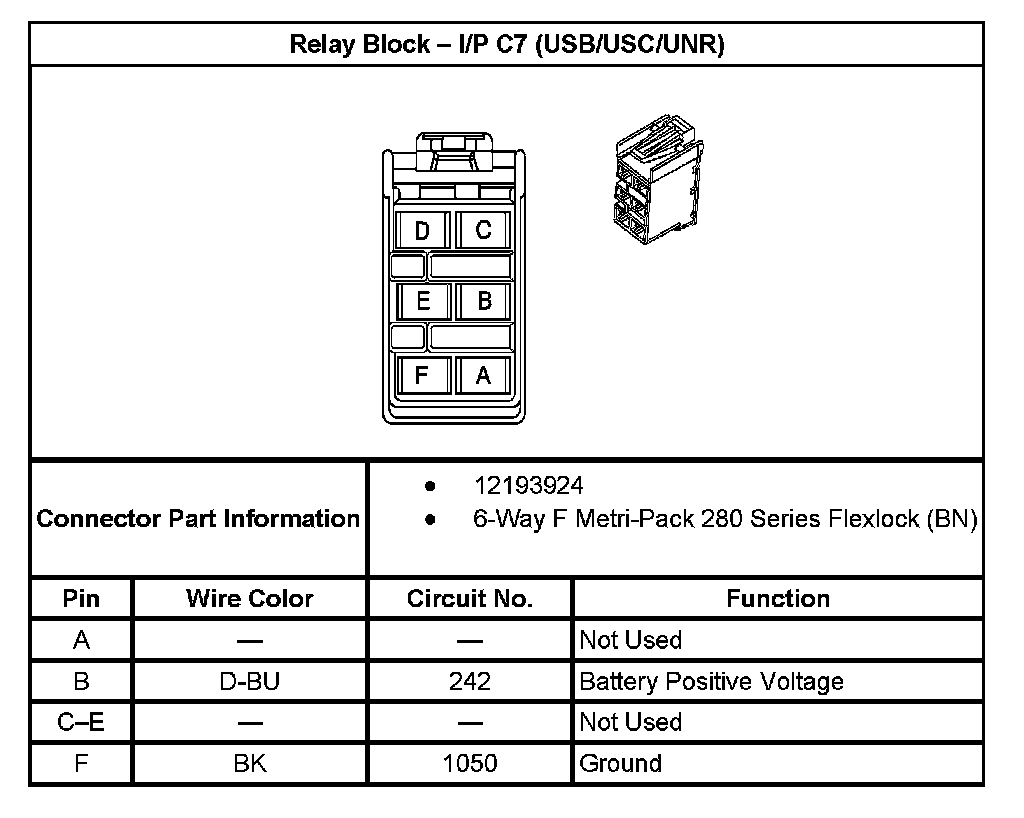

Relay Block - I/P C7 (With RPO Code USB/USC/UNR):
