Rear of Engine

Rear of Engine

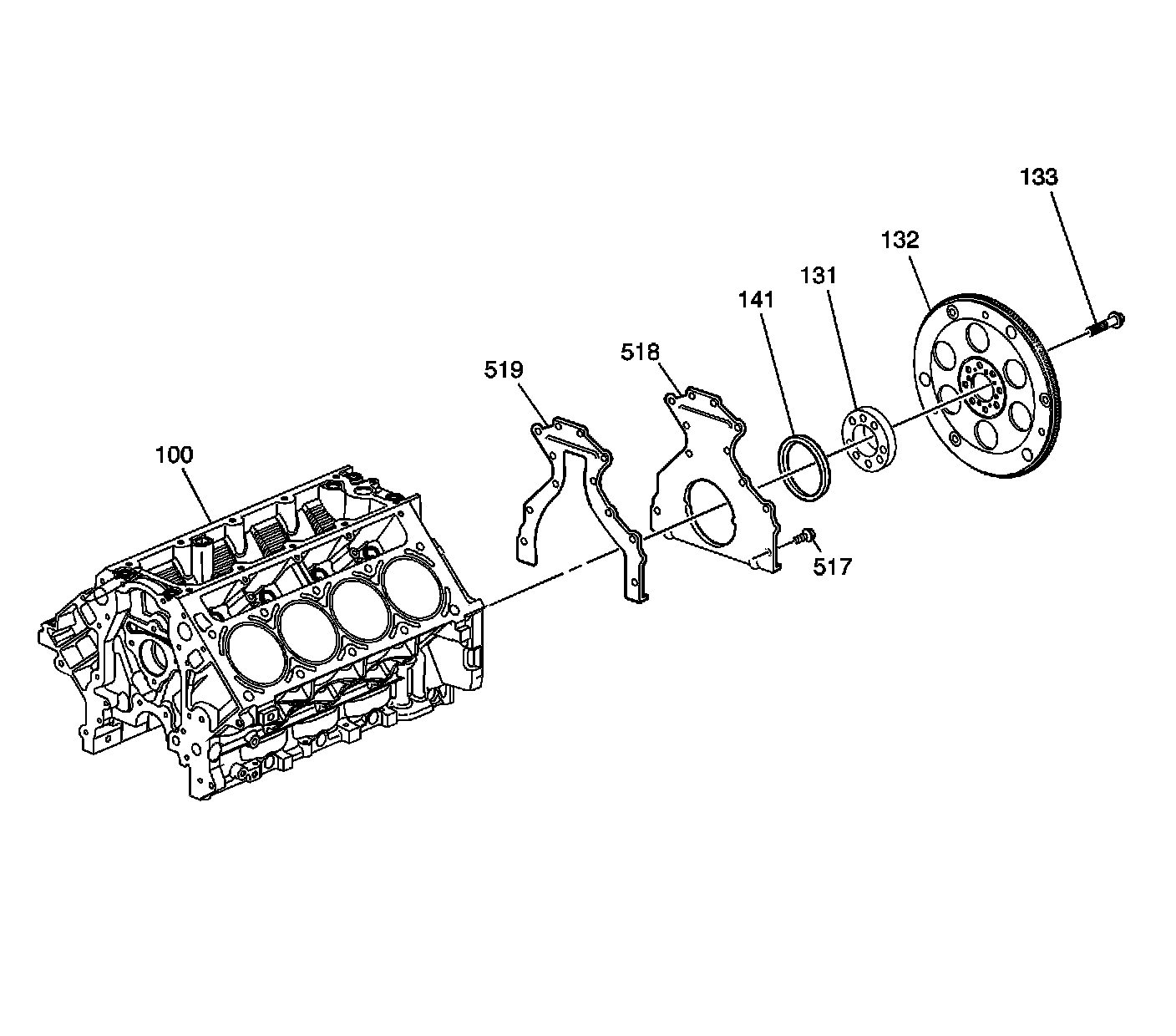

Rear of Engine:

100 - Engine Block
131 - Flex Plate Spacer
132 - Flex Plate - Automatic Transmission
133 - Flex Plate Bolt
141 - Crankshaft Rear Oil Seal
517 - Crankshaft Oil Seal Housing Bolt
518 - Crankshaft Oil Seal Housing
519 - Crankshaft Oil Seal Housing Gasket
