Hummer
>>
2006
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>
Junction Block I/P
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Junction Block I/P
Location View:
Location View:

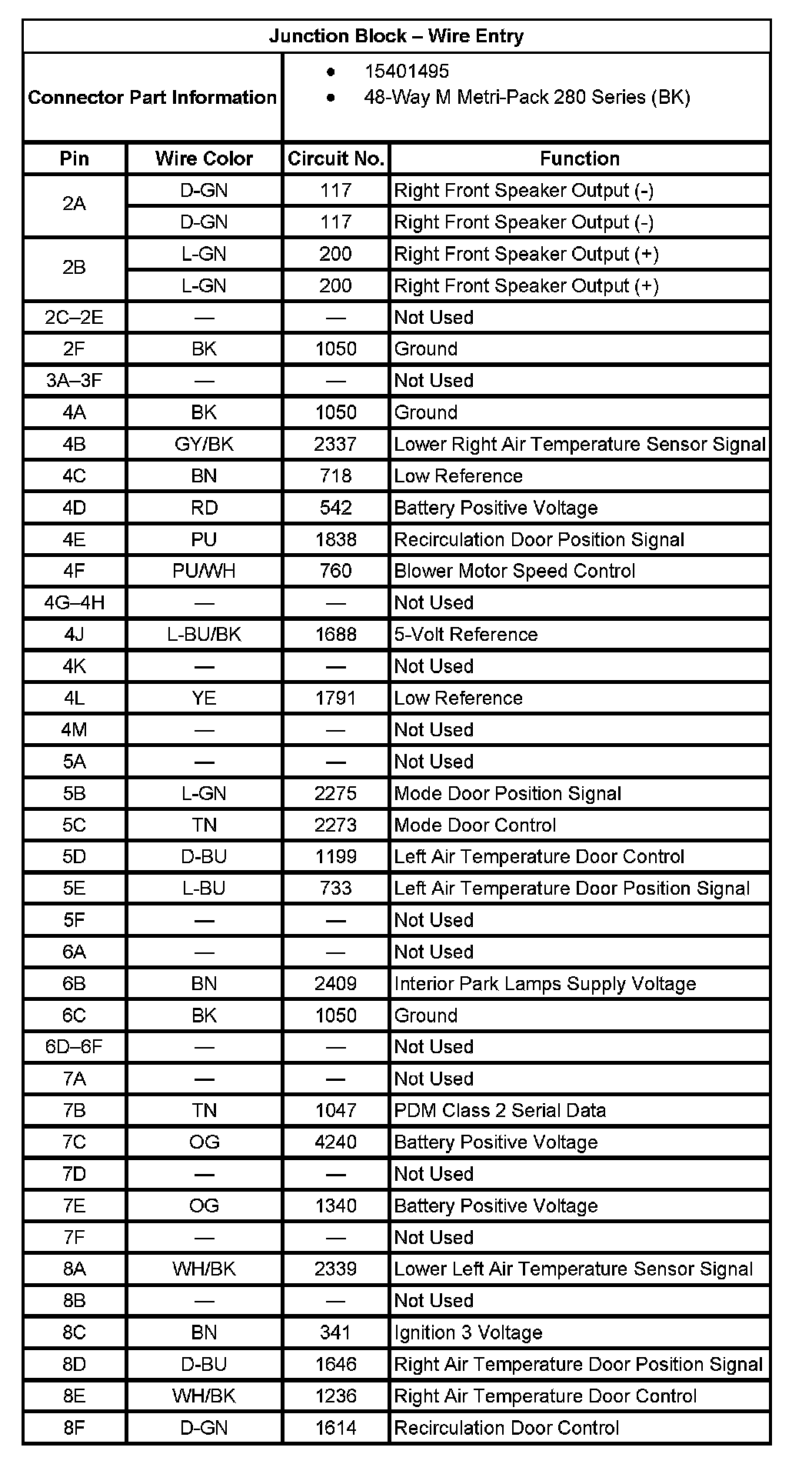

Junction Block - Wire Entry:
