Oil Pan - Bottom View

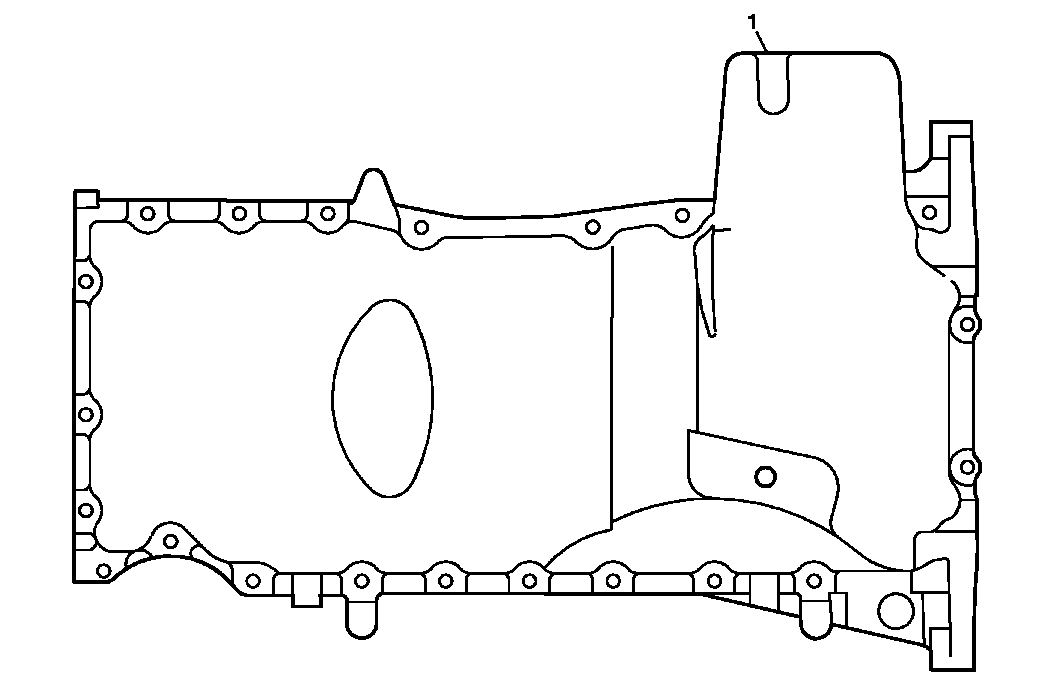

Fig 1: Oil Pan - Bottom View
GM858434Courtesy of GENERAL MOTORS CORP.
Oil Pan - Bottom View

Service Hole Location Thread Size Drill Counterbore Tool Stop Collar Tap Driver Insert Drill Depth (Max) Tap Depth (Min)
J 42385-400  . See Special Tools . mm (in) mm (in)
1 M 8 x 1.25 206 207 n/a 208 209 415 THRU THRU
